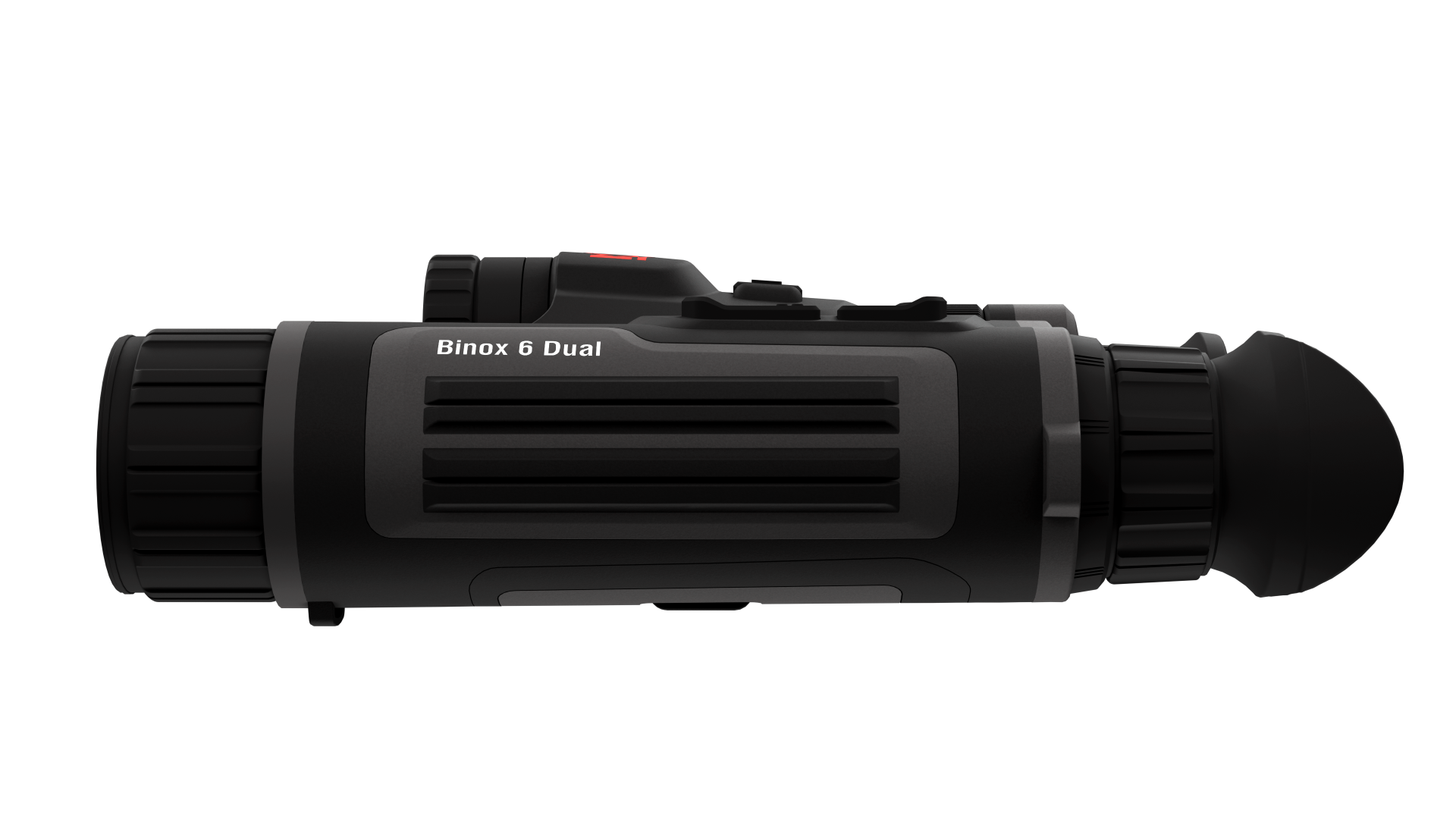

ATN Binox 6 Dual Multispectral Binoculars, Thermal 640×512 Sensor, Day/Night/Twilight 4K UHD, Built-in LRF

SKU
MSBNB6635A
Save 15%
$3,595.00
$3,055.75
Add to Compare
0% APR for 6/12 months or interest bearing for 36 months*

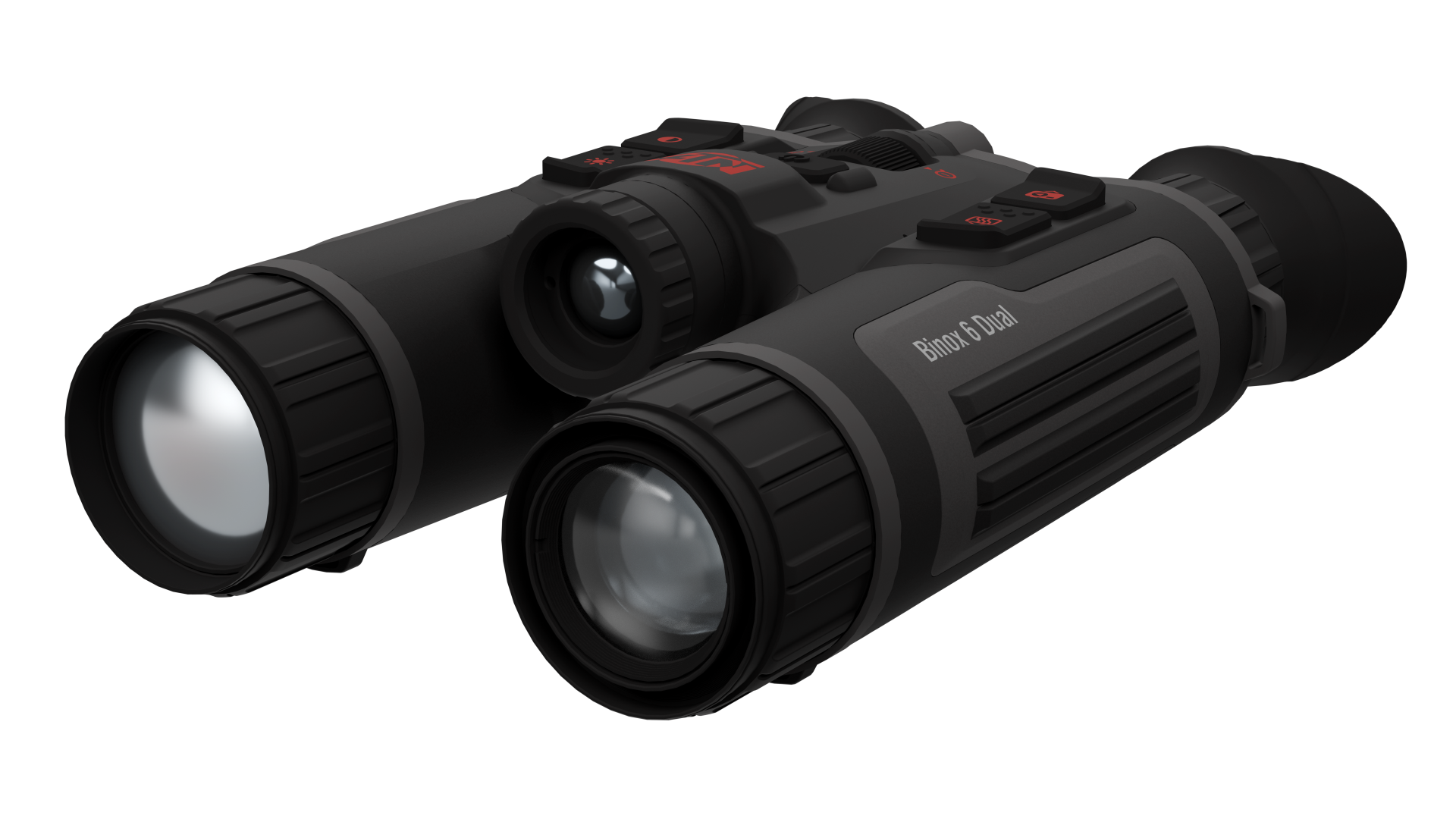

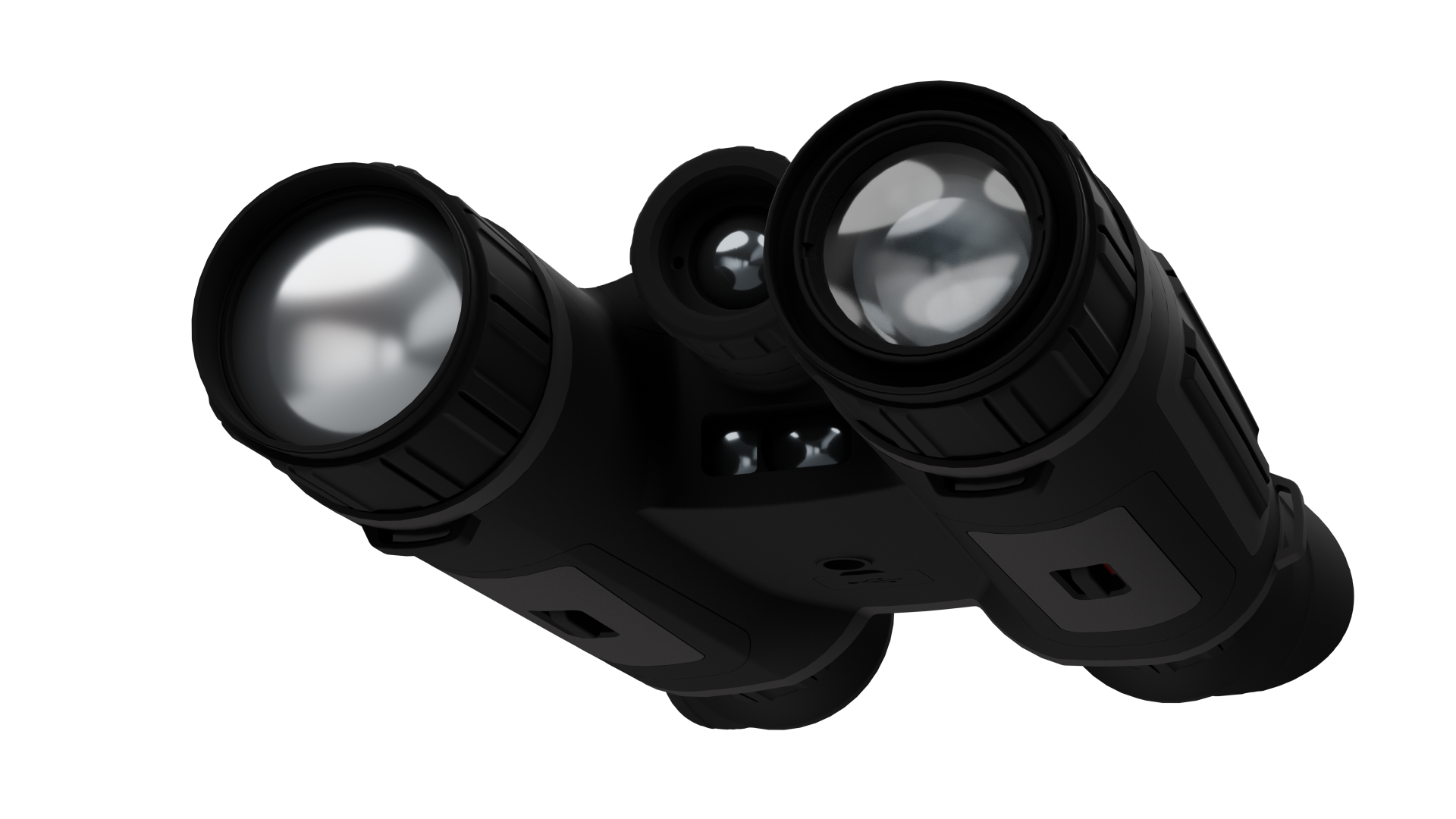

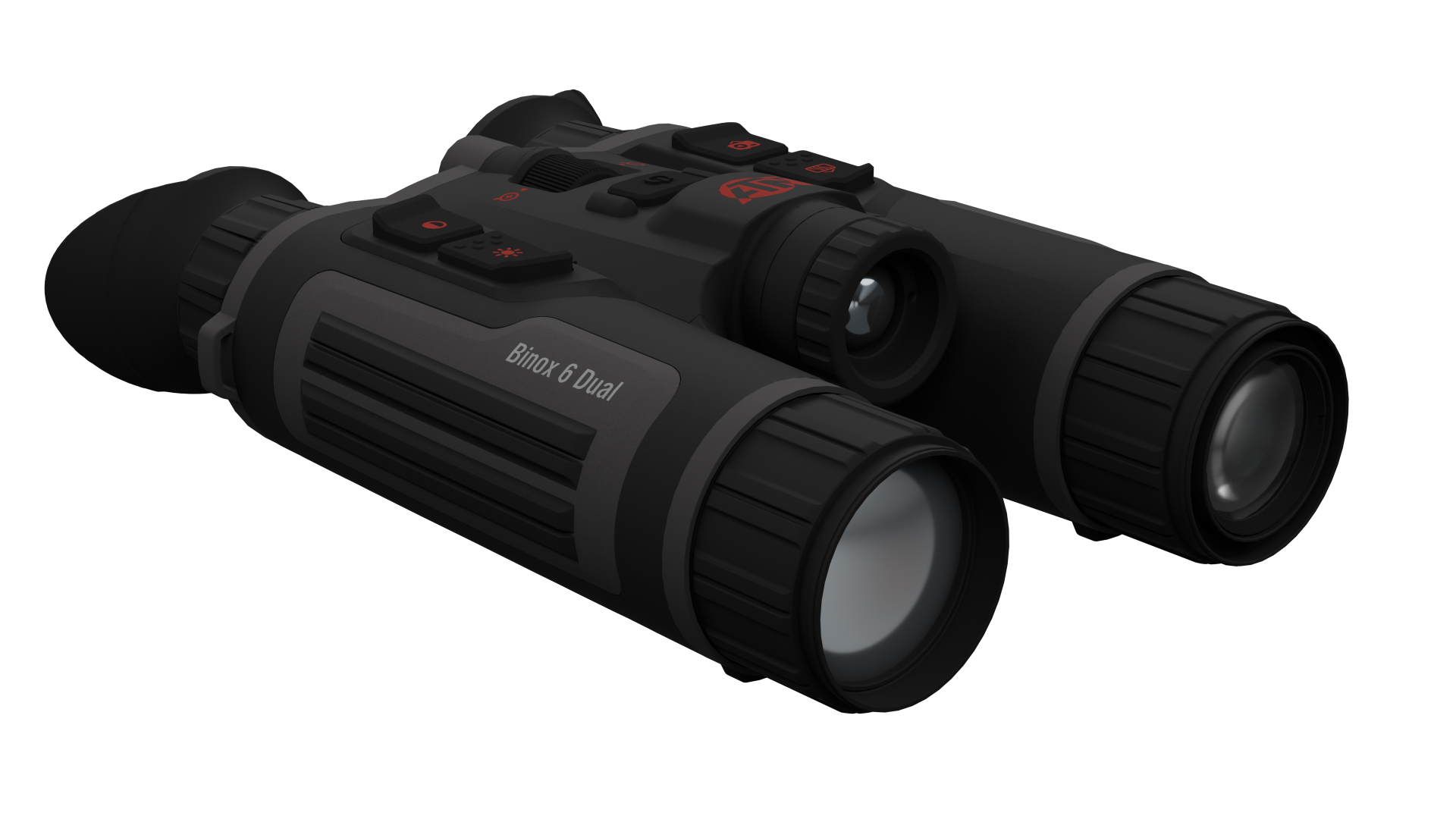

ATN BINOX 6 DUAL
MULTISPECTRAL BINOCULAR SYSTEM
See Beyond Limits. Day or Night.


Engineered for professionals and enthusiasts who demand complete situational awareness in any light, the ATN Binox 6 Dual combines advanced thermal and digital imaging technologies into one compact, powerful platform. Whether glassing ridgelines at dawn, scanning for heat signatures at night, or coordinating rescue efforts in fog and darkness, it delivers uncompromised clarity and control.


At its core is ATN’s 6th Generation Thermal Engine, the most powerful ever built. Featuring a 12 μm VOx sensor available in 256×192 (≤20 mK), 384×288 (≤15 mK), or 640×512 (≤15 mK) configurations, it provides exceptional thermal precision and detection performance. A high-transmission germanium lens and Wide Dynamic Range processing work together to reveal subtle heat signatures even in dense brush, smoke, or low-contrast conditions.


By day, the 1.8-inch 4K CMOS sensor delivers vibrant, ultra-high-definition color imaging with detail that rivals professional cameras. When the light fades, the built-in IR illuminator extends visibility up to 350 meters, keeping every detail visible while maintaining stealth.


For versatility, the Binox 6 Dual includes Dual-View Switching technology, allowing seamless transition between thermal, daytime, and night vision modes. Hunters can track movement across terrain while maintaining situational context, and search-and-rescue or tactical teams can detect, identify, and engage with speed and accuracy in all conditions.


Powered by ATN SharpIR, the Binox 6 Dual uses AI-enhanced imaging to sharpen detail, boost contrast, and enhance edge definition in real time. Combined with a 0.49-inch 1920×1080 OLED display running at a smooth 50 Hz refresh rate, users get lifelike motion and reduced eye fatigue even during extended observation.


A built-in 1,000-yard laser rangefinder (±1 m) provides precise distance data, enabling hunters to make confident shots, SAR teams to relay accurate coordinates, and law enforcement to establish perimeters or assess targets.


With onboard 64 GB internal storage, 4K daytime and 1080p thermal recording, and Wi-Fi connectivity, the Binox 6 Dual allows seamless capture, playback, and sharing through the ATN Connect 6 app. Advanced features like Hot Point Tracking, Smart IR, DeFOG Mode, and Step+Smooth Zoom deliver unmatched adaptability in changing environments.


Built from lightweight magnesium alloy, the Binox 6 Dual weighs under 1.62 lbs yet withstands impact, dust, and weather with IP67-rated durability. Powered by dual 18650 rechargeable batteries with up to 8 hours of runtime, it is as reliable as it is intelligent.


Stay in control with intelligent features
• 6th Generation Thermal Engine with ≤15 mK or ≤20 mK sensitivity options
• High transmission germanium lens for sharper, brighter thermal clarity
• Ultra HD 4K CMOS day sensor with IR-assisted night vision up to 350 m
• ATN SharpIR AI-enhanced imaging for dynamic edge and contrast improvement
• Dual-View Switching for instant mode transitions between thermal, day, and night
• Integrated 1,000-yard laser rangefinder for accurate distance measurement
• Hot Point Tracking for quick target acquisition
• Wide Dynamic Range processing for enhanced visibility in complex scenes
• Multiple color palettes for personalized viewing and reduced eye fatigue
• Onboard 4K and 1080p recording with 64 GB internal storage
• Built-in Wi-Fi for live streaming and mobile connectivity
• Smart IR and DeFOG modes for adaptive lighting and visibility control
• Rugged magnesium housing with IP67 protection and tripod mount compatibility
• Dual replaceable 18650 batteries for up to 8 hours of field operation


Lightweight, durable, and equipped with the most advanced imaging technologies available, the Binox 6 Dual gives hunters, professionals, and tactical operators the power to see farther, react faster, and perform with total confidence.


See beyond limits. Day or night.

THERMAL IMAGING SYSTEM
• Detector Type: 12 μm VOx Uncooled Focal Plane Array
• Thermal Sensor Resolution: 640×512
• Refresh Rate: 50 Hz
• Thermal Sensitivity (NETD): ≤ 15 mK
• SharpIR©: Yes
• Non-Uniformity Correction (NUC): Auto / Semi Auto / Manual
• Thermal Lens System: 35 mm (Ge); F/1.0
• Thermal Field of View (H×V): 12.52° × 9.41°
• Focus Mechanism: Manual, Front Lens Adjustment
• Magnification: 3–24×
• Digital Zoom: 1×, 2×, 4×, 8×
• Minimum Focus Distance: 5 m
• Detection Range: 3100 m
• Color Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
• Wide Dynamic Range: Yes

DAY / NIGHT VISION SYSTEM
• Day/Night Sensor Type: 1.8" CMOS Sensor
• Sensor Resolution: 3840×2160 Ultra HD (4K)
• Day Lens System: 55 mm; F/2.0
• Day Lens Field of View (H×V): 8.0° × 4.5°
• Magnification: 5.5–44×
• Night Vision Mode: Yes
• Twilight Mode: Yes
• Smart IR: Yes
• IR Illuminator: Yes
• IR Settings: Low, Medium, High
• IR Wavelength: 850 nm / 940 nm
• Replaceable IR Illuminator: Yes
• Effective Distance at Night: 400 m

RANGEFINDING & TARGETING
• LRF Range: 1000 m
• LRF Accuracy: ±1 m
• LRF Laser Specs: 905 nm, Class 1 (Eye Safe)

DISPLAY & VIEWING
• Display Resolution: 0.49" OLED, 1920×1080
• Exit Pupil: 20 mm
• Eye Relief: 15 mm
• Diopter Adjustment Range: -5 to +5 D
• Interpupillary Adjustment Range: 60–74 mm
• Picture-in-Picture (PIP): Yes

RECORDING & CONNECTIVITY
• Internal Storage: 64 GB
• Video / Audio Recording: Yes
• Image Capture: Yes
• Internal Gallery: Yes
• Recoil Activated Video (RAV): Yes
• Built-in Wi-Fi (Hotspot): Yes
• App: ATN Connect 6 (iOS & Android)
• Media Output: USB Type-C

SMART FEATURES
• Geomagnetic + Gyroscope: Yes
• GPS: Yes
• Compass: Yes
• DeFog: Yes
• Hot Point Tracking: Yes

POWER SYSTEM
• Battery: 2 × 18650 Rechargeable (Replaceable)
• Battery Life: ~8 hrs
• Supports External Power Supply: Yes (USB Type-C 5 VDC / 2 A)
• Standby / Sleep Mode: Yes
• Startup Time: < 7 seconds (instant from Standby)

DESIGN & DURABILITY
• Material: Magnesium Alloy
• Weight: 730 g / 1.61 lbs
• Dimensions (L×W×H): 210×184.5×55 mm (8.27×7.26×2.17 in)
• Mounting: Standard Tripod Mount
• Operating Temperature: -30 °C to +55 °C (-22 °F to 131 °F)
• Waterproof / IP Rating: IP67
THERMAL PERFORMANCE & IMAGE CLARITY
• 6th Generation Thermal Engine
Powered by ATN’s latest 12 μm VOx core, the Binox 6 Dual offers ≤20 mK or ≤15 mK NETD sensitivity for sharp thermal imaging and consistent detection across any environment.

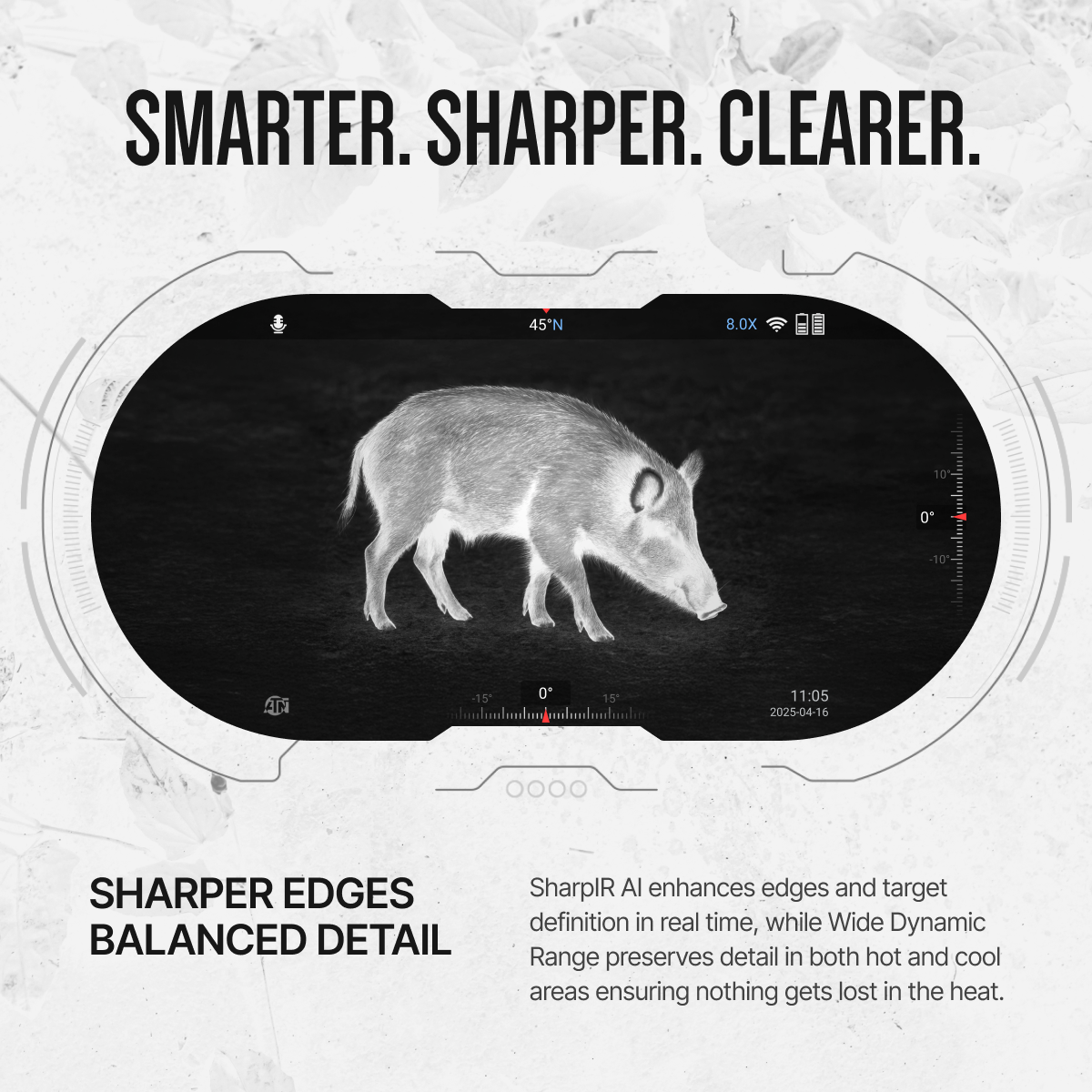

• ATN SharpIR AI Technology
Proprietary AI processing enhances contrast and definition, revealing fine details in fog, smoke, or cluttered terrain for faster identification and smarter decisions.
• High Transmission Germanium Lens
Maximizes thermal signal capture, increasing brightness and detection range without distortion or loss of fidelity.
• Wide Dynamic Range (WDR)
Balances hot and cool areas in every scene, preserving detail and preventing image washout in mixed-temperature environments.
• Multiple Color Palettes
Choose from six thermal palettes including White Hot, Black Hot, Iron Red, Alarm, Green Hot, and Sepia for the best contrast in any setting.
• Hot Point Tracking
Automatically highlights the warmest target in view for faster detection of wildlife, people, or heat sources.

DAY/NIGHT PERFORMANCE

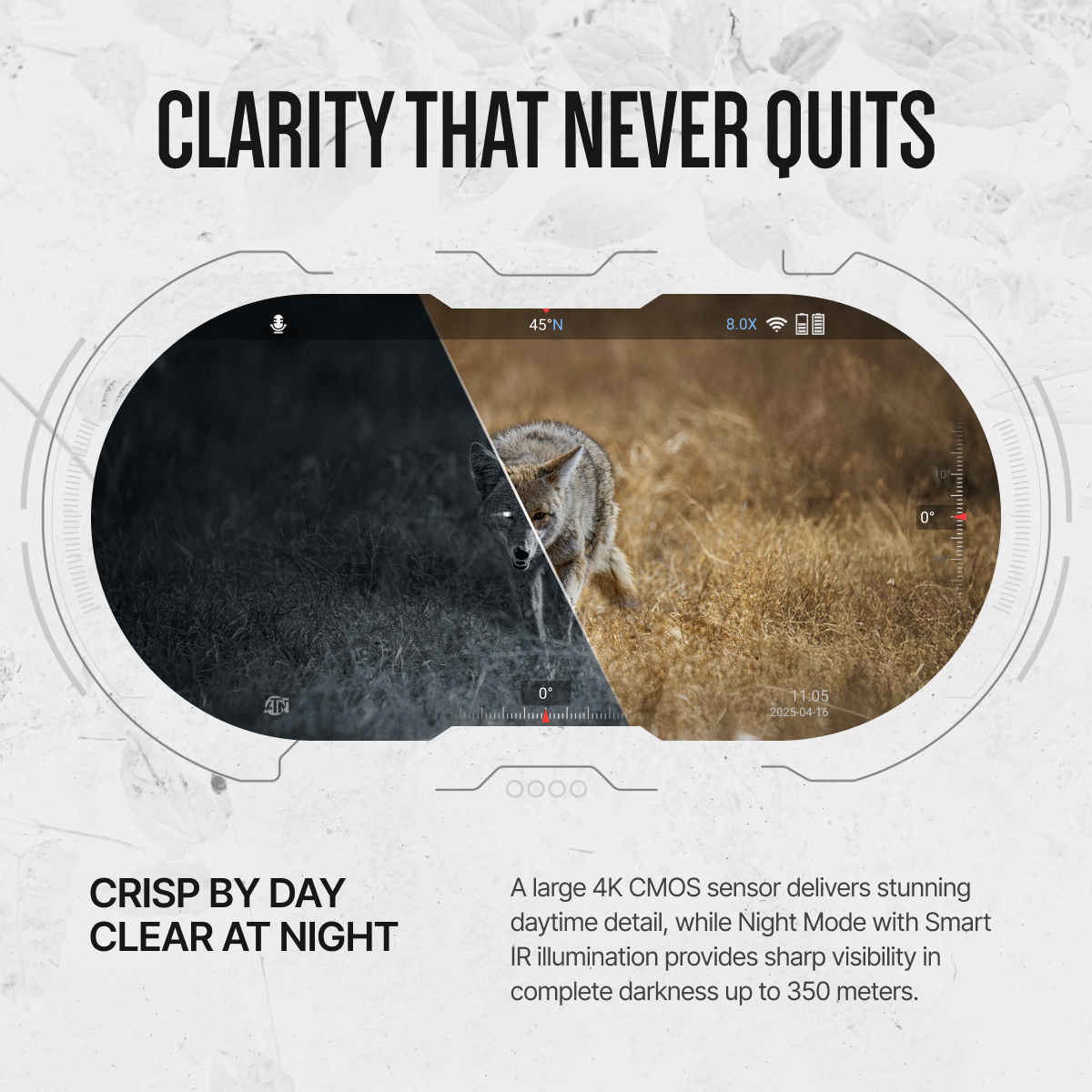

• Ultra HD 4K CMOS Sensor
Delivers vivid, full-color imagery by day and crisp digital night vision when paired with the integrated IR illuminator for visibility up to 350 m.
• 4-in-1 Vision Modes
Switch seamlessly between Day, Night, Thermal, and Twilight modes to adapt to any lighting condition or mission need.
• Smart IR Illumination
Automatically adjusts IR brightness based on the environment to conserve power and reduce glare.

RANGEFINDING & PRECISION TOOLS
• Integrated Laser Rangefinder
Measures distances up to 1,000 yards with ±1 m accuracy for confident targeting, navigation, or perimeter assessment.

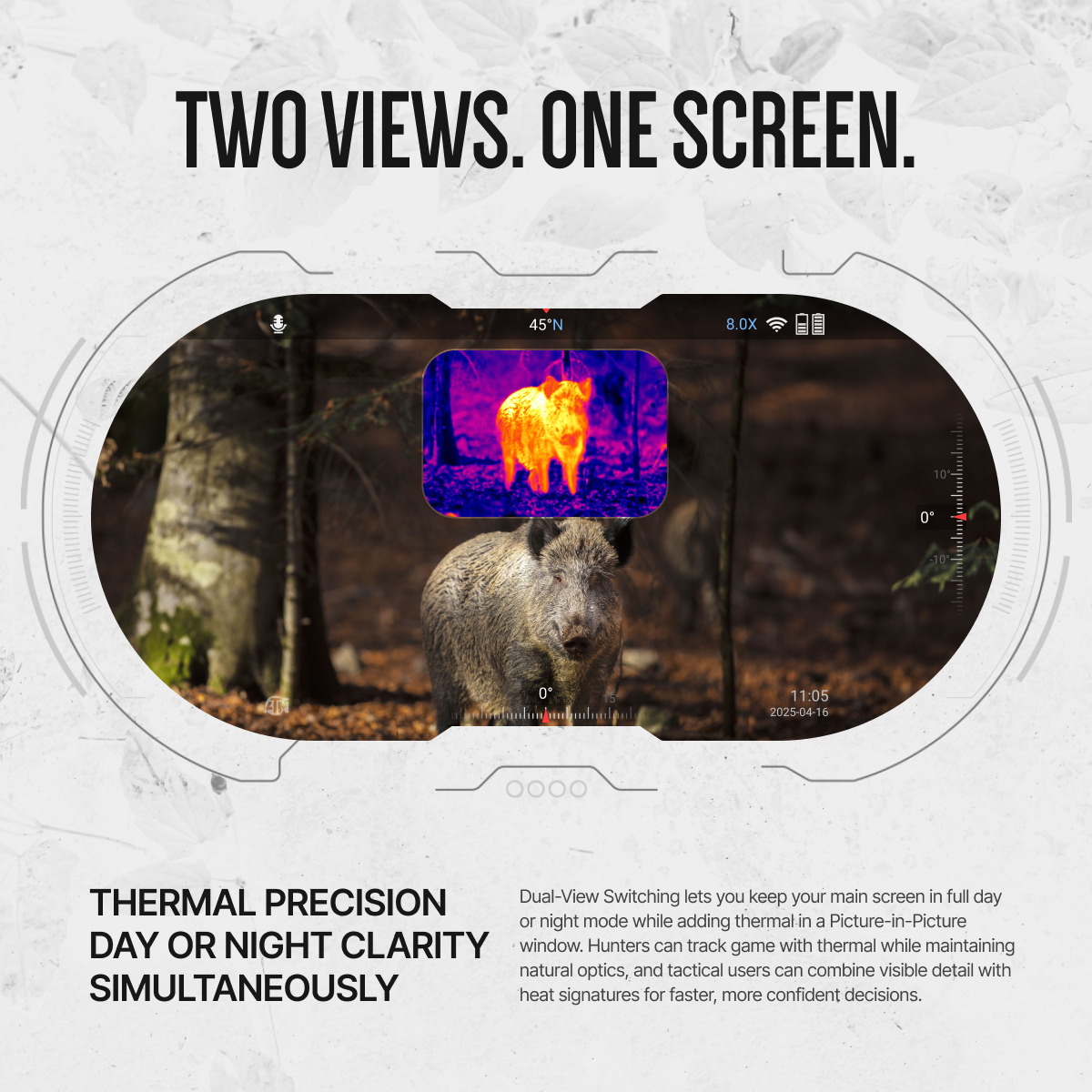

• Dual-View Switching
View thermal and visual imaging side by side or switch instantly between them for complete situational awareness.

RECORDING, CONNECTIVITY & STORAGE
• Onboard Recording
Record in 4K during the day and 1080p in thermal mode directly to 64 GB of internal memory with no external cards required.
• Internal Gallery
Review and replay your footage directly on the device without cables or extra equipment.
• Built-In Wi-Fi
Connect to the ATN Connect 6 app for live streaming, content transfer, and remote control functionality.

EASE OF USE & CONTROL

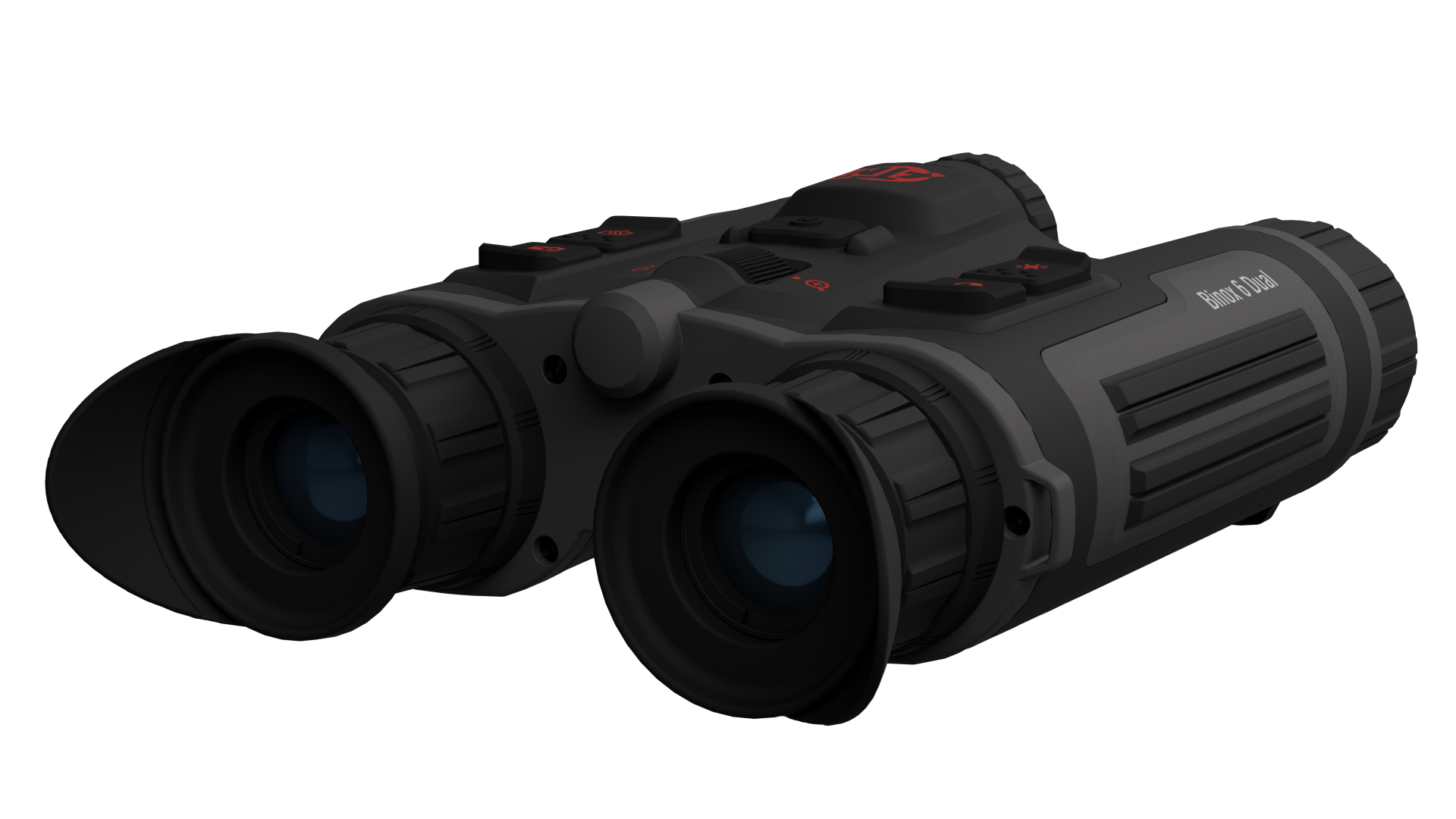

• Adjustable Eyepieces
Customizable interpupillary distance and eye relief ensure comfort and precision for every user.
• DeFOG Mode
Automatically enhances clarity and contrast in fog, mist, or humidity for consistent visibility.
• Step+Smooth Zoom
Provides flexible magnification control for close inspection or long-range tracking.

FIELD-READY DESIGN
• Rugged Magnesium Alloy Housing
Lightweight yet durable, designed to handle recoil, impact, and harsh field conditions.
• Tripod Mount Compatibility
Adds stability for extended observation or long surveillance sessions.
• Weatherproof Construction
IP67-rated protection against rain, dust, and environmental stress ensures performance in any climate.
• Dual Replaceable 18650 Batteries
Provides up to 8 hours of continuous operation with optional external USB-C power for longer missions.


Included Accessories:

• Binox 6 Dual

• Portable Bag

• 2 × 18650 Batteries

• Data Cable

• Neck Strap

• Lens Cloth

• Quick Reference Guide

• Lens Caps

• Battery Charger
