| THERMAL PERFORMANCE & IMAGE CLARITY |
|
| Thermal Engine |
6th Generation Thermal Engine |
| Sensor |
640×512 sensor with 12mm pixel pitch and ≤18mK NETD sensitivity, delivering exceptional thermal detail and contrast at range |
| ATN SharpIR AI Technology |
AI processing sharpens edges and enhances contrast in real time for clearer long-range identification |

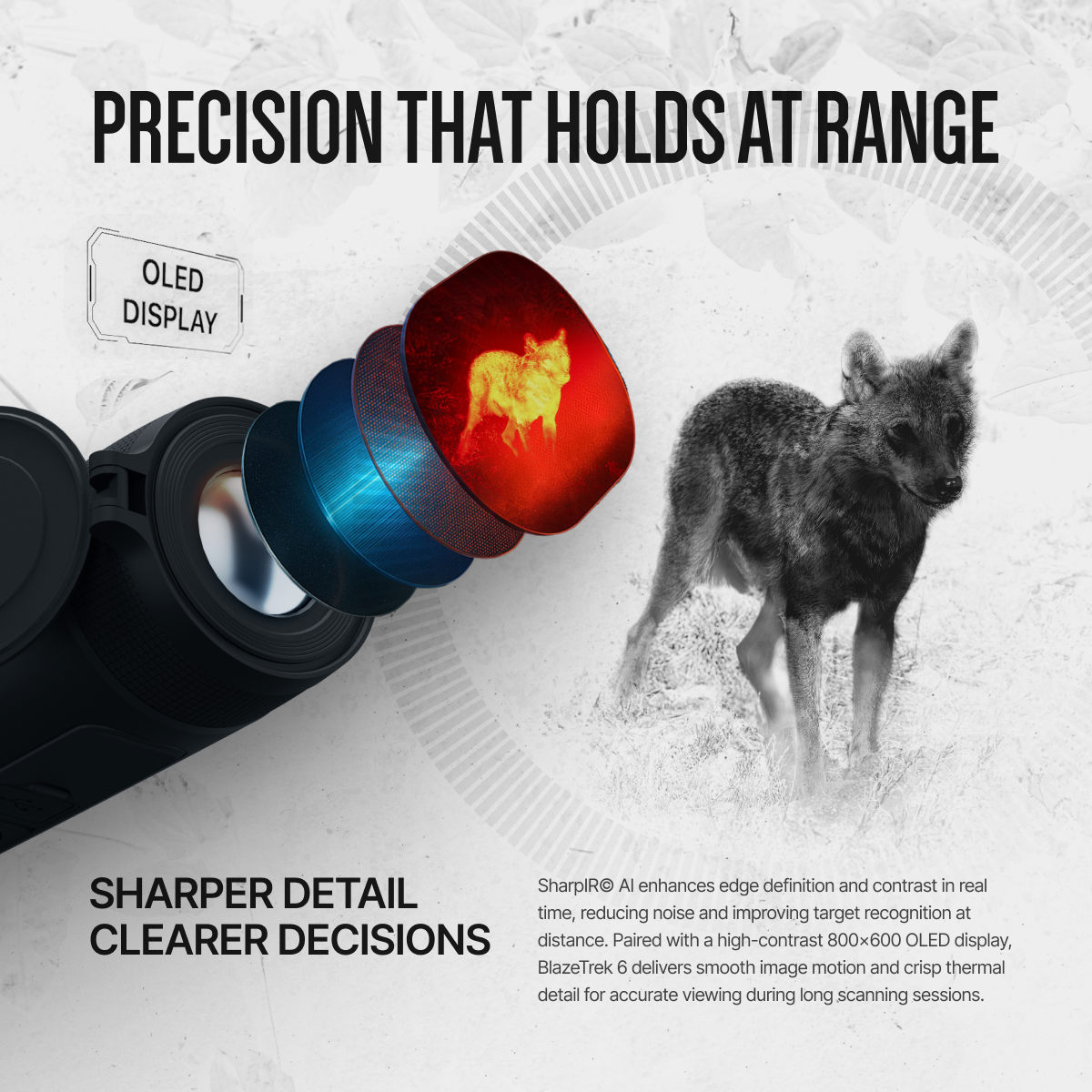

| High-Contrast OLED Display |
800×600 OLED display offers crisp detail and smooth motion during extended viewing |

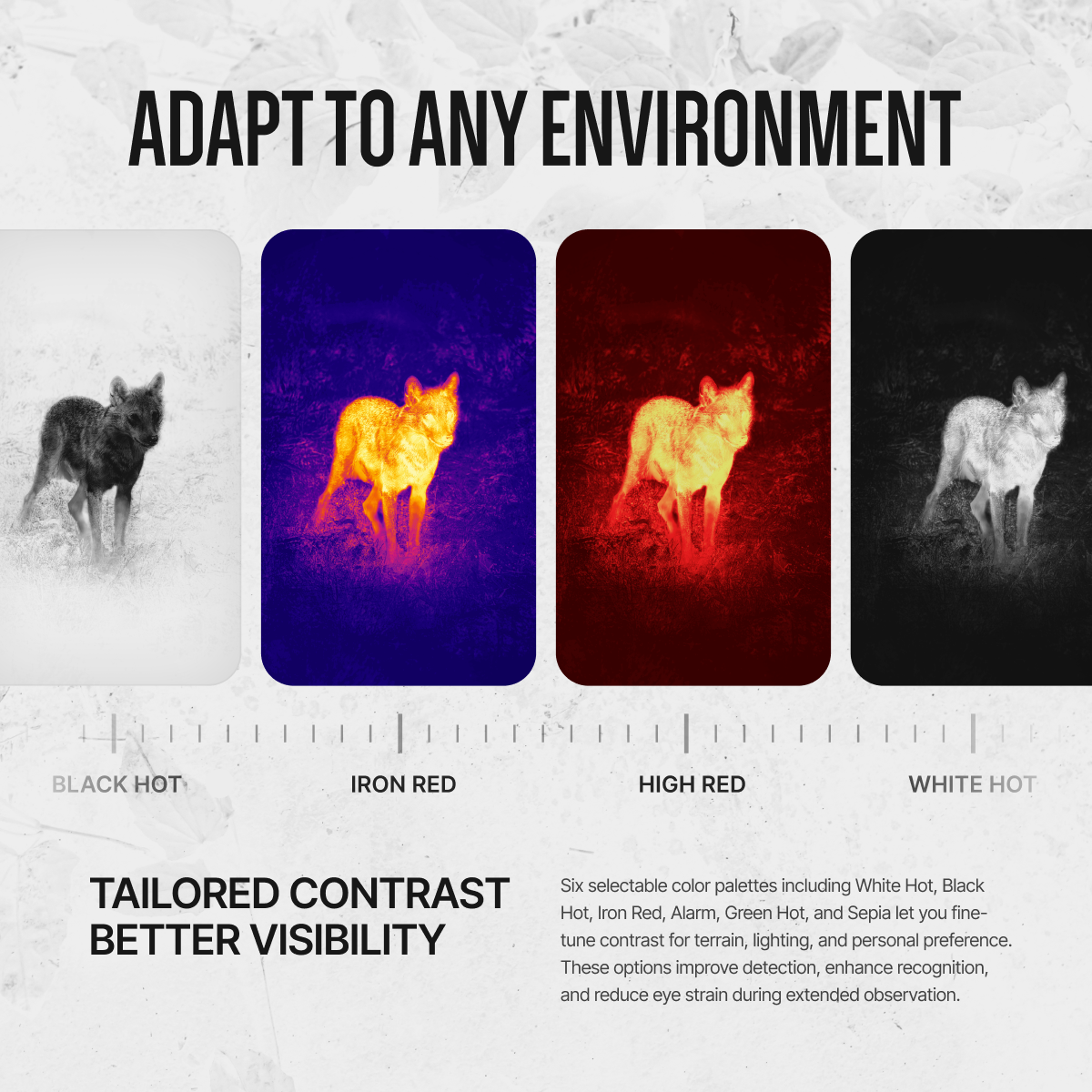

| Multiple Color Palettes |
Six selectable palettes improve detection and readability in varied conditions |
| OPTICS & DETECTION PERFORMANCE |
|

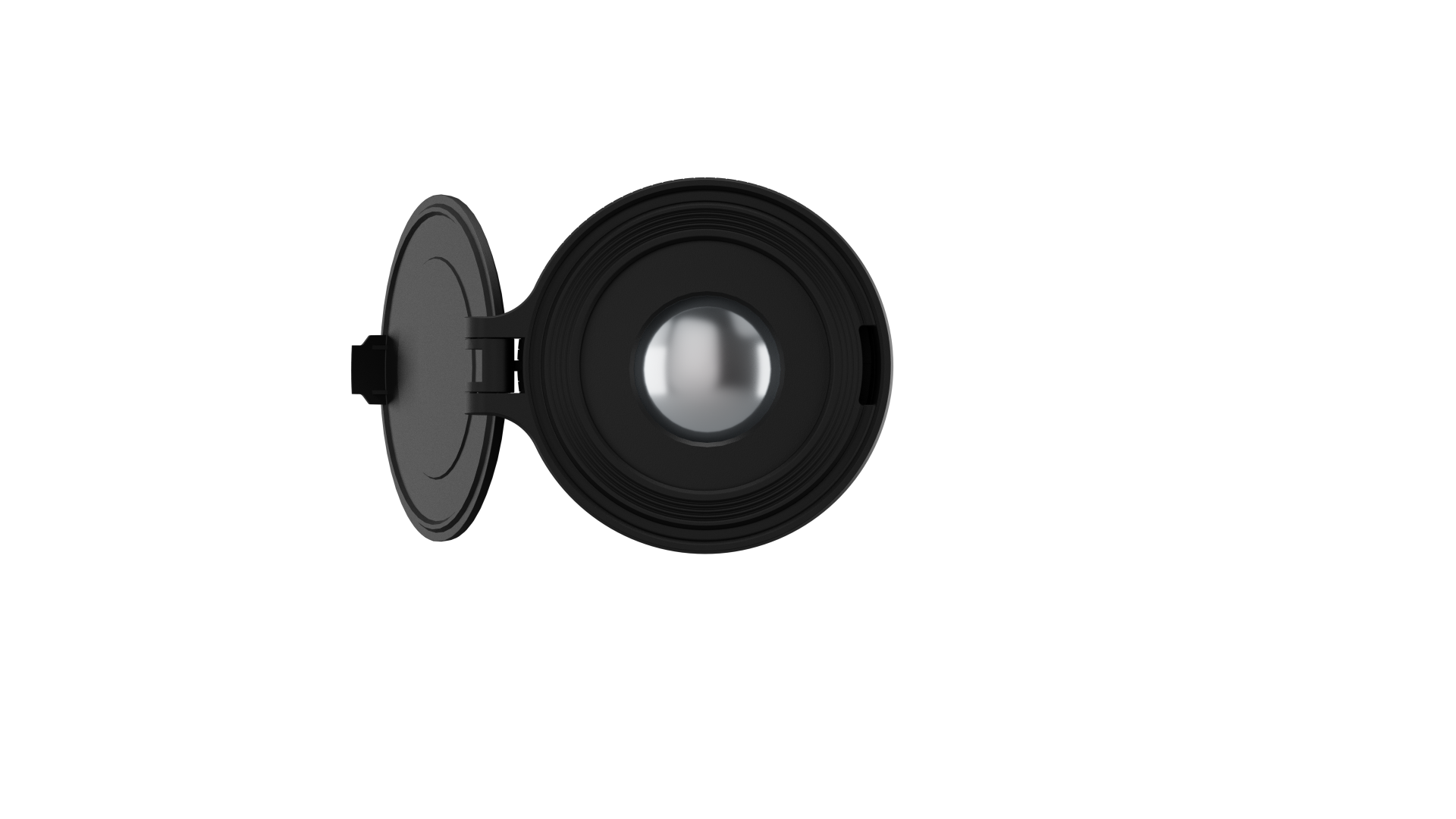

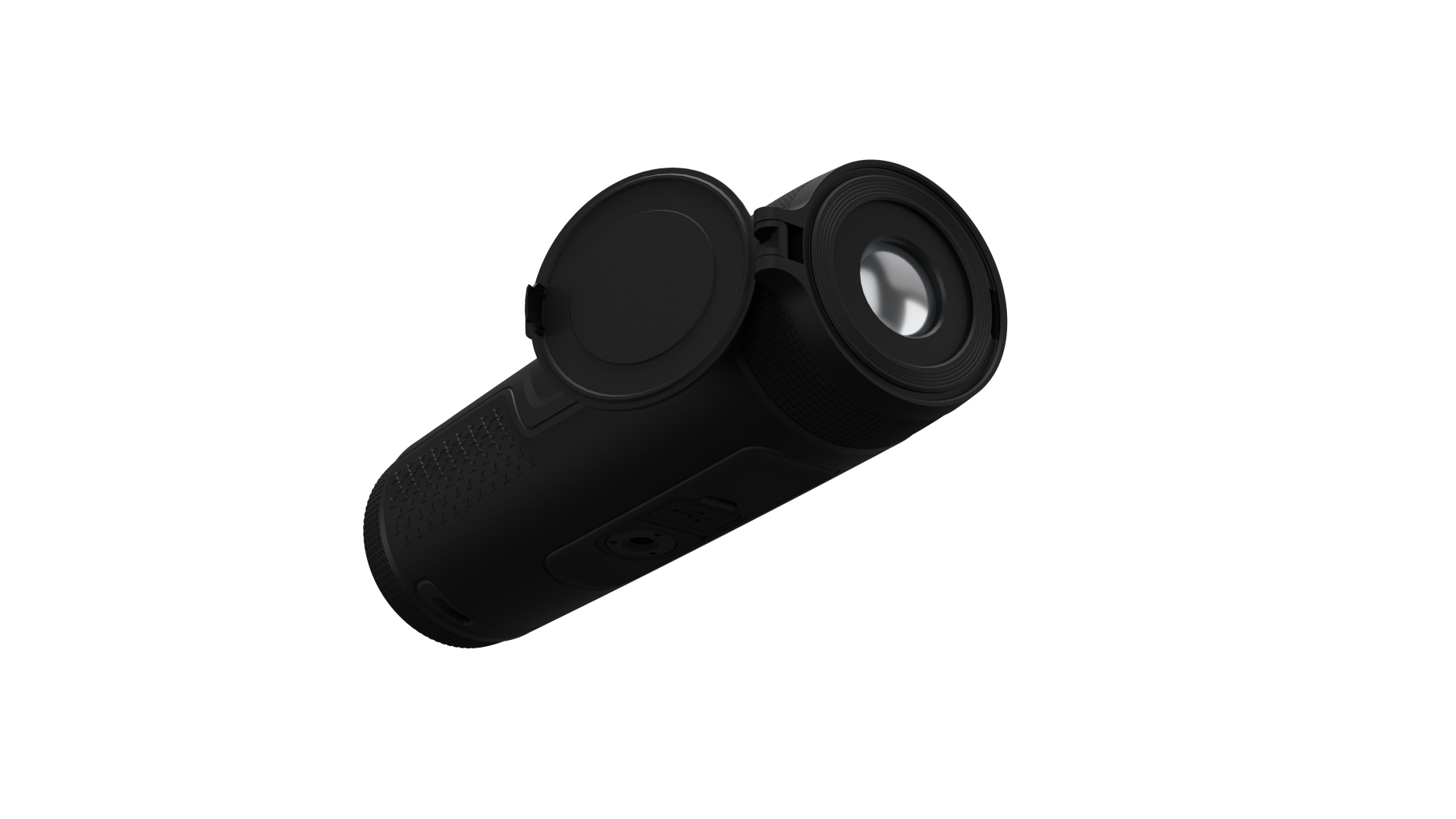

| 19 mm Germanium Lens |
Generous field of view (22.8deg x 18.3deg) balances situational awareness with detection distance |
| Long-Range Detection |
Up to 1,000 meters of detection capability for confident scanning across open terrain |
| Smooth and Step Digital Zoom |
Up to 8x digital zoom for flexible magnification |
| Manual Focus System |
Precise focus from 1 m to infinity enhances clarity at near and far distances |
| TOOLS & TECHNOLOGY |
|
| Hot Point Tracking |
Highlights the hottest object in view for rapid detection and tracking |
| Scene Modes |
Selectable modes optimize performance across environments |
| RECORDING, CONNECTIVITY & STORAGE |
|
| Video, Audio, and Image Recording |
Capture video, audio, and stills to 32 GB of onboard memory |
| Built-In Wi-Fi Connectivity |
Wi-Fi hotspot pairs with the ATN Connect 6 app for real-time streaming and sharing |
| USB Type-C Interface |
Supports charging, data transfer, and external power supply |

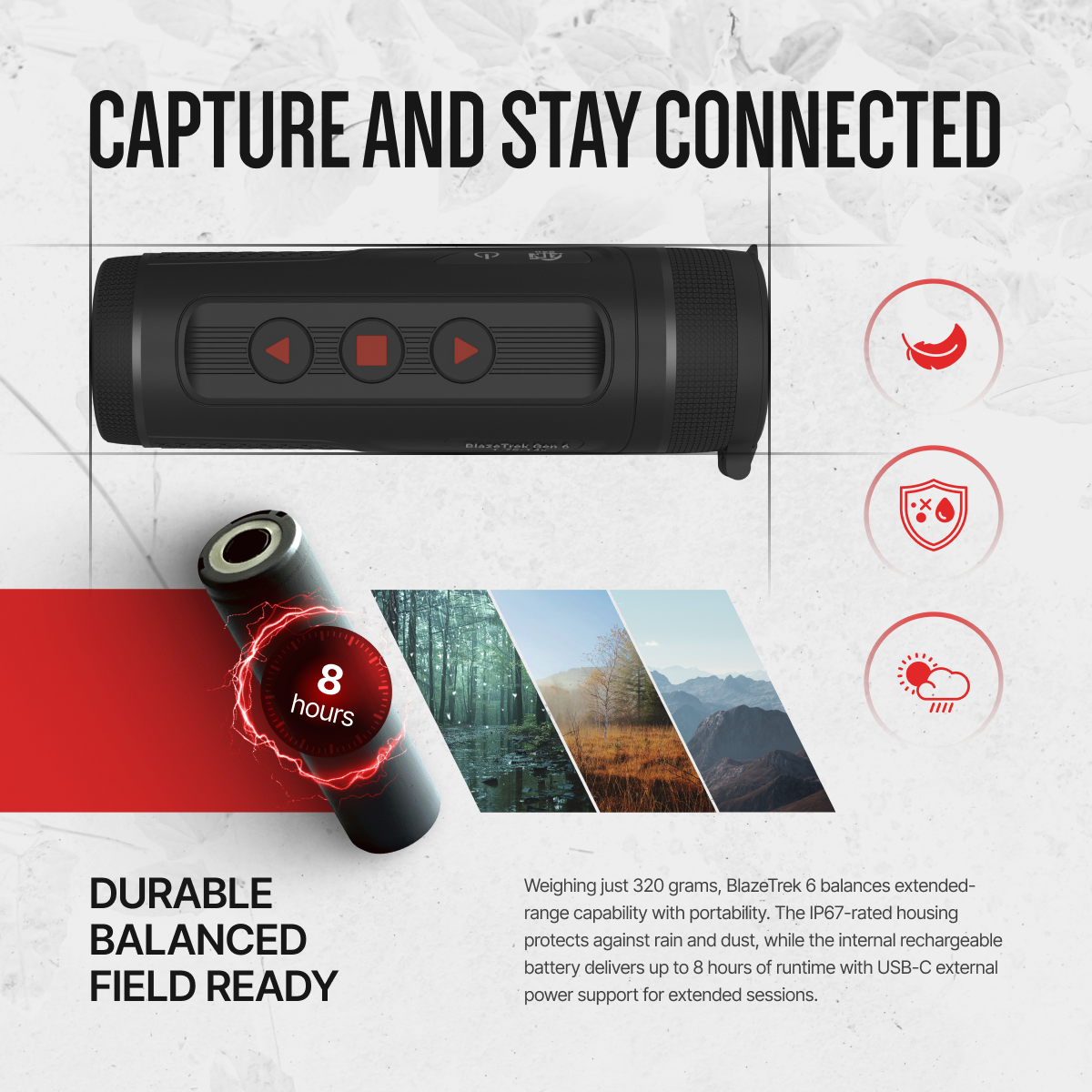

| FIELD-READY DESIGN |
|
| Rugged IP67 Protection |
Waterproof and dustproof durability for real-world conditions |
| Balanced and Portable |
320 g compact design makes long observation comfortable |
| Efficient Power System |
Internal rechargeable battery delivers up to 6.5 hours, with support for USB Type-C external power |
| OPTICS & SENSOR |
|
| Detector Type |
12 mm VOx Uncooled Focal Plane Array |
| Sensor Resolution |
640 x 512 |
| Refresh Rate |
50 Hz |
| Thermal Sensitivity (NETD) |
≤ 18 mK |
| SharpIR(c) |
Yes |
| Non-Uniformity Correction (NUC) |
Auto / Semi Auto / Manual |
| Lens System |
19 mm (Ge); F/1.0 |
| Field of View (HxV) |
22.8deg x 18.3deg |
| Focus Mechanism |
Manual Focus (1 m to infinity) |
| Magnification |
1.5 – 12x |
| Digital Zoom |
1x, 2x, 4x, 8x |
| Detection Range |
1000 m |
| Color Palettes |
White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| DISPLAY & VIEWING |
|
| Display Resolution |
800 x 600 OLED Display |
| Diopter Range |
-5 to +5 D |
| Scene Modes |
Yes |
| Hot Point Tracking |
Yes |
| RECORDING & CONNECTIVITY |
|
| Video / Audio Recording |
Yes |
| Image Capture |
Yes |
| Internal Storage Capacity |
32 GB |
| Built-in Wi-Fi (Hotspot) |
Yes |
| Media Output |
USB Type-C |
| App (Apple Store / Google Play) |
Yes (ATN Connect 6 – iOS & Android) |
| POWER SYSTEM |
|
| Battery Type |
Internal Rechargeable |
| Battery Life |
~ 6.5 hrs |
| Supports External Power Supply |
Yes (USB Type-C 5 VDC / 2 A) |
| Standby / Sleep Mode |
Yes |
| DESIGN & DURABILITY |
|
| Weight (with Battery) |
320 g / 0.7 lb |
| Dimensions (LxWxH) |
158 x 57 x 50 mm (6.20 x 2.23 x 1.98 in) |
| Operating Temperature |
-30 degC to 55 degC (-22 degF to 131 degF) |
| Waterproof / IP Rating |
IP67 |
