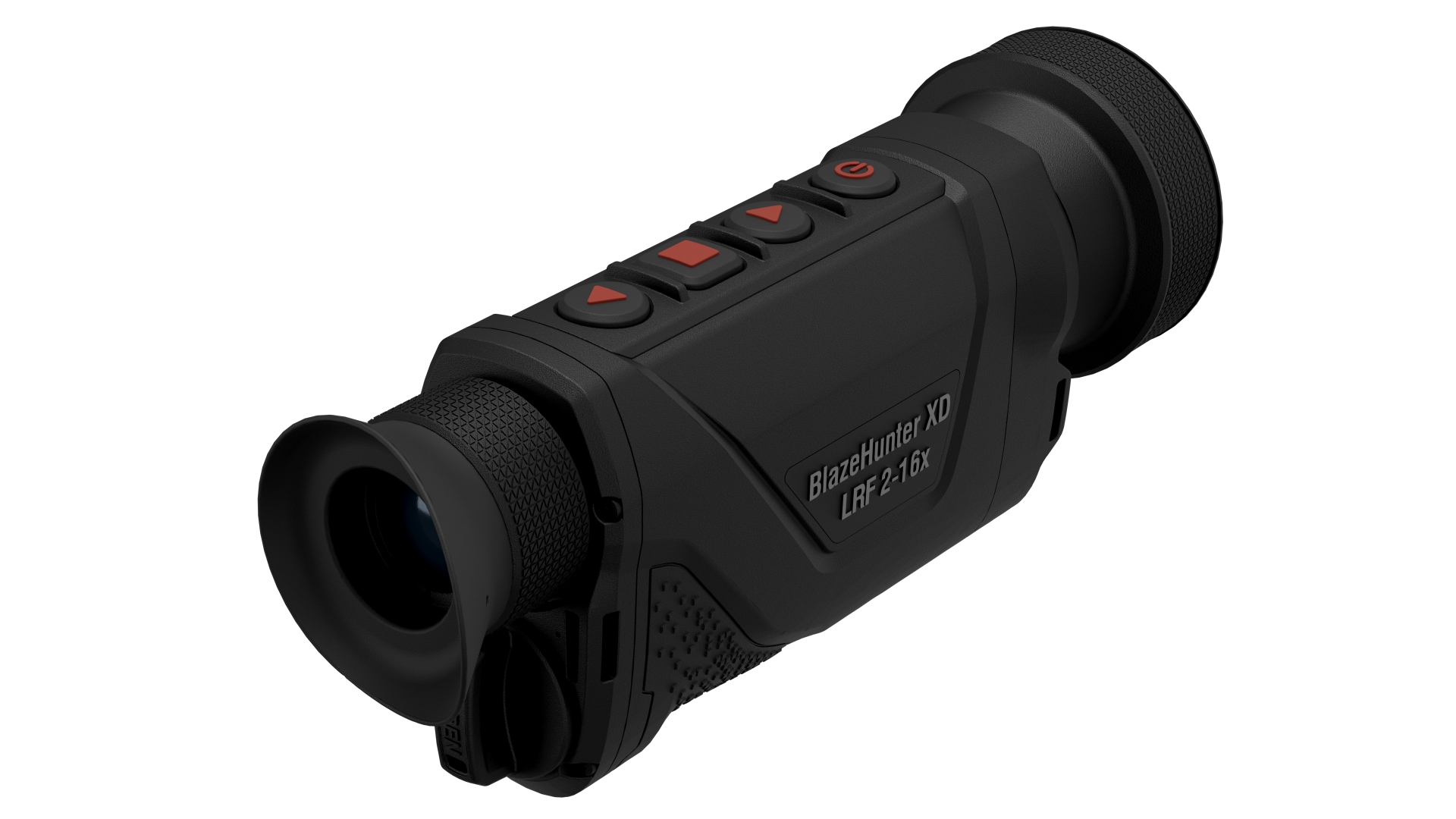

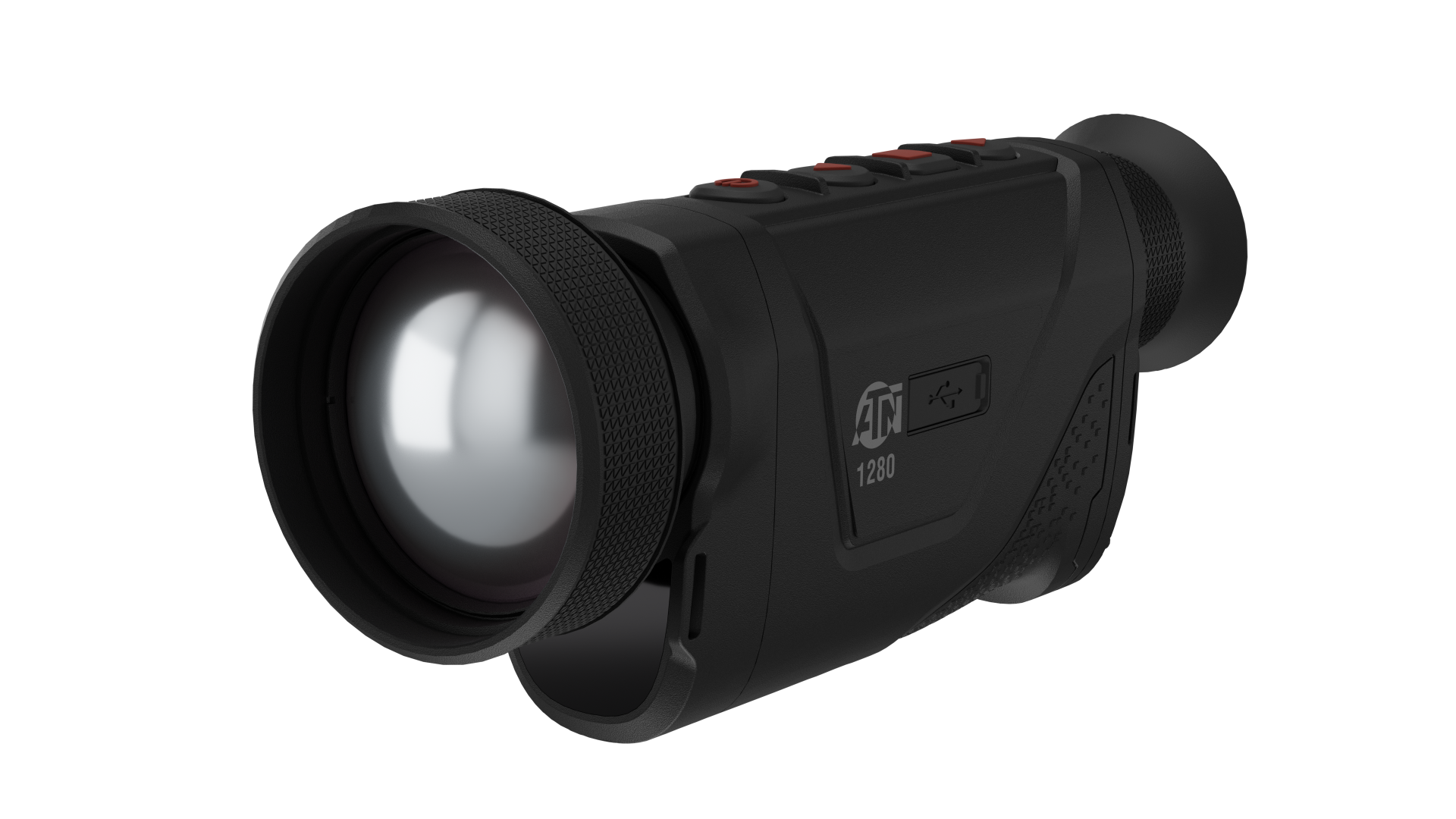

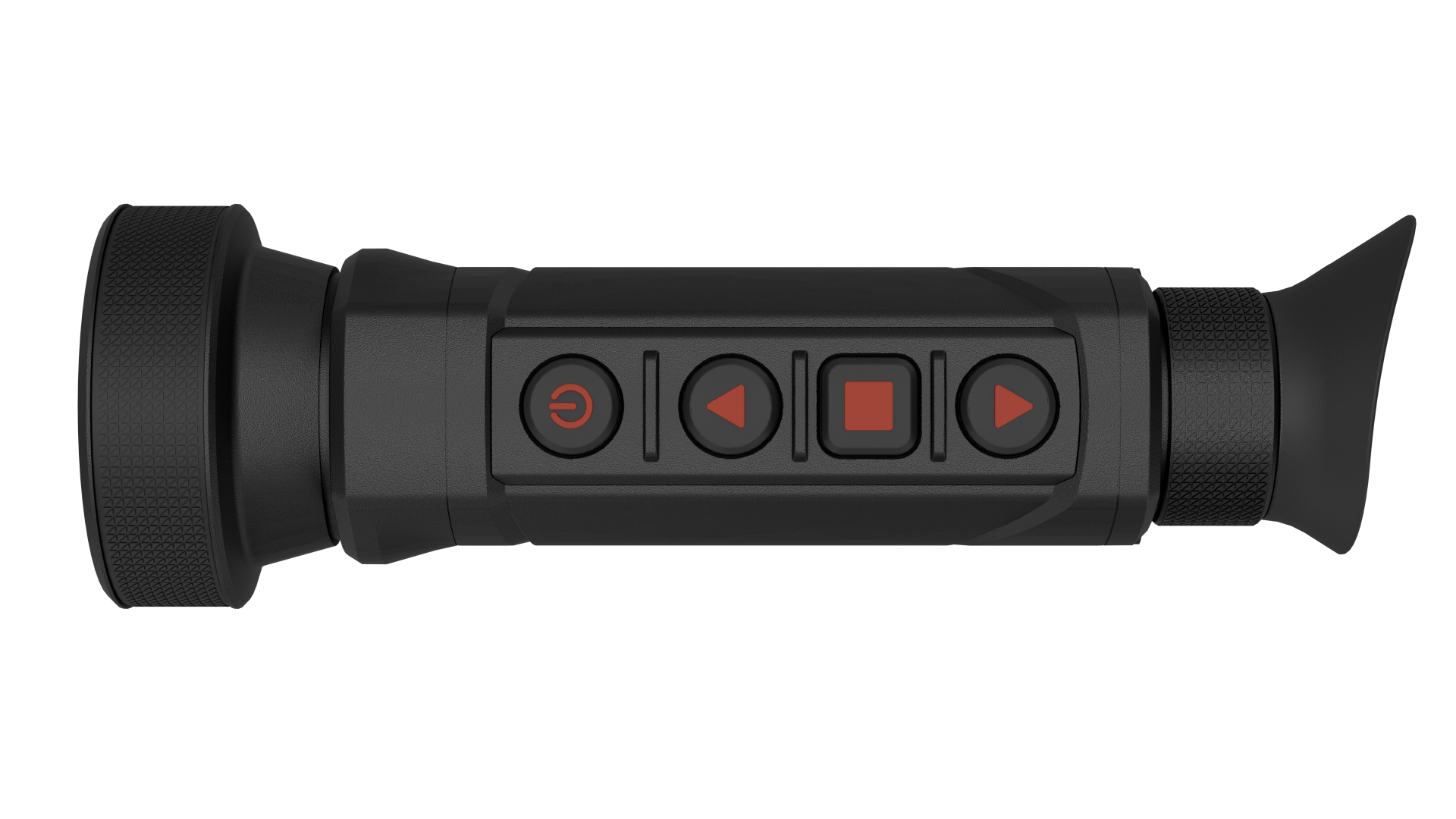

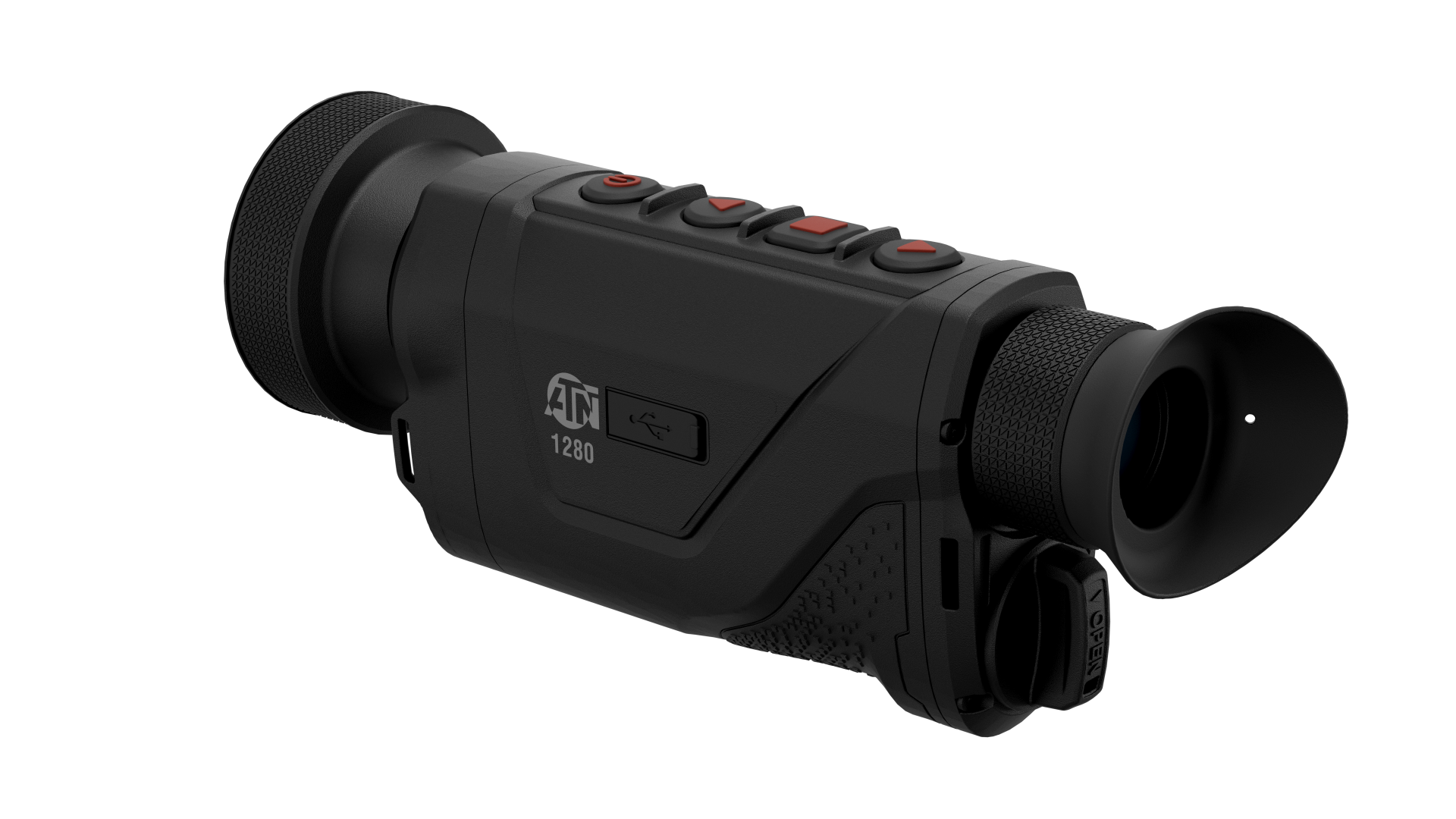

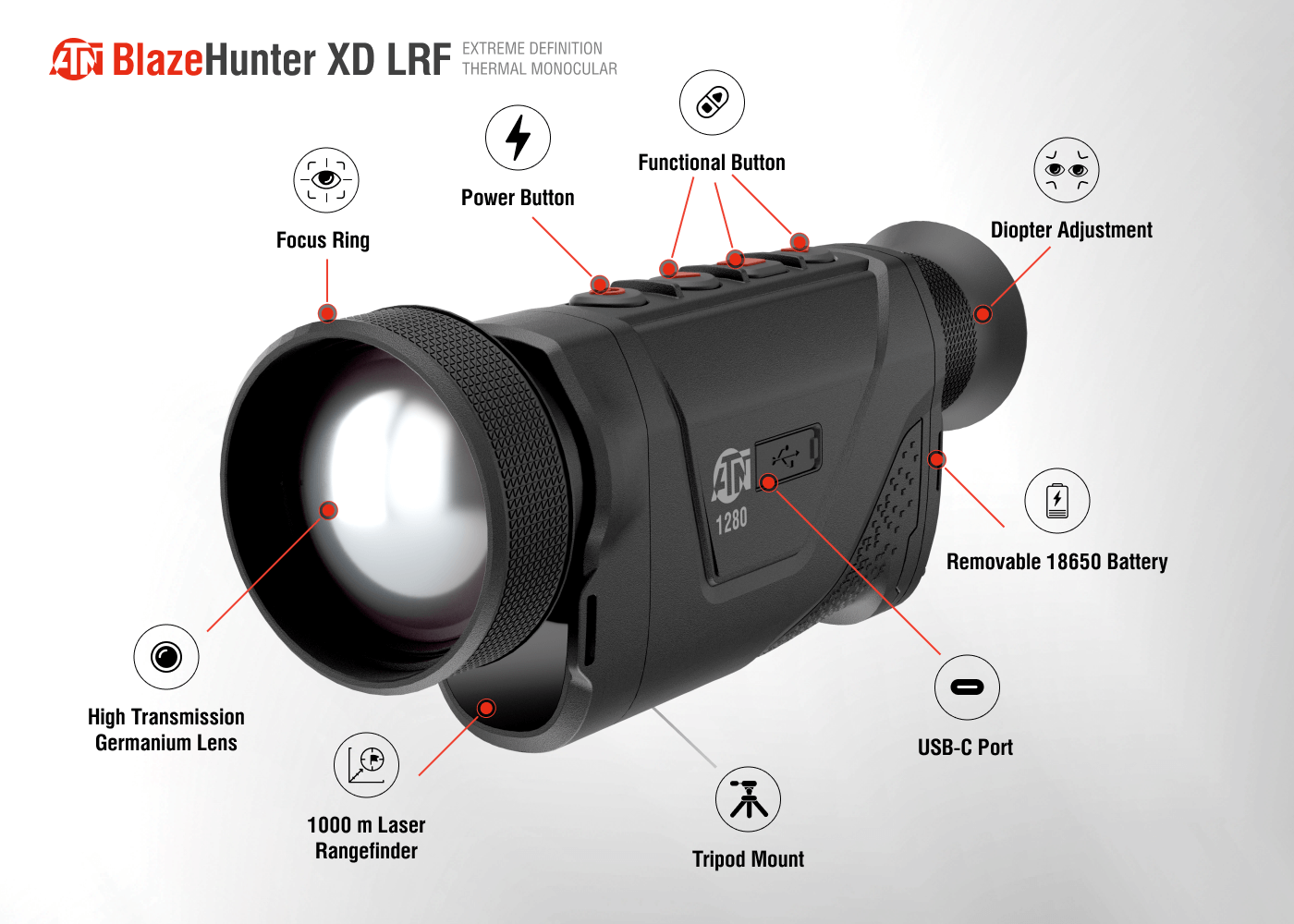

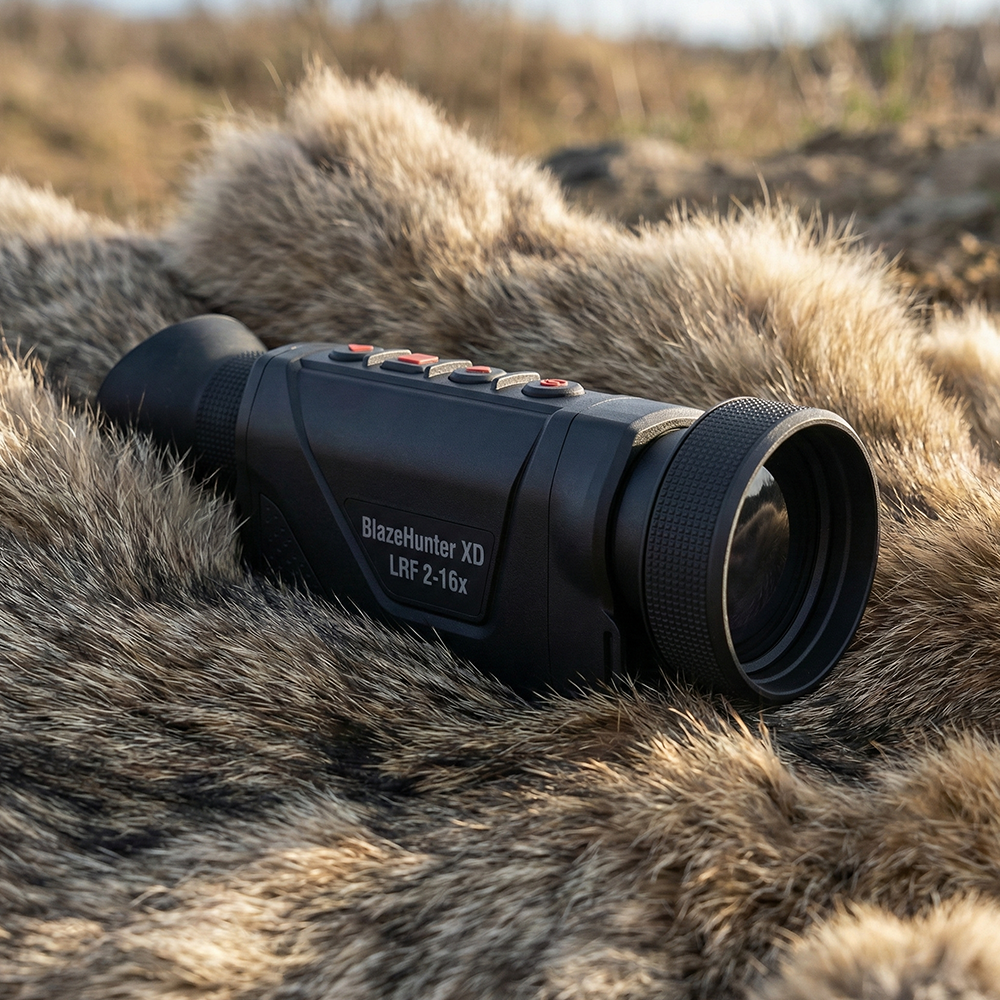

ATN BlazeHunter XD Thermal Monocular, 2–16x, 1280×1024 Sensor, 12μm, ≤15 mK NETD, Built-in LRF

SKU
TIMNBLHXD50LRF
Save 15%
$4,995.00
$4,245.75
Add to Compare
0% APR for 6/12 months or interest bearing for 36 months*

ATN BLAZEHUNTER XD LRF
ULTRA-HD THERMAL MONOCULAR SYSTEM
From Hunt to Search | Precision in Every Pixel


Experience the next evolution in thermal imaging with the ATN BlazeHunter XD LRF, a high-performance dual-use thermal monocular designed for hunters, professionals, and tactical operators who demand clarity, precision, and dependability in any environment.


At its core is ATN’s 6th Generation Thermal Engine, our most advanced system ever. The BlazeHunter XD LRF features a 1280×1024 HD thermal sensor with 12 μm pixel pitch and ≤15 mK NETD ultra-sensitivity, delivering over a million more pixels than standard thermal optics. Every image is sharper, smoother, and more detailed, revealing the faintest heat signatures through fog, smoke, and darkness.


To enhance performance even further, ATN SharpIR, our proprietary AI-driven imaging technology, refines detail in real time by dynamically sharpening edges and boosting contrast. Whether scanning dense timber, searching open terrain, or monitoring in low-visibility environments, you get precise heat definition when it matters most.


The 0.49-inch 1920×1080 OLED display provides rich contrast and lifelike visuals that reduce eye strain during long sessions. With a built-in Laser Rangefinder, hunters, SAR teams, and law-enforcement professionals can instantly measure distances for accurate targeting and situational awareness.


Capture every moment with onboard video and audio recording, and share footage instantly via built-in Wi-Fi and the ATN Connect 6 app. Six selectable color palettes let you tailor your thermal view to any terrain or lighting condition, while the extended-life dual rechargeable battery system provides 10 hours of continuous operation in the field.


Lightweight, rugged, and ready for action, the BlazeHunter XD LRF delivers unmatched versatility for hunting, surveillance, and tactical response, making it the ultimate tool for those who see beyond the visible.


Stay in control with intelligent features
• 6th Generation 1280×1024 thermal sensor with 12 μm pixel pitch and ≤15 mK NETD sensitivity
• ATN SharpIR AI-enhanced imaging for real-time contrast and edge clarity
• 0.49-inch Full HD 1920×1080 OLED display for crisp, immersive viewing
• Built-in Laser Rangefinder for accurate distance measurement up to 1,000 yards
• Multiple color palettes for adaptability across environments
• Onboard video and audio recording with 32 GB internal storage
• Built-in Wi-Fi for live streaming and mobile connectivity
• Dual rechargeable battery system with 10-hour runtime and charger included
• High-transmission germanium lens for bright, high-contrast thermal images
• Rugged and lightweight magnesium housing for field durability
• Compact design optimized for hunters, professionals, and tactical operators


BlazeHunter XD LRF combines advanced thermal technology with real-world durability, giving you the clarity and confidence to act fast in any situation.


From hunt to search, this is precision you can hold onto.

THERMAL PERFORMANCE & IMAGE CLARITY

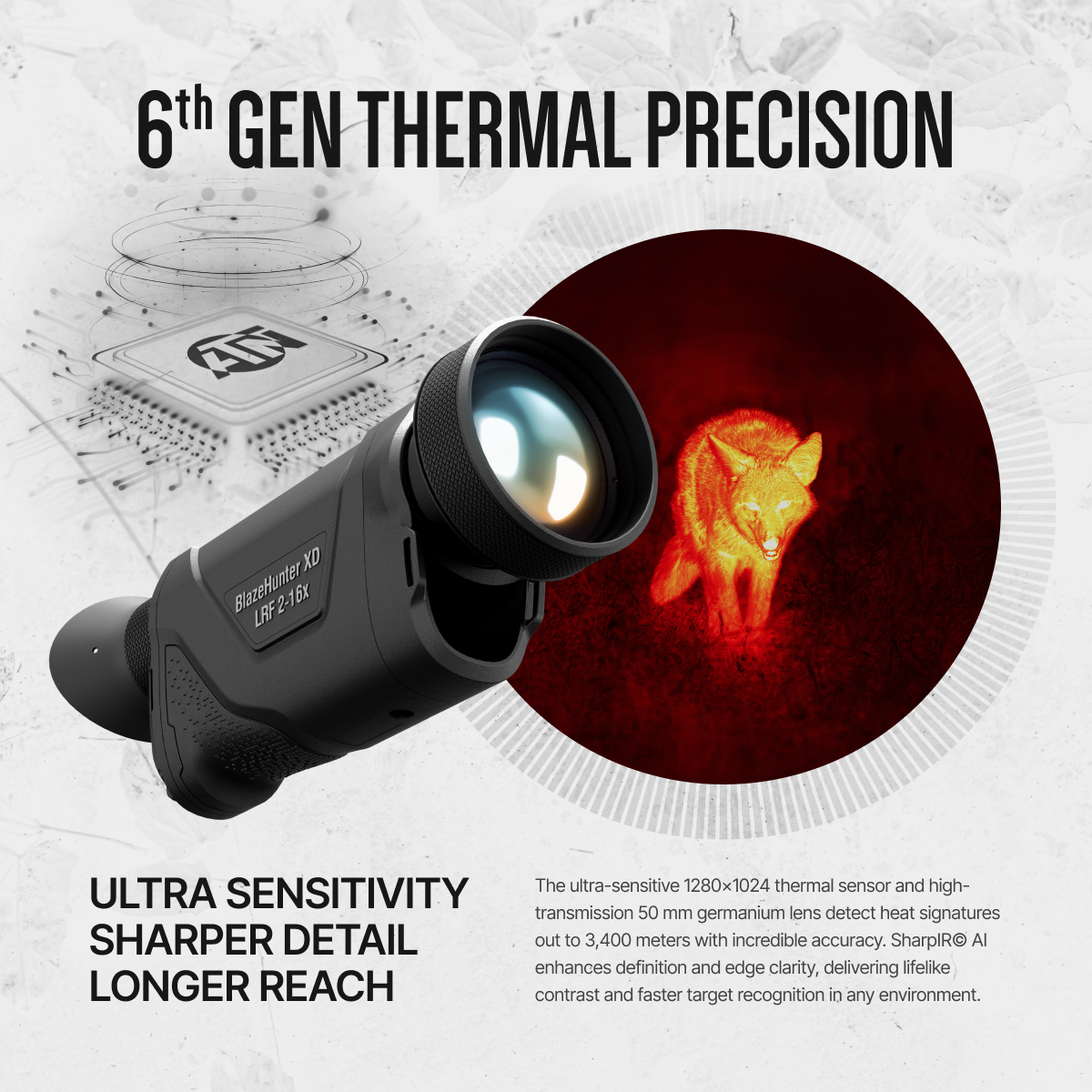

• Ultra-HD 6th Generation Thermal Core
The 1280×1024 sensor with 12 μm pixel pitch and ≤15 mK NETD delivers over a million more pixels than standard thermals for unmatched detail and detection.
• ATN SharpIR AI Technology
Proprietary AI enhancement sharpening edges and boosting contrast in real time for precise target definition through fog, smoke, or brush.
• High Transmission Germanium Lens
Premium optics maximize light throughput and image brightness for extended range performance.
• Full HD 0.49" OLED Display
The 1920×1080 screen delivers vivid color contrast and smooth motion to reduce eye fatigue during long viewing sessions.
• Multiple Color Palettes
Six display modes (White Hot, Black Hot, High Red, Iron Red, Green Hot, and Sepia) let you adapt quickly to terrain and light conditions.

RANGEFINDING & PRECISION TOOLS
• Built-In Laser Rangefinder
Instantly measure distances up to 1,000 yards for accurate targeting, navigation, and operational planning.
• Precision Targeting
Accurate range data and sharp thermal definition enable fast decisions and ethical shots for hunters and professionals alike.

RECORDING & CONNECTIVITY
• Video and Audio Recording
Capture high-quality footage with sound using the integrated microphone and 32 GB of internal memory.

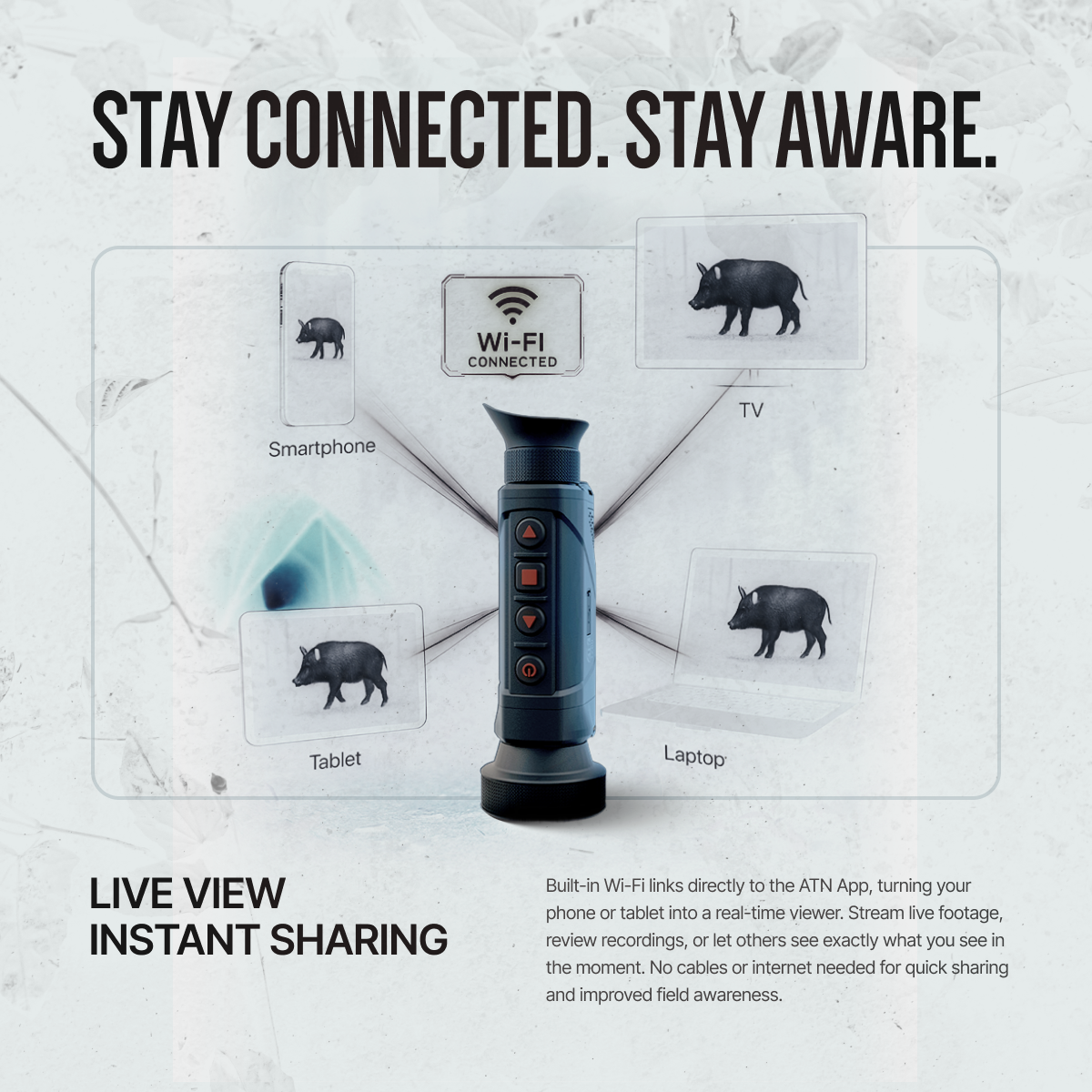

• Built-In Wi-Fi
Connect wirelessly to the ATN Connect 6 app to stream, share, or view live footage on a mobile device with no internet required.
• USB-C File Transfer
Quickly download recordings or recharge the device with modern, reversible USB-C connectivity.

POWER & DESIGN
• Extended Battery Life
Dual rechargeable battery system delivers up to 10 hours of continuous use for extended missions or overnight hunts.

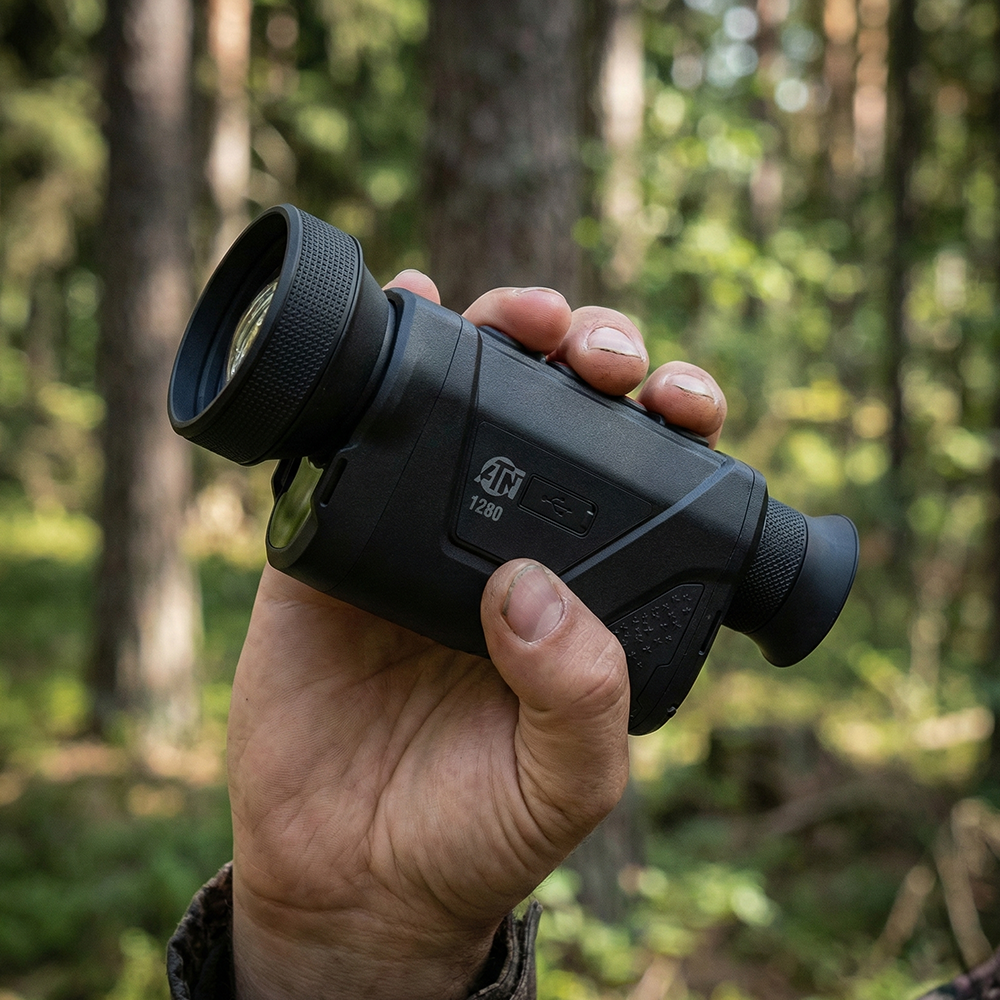

• Lightweight and Rugged Construction
Compact design built from durable magnesium alloy for strength without bulk.
• Weather-Resistant Design
Sealed to withstand rain, dust, and field conditions for reliable performance in any environment.
OPTICS & SENSOR
• Detector Type: 12 μm VOx Uncooled Focal Plane Array
• Sensor Resolution: 1280 × 1024 (Full High Definition)
• Refresh Rate: 50 Hz
• Thermal Sensitivity (NETD): ≤ 15 mK
• SharpIR©: Yes
• Non-Uniformity Correction (NUC): Auto / Semi Auto / Manual
• Lens System: 50 mm (Ge); F/1.0
• Field of View (H×V): 17.46° × 14.01°
• Focus Mechanism: Manual Focus
• Magnification: 2 – 16×
• Digital Zoom: 1×, 2×, 4×, 8×
• Detection Range: 3400 m
• Color Palettes: White Hot, Black Hot, Ironbow, High Red, Green Hot, Sepia

DISPLAY & VIEWING
• Display Resolution: 0.49″ OLED, 1920 × 1080 Resolution
• Eye Relief: 50 mm
• Diopter Range: −5 to +5 D
• Scene Modes: Yes
• Hot Point Tracking: Yes

LASER RANGEFINDER
• Built-in Laser Rangefinder (LRF): Yes
• LRF Range: 1000 m
• LRF Accuracy: ±1 m
• LRF Laser Specs: 905 nm, Class 1 (Eye Safe)

RECORDING & CONNECTIVITY
• Video / Audio Recording: Yes
• Image Capture: Yes
• Internal Storage Capacity: 32 GB
• Built-in Wi-Fi (Hotspot): Yes
• Media Output: USB Type-C
• App (Apple Store / Google Play): Yes (ATN Connect 6 – iOS & Android)

POWER SYSTEM
• Battery Type: Removable 18650 Rechargeable
• Batteries Included: Yes (2 ×)
• Battery Life: 5+ hrs per battery / 10+ hrs total
• Supports External Power Supply: Yes (USB Type-C 5 VDC / 2 A)
• Standby / Sleep Mode: Yes

DESIGN & DURABILITY
• Material: Magnesium Alloy
• Weight (w/o battery): 495 g / 1.1 lb
• Dimensions (L×W×H): 202 × 81 × 61 mm (7.95 × 3.19 × 2.40 in)
• Operating Temperature: −30 °C to 55 °C (−22 °F to 131 °F)
• Waterproof / IP Rating: IP67

Included Accessories

• BlazeHunter Monocular

• ATN Pouch

• 2 × 18650 Batteries

• USB Cable

• Wrist Strap

• Eyecup

• Lens Cloth

• Neck Strap

• Quick Reference Guide
