| THERMAL PERFORMANCE & IMAGE CLARITY |
6th Generation Thermal Engine |
Built around ATN’s proprietary 12 mm VOx core with ≤15 mK sensitivity, the Odin 6 MFT delivers high-contrast imaging and precise heat detection in any condition. |
|
ATN SharpIR AI Technology |
Advanced AI algorithms automatically enhance sharpness and contrast, revealing detail and definition in cluttered or low-visibility environments. |
|
High Transmission Germanium Lens |
Maximizes light throughput and detection range for brighter, more detailed images at all distances. |
|
High-Resolution OLED Display |
A 0.37-inch 1280×1024 OLED display provides crisp visuals, smooth tracking, and improved viewing comfort during extended use. |
|
Multiple Color Palettes |
Six selectable viewing modes including White Hot, Black Hot, Sepia, Reverse Sepia, High Red, and Low Blue let you adapt instantly to changing environments. |
|
Picture-in-Picture (PIP) |
Zoom in for precise targeting while maintaining situational awareness through a secondary wide-view window. |
| RECORDING & STORAGE |
Video and Audio Recording |
Capture high-quality video and sound directly to the device with 64 GB of internal memory and no need for external cards. |
|
Onboard Storage |
Save and review all recordings within the device, then transfer easily through USB-C for sharing or analysis. |
| VERSATILITY & CONTROL |
Multi-Function Design |
Operates as a handheld monocular, helmet-mounted viewer, clip-on, or dedicated thermal weapon sight for unmatched versatility. |
|
Customizable Interface |
Reposition on-screen menus based on mounting orientation for clear visibility and intuitive operation in any setup. |
|
Tactical Controls |
Ergonomic, glove-friendly buttons allow silent operation and fast adjustments in low-light or high-stress conditions. |
| RANGEFINDING & PRECISION TOOLS |

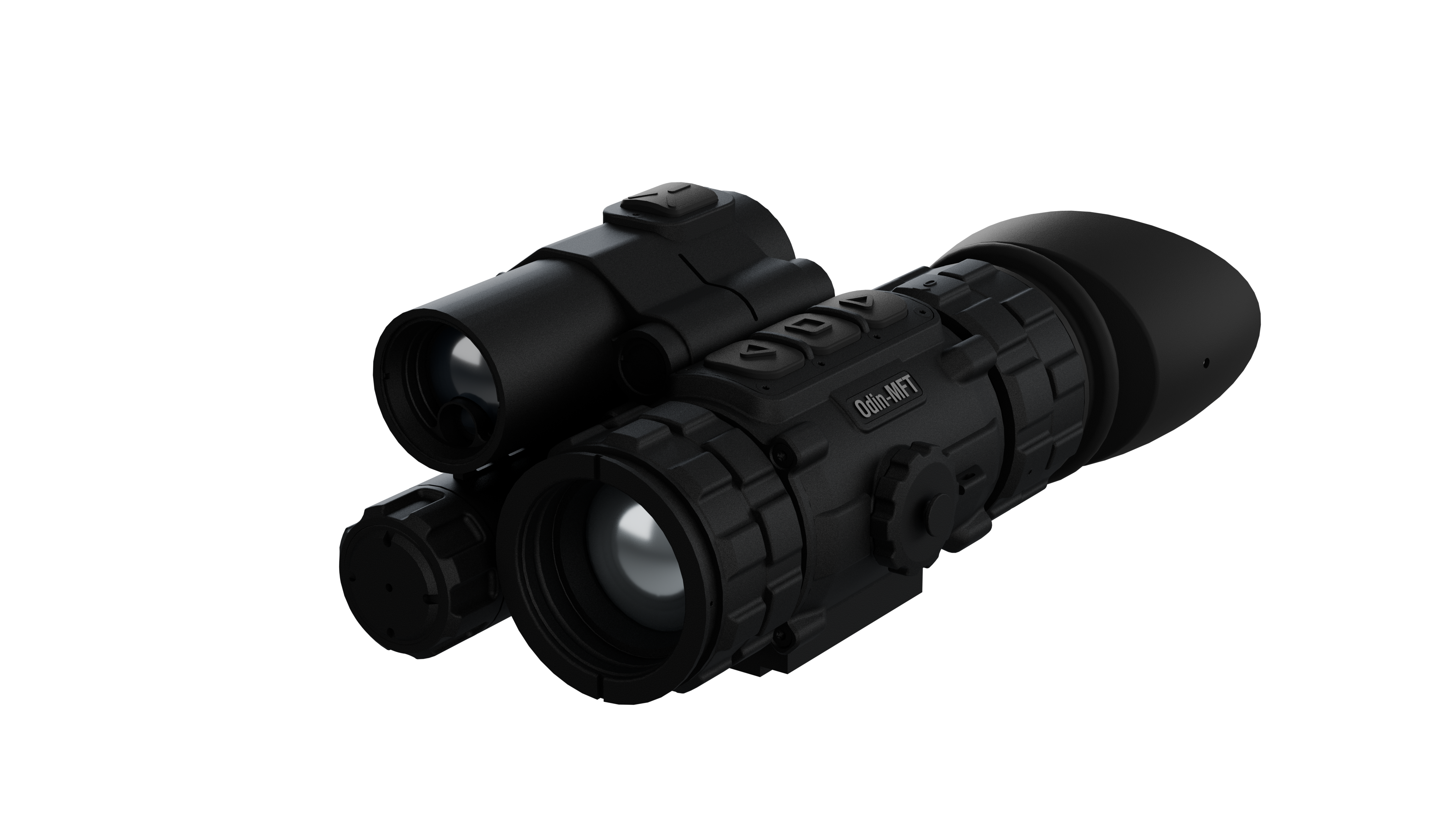

Integrated Laser Rangefinder |
Available on select models, the built-in LRF provides instant range data up to 1,000 yards for precision accuracy and situational awareness. |
|
Clip-On Compatibility |
Functions as a thermal clip-on for day optics up to 6x magnification while maintaining zero and field alignment. |
| DESIGN & POWER |

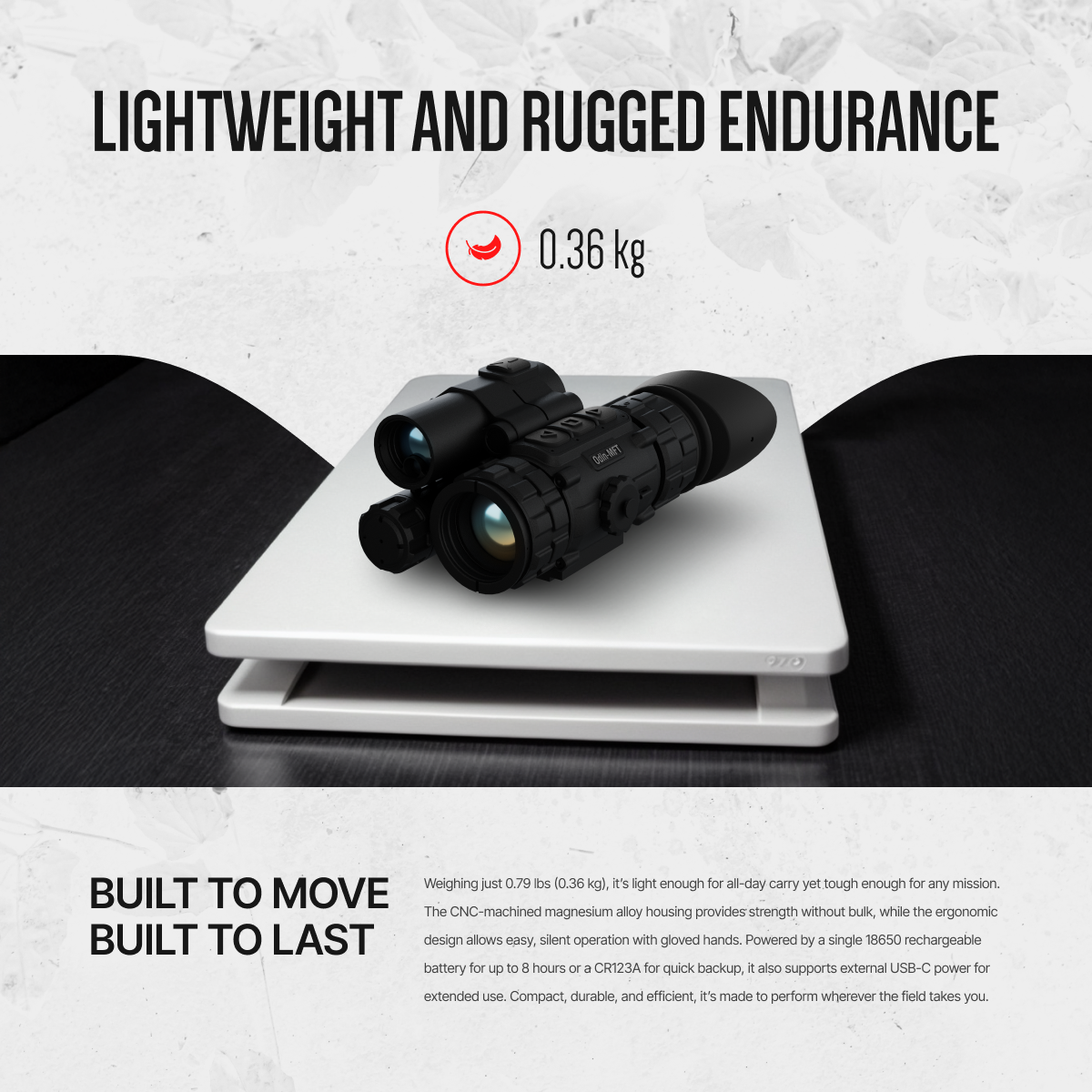

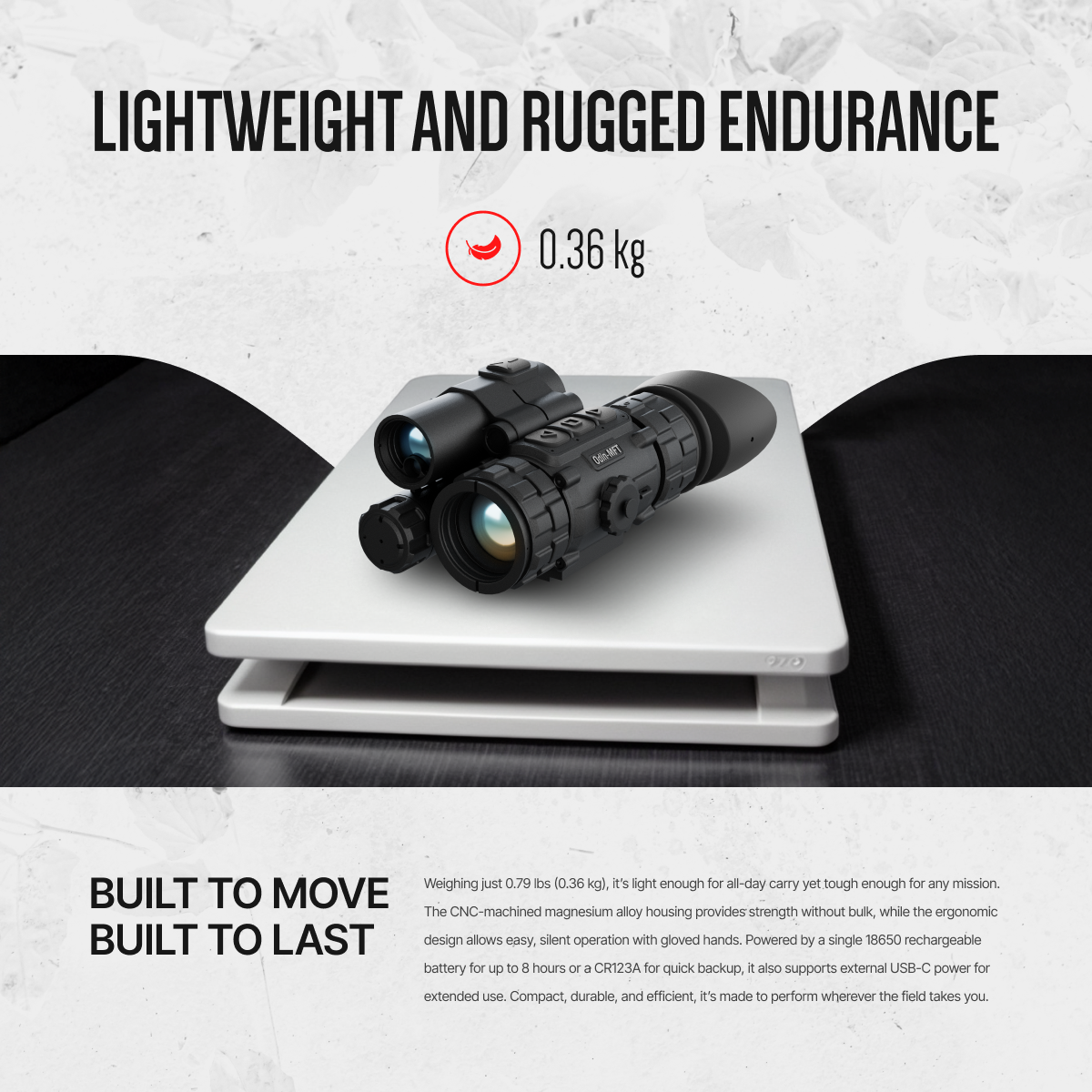

Lightweight Magnesium Alloy Housing |
CNC-machined body provides exceptional strength while keeping total weight under 0.8 lbs for enhanced mobility. |
|
Extended Battery Life |
Up to 8 hours of continuous use with a rechargeable 18650 battery or 1 hour with a CR123A; supports USB-C external power for extended missions. |
|
Weatherproof Construction |
Sealed against dust, rain, and impact for reliable use in harsh field or tactical environments. |
| OPERATION MODES |
Operating Modes |
Clip-on, Weapon Sight, Helmet Monocular, Handheld Monocular |
| OPTICS & SENSOR |
Detector Type |
12 mm VOx Uncooled Focal Plane Array |
|
Refresh Rate |
50 Hz |
|
SharpIR(c) |
Yes |
|
Non-Uniformity Correction (NUC) |
Auto / Manual |
|
Field of View (HxV) |
17.5° x 13.2° |
|
Focus Mechanism |
Manual Focus Controlled by Lens Adjustment |
|
Digital Zoom |
1x, 2x, 4x, 8x |
| DISPLAY & VIEWING |
Picture-in-Picture (PIP) |
Yes |
|
Color Palettes |
Multiple |
|
Eye Relief |
Unlimited |
|
Diopter Range |
-3 to +3 D |
|
NV Retention Mode |
Special mode for retaining natural night vision capability |
|
Customizable User Interface |
Yes |
| BALLISTICS & TARGETING |
Ballistic Calculator |
Yes |
|
Manual Range Finder |
Yes |
|
Ballistic Profiles |
9 Customizable Profiles |
|
Reticle Types |
Ballistic reticle optimized for 5.56×45 mm and 7.62×51 mm; user-defined reticles supported |
|
Reticle Styles |
7 Styles |
| RECORDING & CONNECTIVITY |
Video / Audio Recording |
Yes |
|
Recoil Activated Video (RAV) |
Yes |
|
Media Output |
USB Type-C (Data Transfer, Power Supply) |
|
Internal Storage Capacity |
64 GB |
| SMART FEATURES |
Geomagnetic + Gyroscope |
Yes |
|
Hot Point Tracking |
Yes |
|
Standby / Sleep Mode |
Yes (includes Shake-to-Wake function) |
|
Startup Time |
< 5 seconds |
| POWER SYSTEM |
Battery Type |
1x 18650 or 1x CR123 or External USB Type-C (5 V DC) |
|
Battery Life |
~8 hrs (18650), ~1 hr (CR123) |
|
Supports External Power Supply |
Yes (5 VDC / 2 A, USB Type-C interface) |
| DESIGN & DURABILITY |
Material |
Magnesium Alloy |
|
Mounting |
Wilcox NVG Shoe Interfaces / Picatinny (MIL-STD-1913) Rail Mount |
|
Button Configuration |
5 functional buttons including power |
|
Weight |
360 g / 0.79 lbs (without battery or eyecup) |
|
Dimensions (LxWxH) |
100x75x60 mm (3.94×2.95×2.36 in) |
|
Max Recoil Rating |
4500 J / 800 g over 0.3 ms |
|
Operating Temperature |
-46°C to +49°C (-51°F to +120°F) |
|
Waterproof / IP Rating |
IP67 |
| KEY FEATURES |
6th Generation Thermal Engine |
≤15 mK NETD sensitivity for superior image precision |
|
ATN SharpIR AI |
AI-enhanced imaging for improved edge clarity and target definition |
|
Germanium Lens |
High transmission germanium lens for brighter, more accurate thermal visuals |
|
OLED Display |
0.37-inch OLED display with 1280×1024 resolution and smooth 50 Hz motion |
|
Multi-Function Design |
Monocular, clip-on, helmet-mounted, or weapon sight |
|
Laser Rangefinder |
Built-in LRF on select models with 1,000-yard precision |
|
Color Palettes |
Multiple color palettes for adaptable visibility in any condition |
|
Picture-in-Picture |
Enhanced zoom accuracy |
|
Internal Memory |
64 GB internal memory with onboard video and audio recording |
|
USB-C Connectivity |
File transfer and external power |
|
Customizable Interface |
Interface orientation for all mounting setups |
|
Magnesium Housing |
Lightweight 0.79 lb magnesium housing built for durability and mobility |
|
Dual Power Compatibility |
18650 and CR123A batteries for up to 8 hours of operation |
|
Weather Resistance |
IP-rated weather resistance for reliable performance in any climate |
