ATN Odin 6 Multi-Functional Thermal Optic, 640×480 Sensor, 12μm, ≤15 mK NETD, Built-in LRF

SKU
TIMFOD6625LRF
$5,495.00
Add to Compare
0% APR for 6/12 months or interest bearing for 36 months*

ATN ODIN 6 MFT
MULTI-FUNCTION THERMAL OPTIC
Compact. Versatile. Unstoppable.


The ATN Odin 6 MFT is built for those who demand flexibility, precision, and performance in every mission or hunt. Whether you are navigating tight spaces, scanning ridgelines, or tracking movement through darkness and fog, this multi-functional thermal system delivers elite imaging and control in a lightweight, tactical form designed to move with you.


At its core is ATN’s all-new 6th Generation Thermal Engine, the most powerful we have ever built. Designed around a 12 μm VOx sensor with ≤15 mK NETD thermal sensitivity, it delivers exceptional clarity, contrast, and detection in every environment. Available in 320×240 and 640×480 resolutions with a fast 50 Hz refresh rate, the Odin 6 MFT captures every heat signature with sharp precision and fluid detail.


Powered by ATN SharpIR, our proprietary AI-enhanced imaging system, the Odin 6 MFT dynamically refines edges, contrast, and target separation in real time. Combined with a 0.37-inch 1280×1024 OLED display, it delivers lifelike visuals and smooth motion tracking even in low-contrast conditions. Whether identifying game in thick brush or scanning urban terrain, every image is sharper, faster, and more defined.

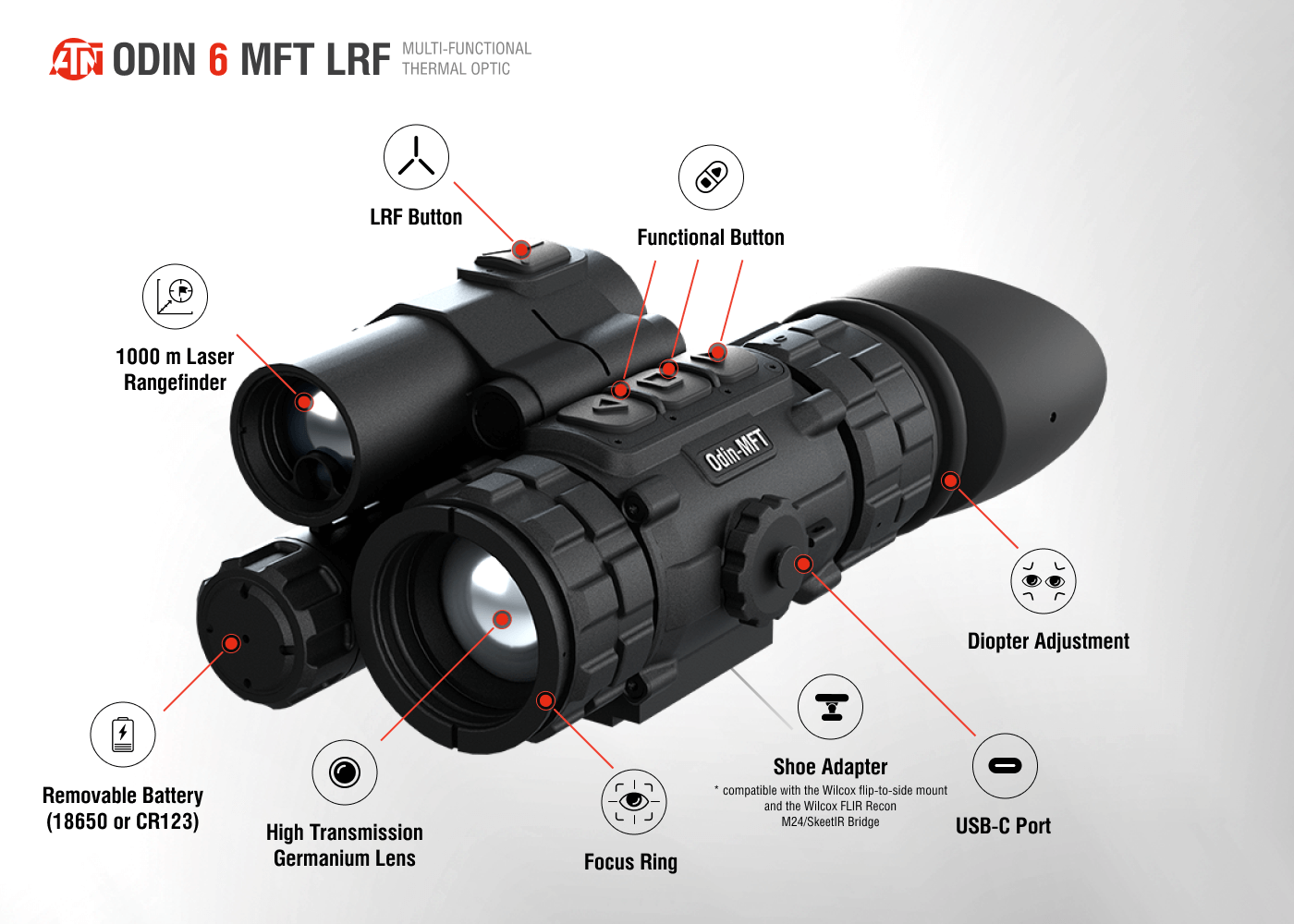

The Odin 6 MFT is available in two configurations: the ultra-compact core for maximum mobility and the LRF model featuring a built-in 1,000-yard laser rangefinder for instant distance measurement and enhanced long-range accuracy. This dual-configuration design gives you the freedom to choose your loadout based on mission or environment.


More than a thermal optic, the Odin 6 MFT is a true multi-role platform. It functions as a handheld monocular, helmet-mounted thermal viewer, clip-on device, or dedicated weapon sight. Whether you are on patrol, hunting in the backcountry, or securing a perimeter, it adapts instantly to your needs without compromise.


With up to 8 hours of runtime, 64 GB internal storage, video and audio recording, and a rugged magnesium alloy body, the Odin 6 MFT is ready for anything. Its customizable user interface and ergonomic, glove-friendly controls ensure fast, intuitive operation in any position.


Stay in control with intelligent features
• 6th Generation Thermal Engine with ≤15 mK NETD sensitivity for superior image precision
• ATN SharpIR AI-enhanced imaging for improved edge clarity and target definition
• High transmission germanium lens for brighter, more accurate thermal visuals
• 0.37-inch OLED display with 1280×1024 resolution and smooth 50 Hz motion
• Multi-function design: monocular, clip-on, helmet-mounted, or weapon sight
• Built-in laser rangefinder (on select models) with 1,000-yard precision
• Multiple color palettes for adaptable visibility in any condition
• Picture-in-Picture mode for enhanced zoom accuracy
• 64 GB internal memory with onboard video and audio recording
• USB-C connectivity for file transfer and external power
• Customizable interface orientation for all mounting setups
• Lightweight 0.79 lb magnesium housing built for durability and mobility
• Dual power compatibility with 18650 and CR123A batteries for up to 8 hours of operation
• IP-rated weather resistance for reliable performance in any climate


Compact, rugged, and purpose-built for professionals and serious outdoorsmen, the Odin 6 MFT gives you the clarity, adaptability, and endurance to operate confidently in any environment.


When the wild conceals, the Odin 6 MFT reveals.

THERMAL PERFORMANCE & IMAGE CLARITY
• 6th Generation Thermal Engine
Built around ATN’s proprietary 12 μm VOx core with ≤15 mK sensitivity, the Odin 6 MFT delivers high-contrast imaging and precise heat detection in any condition.
• ATN SharpIR AI Technology
Advanced AI algorithms automatically enhance sharpness and contrast, revealing detail and definition in cluttered or low-visibility environments.
• High Transmission Germanium Lens
Maximizes light throughput and detection range for brighter, more detailed images at all distances.
• High-Resolution OLED Display
A 0.37-inch 1280×1024 OLED display provides crisp visuals, smooth tracking, and improved viewing comfort during extended use.
• Multiple Color Palettes
Six selectable viewing modes including White Hot, Black Hot, Sepia, Reverse Sepia, High Red, and Low Blue let you adapt instantly to changing environments.

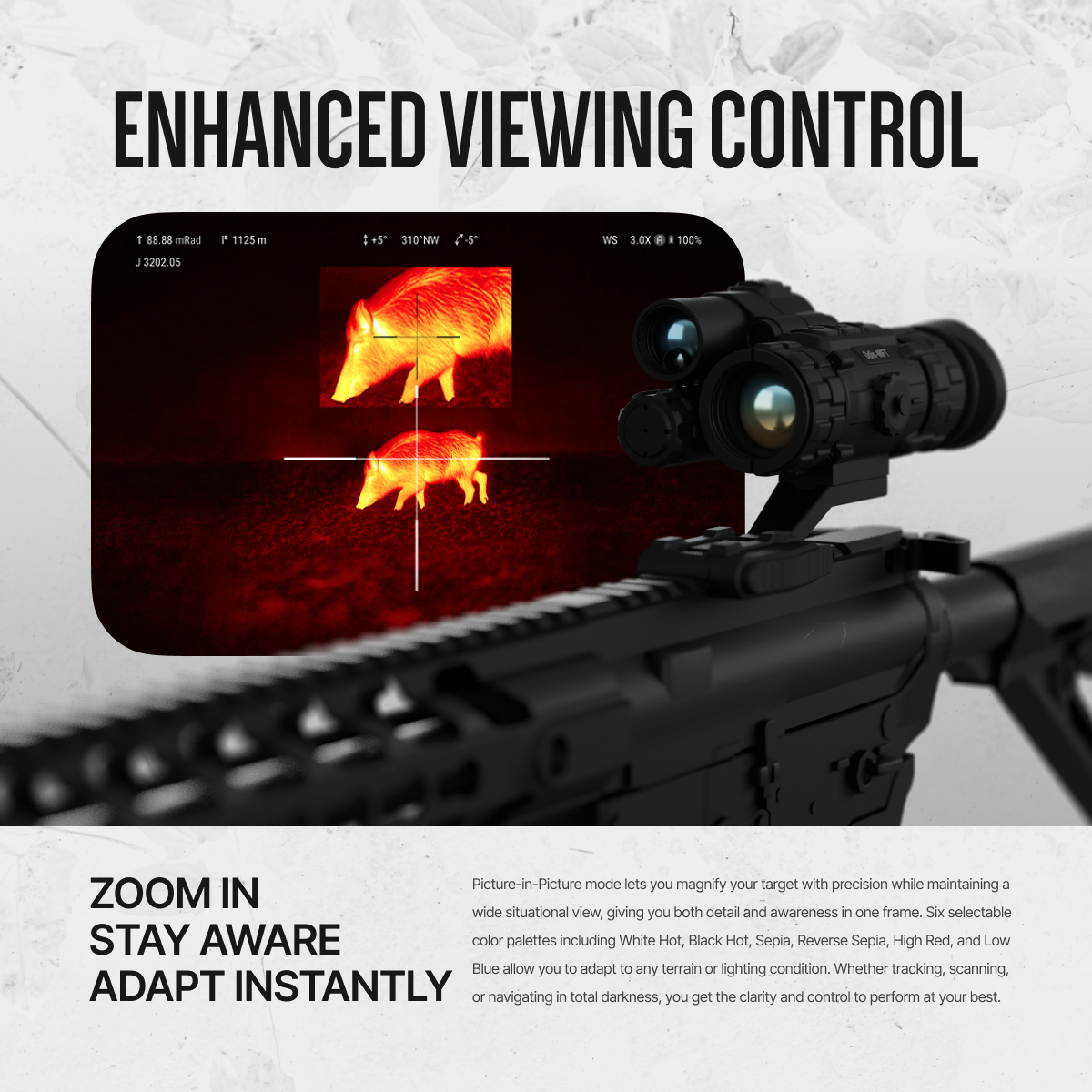

• Picture-in-Picture (PIP)
Zoom in for precise targeting while maintaining situational awareness through a secondary wide-view window.

RECORDING & STORAGE
• Video and Audio Recording
Capture high-quality video and sound directly to the device with 64 GB of internal memory and no need for external cards.
• Onboard Storage
Save and review all recordings within the device, then transfer easily through USB-C for sharing or analysis.

VERSATILITY & CONTROL
• Multi-Function Design
Operates as a handheld monocular, helmet-mounted viewer, clip-on, or dedicated thermal weapon sight for unmatched versatility.
• Customizable Interface
Reposition on-screen menus based on mounting orientation for clear visibility and intuitive operation in any setup.
• Tactical Controls
Ergonomic, glove-friendly buttons allow silent operation and fast adjustments in low-light or high-stress conditions.

RANGEFINDING & PRECISION TOOLS
• Integrated Laser Rangefinder
Available on select models, the built-in LRF provides instant range data up to 1,000 yards for precision accuracy and situational awareness.
• Clip-On Compatibility
Functions as a thermal clip-on for day optics up to 6× magnification while maintaining zero and field alignment.

DESIGN & POWER

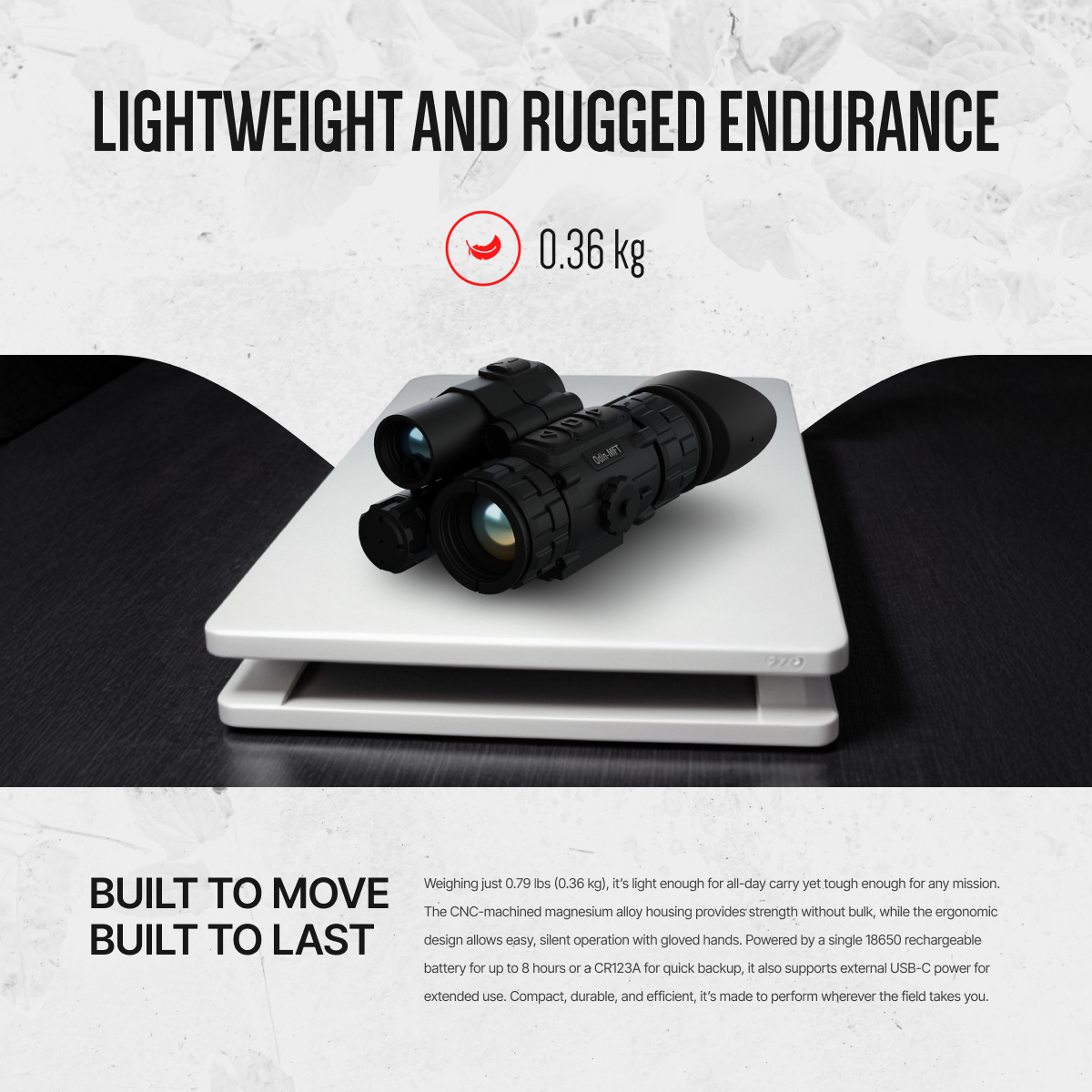

• Lightweight Magnesium Alloy Housing
CNC-machined body provides exceptional strength while keeping total weight under 0.8 lbs for enhanced mobility.
• Extended Battery Life
Up to 8 hours of continuous use with a rechargeable 18650 battery or 1 hour with a CR123A; supports USB-C external power for extended missions.
• Weatherproof Construction
Sealed against dust, rain, and impact for reliable use in harsh field or tactical environments.
OPERATION MODES
• Clip-on, Weapon Sight, Helmet Monocular, Handheld Monocular

OPTICS & SENSOR
• Detector Type: 12 μm VOx Uncooled Focal Plane Array
• Sensor Resolution: 640×480
• Refresh Rate: 50 Hz
• Thermal Sensitivity (NETD): ≤ 15 mK
• SharpIR©: Yes
• Non-Uniformity Correction (NUC): Auto / Manual
• Lens System: 25 mm (Ge); F/1.0
• Field of View (H×V): 17.5° × 13.2°
• Focus Mechanism: Manual Focus Controlled by Lens Adjustment
• Magnification: 1–8×
• Digital Zoom: 1×, 2×, 4×, 8×
• Detection Range: 1700 m

RANGEFINDING & TARGETING
• Built-in Laser Rangefinder (LRF): Yes
• LRF Range: 1000 m
• LRF Accuracy: ±1 m
• LRF Laser Specs: 905 nm, Class 1 (Eye Safe)
• Ballistic Calculator: Yes
• Automatic Range Finder: Yes
• Ballistic Profiles: 9 Customizable Profiles
• Reticle Types: Ballistic reticle optimized for 5.56×45 mm and 7.62×51 mm; user-defined reticles supported
• Reticle Styles: 7 Styles

DISPLAY & VIEWING
• Display Resolution: 0.37" OLED, 1280×1024 HD
• Picture-in-Picture (PIP): Yes
• Color Palettes: Multiple
• Eye Relief: Unlimited
• Diopter Range: -3 to +3 D
• NV Retention Mode: Special mode for retaining natural night vision capability
• Customizable User Interface: Yes

RECORDING & CONNECTIVITY
• Video / Audio Recording: Yes
• Recoil Activated Video (RAV): Yes
• Media Output: USB Type-C (Data Transfer, Power Supply)
• Internal Storage Capacity: 64 GB

SMART FEATURES
• Geomagnetic + Gyroscope: Yes
• Hot Point Tracking: Yes
• Standby / Sleep Mode: Yes (includes Shake-to-Wake function)
• Startup Time: < 5 seconds

POWER SYSTEM
• Battery Type: 1× 18650 or 1× CR123 or External USB Type-C (5 V DC)
• Battery Life: ~8 hrs (18650), ~1 hr (CR123)
• Supports External Power Supply: Yes (5 VDC / 2 A, USB Type-C interface)

DESIGN & DURABILITY
• Material: Magnesium Alloy
• Mounting: Wilcox NVG Shoe Interfaces / Picatinny (MIL-STD-1913) Rail Mount
• Button Configuration: 5 functional buttons including power
• Weight: 400 g / 0.88 lbs (without battery or eyecup)
• Dimensions (L×W×H): 100×75×60 mm (3.94×2.95×2.36 in)
• Max Recoil Rating: 4500 J / 800 g over 0.3 ms
• Operating Temperature: -46 °C to +49 °C (-51 °F to +120 °F)
• Waterproof / IP Rating: IP67

Included Accessories:

• Odin 6 MFT

• Eyecup

• QDM Mount

• ATN Pouch

• USB-C Cable

• 1 × 18650 Battery

• Wrist Strap

• Hard Case

• Lens Tissue

• Neck Strap

• Quick Reference Guide
