| THERMAL PERFORMANCE & VISUAL CLARITY |
6th Gen Ultra Thermal Sensitivity |
≤15 mK NETD sensors and a 12 mm pixel pitch deliver sharper detail and faster detection, letting hunters spot game earlier in fog, brush, or total darkness. |
|
ATN SharpIR AI Technology |
Proprietary AI imaging automatically enhances sharpness and contrast, making targets stand out clearly against complex backgrounds. |
| EASE OF USE & FIELD-READY DESIGN |

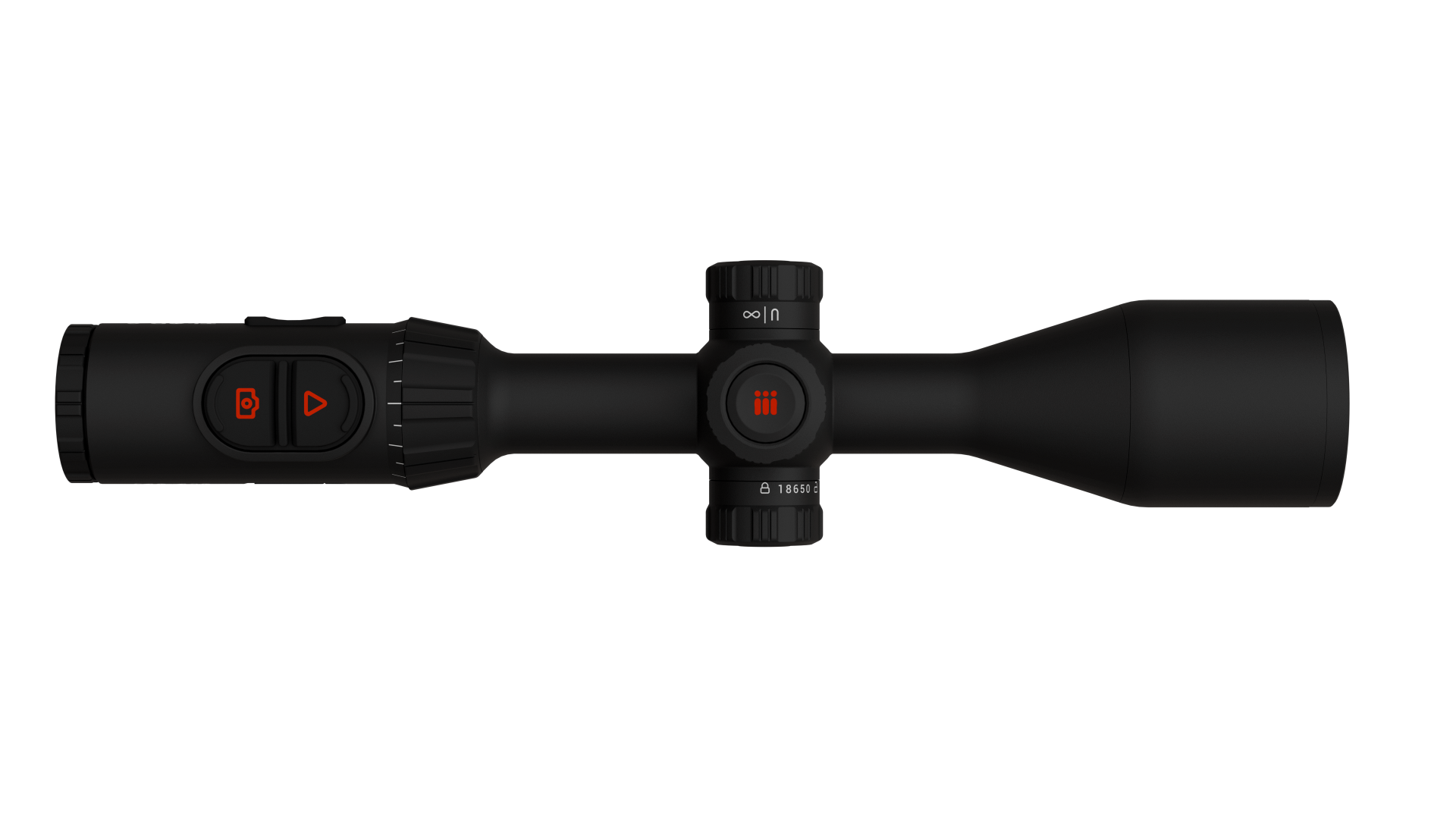

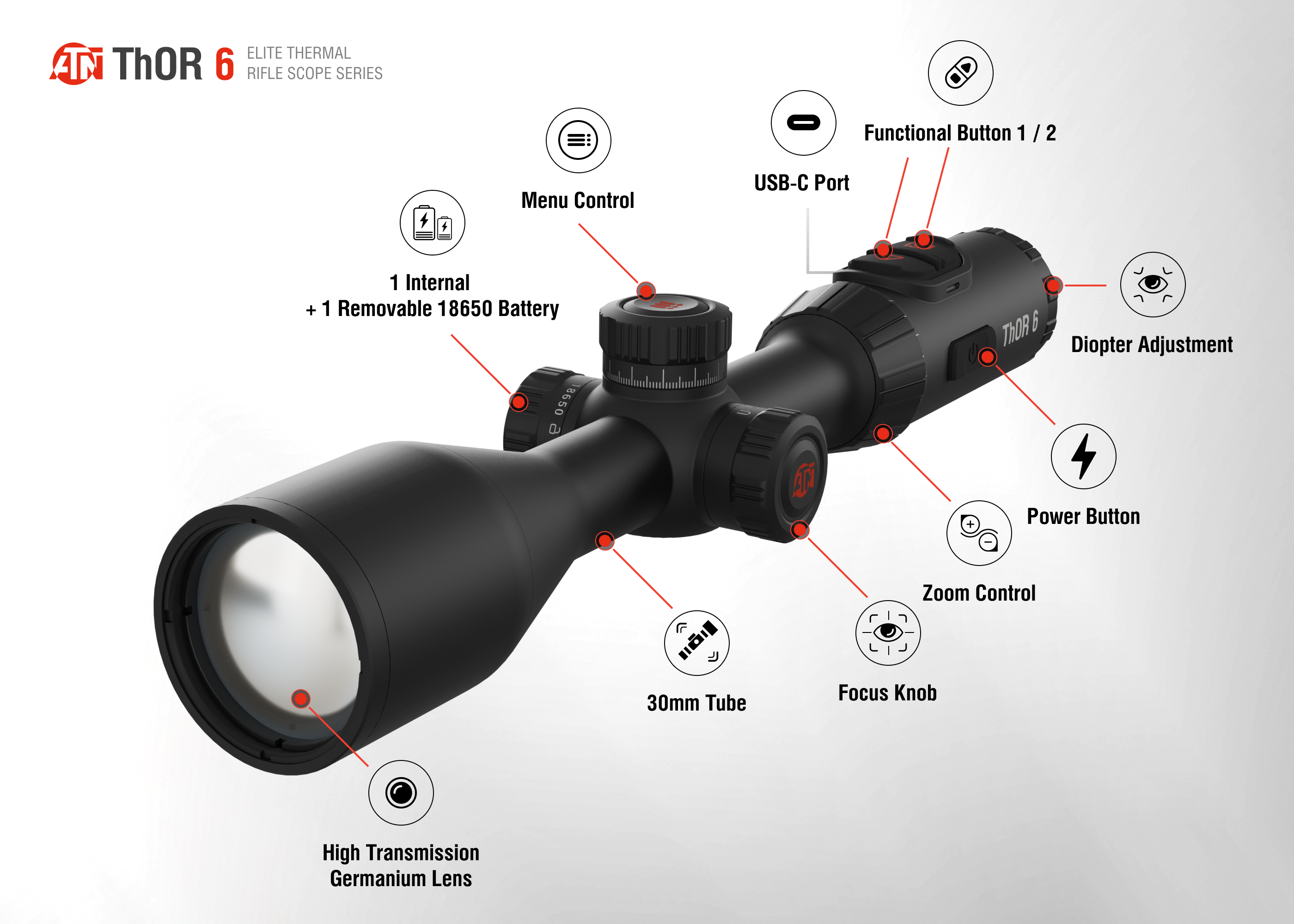

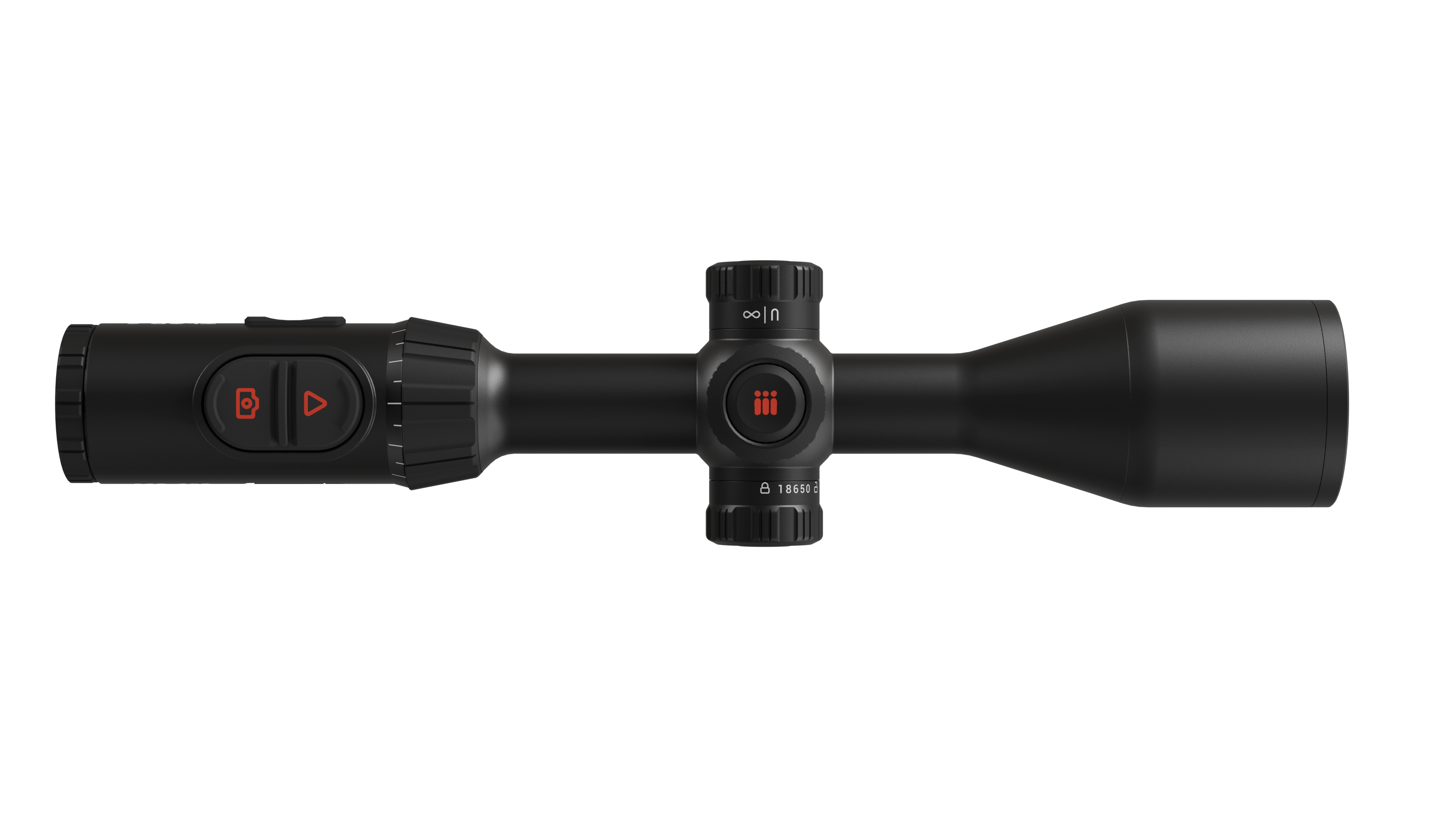

Streamlined 3-Button Control |
Simple controls make on-the-fly adjustments easy, even with gloves on. |
|
Traditional Scope-Like Zoom |
Smooth, familiar zoom control offers precision and comfort for hunters used to traditional optics. |
|

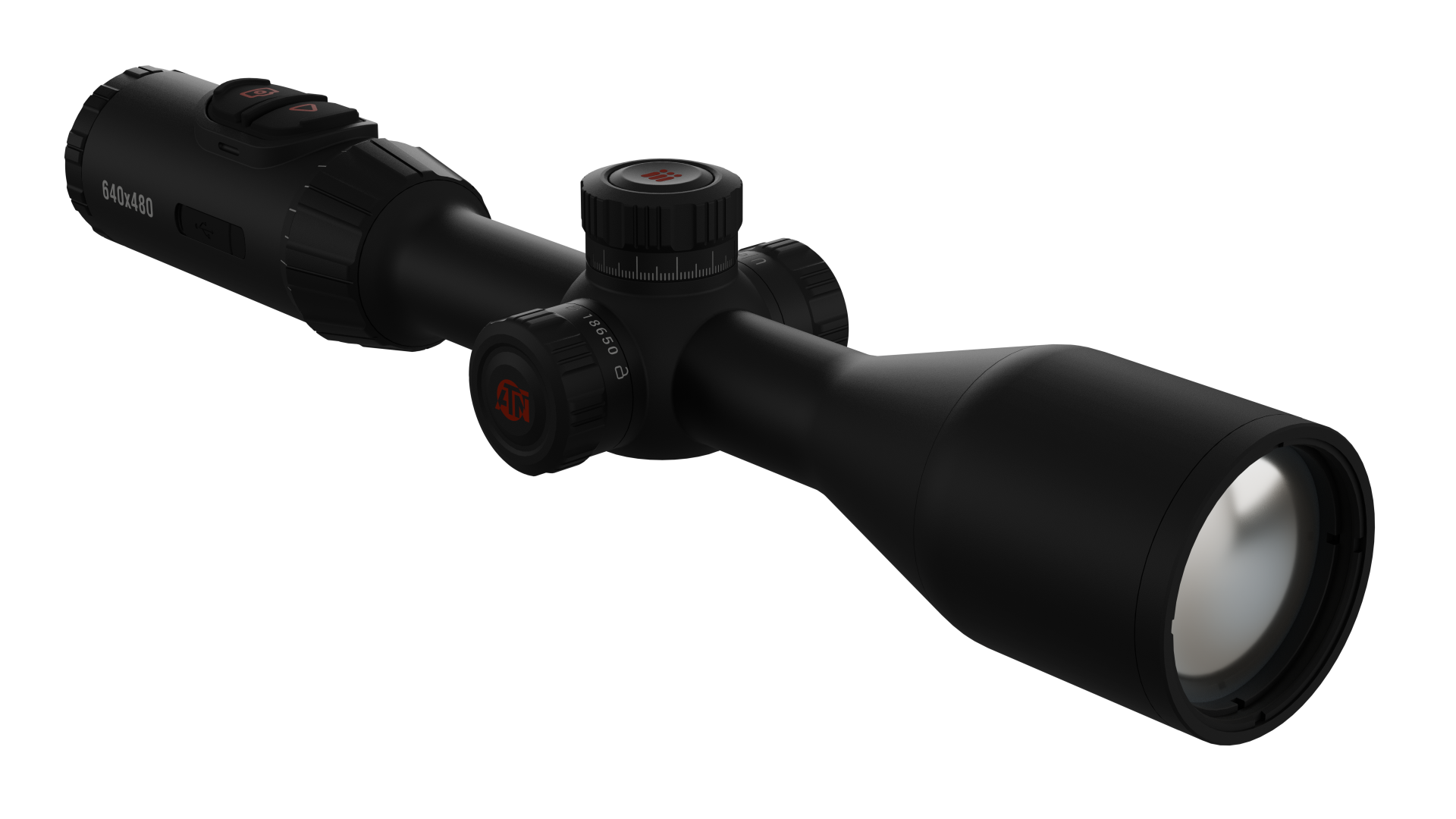

Easy-Access Focus Knob |
Large textured focus knob allows fast, accurate adjustments in any condition. |
| OPTICS & SENSOR |

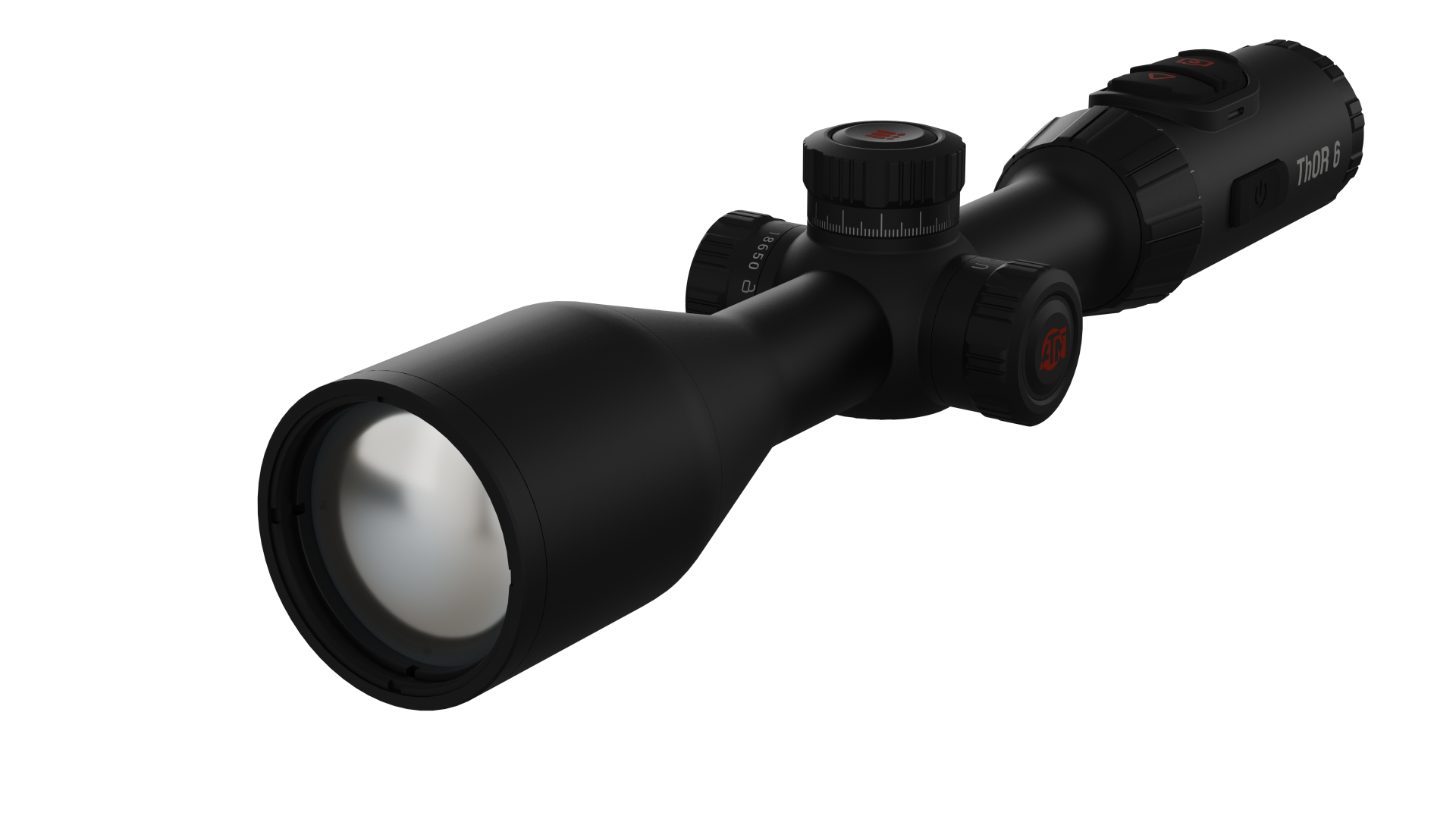

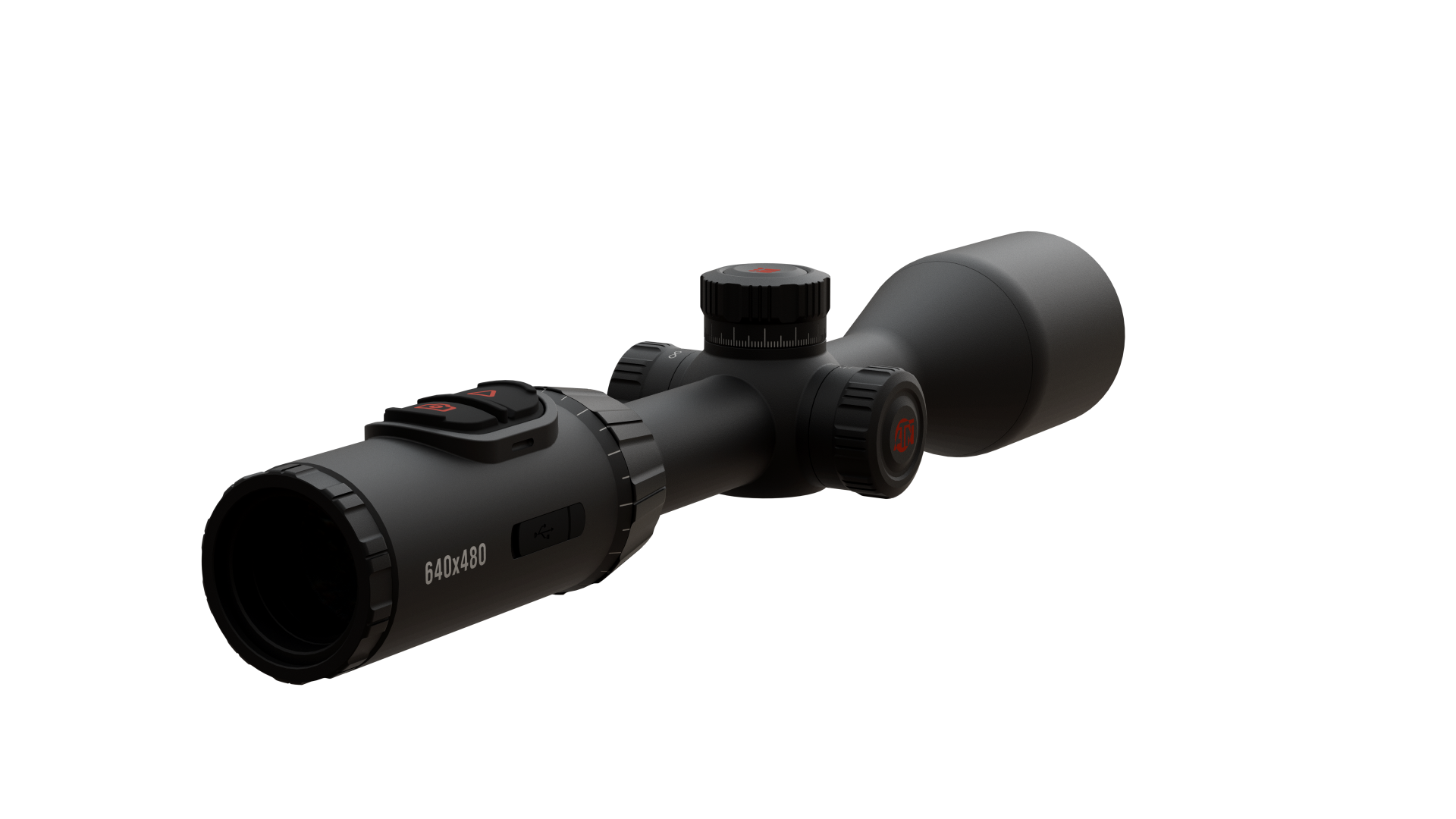

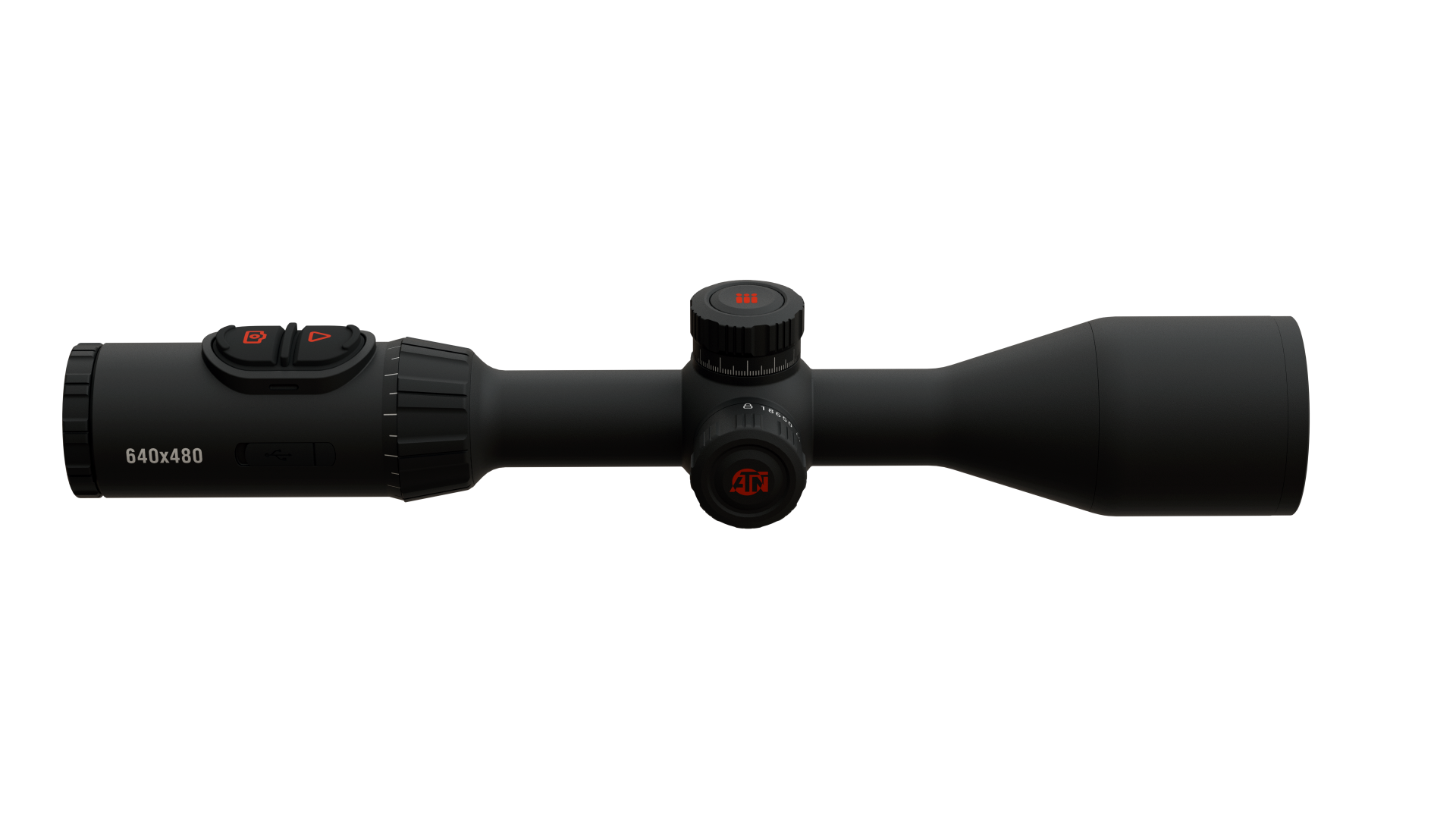

Model |
TIWST6650A |
|
Detector Type |
12 mm VOx Uncooled Focal Plane Array |
|
Sensor Resolution |
640×512 |
|
Thermal Sensitivity (NETD) |
≤15 mK |
|
Refresh Rate |
50 Hz |
|
SharpIR(c) |
Yes |
|
Non-Uniformity Correction (NUC) |
Auto / Semi Auto / Manual |
|
Lens System |
50 mm (Ge); F/1.0 |
|
Field of View (HxV) |
8.78° × 6.59° |
|
Focus Mechanism |
Manual, Central Knob Control |
|
Detection Range |
3650 m |
|

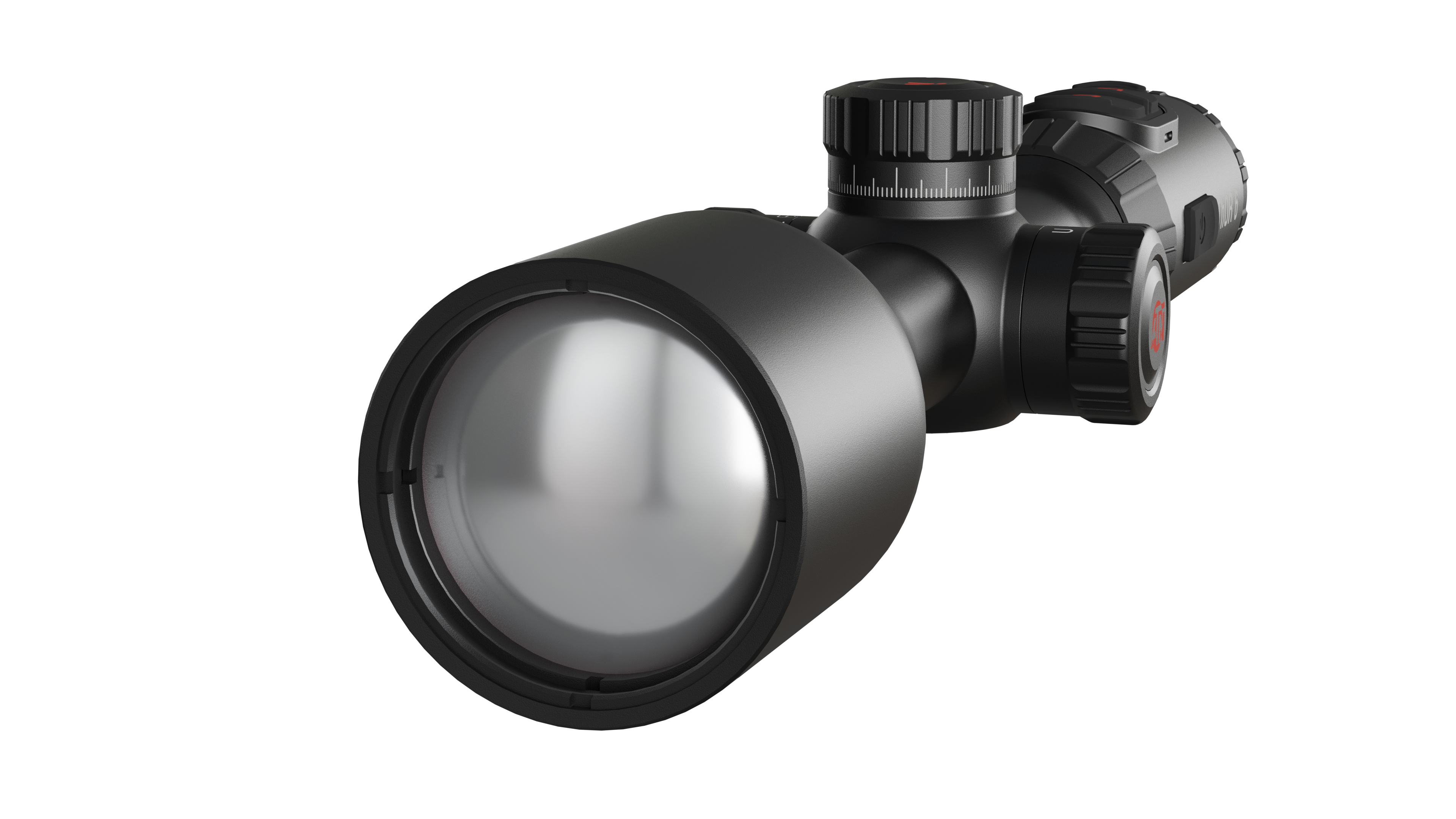

High Transmission Germanium Lens |
Yes |
| MAGNIFICATION & DISPLAY |
Magnification |
3-24x |
|
Digital Zoom |
1x, 2x, 4x, 8x |
|
Zoom Type |
Step & Smooth Zoom |
|

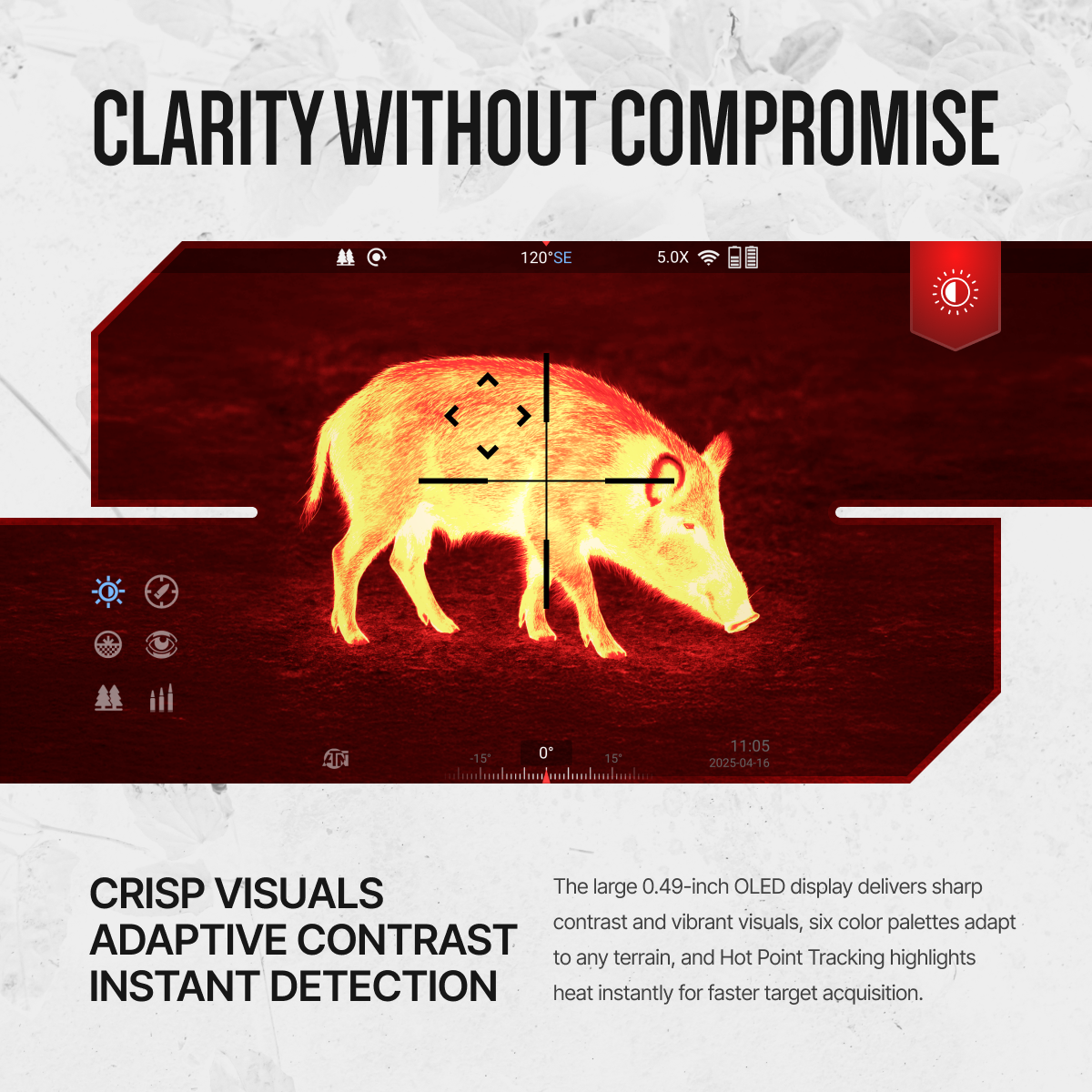

Display Type |
0.49″ OLED |
|
Display Resolution |
1920×1080 |
|
Eye Relief |
50 mm |
|
Diopter Range |
-5 to +5 D |
|
Picture-in-Picture (PIP) |
Yes |
| RETICLE & TARGETING |
Reticle Types |
10 Styles |
|
Reticle Transparency Control |
Yes |
|
Zeroing Freeze |
Yes |
|
Color Palettes |
White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
|
Hot Point Tracking |
Yes |
|
Ballistic Calculator |
Not Available |
|
Built-in Laser Rangefinder (LRF) |
Not Available |
| RECORDING & CONNECTIVITY |
Video / Audio Recording |
Yes |
|
Internal Gallery |
Yes |
|
Recoil Activated Video (RAV) |
Yes |
|
Internal Storage Capacity |
64 GB |
|
Media Output |
USB Type-C |
|
Built-in Wi-Fi (Hotspot) |
Yes |
|
App (Apple Store / Google Play) |
Yes (ATN Connect 6 – iOS & Android) |
| POWER & CONTROLS |
Battery Type |
1 × 18650 (Internal) & 1 × 18650 Rechargeable (Replaceable) |
|
Battery Life |
~9 hours |
|
Supports External Power Supply |
Yes, USB Type-C (5 VDC / 2A) |
|
Standby / Sleep Mode |
Yes |
|
Startup Time |
<7 seconds (Instant from Standby) |
|
Geomagnetic + Gyroscope |
Yes |
| MECHANICAL & ENVIRONMENTAL |
Material |
Magnesium Alloy |
|
Mounting |
30 mm Rings (not included) |
|
Weight |
830 g / 1.83 lbs |
|
Dimensions (L × W × H) |
430 × 85 × 72 mm (16.93 × 3.35 × 2.83 in) |
|
Max Recoil Rating |
6000 Joules / 1000g acceleration over 0.4 ms |
|
Operating Temperature |
-30°C to 55°C (-22°F to 131°F) |
|
Waterproof / IP Rating |
IP67 |
