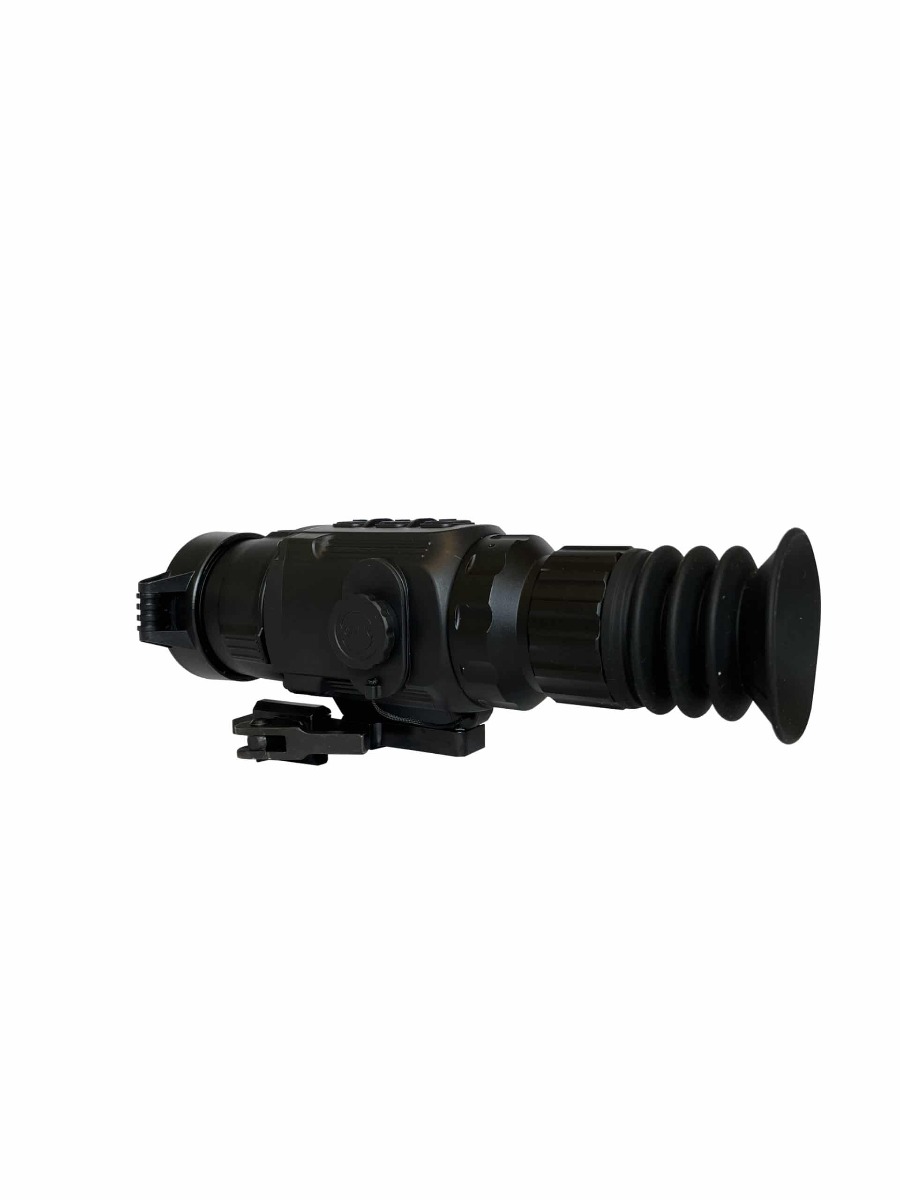

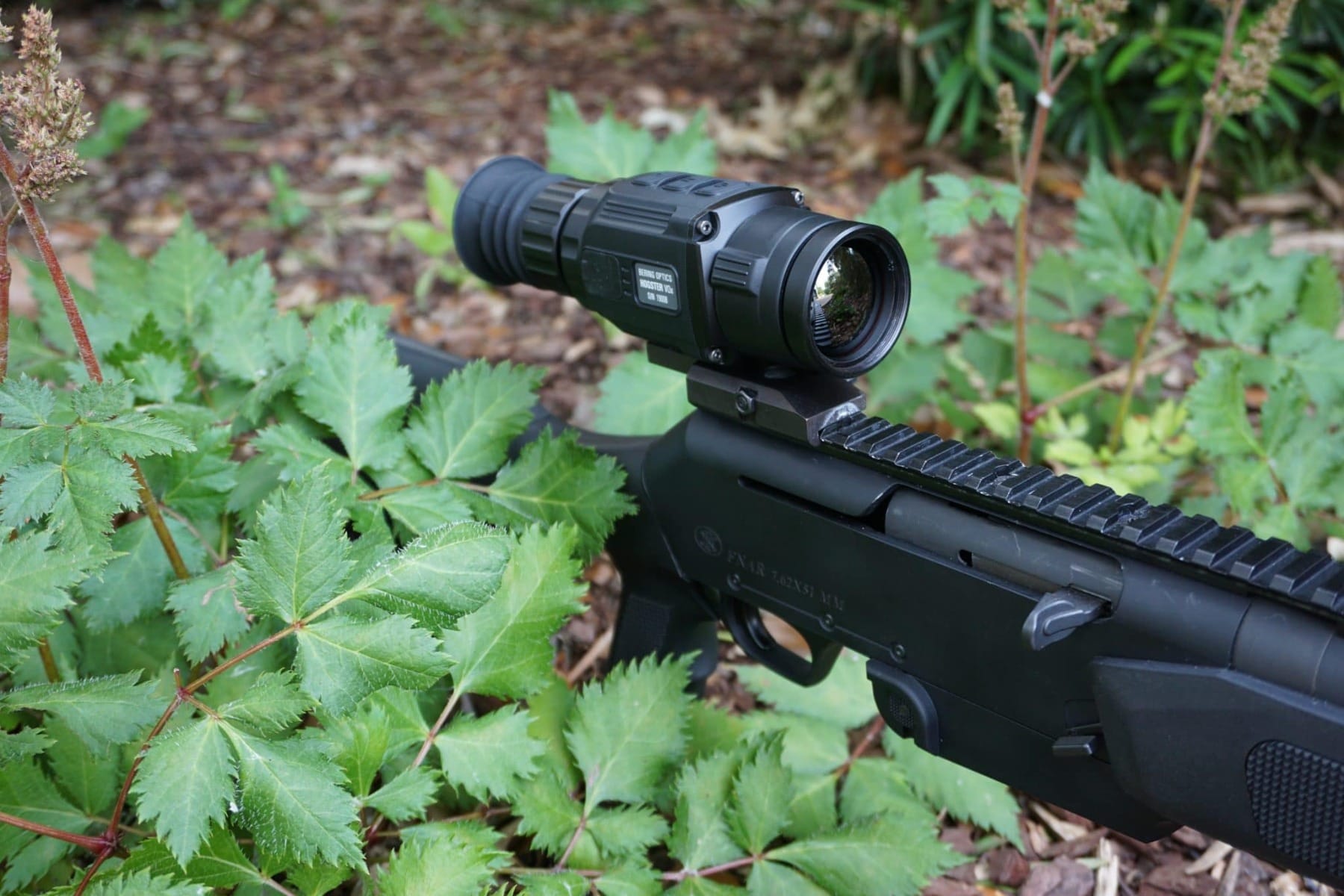

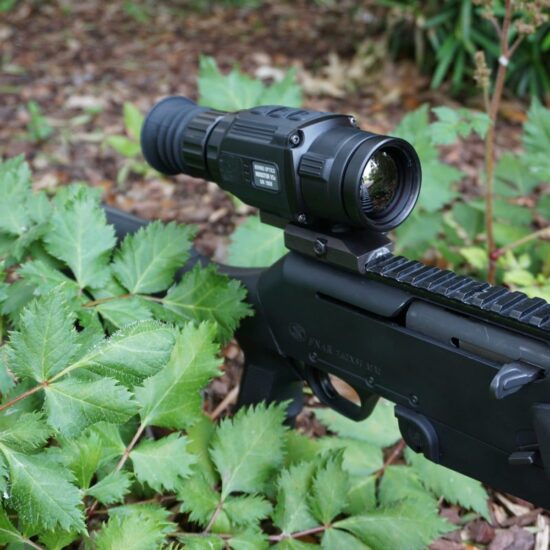

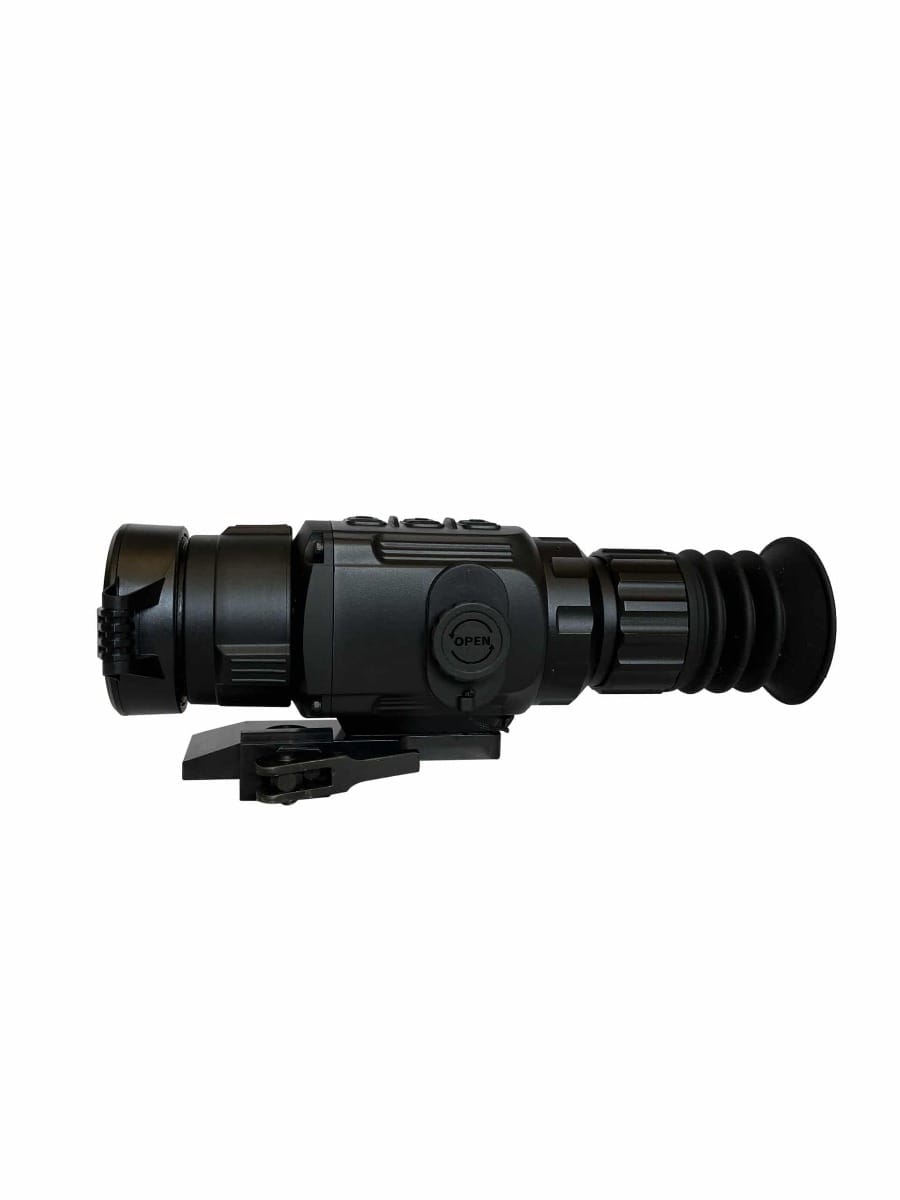

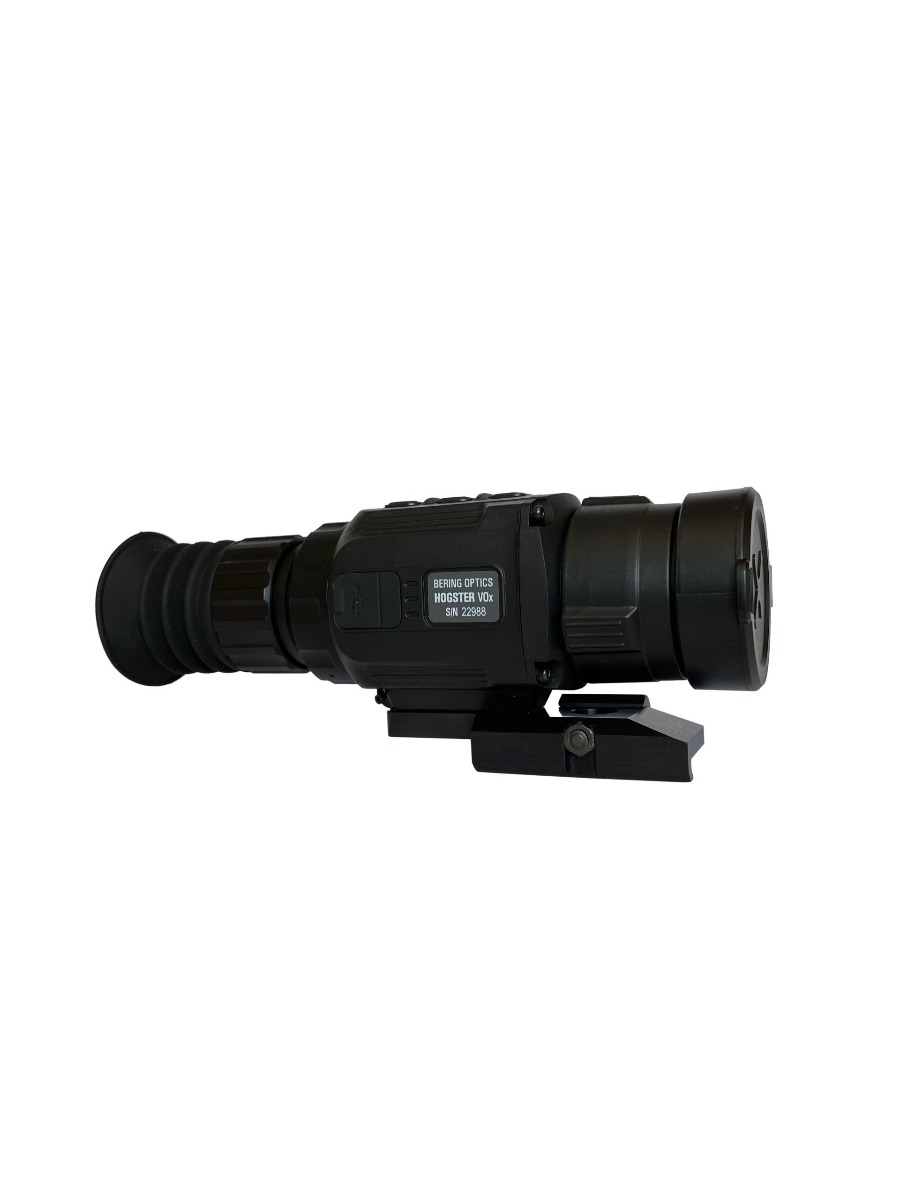

HOGSTER VIBE 1.4-5.6x25mm Ultra-compact Thermal Weapon Sight, VOx 384x288 core resolution, 50Hz refresh rate, with a QD mount

SKU
BE43325
$1,775.00
Financing options available at checkout
Add to Compare

HOGSTER VIBE 1.4-5.6x25mm Ultra-compact Thermal Scope, Extra-wide 16° FOV, 100% Germanium 25mm Lens, VOx 384x288 core resolution, QR mount



HOGSTER VIBE™ VOx 384×288 Thermal Weapon Sights are aimed at the growing feral hog market. The sight is exceptionally lightweight,  compact and .308 Cal. rated. HOGSTER VIBE™ comes with a Quick-Detach (QD) mount that makes the mounting on any type of rifle, equipped  with the Picatinny rail, quick and easy. HOGSTER VIBE™ compactness makes it suitable for use as a handheld scanner for scouting purposes.

The sight is built with the superb Germanium optics that is paired with an advanced Vanadium Oxide (VOx) thermal core and proprietary  electronics. HOGSTER VIBE™ features an intuitive, user-friendly menu to customize settings to the shooter’s needs without disengaging from the  target, including BDC and Crosshair reticles along with White, Black and Colored image polarization.

The scope is nitrogen-purged, is water-, dust- and shock-proof and is action ready in any environment or light conditions, including conditions when  the environmental obscurants such as smoke, dust, haze, are present. HOGSTER VIBE™ is suitable for use in colder temperatures thanks to the  unique built retaining its own heat and keeping the cold sensitive elements warm, virtually making it a great universal choice for any demanding  user.



Product Modification  HOGSTER VIBE
Product SKU# BE43325  BE43335 / BE43335L
Optical Magnification, x 1.4x 2.0x
Digital Multiplication, X 2X, 3X, 4X
Objective lens system 25mmF/1.1 35mmF/1.1
Angular FOV at 1.0x (horizontal x vertical), degree 14.9° x 11.2° 10.7° x 8°
Eye relief, mm 40
Focus range, m 1 to infinity
Diopter Adjustment, D -5: +5
Reticle W/E adjustment value at a distance of 100m (110yds) 1.34″/3.4cm increment per pxl 0.96″/2.43cm increment per pxl
Core resolution, pxl 384×288
Pixel pitch, µm 17
Image refresh rate, Hz 50
Thermal Sensitivity (NETD), mK ≤ 40
Display type and resolution, pxl LCOS 1280×960
Start-up time, min., sec. 20
Object type and size, approx., ft² / m² Hog



 7.5 / 0.7

Coyote



5.5 / 0.5

Hog



 7.5 / 0.7

Coyote



5.5 / 0.5

Detection, approx., yds / m 600 /550 460 /420 800 /720 660/600
Recognition, approx., yds / m 225 /200 160 /145 300 /275 200 /185
Dimensions with QD mount, in / mm 7.0 x 2. 83 x 2.36 / 180x72x60 7.68 x 2. 83 x 2.36 / 195x72x60
Weight w/out batteries, approx., oz/g 16.44 / 466 17.14 / 486
Power supply 3V CR123 (two) or 3.7V rechargeable 16650 (two) or



5V Type C USB port

Estimated battery life with two Lithium 3V CR123, hour 4.0
Operating temperature, typical, °F/°С 4° to +122° / -15° to +50°
Water intrusion IP66
Humidity, % up to 98%

HOGSTER VIBE 1.4-5.6x25mm Ultra-compact Thermal Scope, Extra-wide 16° FOV, 100% Germanium 25mm Lens, VOx 384x288 core resolution, QR mount

  • Class-leading extra-wide 16° FOV (BE43325)
  • Best-in-class barrel proximity with the industry's lowest- profile LaRue

      Tactical® QR Mount (BE43335L)

  • Class-leading effective detection range in high humidity conditions
  • 30-06 Sprg SX 125gr P.S.P. rated
  • Ultra compact & lightweight
  • Detection distances: 700+ yards with 25mm Lens and 800+ yards with 35mm Lens
  • Superior at short-, medium-m to long-range distances
  • 4-color switchable palette
  • Selectable Auto NUC or Manual NUC
  • High resolution 1280x960 LCOS Display
  • Picture-in-picture feature
  • 4-profile memory for zeroing
  • Choice of 8 reticles
  • WIFI capability
  • Built in 16GB memory to record videos/photos
  • Assembled with a QR mount (BE43325/BE43335) or LaRue
