Name: InfiRay Outdoor RICO MICRO RL25 384 2X, 25mm Multifunction Thermal Weapon Sight
Brand: InfiRay Outdoor
SKU: IRAY-RL25
Price: 2249 USD
Availability: InStock

Download our Mobile App and get 10% off

Sale

Secure Shipping

Your products are safe

Return and Refund

Hassle-free returns

Fast Delivery

Get your order quickly

Monoculars, Monoculars, New Products Category, NVG Specials, Thermal Monoculars, Thermal Sights

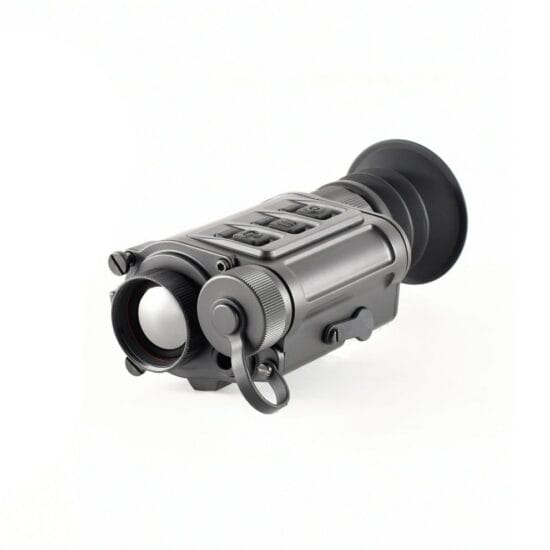

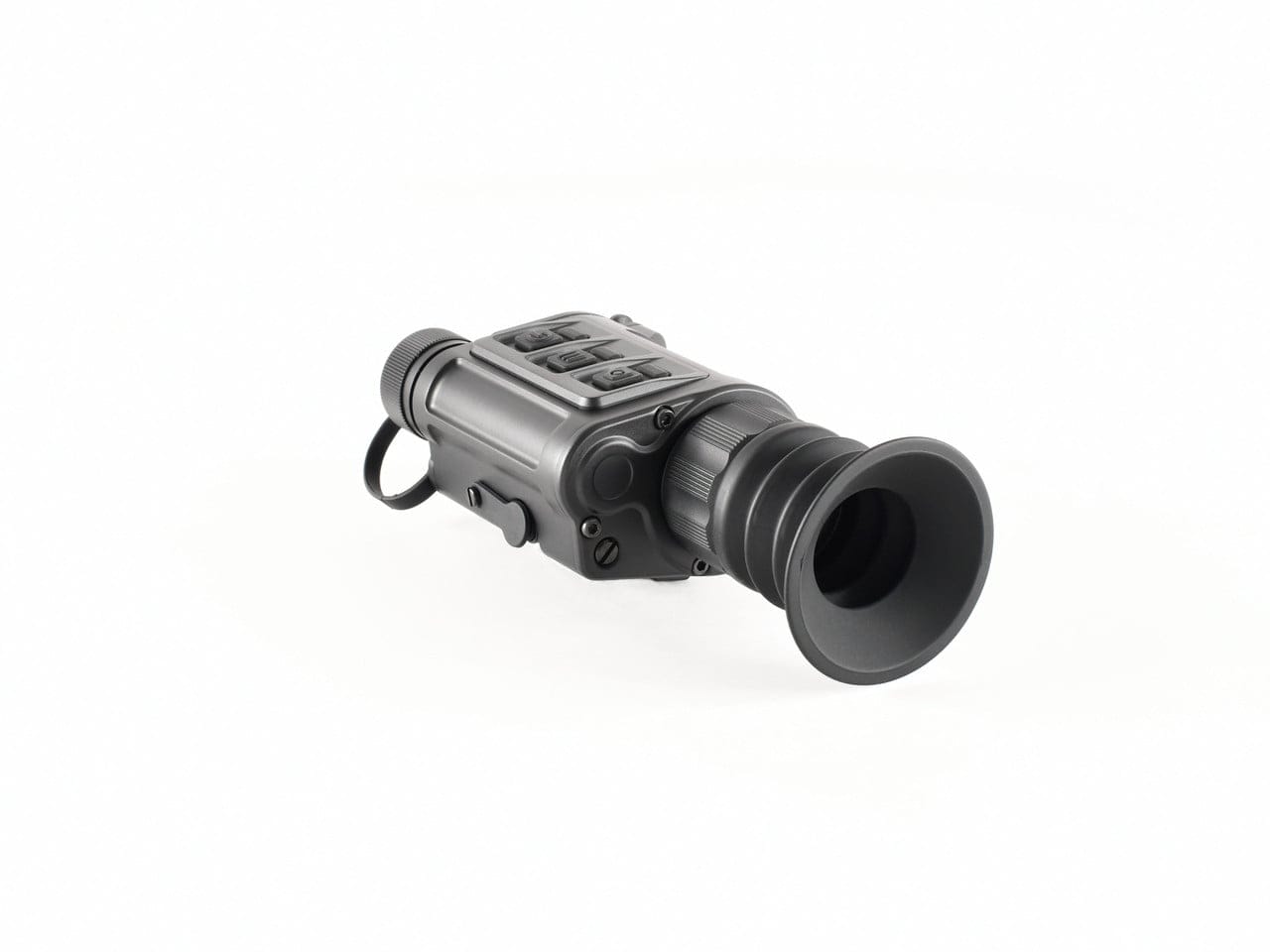

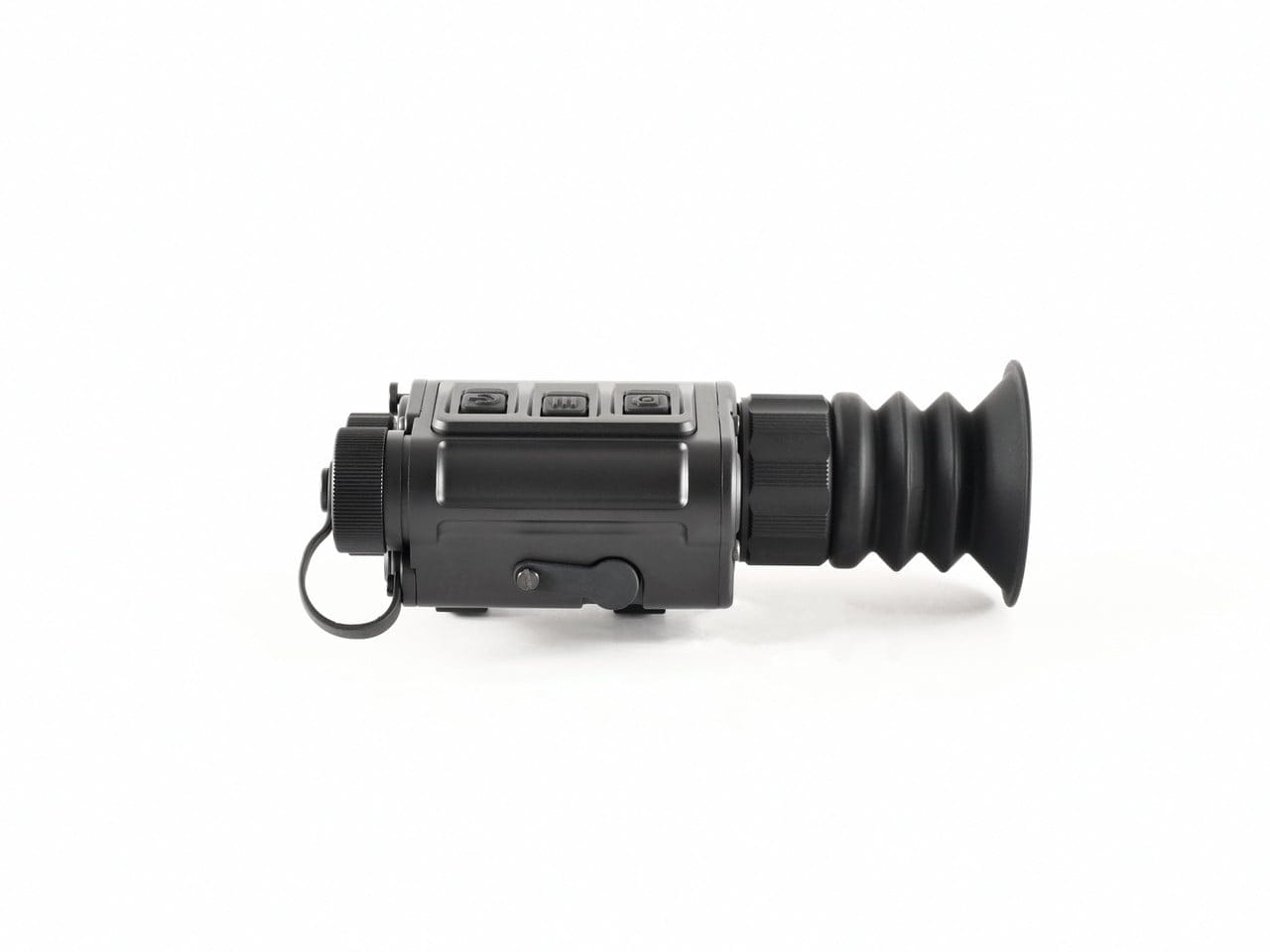

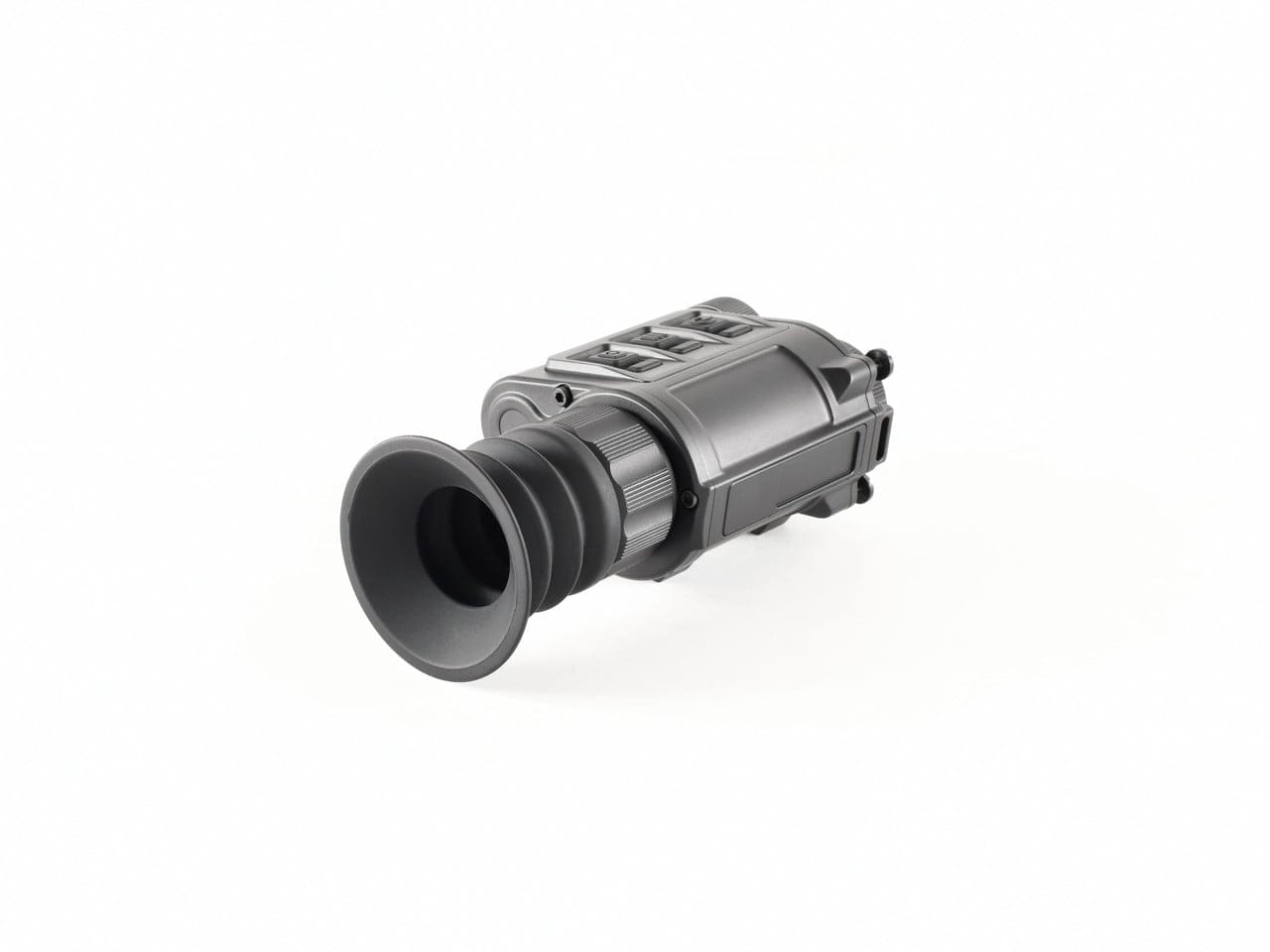

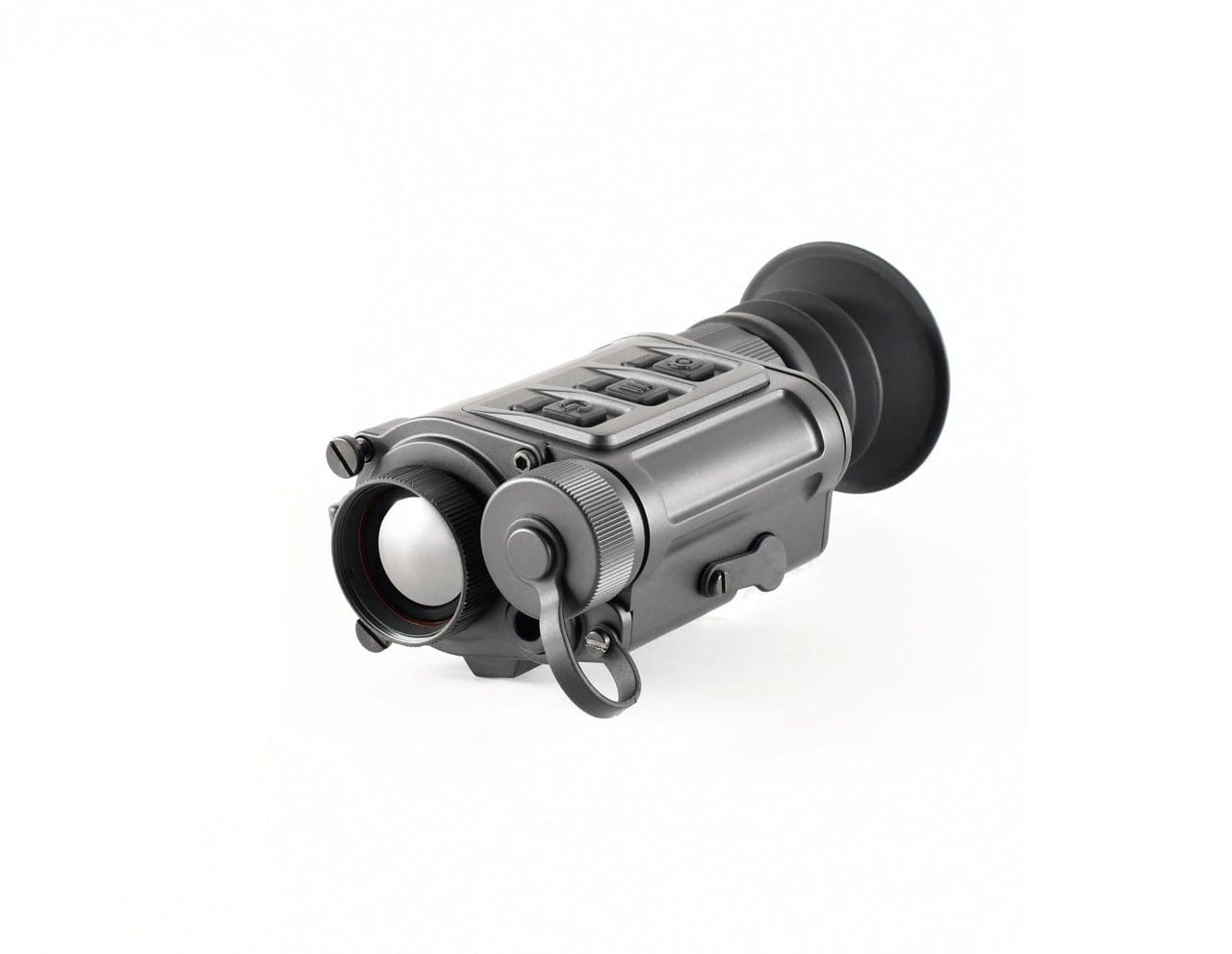

InfiRay Outdoor RICO MICRO RL25 384 2X, 25mm Multifunction Thermal Weapon Sight

Financing available at checkout

Main Specification
Optical Magnification 2x
Sensor Resolution 384×288
Objective Lens 25 mm
Display Resolution 1024×768 AMOLED
Detection Range 1375 yards

-36%

SKU: IRAY-RL25

Description

The RICO MICRO Series is an advanced electro-optic device miniaturized to deliver remarkably versatile functionality: Handheld, helmet mount, and weapon mount. Weighing less than a pound, the MICRO will fit in the palm of your hand and can be used with standard dovetail helmet mounts or rifle-mounted as a stand-alone weapon sight. InfiRay Outdoor is blazing a new trail with features never-before-seen in a helmet-mounted thermal, such as onboard recording, onboard video play-back, and a high definition AMOLED display. The RL25 also features InfiRay’s latest high-performance 384×288, 12 μm sensor technology, MATRIX III processing, and a manual-focus f/1.0 objective lens to create an image that is unlike anything in its class.

Specifications

Specification	Value
Operating Temperature	-4°F to 122°F
Recoil Rating	1000 g/s² (300 Win./7mm Mag)
Ingress Protection	IP67
Optics
Optical Magnification	2X
Digital Magnification	4X
Objective Lens Material	Germanium
Horizontal Angular Field of View	10.5°
Vertical Angular Field of View	7.9°
Detection Range	1375 Yards
Objective Focal Length	25mm f/1.0
Objective Diameter	25mm
Objective F#	1.0
Focusing Mechanism	Manual Focus
Eye Relief	35mm
Display Type	AMOLED
Diopter Range	-4 – +4
Display Resolution	1024×768
Sensor Specifications
Device Technology	Thermal Imaging
Sensor Type	InfiRay MICRO II
Sensor Resolution	384×288
Spectral Response	8–12 Microns
Sensor Frame Rate	50Hz
Sensor Pixel Size	12µm
Thermal Sensitivity	<50mK
Reticle	7
Connector Type	Data Cable with USB, BNC, and 7-Pin Connectors
Color Palettes	White Hot, Black Hot, Red Hot, Color
User-Updatable Firmware	Yes
Mobile App	Yes
Storage Capacity	64GB
Connector Output	Analog
Picture-in-Picture	No
One-Shot Zero	No
Stand-by Mode	Yes
Rangefinder	No
Run Time	4 Hours
Power Source	18650 Rechargeable
Wi-Fi	Yes
Onboard Recording	Video and Image
Image Capture	Yes
Video Output	Analog RS-170/NTSC
Startup Time	<10 Seconds, Instant from Standby
External Power Source	Yes, 7-Pin to USB 5V

Features	Connector Type: Data Cable with USB, BNC, and 7-Pin Connectors
	Color Palettes: White Hot, Black Hot, Red Hot, Color
	User-Updatable Firmware: Yes
	Mobile App: Yes
	Storage Capacity: 64GB
	Connector Output: Analog
	Picture-in-Picture: No
	One-Shot Zero: No
	Stand-by Mode: Yes
	Rangefinder: No
	Run Time: 4 Hours
	Power Source: 18650 Rechargeable
	Wi-Fi: Yes
	Onboard Recording: Video and Image
	Image Capture: Yes
	Video Output: Analog RS-170/NTSC
	Startup Time: <10 Seconds, Instant from Standby
	External Power Source: Yes, 7-Pin to USB 5V
