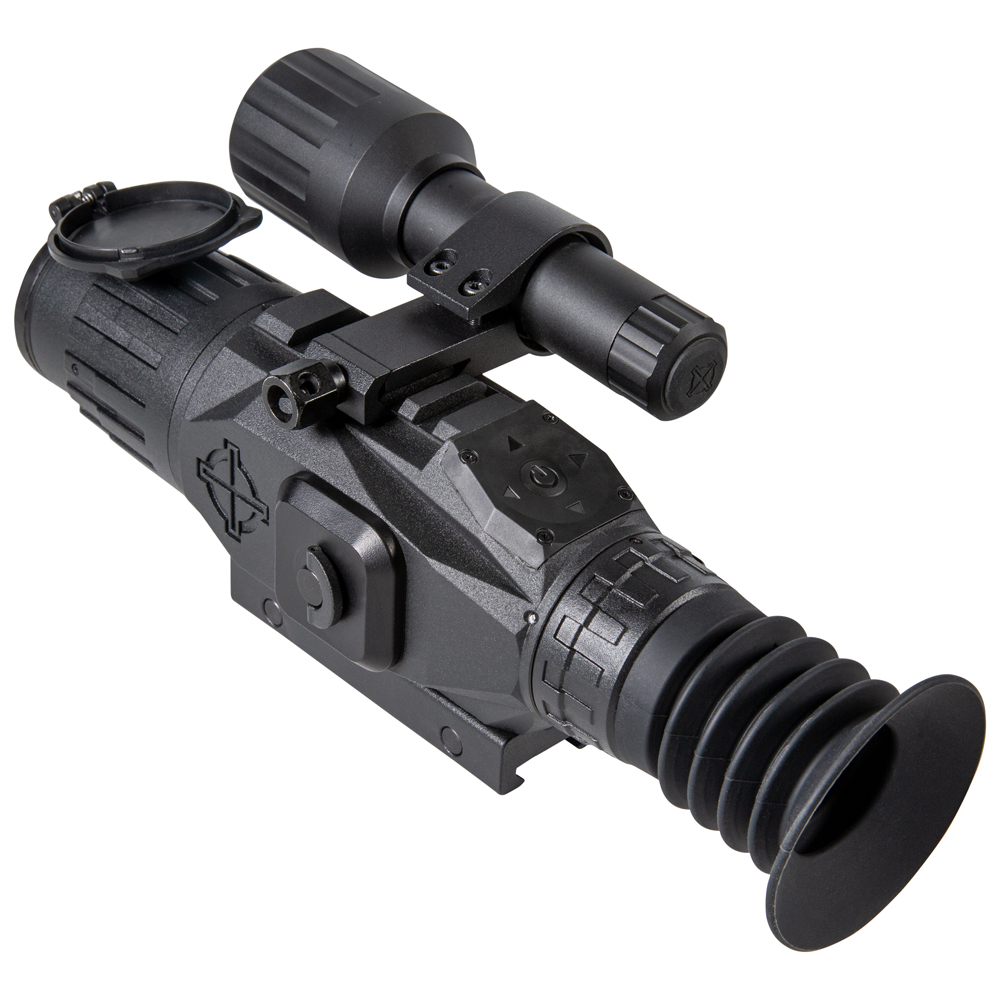

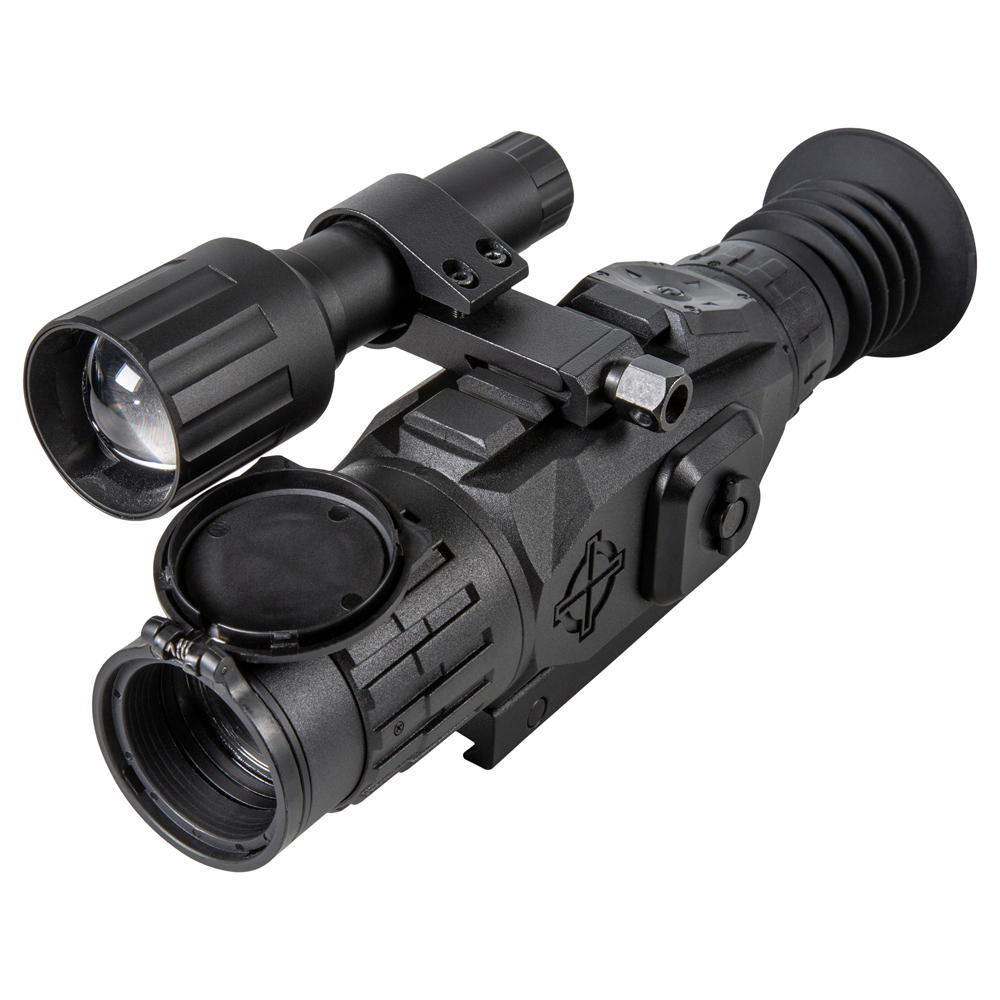

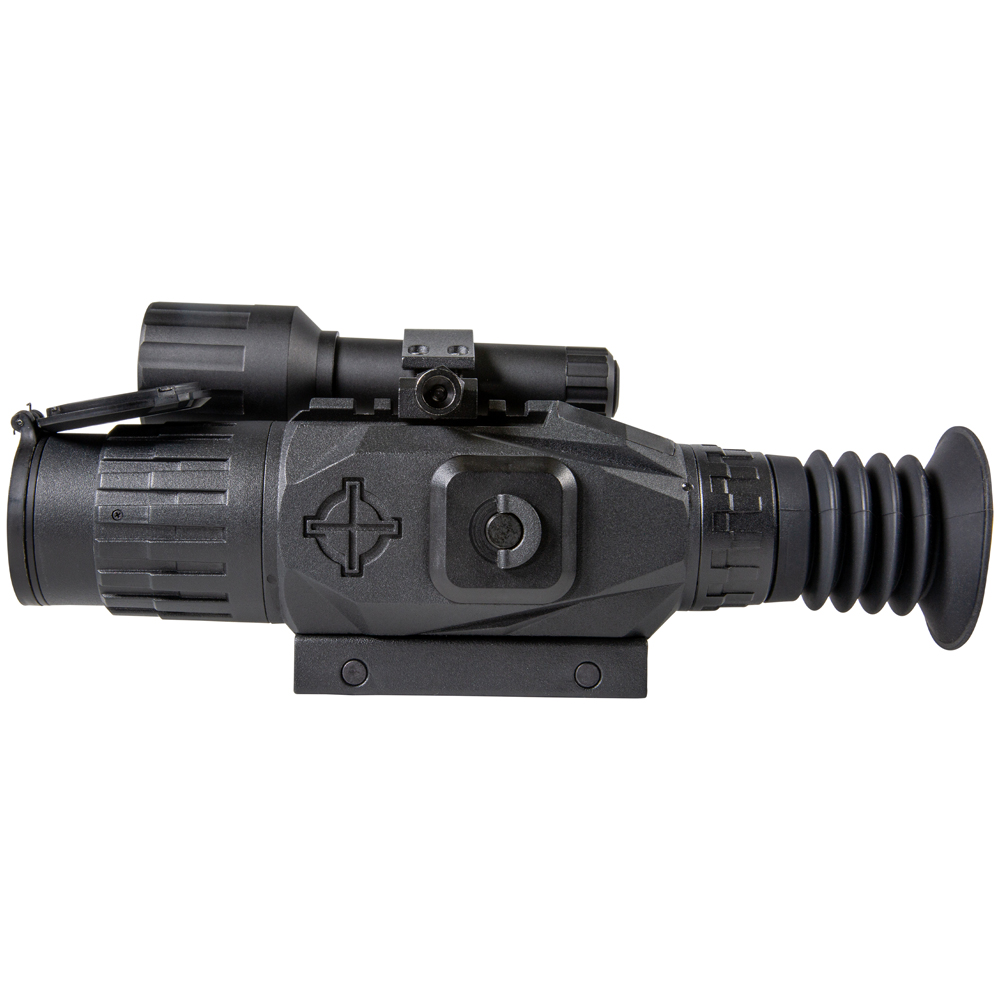

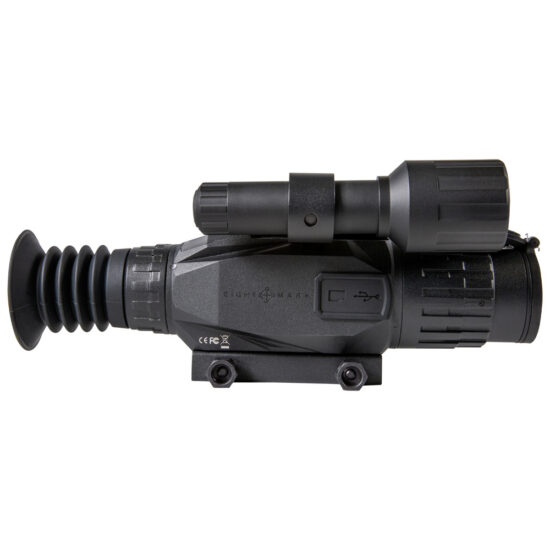

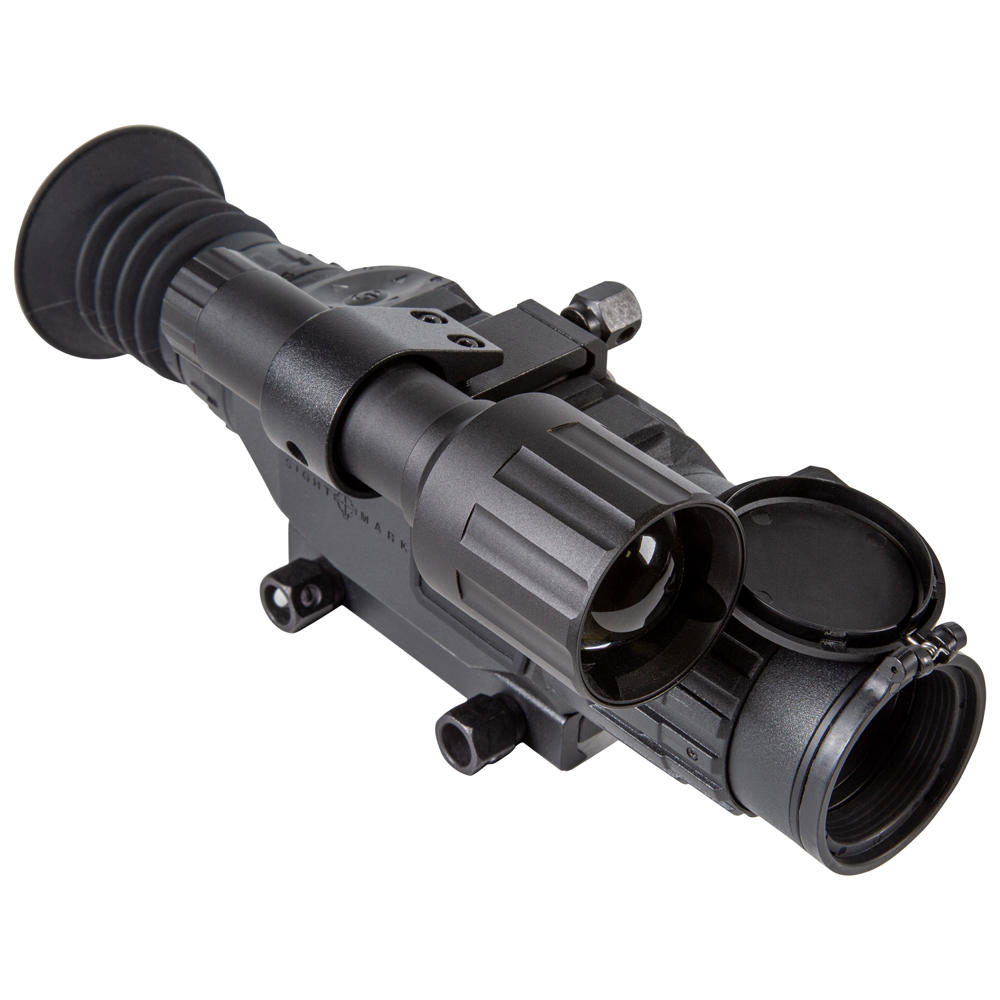

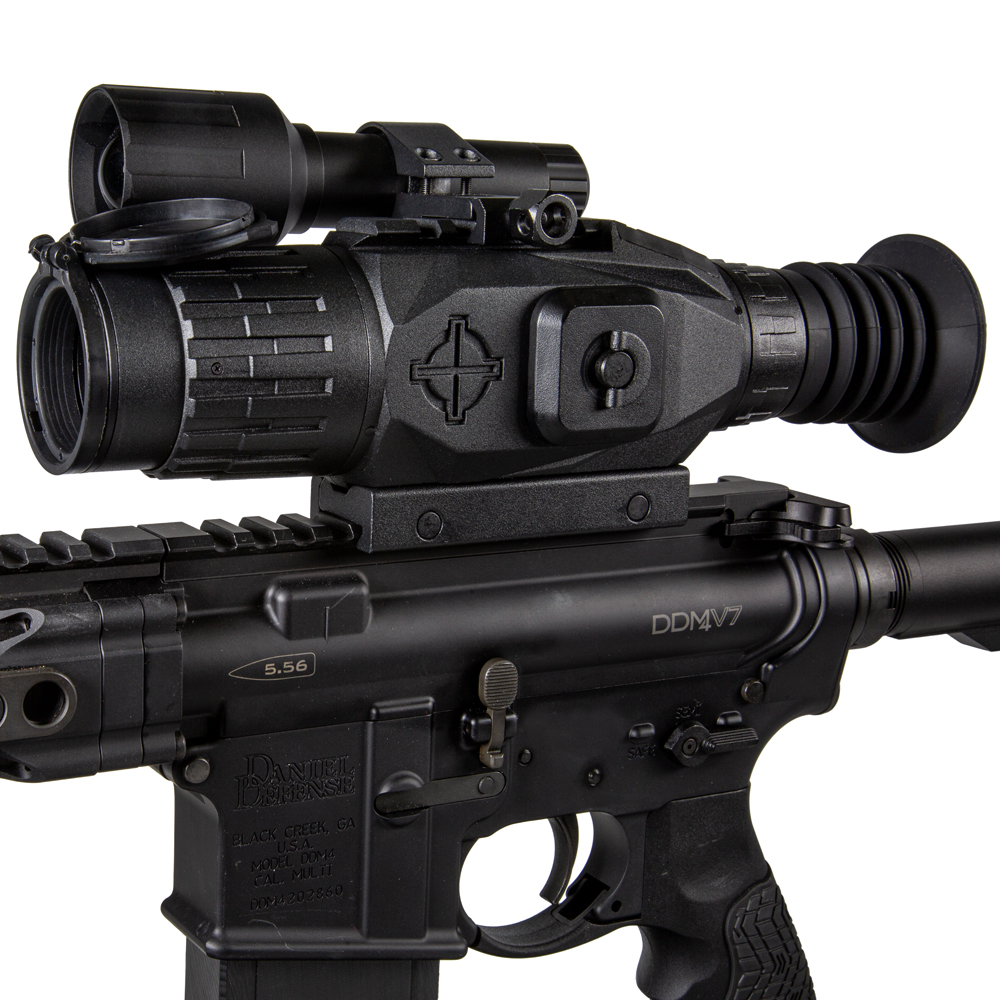

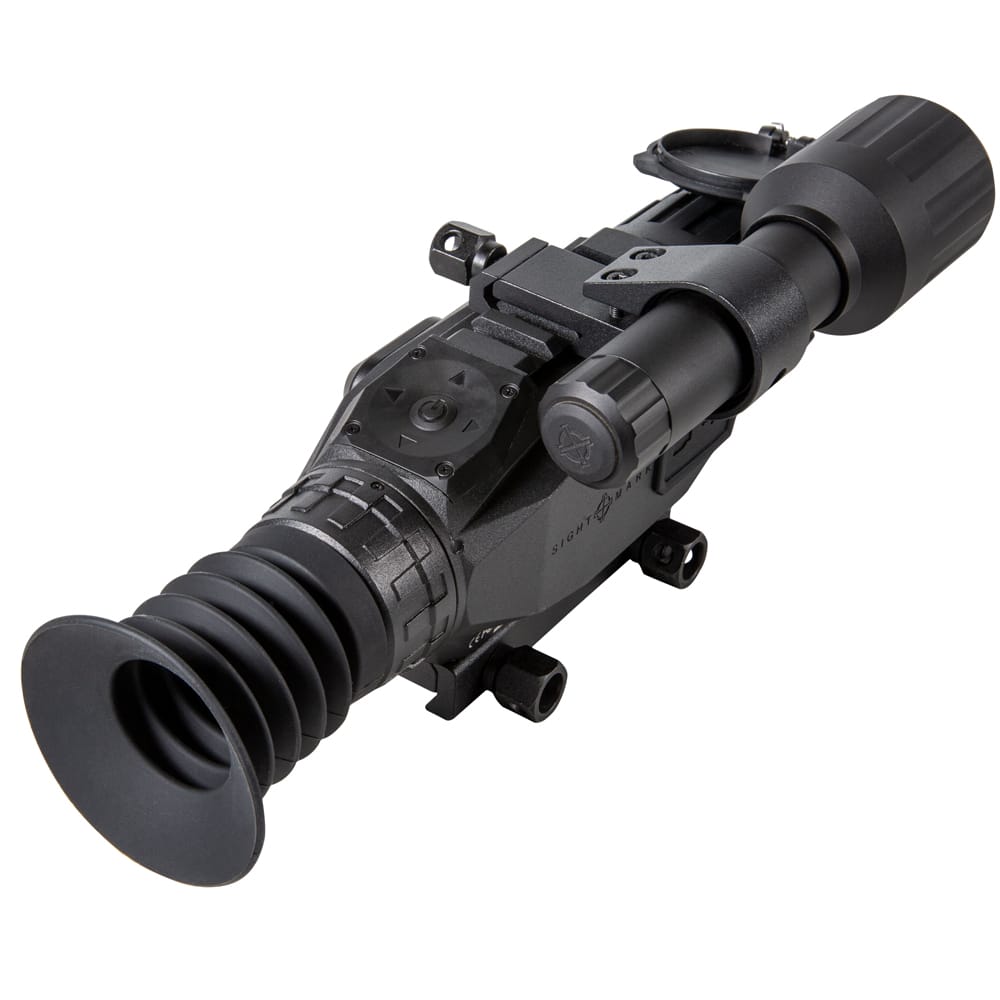

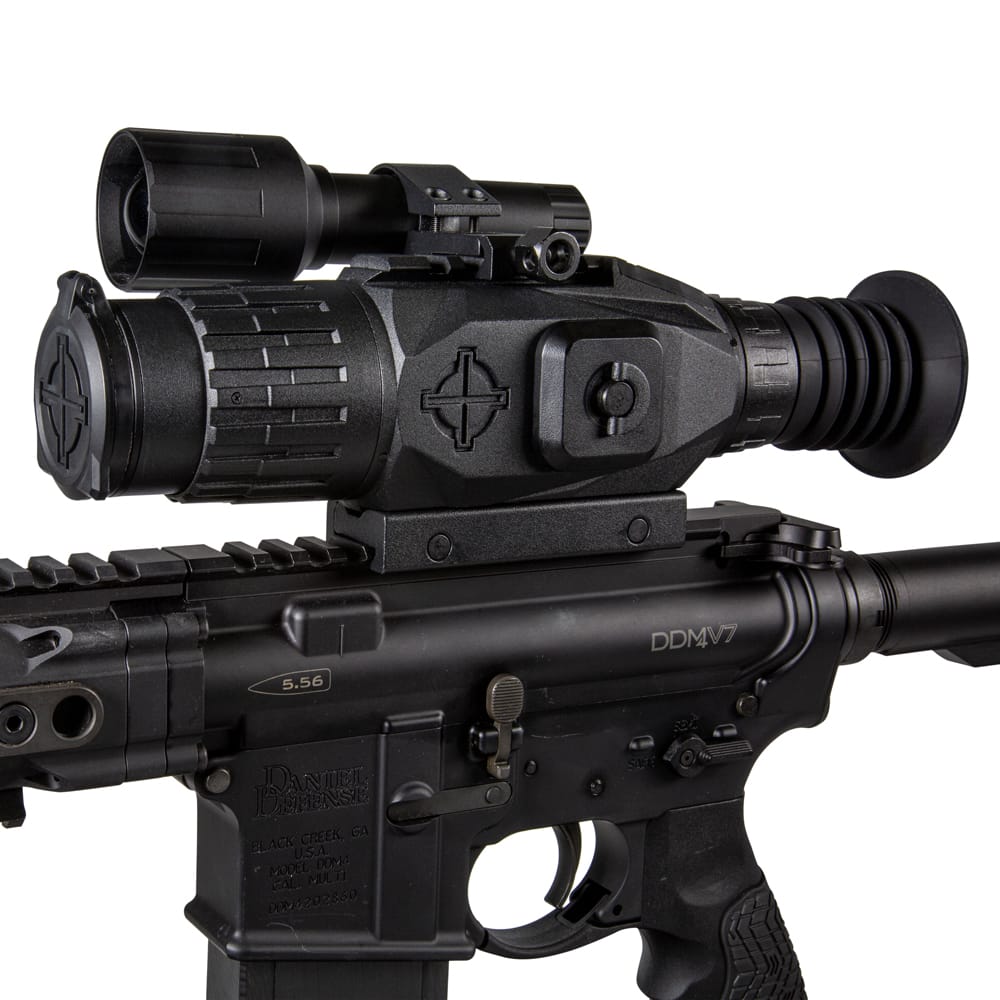

Sightmark Wraith 2-16×28 Digital Riflescope

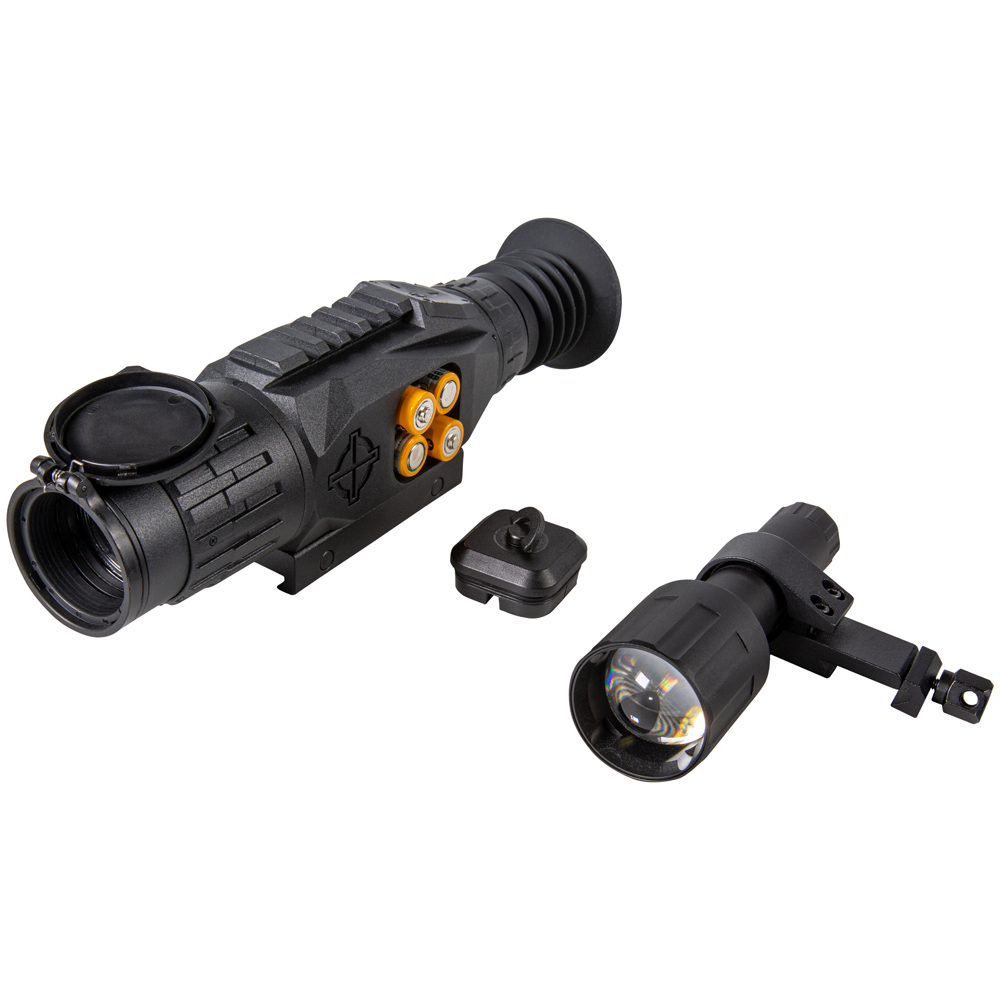

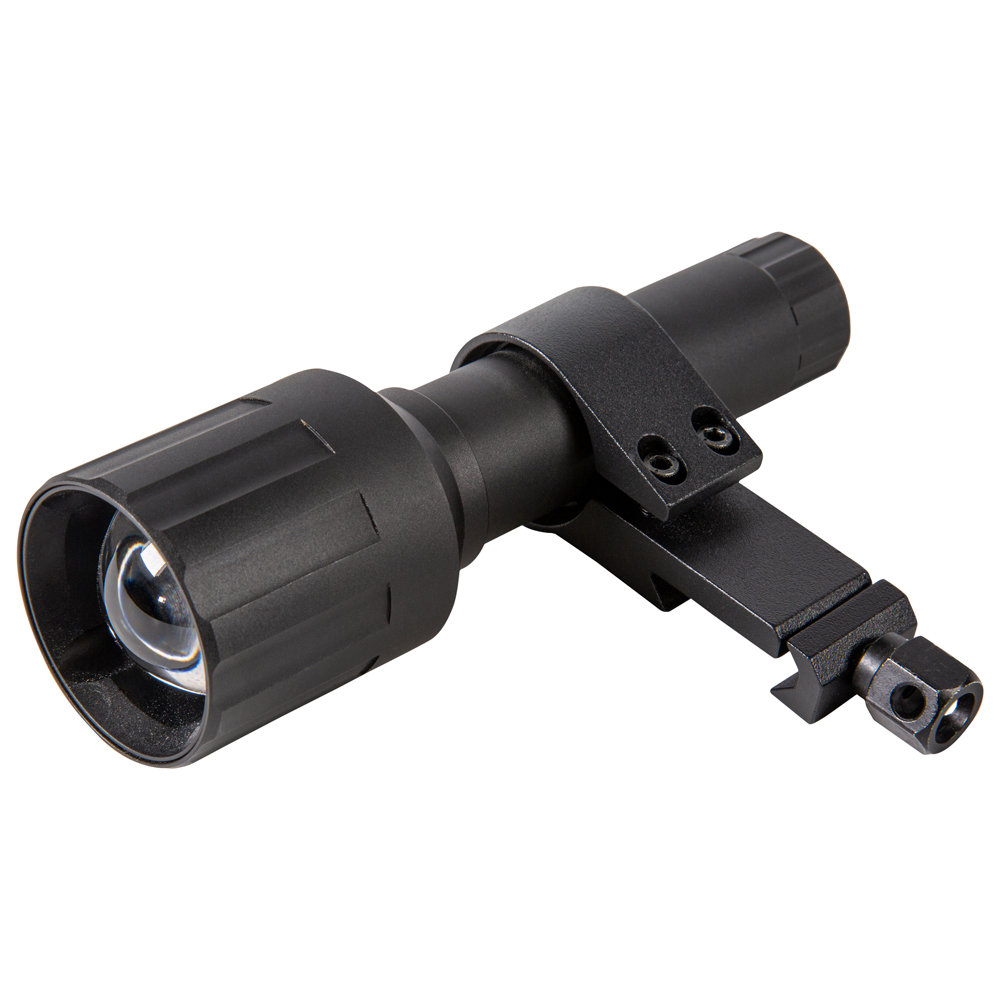

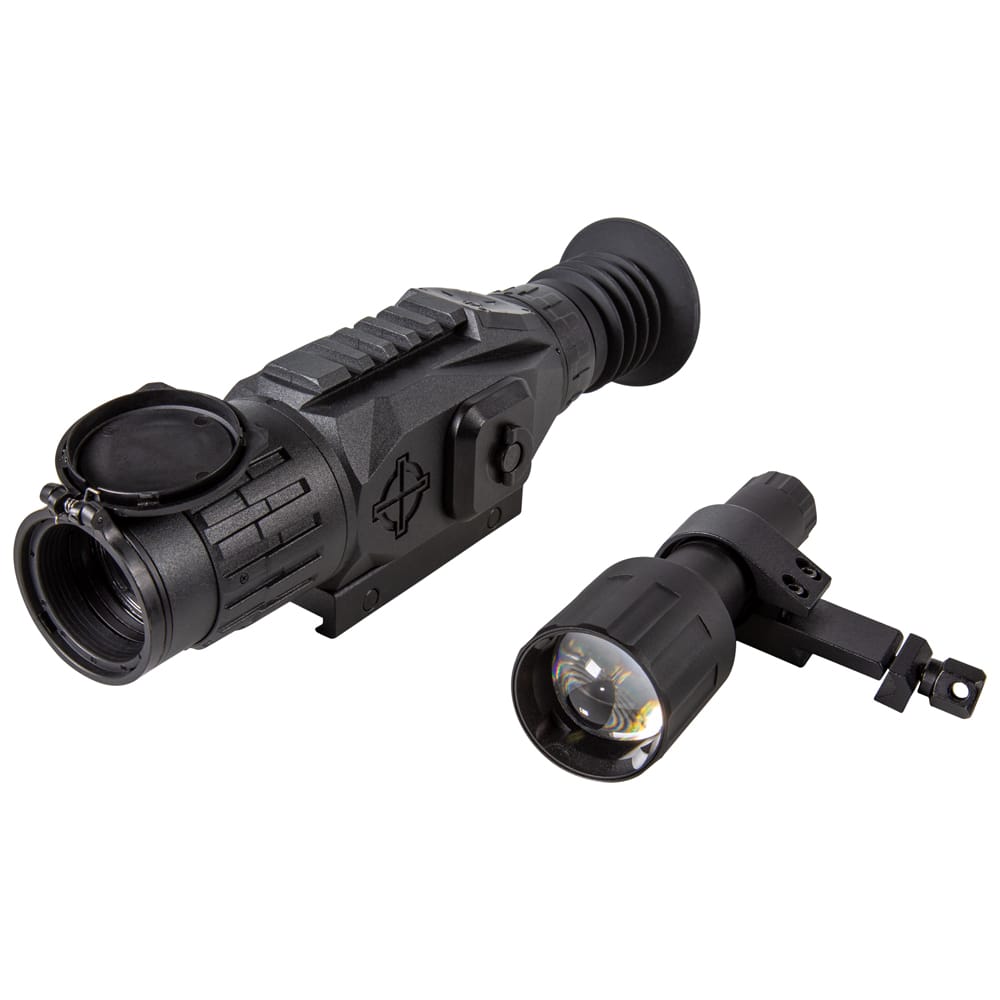

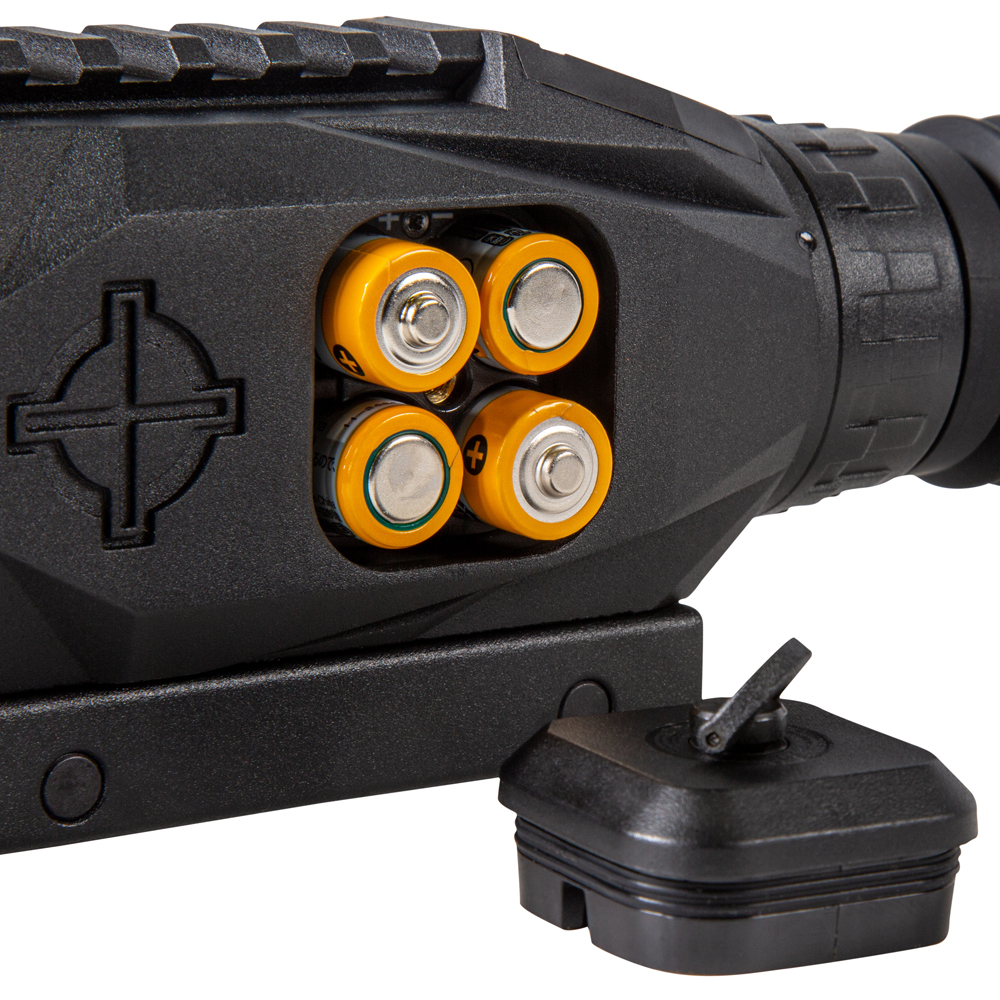

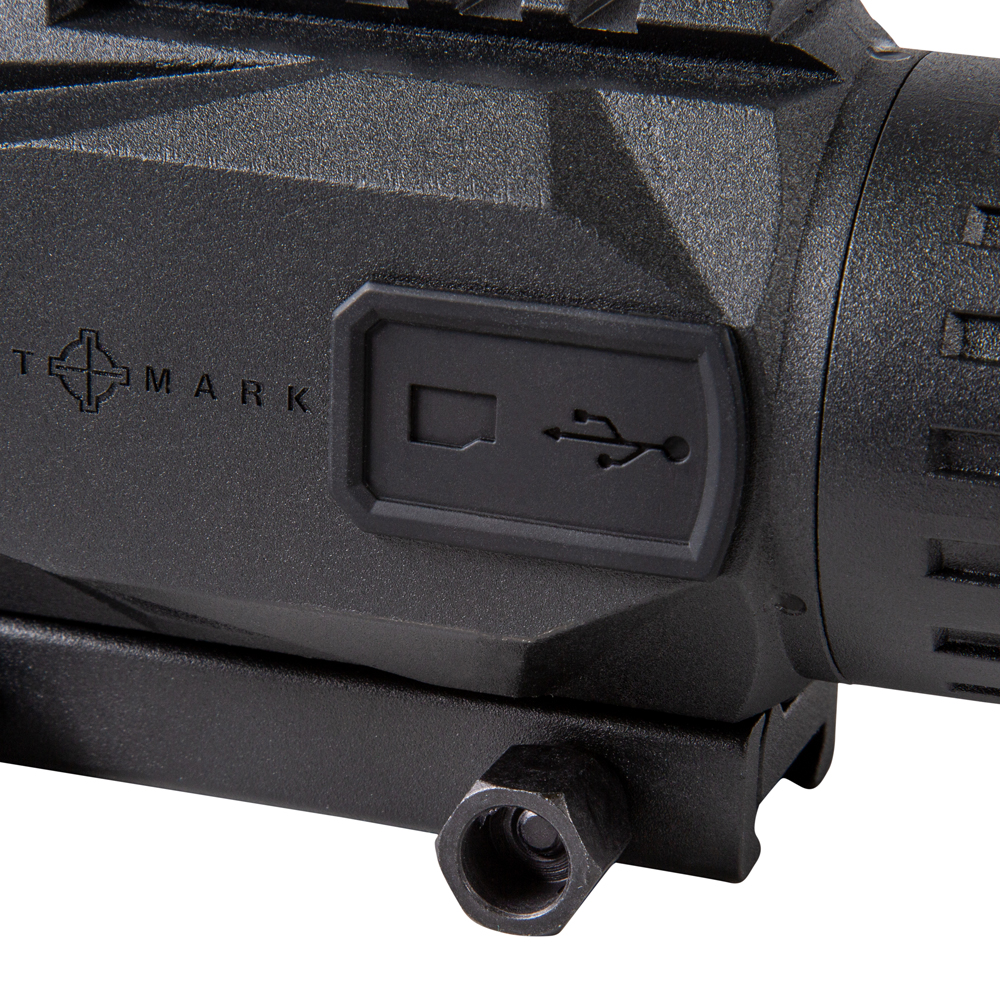

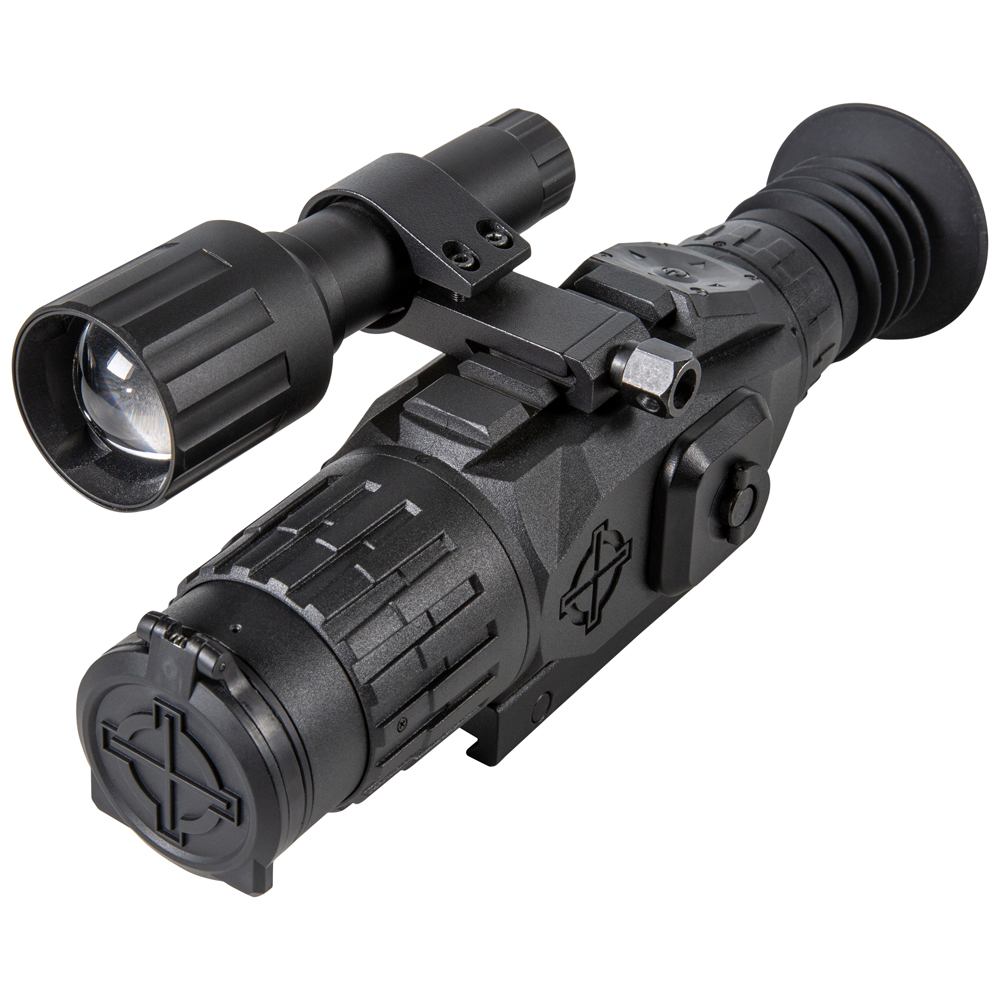

Sightmark introduces its new revolutionary and versatile Wraith digital riflescope, the perfect scope for day and nighttime use. The high-resolution Wraith is designed for all hunting applications including hog, predator and even deer. Added features include a color mode for daytime shooting, black and white or classic green for nighttime use and comes complete with a removable 850nm IR Illuminator with an outstanding detection range of 200 yards. The Wraith also boasts 10 different reticles along with 9 different colors to choose from and features a 4x optical magnification with 8x digital zoom. This digital riflescope features a 1080p HD sensor for high-resolution imaging, 1080p HD photo/video recording and is equipped with a micro SD memory card slot. Powered by 4 AA batteries for up to 4.5 hours of battery life, the Wraith includes a micro USB power input for external power.
FEATURES
- 1080P HD digital imaging
- Daytime color mode
- Night vision mode
- HD photo or video recording (memory card
- not included)
- 8x digital zoom
- 10 reticle options with 9 colors
- Power input
- Additional Weaver rail for accessories
- 5 weapon profile saves
| Electronic components |
|
| Type of sensor |
CMOS sensor |
| Sensor resolution, pixels |
1920×1080 |
| Display type |
FLCOS |
| Display Resolution, pix. |
1280×720 |
| Built-In Video Recorder Availability |
Yes |
| Maximum memory card supported, Gb |
256 |
| Format of video clip |
AVI |
| Resolution of video clip |
1080/720 |
| Format of photo files |
JPEG |
| Resolution of photo files |
1080/720 |
| Memory capacity |
Approximately 7 hours video with 64gb SD card |
| Optical characteristics |
|
| Magnification |
2-16 |
| Lens diameter, mm |
28 |
| Digital zoom |
1-8x |
| Lens focus, mm |
40.1 |
| Relative aperture, D/f’ |
2.4 |
| Field of View,°, horizontal |
8 |
| Field of View, m@100m |
14 |
| Field of View, ft@100yd |
42 |
| Minimum focusing distance, ft/m |
16.4 / 5 |
| Eye Relief, in/mm |
2.4 / 60 |
| Diopter adjustment, dptr. |
-6 to +3 |
| IR-illuminator |
|
| Emitter |
LED |
| IR Wavelenght, nm |
850nm |
| Equivalent IR Power, mW |
~1060 on high, ~540 on medium, ~400 on low |
| Battery Life |
2 hours on high |
| Battery type |
2x CR123A |
| Range of Detection |
|
| Night Vision detection range, yd/m |
200 / 183 |
| Power Supply |
|
| Power Supply, v |
6 |
| Battery type |
4xAA |
| Battery life |
3.5Hrs Video Mode/ 4.5Hrs Preview Mode |
| External Power Supply |
5V via microUSB |
| Reticle |
|
| Windage & Elevation click value |
1/5 MOA |
| Adjustment range, elevation |
70 MOA |
| Adjustment range, windage |
170 MOA |
| Number of reticle options |
10 |
| Colors |
Black, white, red, blue, green, cyan, orange, yellow, magenta |
| Physical & operational characteristics |
|
| Body Material |
Aluminum |
| Accessory rail mount |
Picatinny |
| Operating Temp,°F / C° |
20 to 122 / – 6 to + 50 |
| Waterproof rating |
IP55 – water resistant |
| Nitrogen Purged, yes/no |
no |
| Shockproof, yes/no |
yes, 3ft |
| Maximum recoil, caliber |
.308 |
| Tube diameter |
n/a |
| Length, in/mm |
10 / 255 |
| Width, in/mm |
2.6 / 65.5 |
| Height, in/mm |
3 / 77 |
| Weight (with batteries), oz/g |
33.6 / 952.5 |
