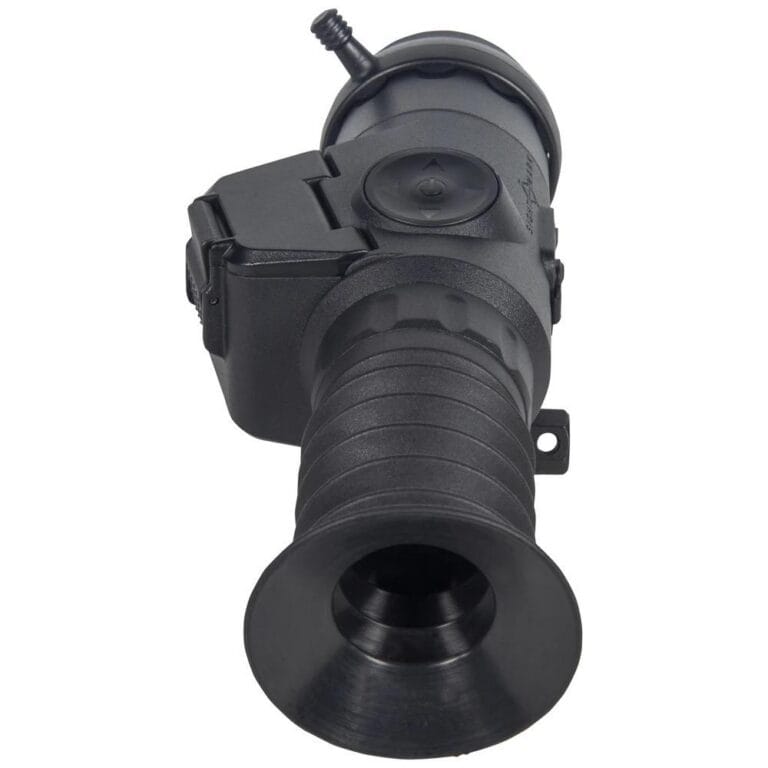

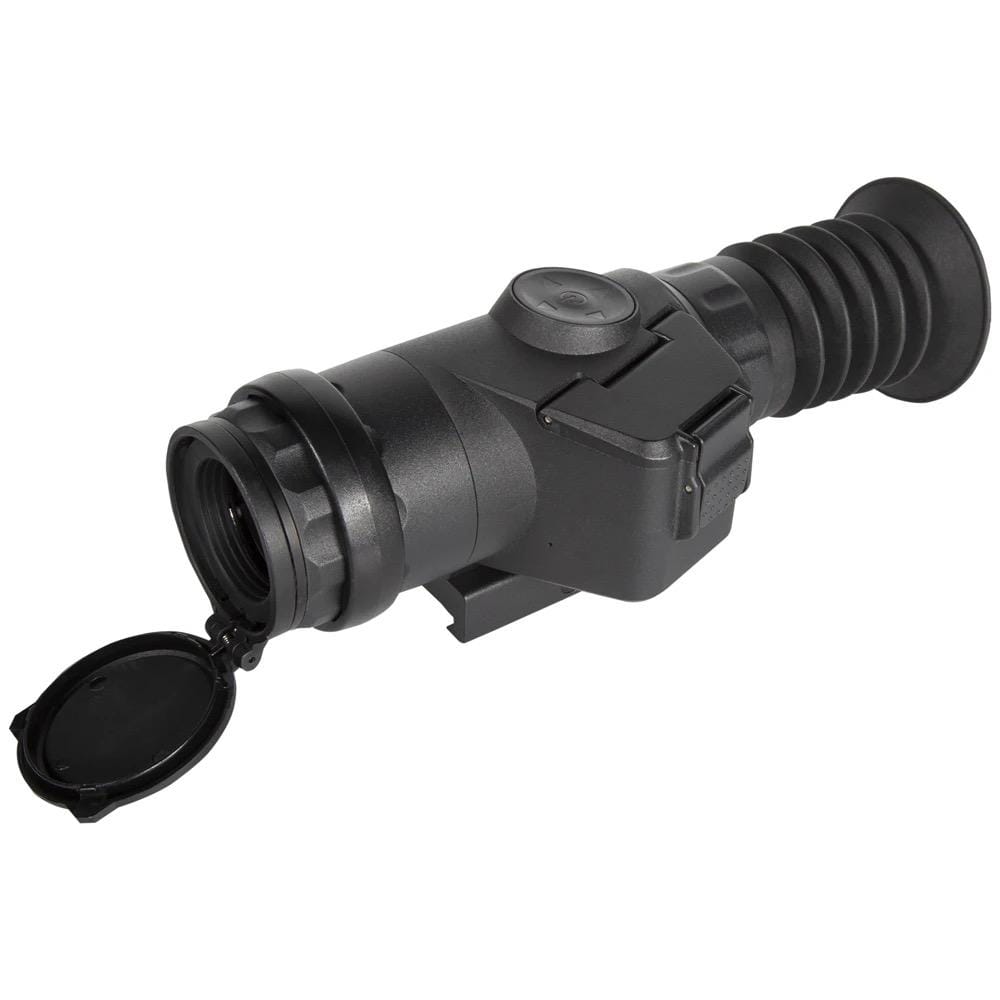

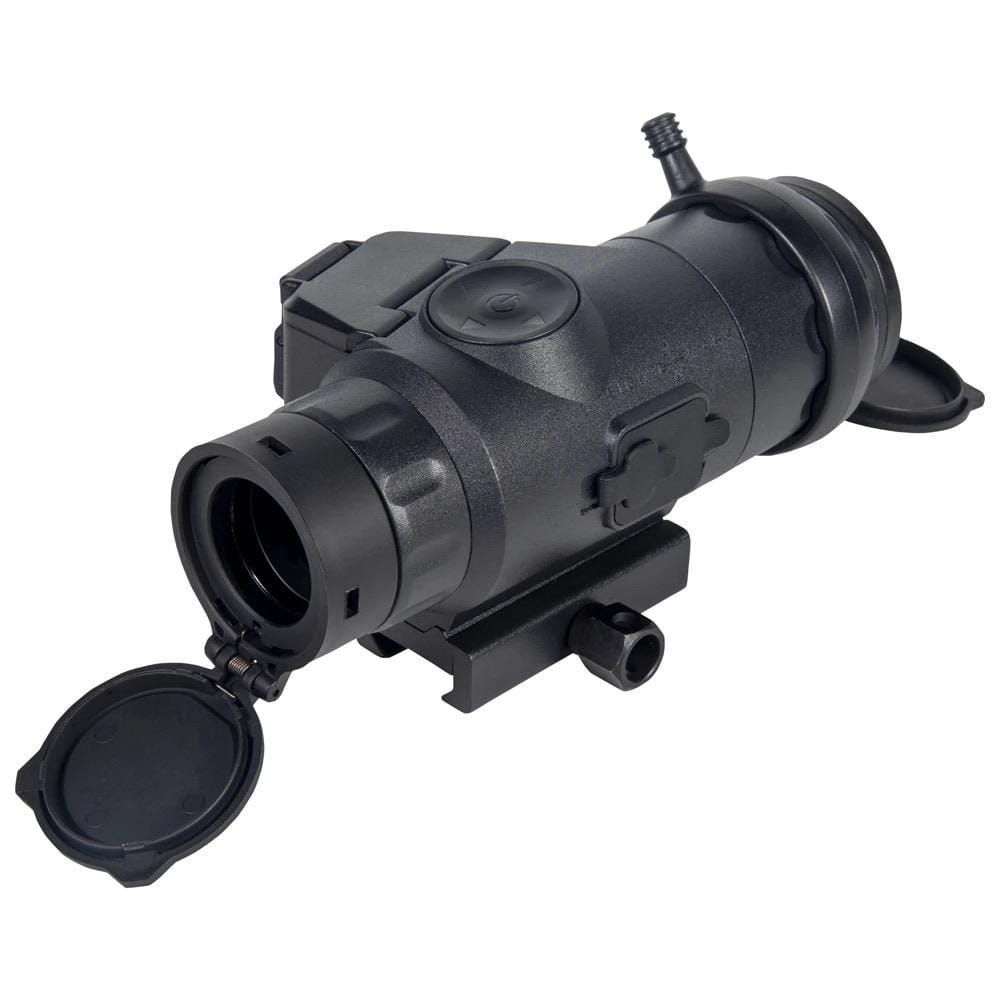

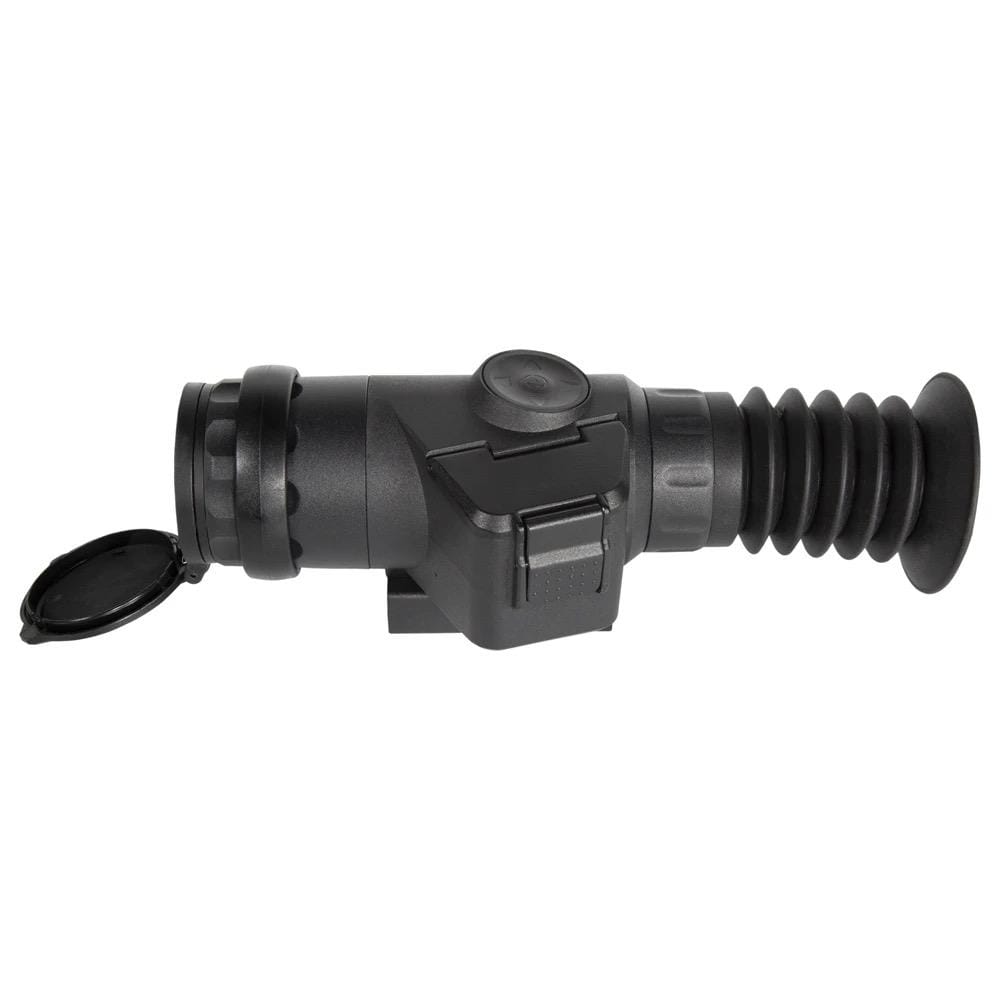

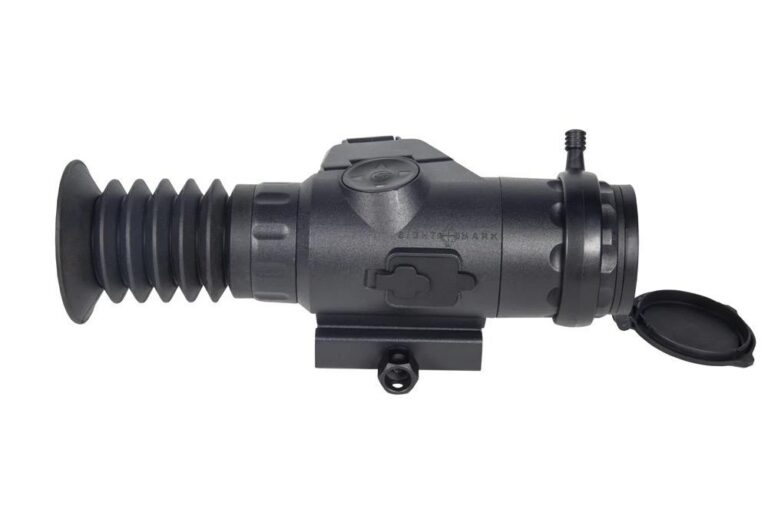

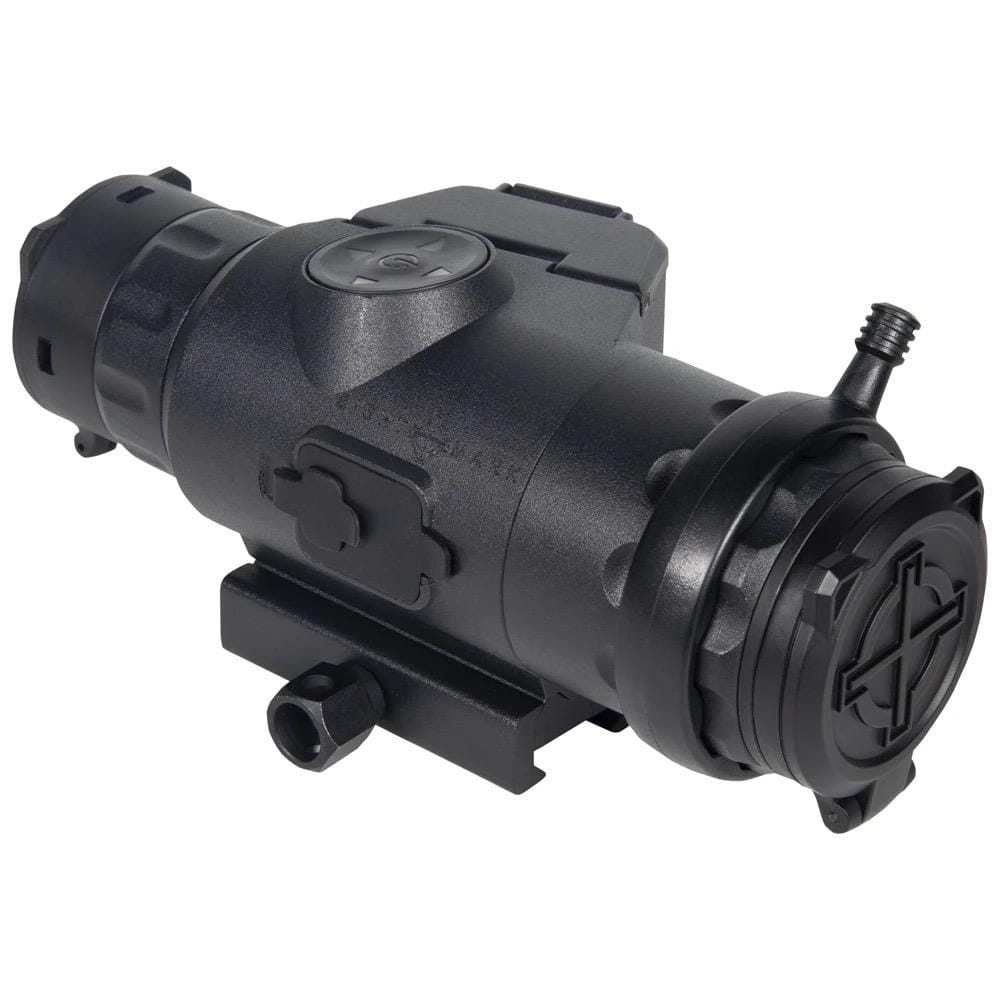

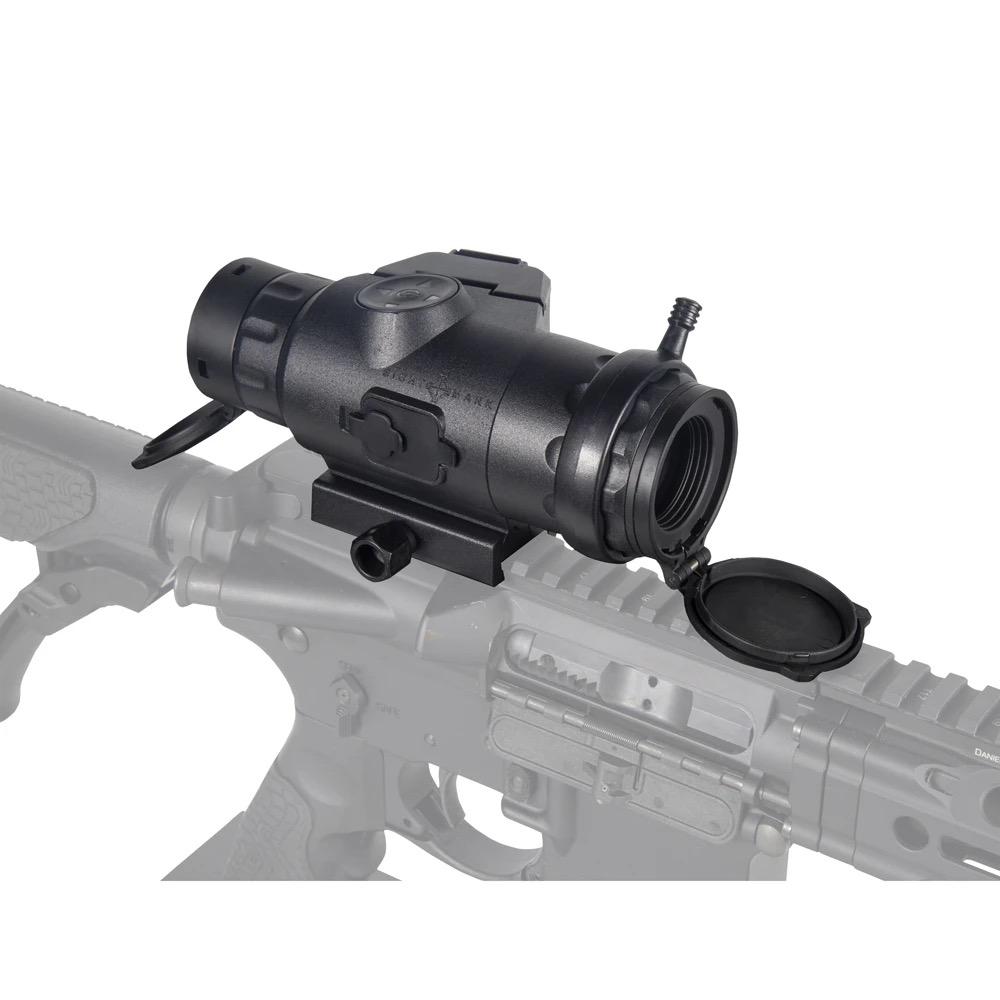

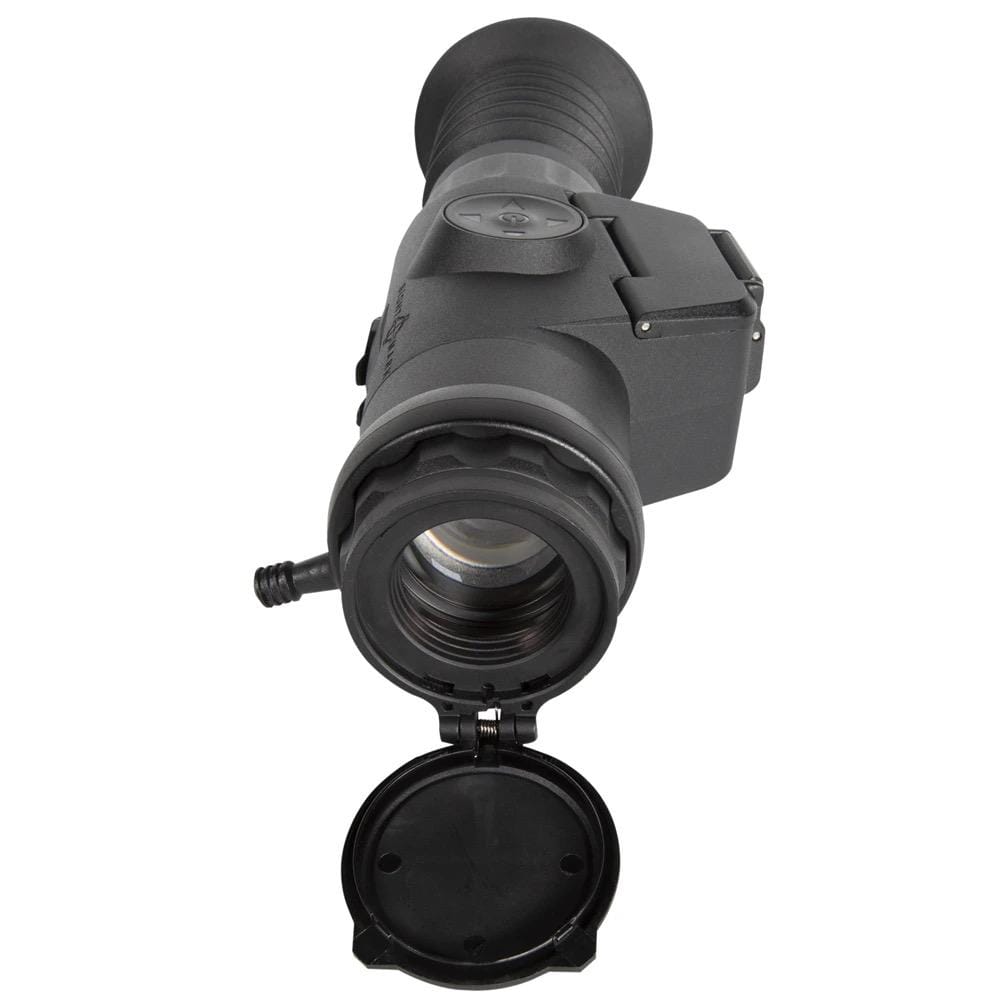

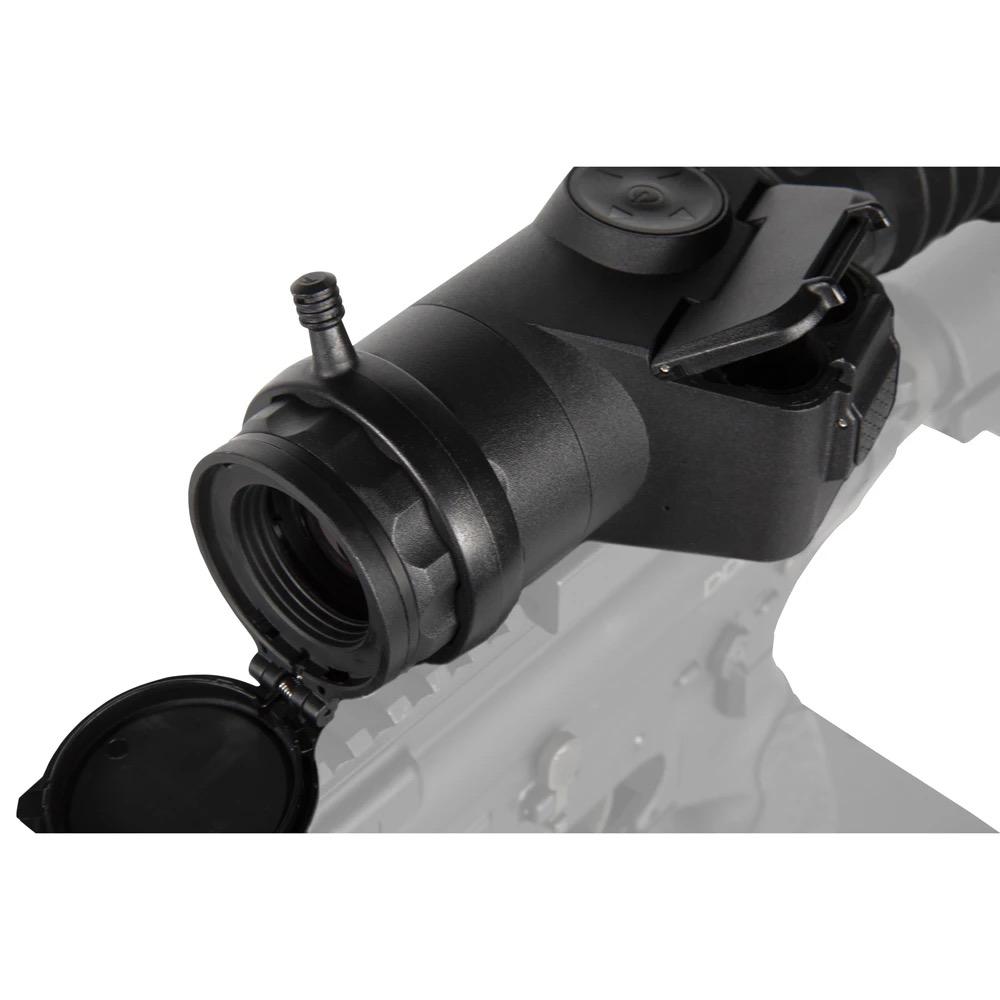

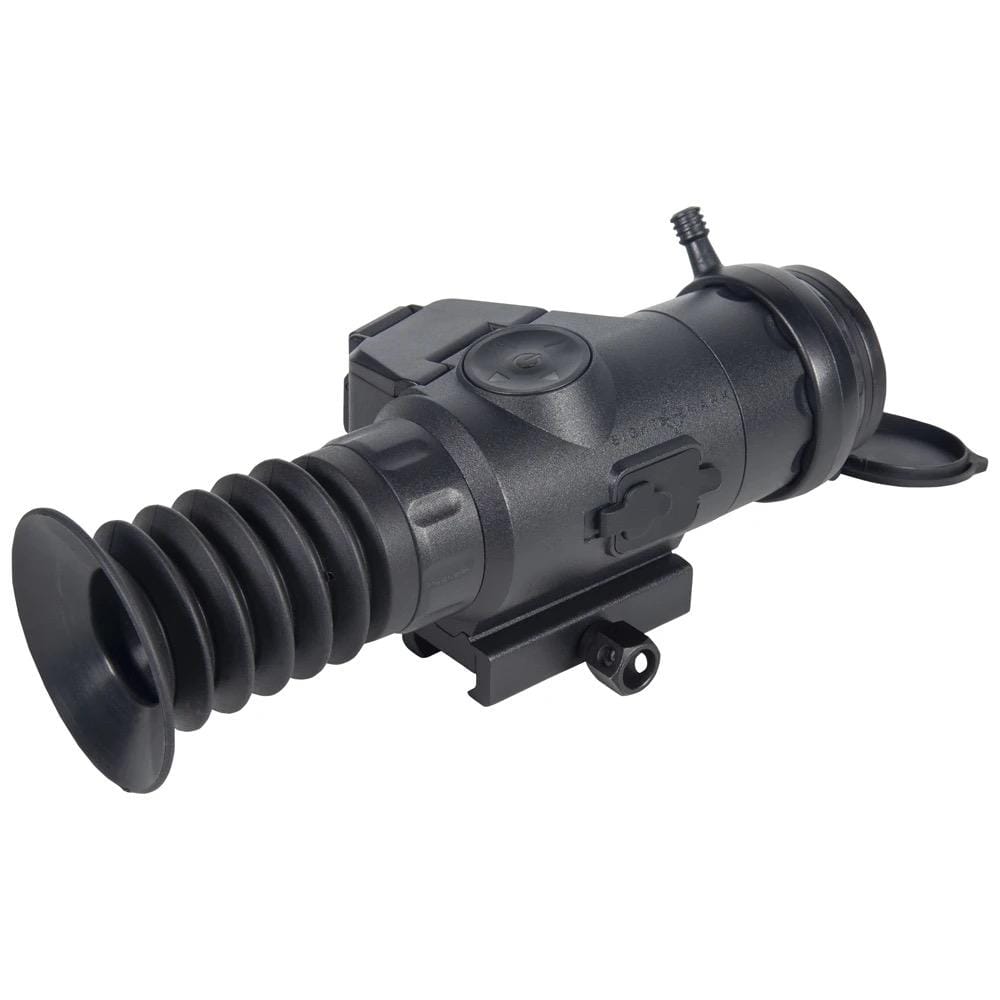

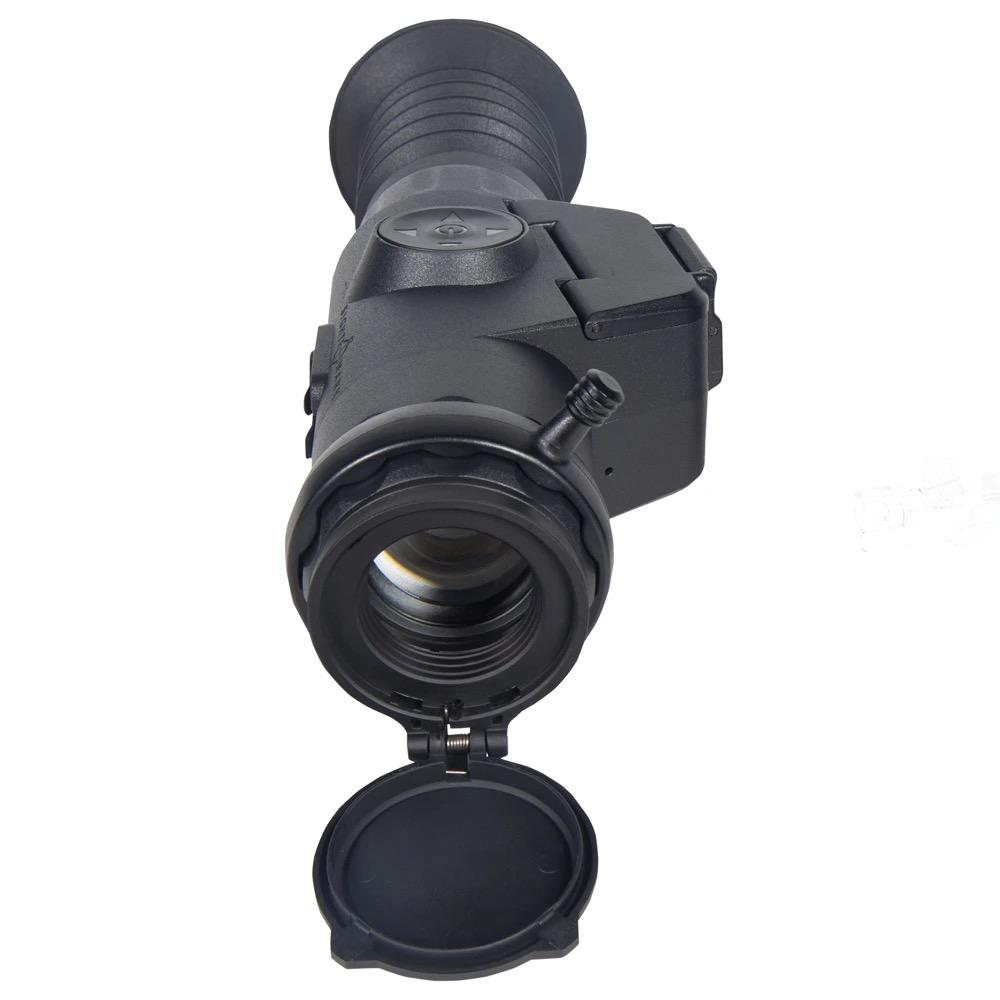

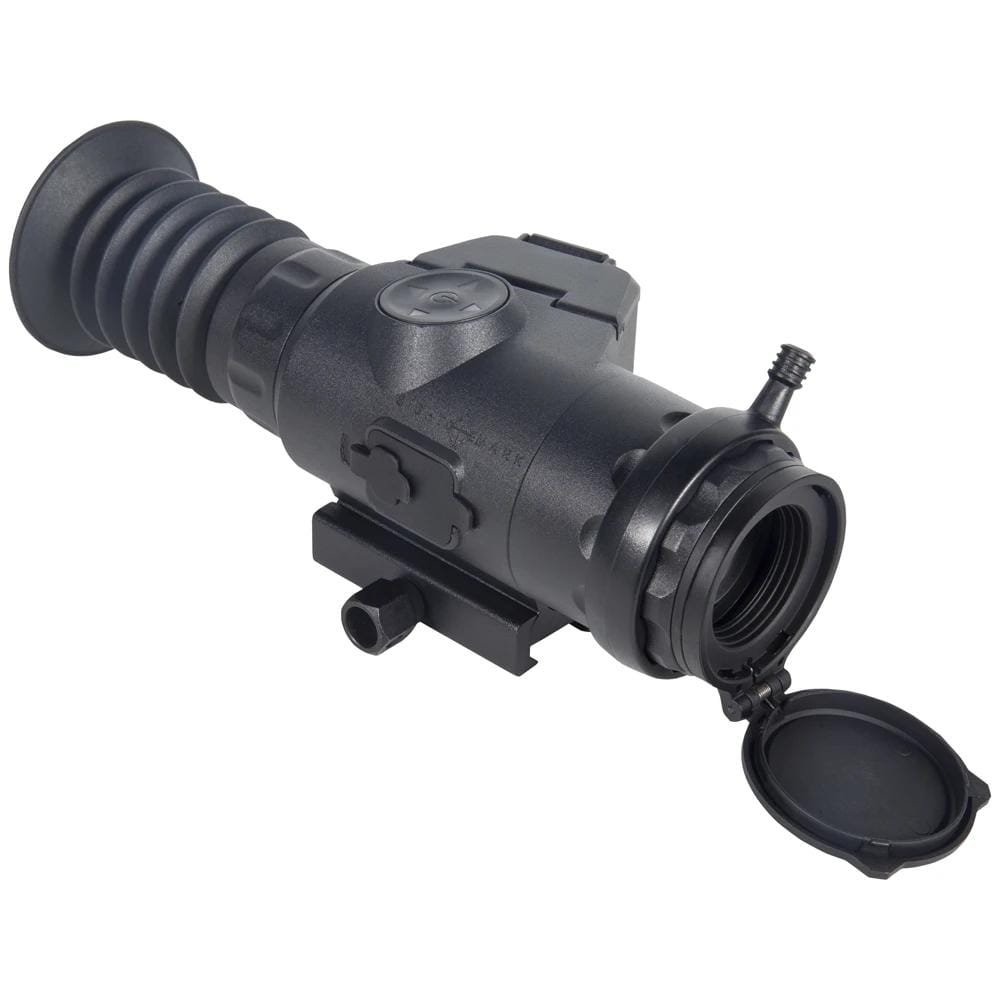

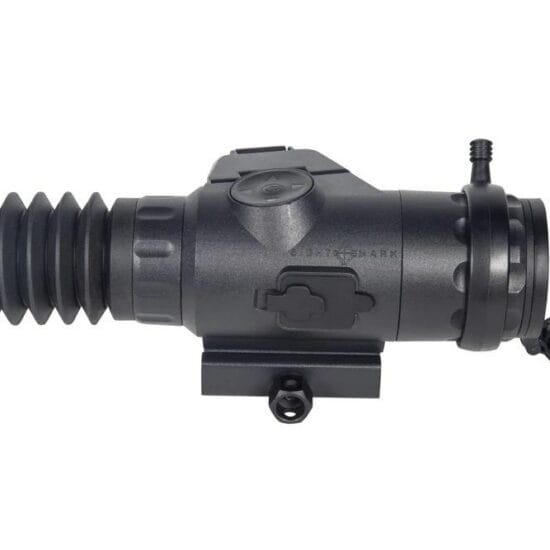

The Wraith 4K Mini 2-16×32 Digital Riflescope combines Sightmark’s rugged quality with the mostadvanced digital optic technology available to deliver the finest day/night riflescope known to the firearms industry. Boasting an incredible 4K (3840×2160) CMOS sensor, the Wraith 4K Mini detects objects up to 300 yards away in the darkest of nights and displays them on a flawless 1280×720 FLCOS screen.

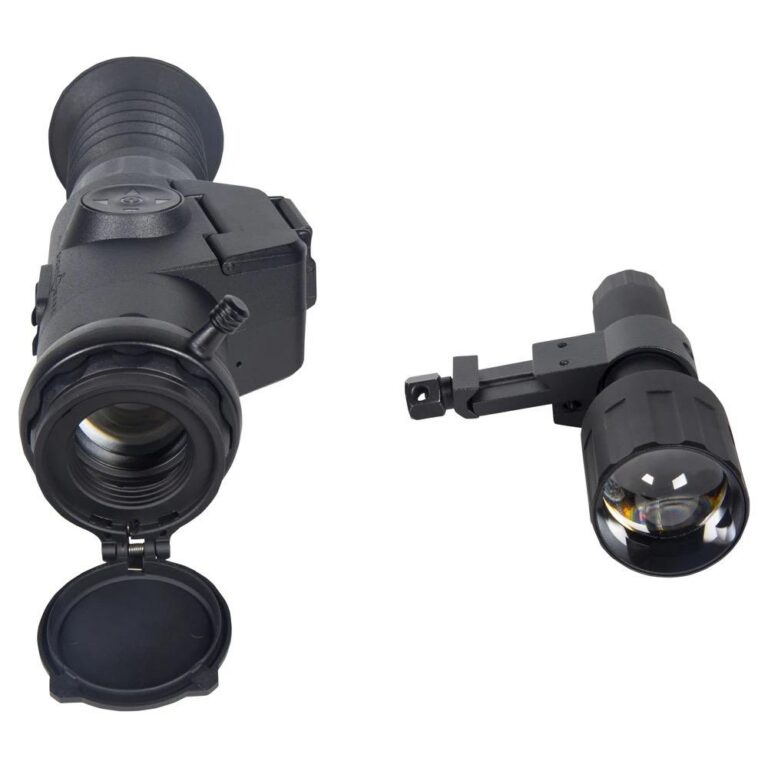

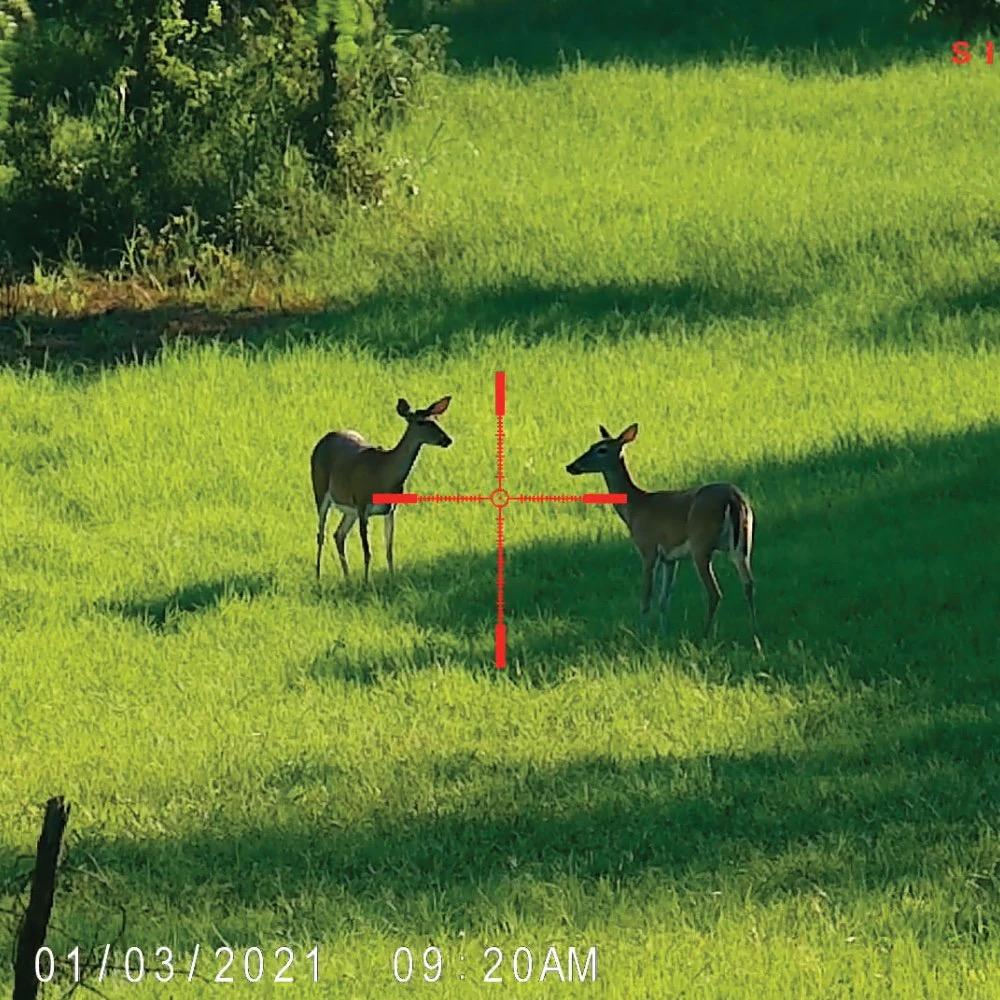

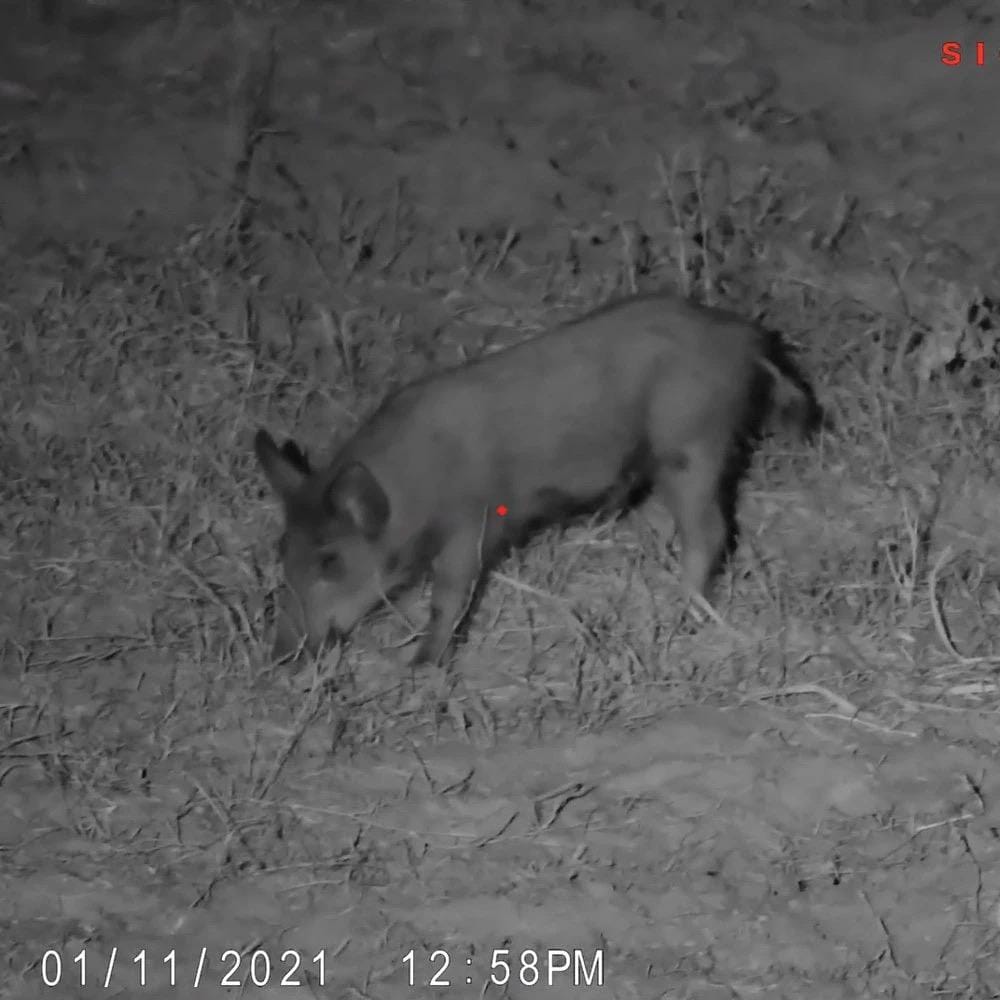

Although it’s extremely light and compact, the Wraith 4K Mini features big-time capabilities. The Wraith 4K Mini’s built-in recorder produces .AVI-format videos in 1080p and/or 4K resolution, ensuring every shooting memory is captured and preserved in incredible detail. With 8x digital zoom, full-color HD imaging during the daytime and two digital night vision color palettes (green or black & white), 850nm IR illuminator and first-focal-plane reticle options, the Wraith 4K Mini enables shooters to locate and engage targets, near or far, with speed and precision.
Supremely durable, the Wraith 4K Mini is a solid aluminum scope that operates in temperatures ranging from 32F to 140F (0 to 60C), shockproof for drops up to 3 ft., IPX6 water resistant and capable of handling recoil up to .308 Winchester.
Specifications:
| Electronic components |
|
| Type of sensor |
CMOS sensor |
| Sensor resolution, pixels |
4K (3840×2160) |
| Display type |
FLCOS |
| Display Resolution, pix. |
1280×720 |
| Built-In Video Recorder Availability |
Yes |
| Maximum memory card supported, Gb |
256 |
| Format of video clip |
AVI |
| Resolution of video clip |
1080/4K |
| Format of photo files |
JPEG |
| Resolution of photo files |
4k |
| Memory capacity |
Approximately 1.75 hours video with 64gb SD card on 4k@30 quality level. |
| Optical characteristics |
|
| Magnification |
2-16 |
| Lens diameter, mm |
32 |
| Digital zoom |
1-8x |
| Lens focus, mm |
50.3mm |
| Field of View,°, horizontal |
7.62 |
| Field of View, m@100m |
13.33 |
| Field of View, ft@100yd |
40 |
| Minimum focusing distance, ft/m |
5/1.524 |
| Eye Relief, in/mm |
2.4 / 60 |
| Diopter adjustment, dptr. |
-6 to +3 |

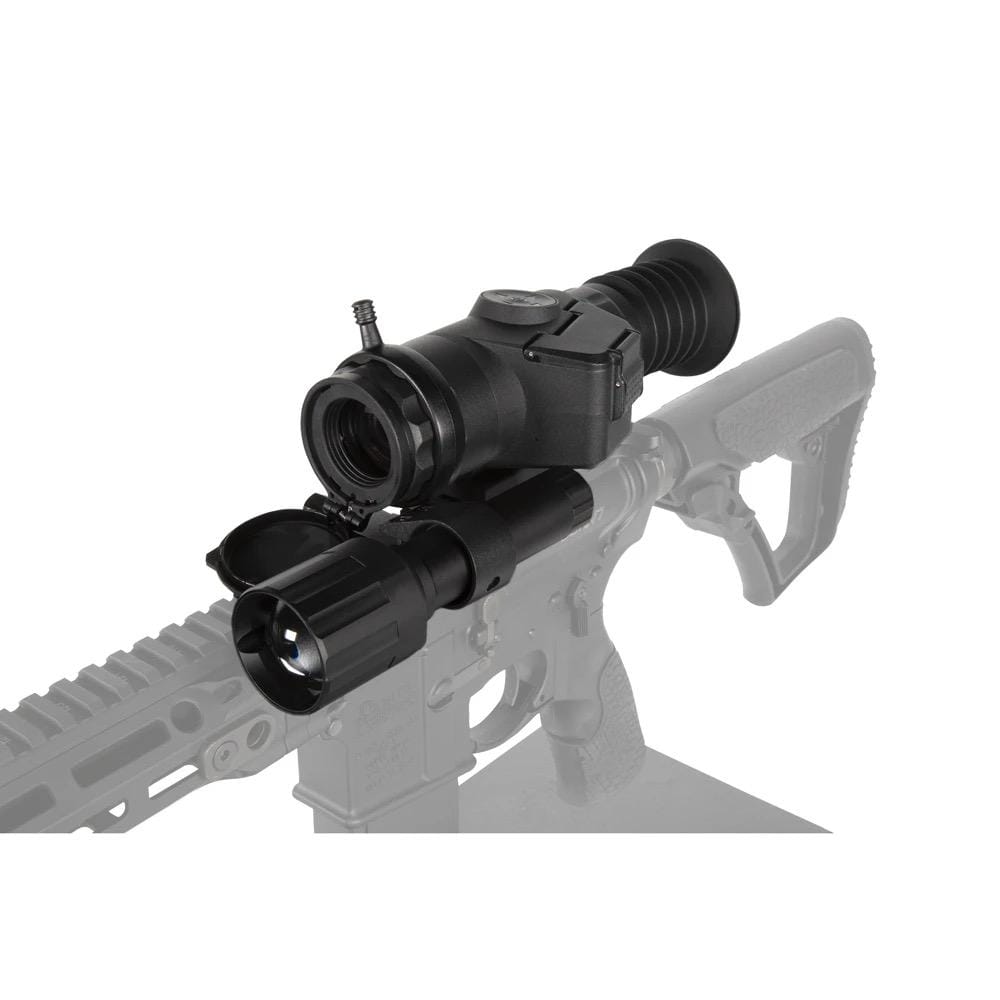

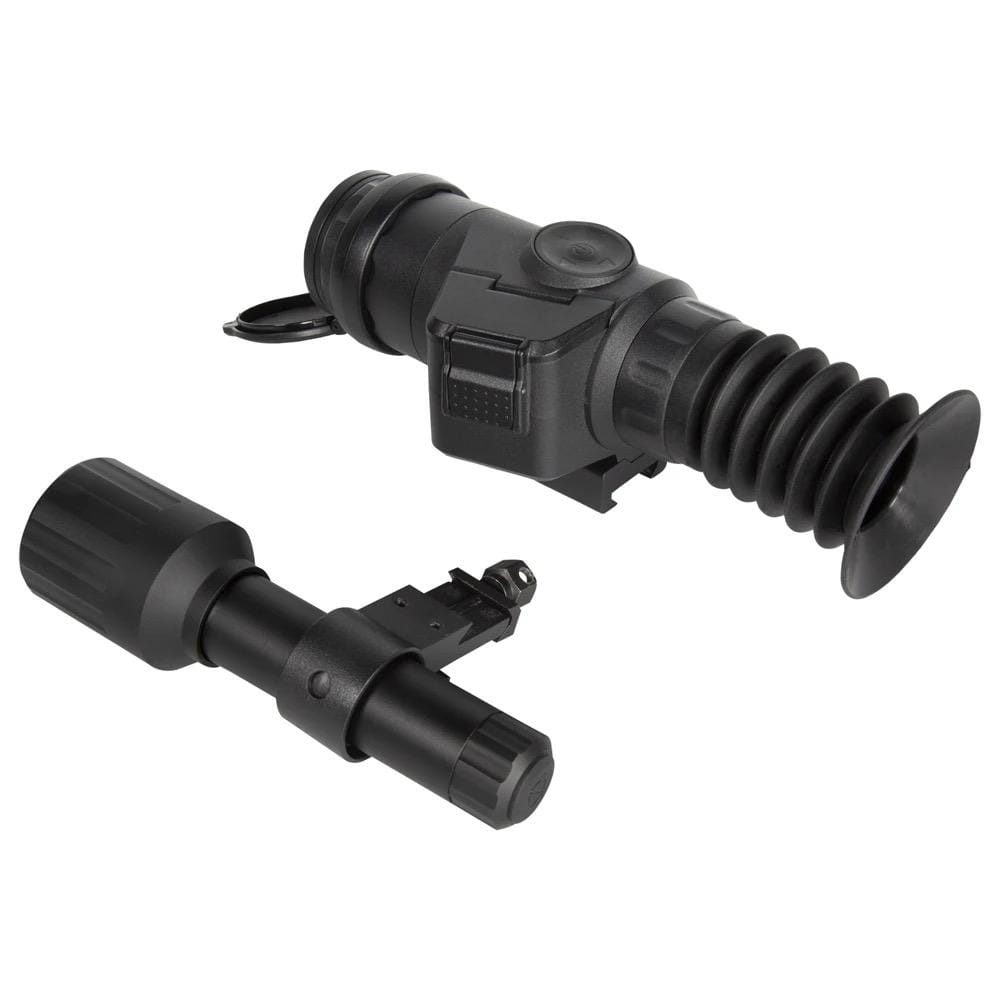

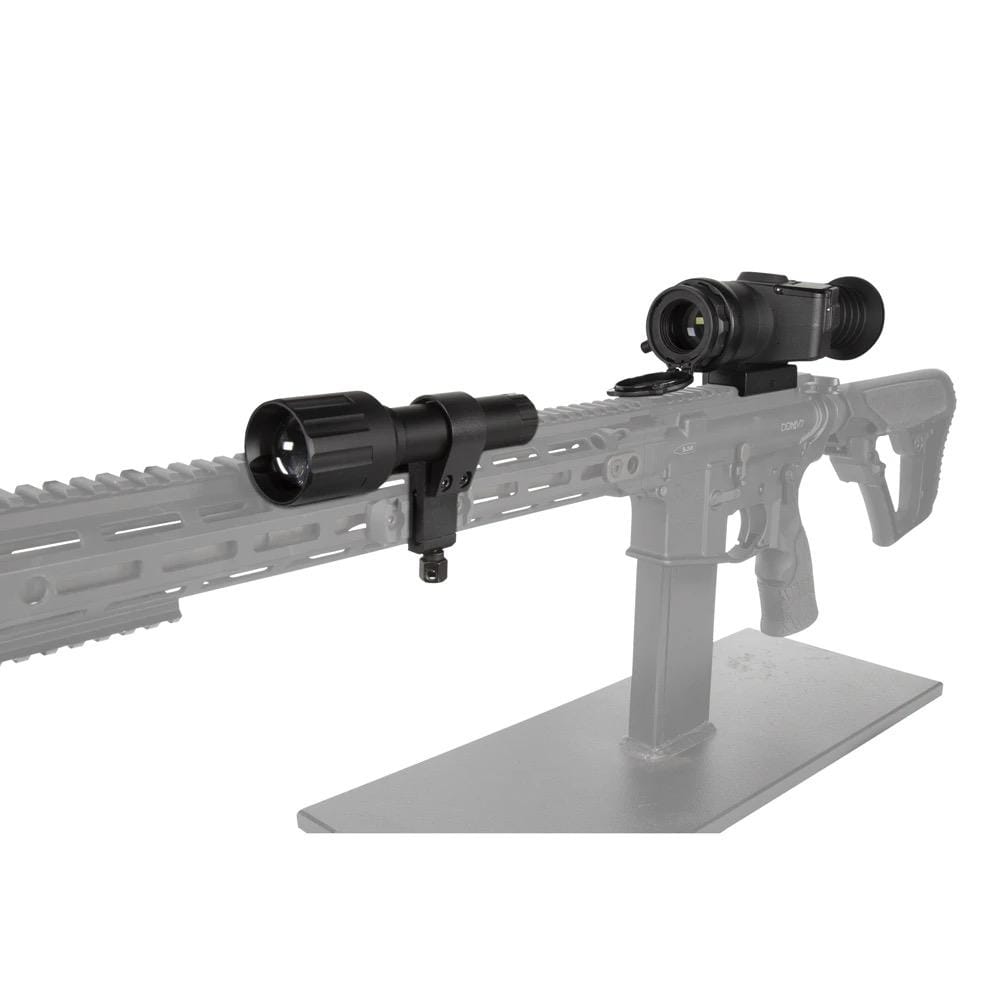

| IR-illuminator |
|
| Emitter |
LED |
| IR Wavelenght, nm |
850nm |
| Equivalent IR Power, mW |
~1060 on high, ~540 on medium, ~400 on low |
| Battery Life |
2 hours on high |

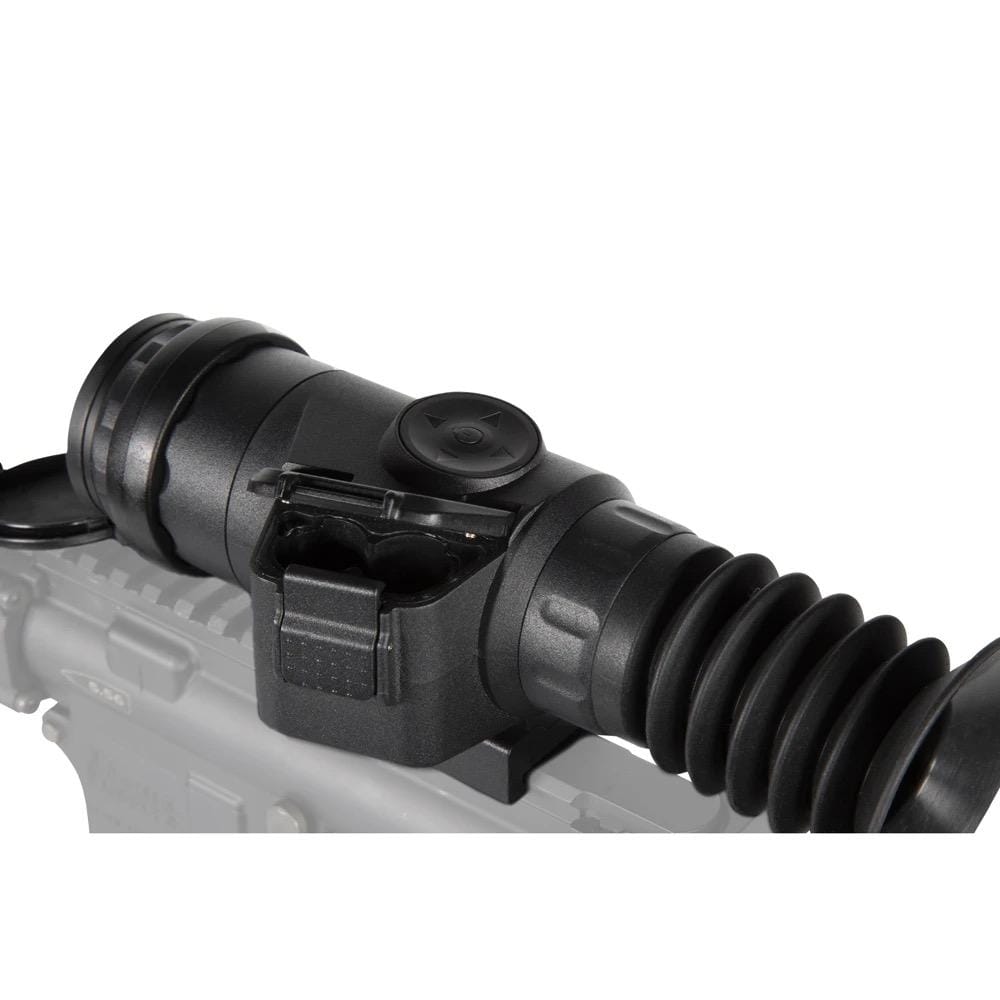

| Battery type |
2x CR123A |
| Range of Detection |
|
| Night Vision detection range, yd/m |
300/274 |
| Power Supply |
|
| Power Supply, v |
6 |
| Battery type |
2x CR123A |
| Battery life |
3.6Hrs Video Mode/ 4.4Hrs Preview Mode |
| External Power Supply |
5V via microUSB |
| Reticle |
|
| Windage & Elevation click value |
1 pixel/ ~X0.4MOA |
| Adjustment range, elevation |
~ 150 MOA |
| Adjustment range, windage |
~ 350 MOA |
| Number of reticle options |
10 SFP 4FFP |
| Colors |
Black, white, red, blue, green, cyan, orange, yellow, magenta |
| Physical & operational characteristics |
|
| Body Material |
Aluminum |

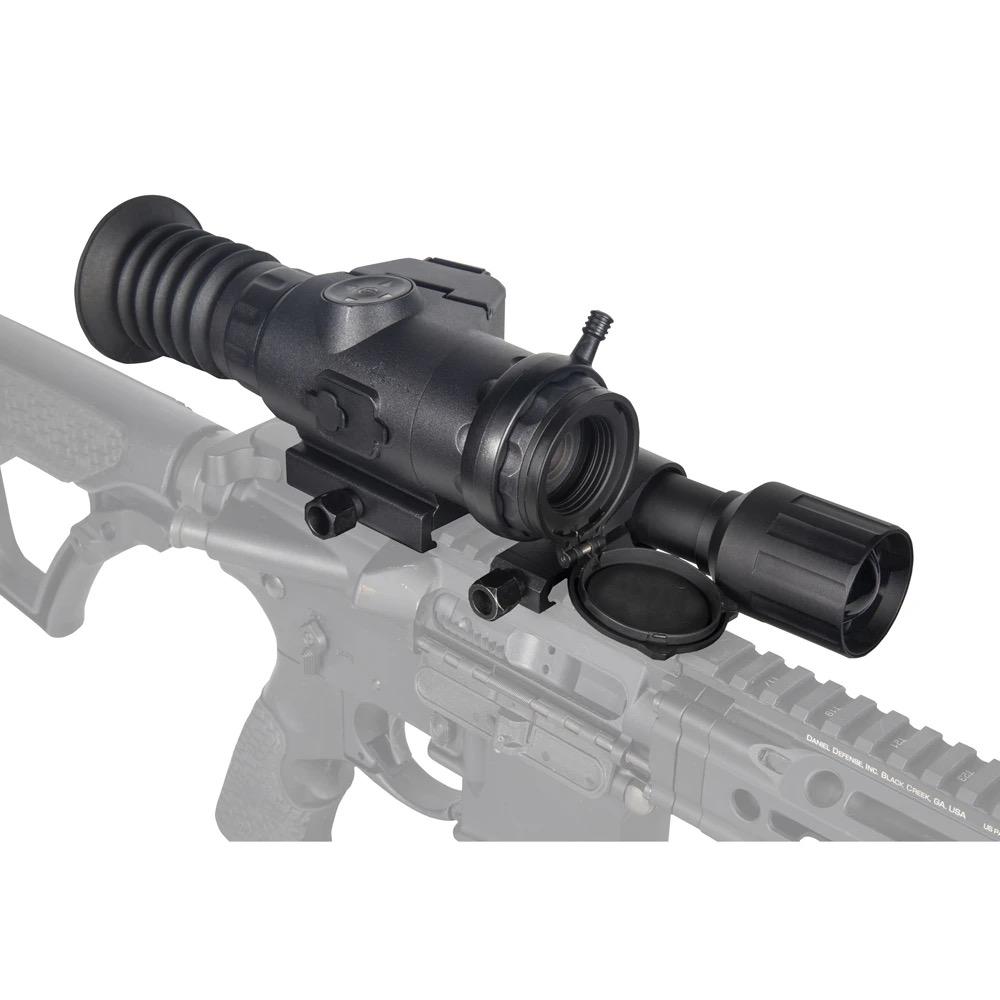

| Accessory rail mount |
Picatinny |
| Operating Temp,°F / C° |
32 to 140 / 0 to 60 |
| Waterproof rating |
IPX6 – water resistant |
| Nitrogen Purged, yes/no |
no |
| Shockproof, yes/no |
yes, 3ft |
| Maximum recoil, caliber |
.308 |
| Tube diameter |
n/a |
| Length, in/mm |
6.299/160 |
| Width, in/mm |
3.031/77 |
| Height, in/mm |
2.913/74 |
| Weight (with batteries), oz |
21.6 oz |
