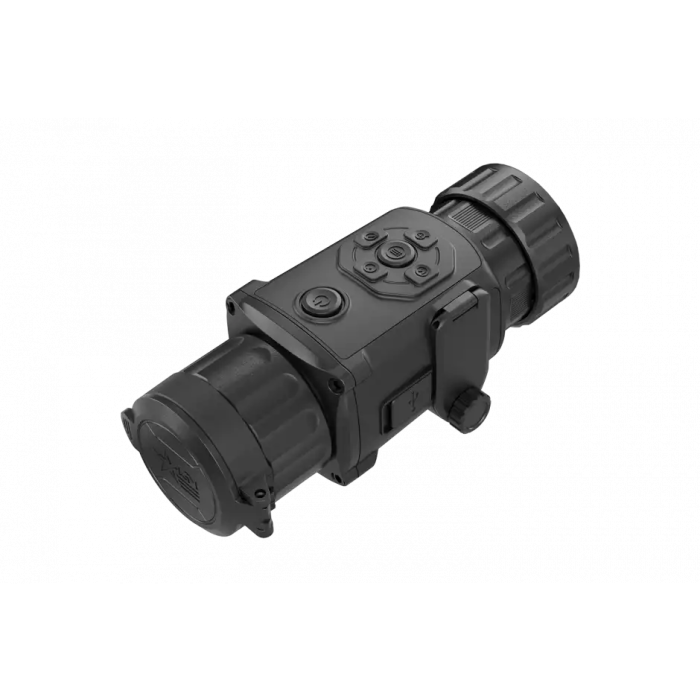

AGM Rattler TC19-256 Thermal Imaging Clip-On 12um, 256x192 (50 Hz), 19 mm lens MKP

SKU
3092856003TC91-mkp
Each and every unit is NVG verified prior to any listing
Condition Open Box
Brand New Open Box Used
The item shows minimal wear and may be backed by a warranty. The item includes original or new accessories and will come in resealed original packaging.
Warranty
warranty
This item has been verified by NVG and we guarantee its condition and functionality match with what is written
4 Years
This Marketplace product is Final sale, it's not returnable. Read more on our return policy
$990.00
0% APR for 3/12 months or interest bearing for 18 months*
The AGM Rattler TC19-256 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Rattler TC19-256 has high sensitivity 12μm thermal detector with 256×192 resolution and 1024x768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.

The product is mainly applied to scenarios such as patrolling, hunting, etc. The Rattler TC19-256 thermal clip-on can easily be attached in front of rifle scopes with magnification up to 6x for short range use.

Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.



Palettes Black Hot, White Hot, Red Hot, Fusion
Shock and vibration 750 g/ms
Exit Pupil Diameter 22 mm
Distance Measurement Yes (Stadiometric Rangefinder)
Scene Mode Jungle, Recognition
Observation Distance 950 m
Detector type 12 μm VOx Uncooled Focal Plane Arrays
Response Waveband 8 μm to 14 μm
FFC (Flat Field Correction) Auto, Manual, External Correction
Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh rate Sensor 25 Hz / OLED 50 Hz
Resolution 256 x 192
Lens system 19 mm, F1.0
Optical magnification 1x
Power 5 VDC/2 A, USB Type-C interface Supports external power supply
Mounting Optional Front Quick Release Adapters for different front lens diameter or Quick Release Mount for Picatinny/Weaver rail
Field of view (H × X) 9.2° x 6.9°
Monitor 1024x768, 0.39 inch, OLED
Storage 16 GB EMMC
Record Video On-board video recording
Capture Snapshot Yes
Battery Type Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
CVBS Output Yes (via USB)
Battery Operating Time Up to 4.5 hours continuous running (@25°C, WiFi off) Up to 4.0 hours continuous running (@25°C, WiFi on)
Battery Capacity Display Yes
Operating Temperature Range -20°C to 55°C (-4°F to 131°F)
Overall Dimensions 153 mm × 62 mm × 59 mm (6.0 × 2.4 × 2.3 in)

AGM Rattler TC19-256  Thermal Imaging Clip-On 12um, 256x192 (50 Hz), 19 mm lens

The AGM Rattler TC19-256 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Rattler TC19-256 has high sensitivity 12μm thermal detector with 256×192 resolution and 1024x768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.

The product is mainly applied to scenarios such as patrolling, hunting, etc. The Rattler TC19-256 can easily be attached in front of rifle scopes with magnification up to 6x for short range use.

Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.
