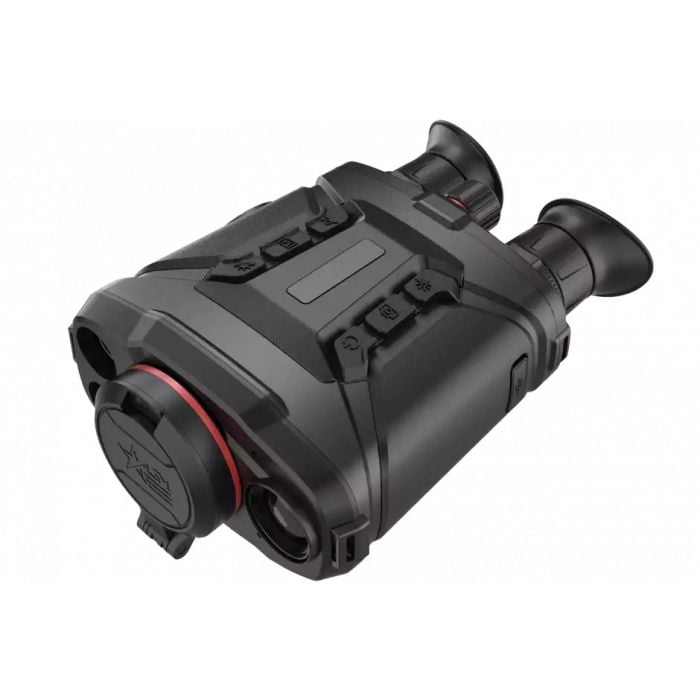

AGM Voyage TB50-640 Fusion Thermal Imaging & CMOS Binocular with built-in Laser Range Finder, 12 Micron 640x512 (50 Hz), 50 mm lens MKP

SKU
7142510005306V561-mkp
Each and every unit is NVG verified prior to any listing
Condition Open Box
Brand New Open Box Used
The item shows minimal wear and may be backed by a warranty. The item includes original or new accessories and will come in resealed original packaging.
Warranty
warranty
This item has been verified by NVG and we guarantee its condition and functionality match with what is written
1 Year
This Marketplace product is Final sale, it's not returnable. Read more on our return policy
$3,422.32
0% APR for 6/12 months or interest bearing for 36 months*
These products are new units unpacked for customer viewing or demoing, they are fully functional and new looking.
  • Magnification 3.5× - 56×
    Interpupillary Distance 60 mm to 70 mm
    Digital Zoom 1×, 2×, 4×, 8×, 16×
    Detection Range 2,600 m/yd (6’ object)*
    Flat Field Correction (FFC) 905 nm (Class 1)
    Palettes Optical, White Hot Thermal, Black Hot Thermal, Red Hot Thermal, Image Fusion
    Diopter Adjustment 0.39-inch, OLED, 1024×768
    Battery Type Four 18650 batteries
    Image Sensor Vanadium Oxide Uncooled Focal Plane Array
    Resolution 640×512
    Pixel Pitch 12 μm
    Response waveband 8 μm to 14 μm
    NETD Less than 20 mK (25°C, F#=1.0)
    Field of View 8.7° × 7.0°
    Aperture F0.9
    Lens (Focal Length) Less than 20 mK (25°C, F#=1.0)
    Monitor 0.39-inch, OLED, 1024×768
    Storage Built-in memory module (64 GB)
    Snapshot JPEG, 1600x1200
    Battery Operating Time Up to 8 hours
    Battery Capacity Display Yes
    Protection level IP67
    Mounting 1/4”-20 UNC
    Cable Output USB Type-C port
    Accessories (Supplied) Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Six 18650 Batteries, Power Adapter, User Manual, Carrying Case
    Dimension (LxWxH) 217 × 155 × 88 mm (8.5 × 6.1 × 3.5 in)
    Weight 1.12 kg ( 2.5 lb)
    Storage temperature range -40°C to 70°C (-40°F to 158°F)
    Picture In Picture Mode (PIP) Yes
    Video Recording MP4, 1600x1200
    Measuring Distance of Laser Rangefinder Max. 1,000 m
    Laser Wavelength 905 nm (Class 1)
    Eye relief 15 mm
    External power supply DC 5V/2A, Max.10W, Type-C port

The AGM Voyage series of fusion thermal & optical dualspectrum binoculars is equipped with a 12μm highsensitivity infrared thermal sensor (NETD < 20 mK), 2560×1440 ultra-low light optical detector, 1024×768 OLED display and eyepiece with large field of view. The device can quickly discover and locate hiding objects even under extreme environments, such as smoke, fog, rain and snow. It can be widely applied to scenarios like patrol, law enforcement, search and rescue, drug enforcement, antismuggling and suspect apprehension.

Due to its waterproof capability the device performs well even in severe weather conditions and challenging environments. The Voyage’s user-friendly interface, comfortable and ergonomic buttons makes adoption and application incredibly simple. The binocular offers many different image views: thermal, visible, fusion, and that can be easily adapted depending on different environmental conditions.

The Voyage is equipped with all key features for target detection and positioning, including a laser rangefinder, GPS module, electronic compass, inclinometer, and 850nm IR illuminator.

This high-tech bi-ocular can take four 18650 rechargeable Lithium batteries for 8 hours of operation. An integrated proximity sensor saves energy. When the sensor detects eyes, the OLED screen turns on, otherwise the OLED screen remains off. In addition, an external power supply can provide an increase in operating time.

Features:

  • Dual-spectrum image fusion and object highlight (detail enhancement and target recognition)
  • Selection of thermal view channel, visible light channel, or both them combined
  • Thermal resolution: 640×512
  • Optical resolution: 2560×1440
  • NETD less than 20 mK (25°C, F#=1.0)
  • Digital Detail Enhancement (DDE)
  • Dynamic Noise Reduction (3D DNR)
  • Adaptive Automatic Gain Control (AGC)
  • Ultra-low illumination (optical channel), B/W: 0.001 lux @ (F1.0 , AGC On)
  • Video recording, replay, picture snapshot and search (capable to review the event on device)
  • Wi-Fi hotspot
  • Eye-safe laser rangefinder (up to 1,000 m distance detection with measuring accuracy 1 m)
  • GPS module
  • Digital magnetic compass
  • Inclination sensor
  • Proximity sensor to save power
  • Up to 8 hours continuous operation
  • Waterproof, IP67
  • Limited 5-Year Warranty

Package includes:

  • Battery Charger
  • Power Cable
  • Lens
  • Cloth
  • Two Wrist Straps
  • Neck Strap
  • Six 18650 Batteries
  • Power Adapter
  • User Manual
  • Carrying Case
