| THERMAL PERFORMANCE & IMAGE CLARITY |
|
| Thermal Engine |
Powered by ATN’s advanced 6th Gen core with a 384×288 sensor, 12mm pixel pitch, ≤18mK NETD sensitivity, and a smooth 50 Hz refresh rate for high-contrast thermal imagery and reliable long-range detection |
| ATN SharpIR AI Technology |
AI-enhanced processing sharpens edges and boosts contrast in real time, improving identification and reducing visual noise across expansive landscapes |
| High-Contrast OLED Display |
800×600 OLED screen delivers crisp detail and smooth motion for comfortable viewing in extended scans |
| Multiple Color Palettes |
Six selectable palettes let you tailor the thermal view to terrain, lighting, and personal preference |
| OPTICS & DETECTION PERFORMANCE |
|

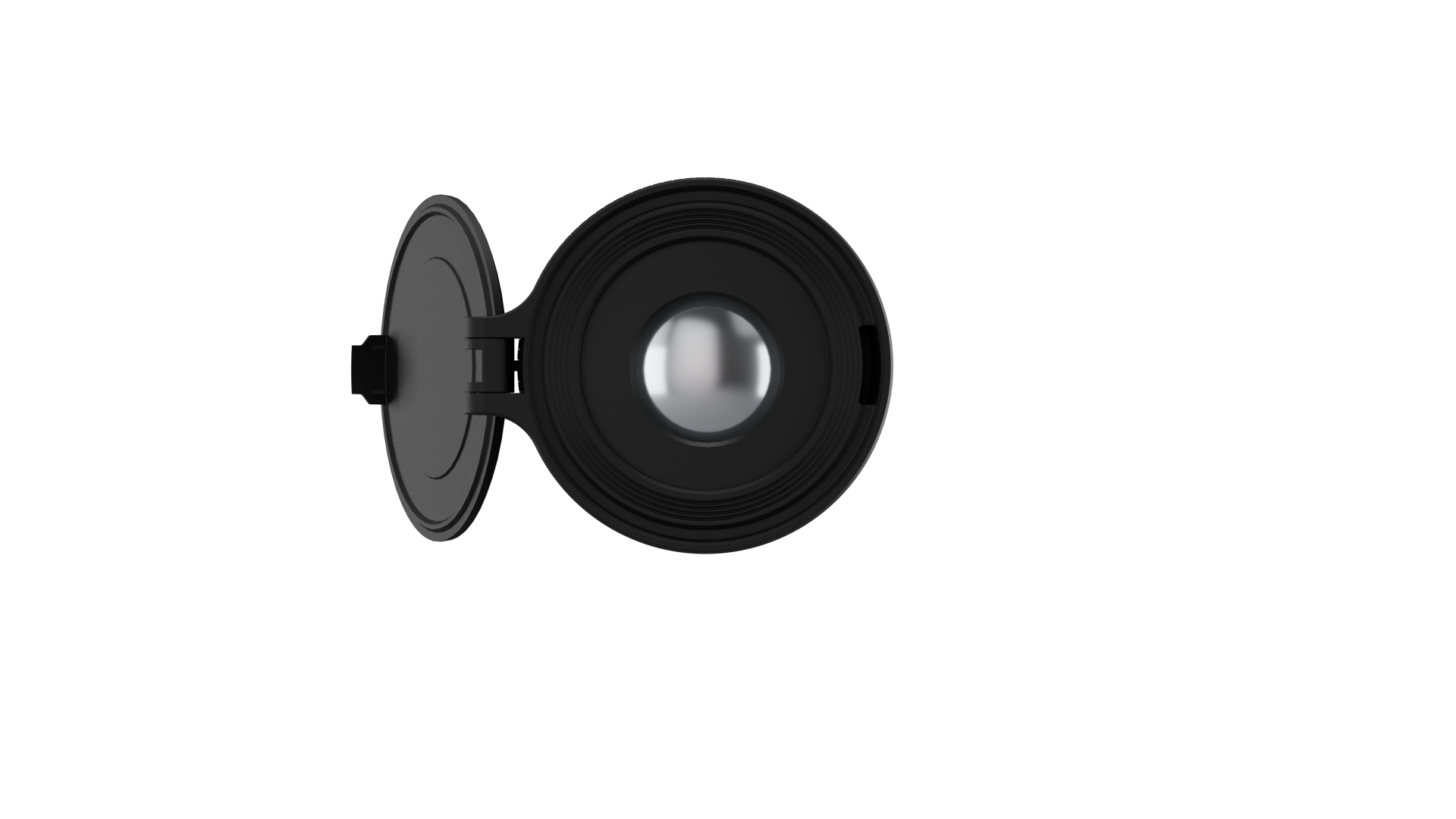

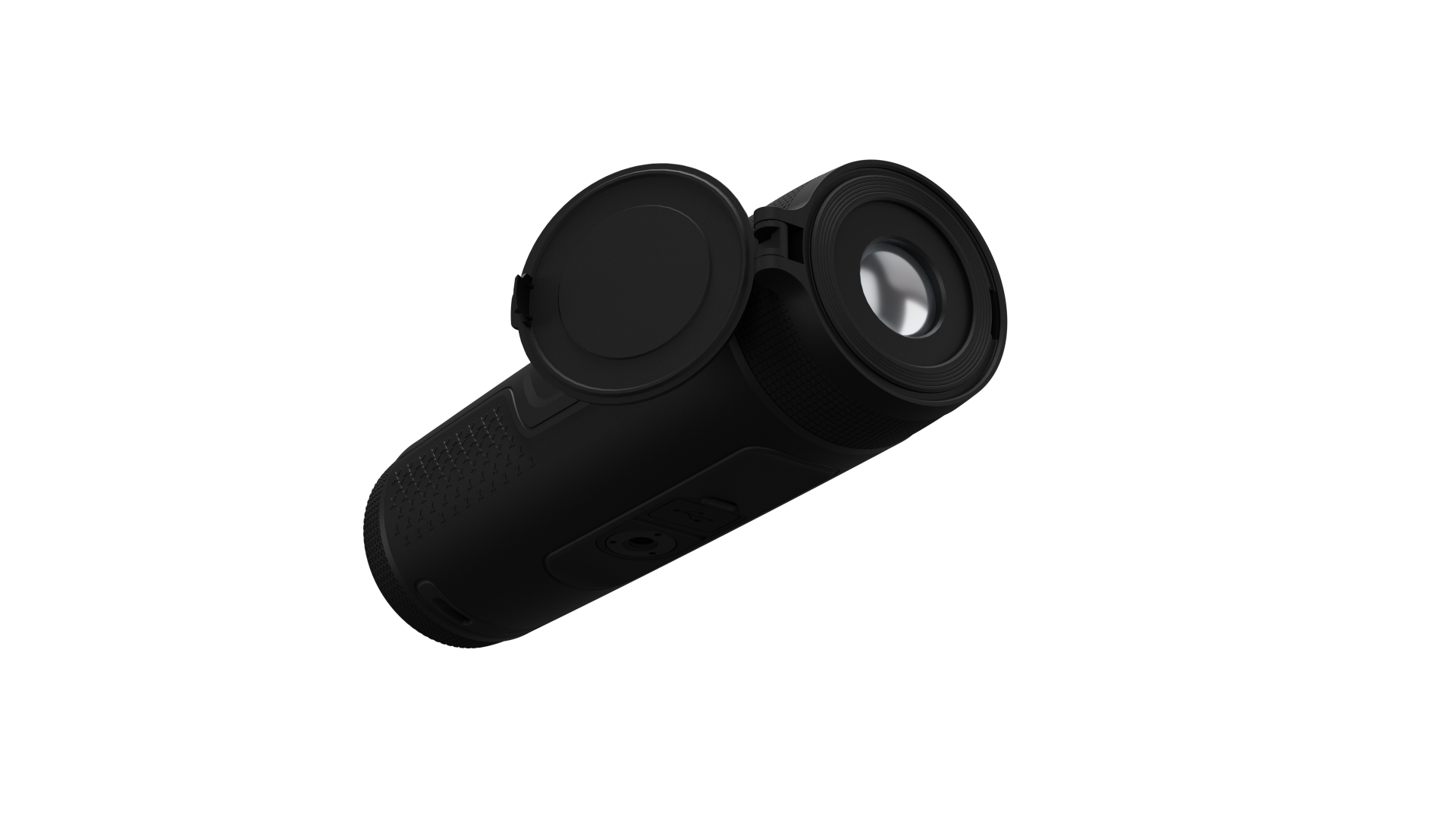

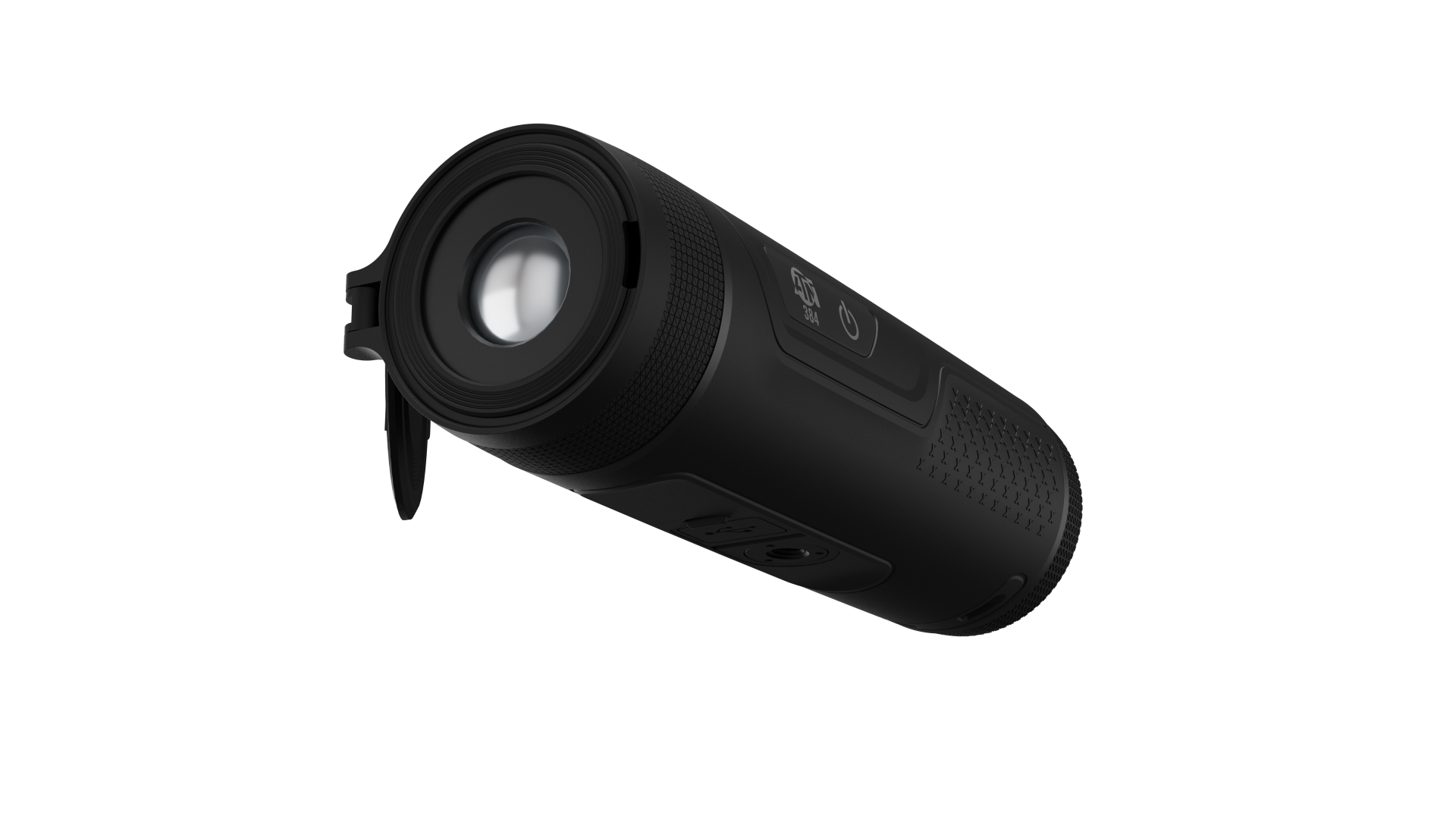

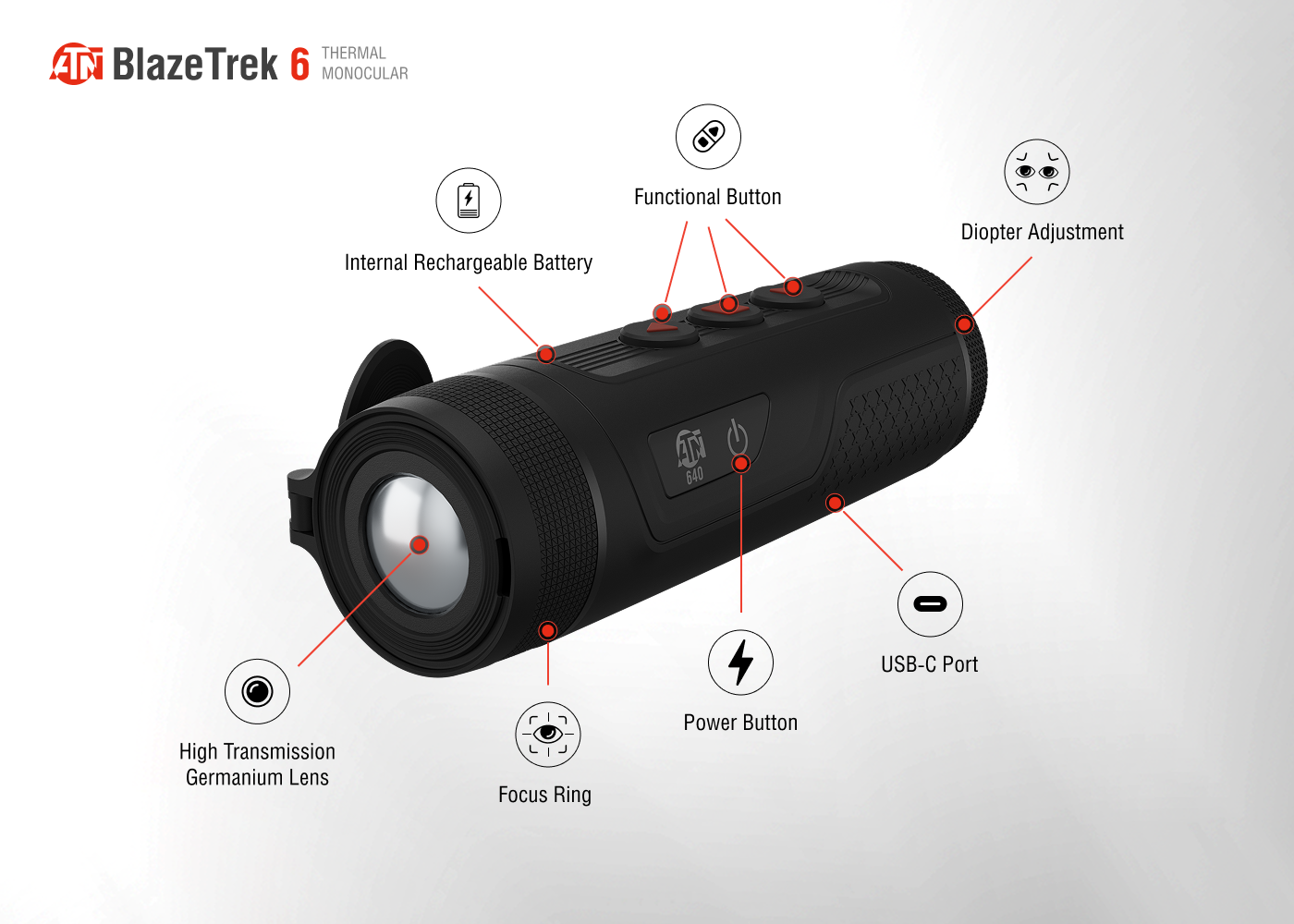

| 19 mm Germanium Lens |
Wide-angle germanium lens provides a 14.4deg x 10.8deg field of view for broad scanning and quick situational awareness |
| Extended Detection Range |
Up to 1,000 meters of detection capability supports confident observation of open terrain and ridgelines |
| Smooth and Step Digital Zoom |
Up to 8x digital zoom allows flexible magnification without disrupting the viewing experience |
| Manual Focus System |
Precise focus from 1 m to infinity lets users dial in detail at both near and long ranges |
| TOOLS & TECHNOLOGY |
|
| Hot Point Tracking |
Automatically highlights the hottest object in view for rapid detection and tracking of targets |
| Scene Modes |
Selectable scene modes enhance thermal performance in diverse environmental conditions |
| RECORDING, CONNECTIVITY & STORAGE |
|
| Video, Audio, and Image Recording |
Capture video, audio, and still images directly to 32 GB of internal storage |
| Built-In Wi-Fi Connectivity |
Wi-Fi hotspot pairs with the ATN Connect 6 app for live streaming, playback, and sharing |
| USB Type-C Interface |
Supports charging, data transfer, and external power for extended field use |
| FIELD-READY DESIGN |
|
| Rugged IP67 Housing |
Waterproof and dustproof design built for real-world conditions |
| Portable and Balanced |
Compact 320 g form factor makes long sessions comfortable and balanced in hand |
| Long-Lasting Battery |
Internal rechargeable battery delivers up to 8 hours, with support for USB Type-C external power |
| OPTICS & SENSOR |
|
| Detector Type |
12 mm VOx Uncooled Focal Plane Array |
| Sensor Resolution |
384 x 288 |
| Refresh Rate |
50 Hz |
| Thermal Sensitivity (NETD) |
≤ 18 mK |
| SharpIR(c) |
Yes |
| Non-Uniformity Correction (NUC) |
Auto / Semi Auto / Manual |
| Lens System |
19 mm (Ge); F/1.0 |
| Field of View (HxV) |
14.4deg x 10.8deg |
| Focus Mechanism |
Manual Focus (1 m to infinity) |
| Magnification |
2.25 – 18x |
| Digital Zoom |
1x, 2x, 4x, 8x |
| Detection Range |
1000 m |
| Color Palettes |
White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| DISPLAY & VIEWING |
|
| Display Resolution |
800 x 600 OLED Display |
| Diopter Range |
-5 to +5 D |
| Scene Modes |
Yes |
| Hot Point Tracking |
Yes |
| RECORDING & CONNECTIVITY |
|
| Video / Audio Recording |
Yes |
| Image Capture |
Yes |
| Internal Storage Capacity |
32 GB |
| Built-in Wi-Fi (Hotspot) |
Yes |
| Media Output |
USB Type-C |
| App (Apple Store / Google Play) |
Yes (ATN Connect 6 – iOS & Android) |
| POWER SYSTEM |
|
| Battery Type |
Internal Rechargeable |
| Battery Life |
~ 8 hrs |
| Supports External Power Supply |
Yes (USB Type-C 5 VDC / 2 A) |
| Standby / Sleep Mode |
Yes |
| DESIGN & DURABILITY |
|
| Weight (with Battery) |
320 g / 0.7 lb |
| Dimensions (LxWxH) |
158 x 57 x 50 mm (6.20 x 2.23 x 1.98 in) |
| Operating Temperature |
-30 degC to 55 degC (-22 degF to 131 degF) |
| Waterproof / IP Rating |
IP67 |
