| THERMAL PERFORMANCE & IMAGE CLARITY |
|
| Thermal Engine |
6th Generation Thermal Engine |
| Sensor |
384×288 sensor with 12mm pixel pitch and ≤18mK NETD sensitivity paired with a smooth 50 Hz refresh rate provides detailed and responsive thermal imagery |
| ATN SharpIR AI Technology |
Refines every frame in real time, enhancing edge definition and contrast for clearer target recognition at distance |
| High-Contrast OLED Display |
800×600 OLED display delivers crisp visuals and smooth motion tracking for confident scanning |
| Multiple Color Palettes |
Six selectable color modes adapt easily to terrain and lighting variation |
| OPTICS & DETECTION PERFORMANCE |
|

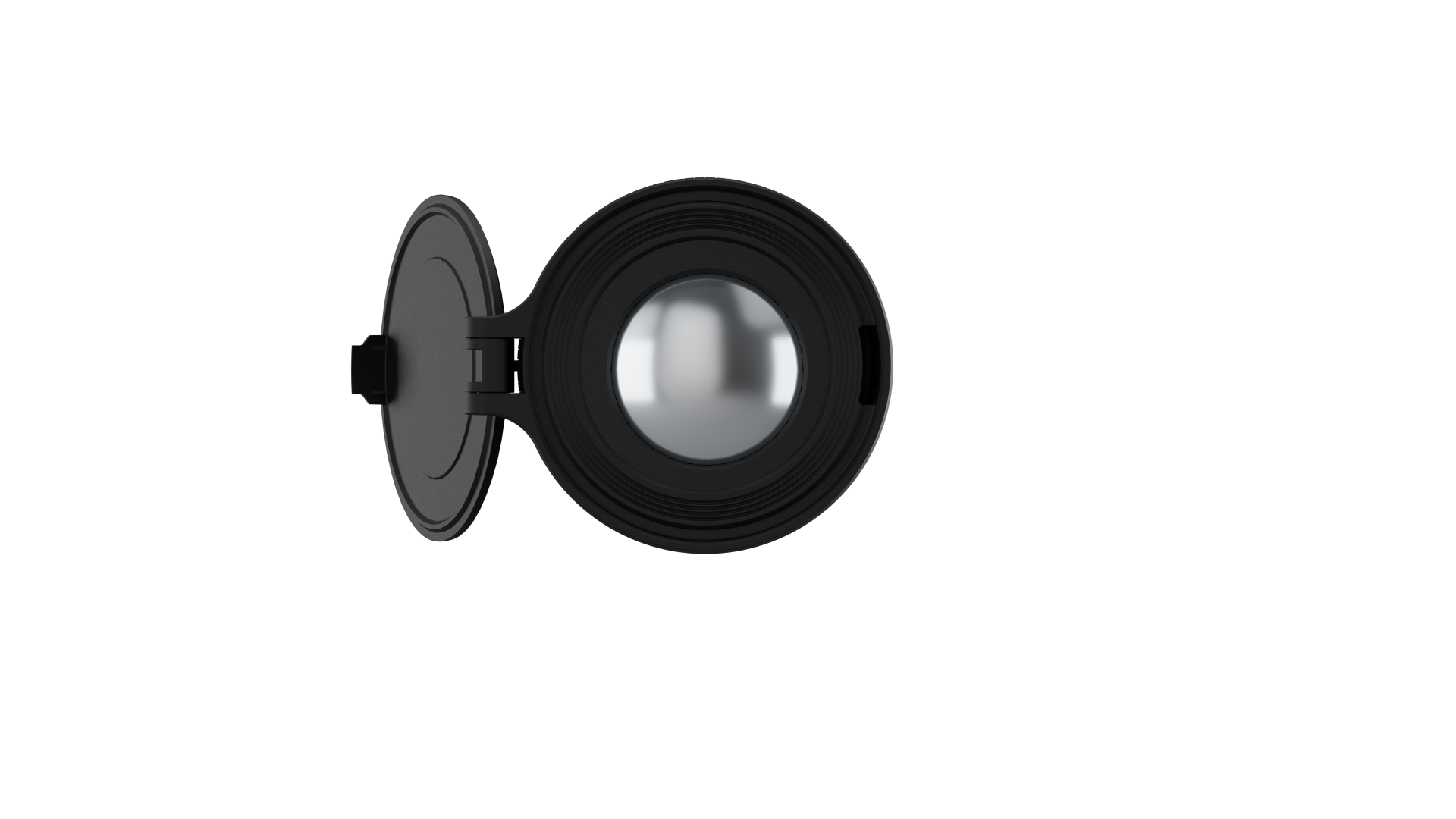

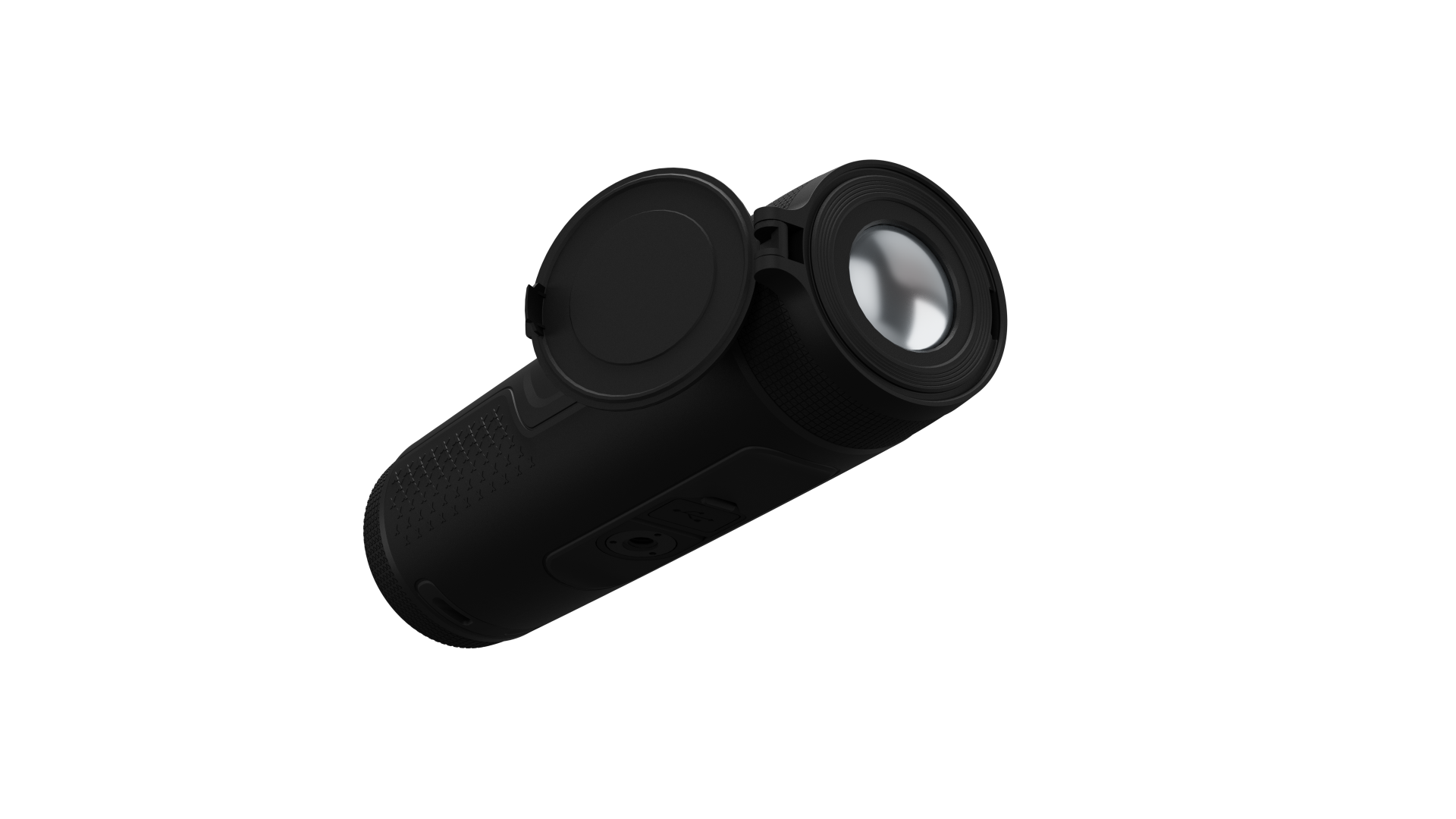

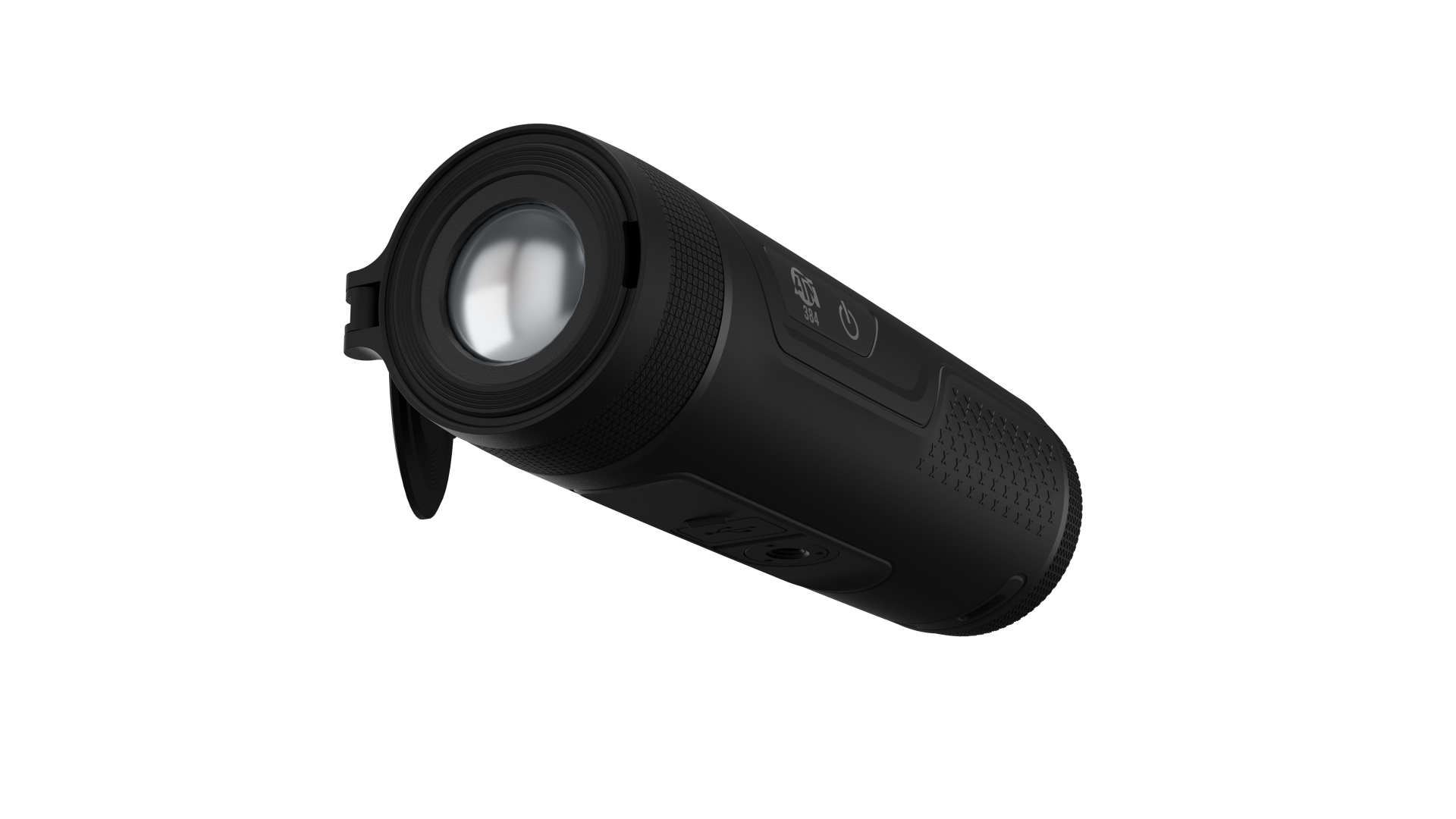

| 25 mm Germanium Lens |
Narrower field lens (10.9deg x 8.2deg) enhances reach and detail for distant targets |
| Maximum Detection Range |
Up to 1,300 meters of detection capability for extended observation across open terrain |
| Smooth and Step Digital Zoom |
8x digital zoom enables precise magnification control |
| Manual Focus System |
Focus range from 1 m to infinity allows detailed fine-tuning at all distances |
| TOOLS & TECHNOLOGY |
|
| Hot Point Tracking |
Instantly highlights the hottest object in view, aiding rapid location and tracking |
| Scene Modes |
Optimized performance across varied environments and lighting conditions |
| RECORDING, CONNECTIVITY & STORAGE |
|
| Video, Audio, and Image Recording |
Record and store thermal video, audio, and stills on 32 GB of internal memory |
| Built-In Wi-Fi Connectivity |
Wi-Fi hotspot allows pairing with the ATN Connect 6 app for streaming and sharing |
| USB Type-C Interface |
Supports charging, data transfer, and external power supply |
| FIELD-READY DESIGN |
|
| Rugged and Portable |
320 g IP67-rated housing built to withstand rain, dust, and rugged terrain |
| Efficient Power System |
Internal rechargeable battery provides up to 8 hours with USB Type-C support for external power |
| Comfortable in Hand |
Balanced and compact design optimized for long observation sessions |
| OPTICS & SENSOR |
|
| Detector Type |
12 mm VOx Uncooled Focal Plane Array |
| Sensor Resolution |
384 x 288 |
| Refresh Rate |
50 Hz |
| Thermal Sensitivity (NETD) |
≤ 18 mK |
| SharpIR(c) |
Yes |
| Non-Uniformity Correction (NUC) |
Auto / Semi Auto / Manual |
| Lens System |
25 mm (Ge); F/1.0 |
| Field of View (HxV) |
10.9deg x 8.2deg |
| Focus Mechanism |
Manual Focus (1 m to infinity) |
| Magnification |
2.8 – 22x |
| Digital Zoom |
1x, 2x, 4x, 8x |
| Detection Range |
1300 m |
| Color Palettes |
White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| DISPLAY & VIEWING |
|
| Display Resolution |
800 x 600 OLED Display |
| Diopter Range |
-5 to +5 D |
| Scene Modes |
Yes |
| Hot Point Tracking |
Yes |
| RECORDING & CONNECTIVITY |
|
| Video / Audio Recording |
Yes |
| Image Capture |
Yes |
| Internal Storage Capacity |
32 GB |
| Built-in Wi-Fi (Hotspot) |
Yes |
| Media Output |
USB Type-C |
| App (Apple Store / Google Play) |
Yes (ATN Connect 6 – iOS & Android) |
| POWER SYSTEM |
|
| Battery Type |
Internal Rechargeable |
| Battery Life |
~ 8 hrs |
| Supports External Power Supply |
Yes (USB Type-C 5 VDC / 2 A) |
| Standby / Sleep Mode |
Yes |
| DESIGN & DURABILITY |
|
| Weight (with Battery) |
320 g / 0.7 lb |
| Dimensions (LxWxH) |
158 x 57 x 50 mm (6.20 x 2.23 x 1.98 in) |
| Operating Temperature |
-30 degC to 55 degC (-22 degF to 131 degF) |
| Waterproof / IP Rating |
IP67 |
