| SENSOR |
|
| Thermal Sensor |
640 × 512 |
| Sensor Pixel Size |
12 Micron |
| Frame Rate |
50 Hz |
| NETD |
<18 mK |
| OPTICS |
|

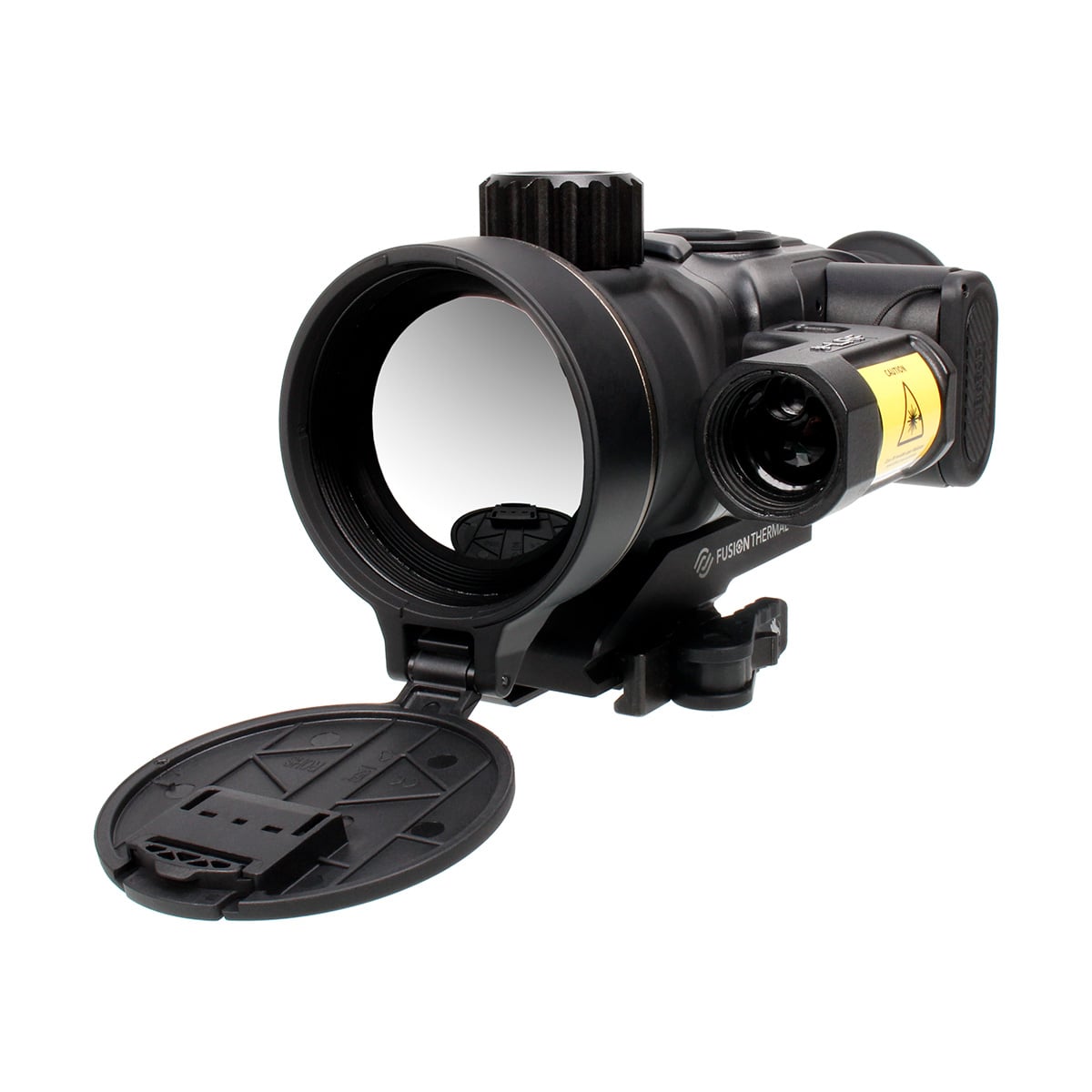

| Objective Lens Diameter |
50 mm |
| Base Level Magnification |
3× |
| Digital Magnification |
3×–12× (Rapid and Smooth options) |
| Field of View |
470′ at 1000 yards (3×) |
| Detection Range |
Up to 2900 yards |

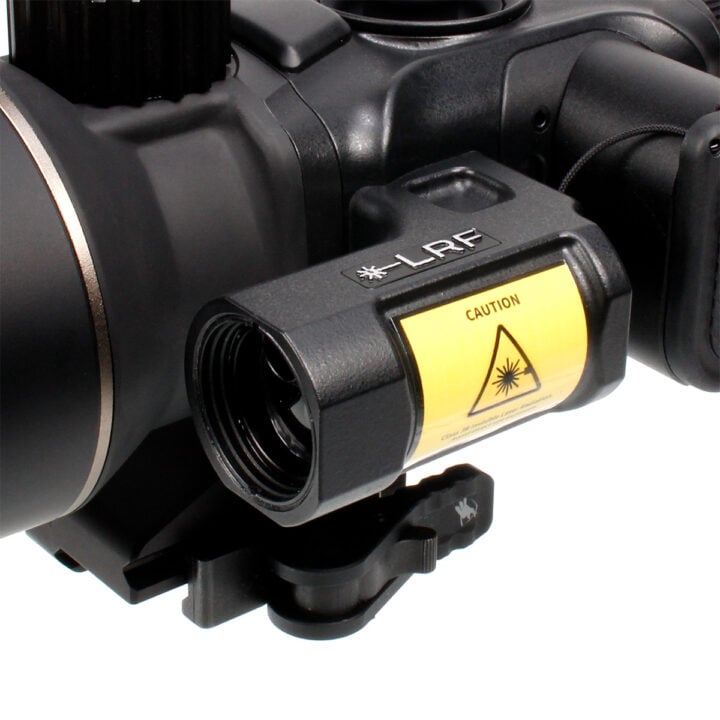

| Laser Class |
Class 3R |
| Laser Ranging Distance |
1300 yards (max expected for reflective target) |
| Ballistic Calculation |
Yes (Automatic Drop Compensation to 600 yards) |
| DISPLAY & IMAGE |
|
| Display Type/Resolution |
HD AMOLED / 1024 × 768 |
| Display OLED Adjustment |
Yes (4 Hue Options: Grey, Blue, Purple, Red) |
| Color Palette Modes |
6 (White, Black, Red, Green, Golden, Violet) |
| Picture-in-Picture (PIP) |
Yes |
| Hot Tracking |
Yes |
| Outline Mode |
Yes |
| RETICLE |
|
| Reticle Design Options |
8 + No Reticle |
| Reticle Color Options |
5 (Black, White, Red, Green, Blue) |
| Reticle Polarity Reversal |
Yes (Optional On/Off) |
| Reticle Illuminated Dot |
Yes (4 designs feature center dot illumination) |
| Reticle Center Dot |
3 illumination options (Red, Blue, Green) |
| Reticle Focal Plane Options |
Yes (Front Focal or Second Focal) |
| BALLISTIC & RECORDING |
|
| Multiple Gun Profiles |
Yes (up to 5 different zeros) |
| Gun Profile Nicknaming |
Yes (Caliber Labeling and Zero Distance) |
| Recoil Activated Recording |
Yes (with Sensitivity Threshold Adjustment) |
| Media Recording |
Yes (Photo, Video, and Audio; On/Off) |
| Media File Management |
Yes (On-Board Viewing and File Deletion) |
| ELECTRONICS |
|
| Wi-Fi and Hot-Spot Equipped |
Yes |
| Phone App |
Yes (WAVE IR) |
| Battery Type |
18650 ×2 (Not Polarity Sensitive) |
| Expected Battery Life |
13+ hours (3500 mAh battery, Wi-Fi Off @ 78°F) |
| Start-Up Time (Cold Start) |
3 seconds |
| Auto Shutdown Battery Saver |
Yes (Off, 30, 60, or 90 minutes) |
| PHYSICAL |
|
| Scope Length |
8″ |
| Weight |
29.8 oz. (without batteries) |
| ENVIRONMENTAL |
|
| Recoil Rating |
6,000 J (300 Win Mag suggested max) |
| Nitrogen Purged |
Yes |
| Waterproof Rating |
IP67 |
| OTHER |
|
| UPC |
850030459305 |
