| THERMAL PERFORMANCE & IMAGE CLARITY |
|

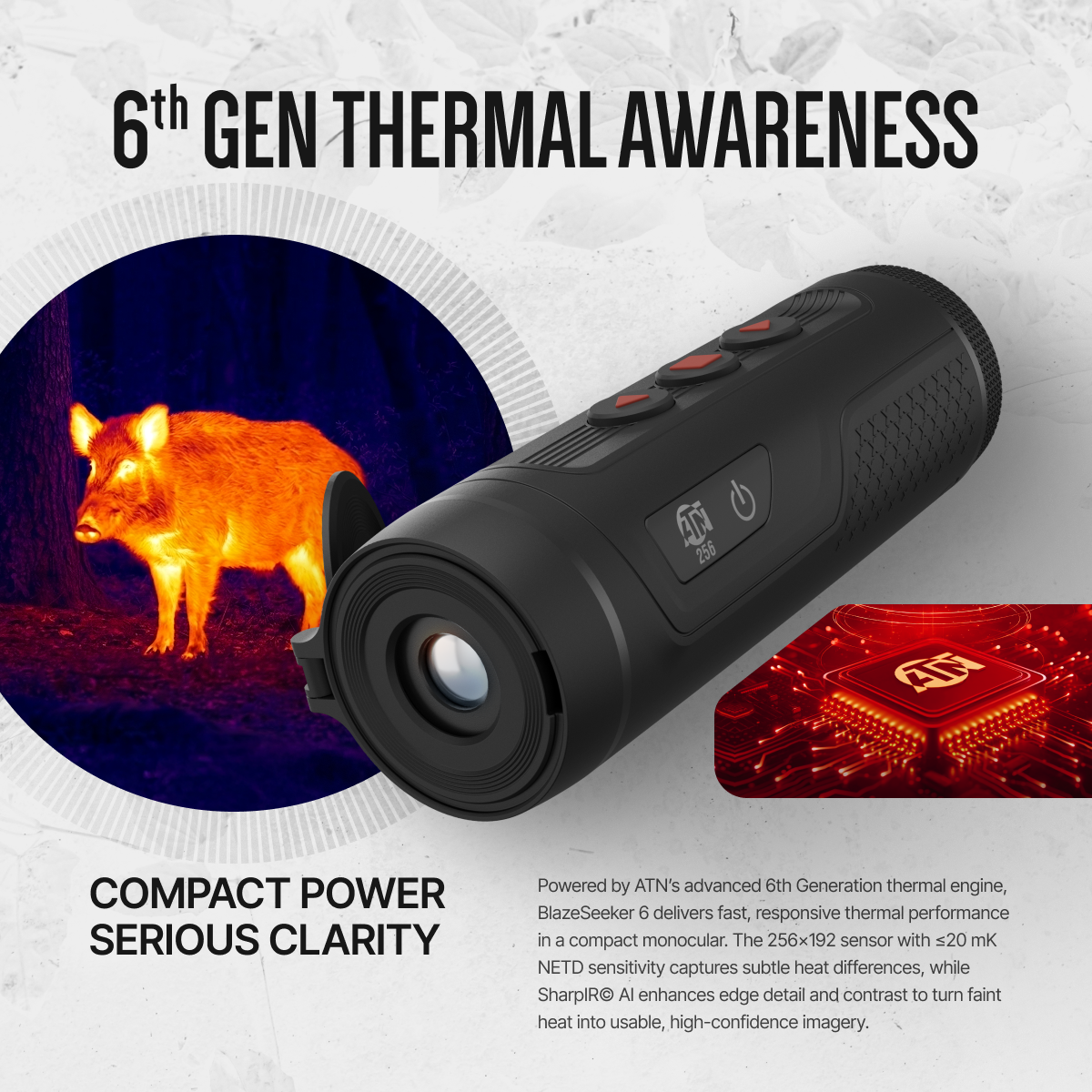

| Thermal Engine |
Powered by ATN’s advanced 6th Gen core with a 256×192 sensor, 12mm pixel pitch, ≤20mK NETD sensitivity, and smooth 50 Hz refresh rate for clear, high-contrast thermal imagery in darkness, fog, and dense cover |
| ATN SharpIR AI Technology |
AI-driven image processing enhances edge definition and contrast in real time, helping targets stand out clearly against cluttered backgrounds |
| High-Contrast OLED Display |
800×600 OLED display delivers sharp detail and smooth image motion while reducing eye strain during extended scanning sessions |
| Multiple Color Palettes |
Six selectable palettes including White Hot, Black Hot, Iron Red, Alarm, Green Hot, and Sepia allow users to tailor their view to terrain and lighting conditions |
| OPTICS & DETECTION PERFORMANCE |
|

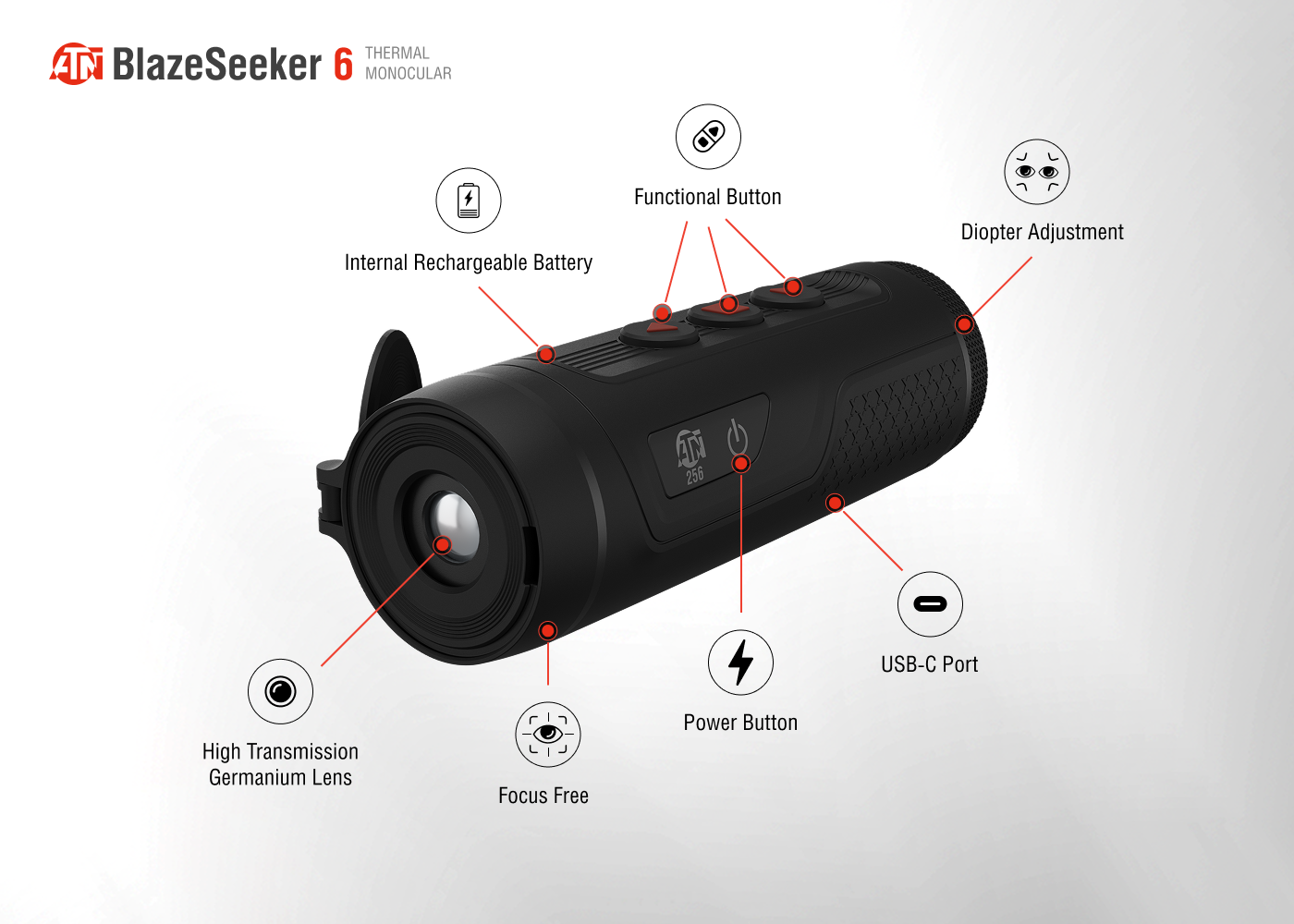

| Wide-Angle Germanium Lens |
Equipped with a 7 mm germanium lens and a wide 24deg x 18deg field of view, ideal for scanning close-range terrain, treelines, and wider areas quickly |
| Detection Range |
Up to 345 meters for reliable detection in wooded areas, brush, and confined environments |
| Smooth and Step Digital Zoom |
Digital zoom up to 8x with smooth and step zoom modes allows flexible magnification control without disrupting the viewing experience |
| TOOLS & TECHNOLOGY |
|
| Hot Point Tracking |
Automatically highlights the hottest object in the scene, making it easier to locate and follow moving targets through brush or tall grass |
| Scene Modes |
Optimized viewing modes enhance image performance across varying environmental conditions |
| RECORDING, CONNECTIVITY & STORAGE |
|

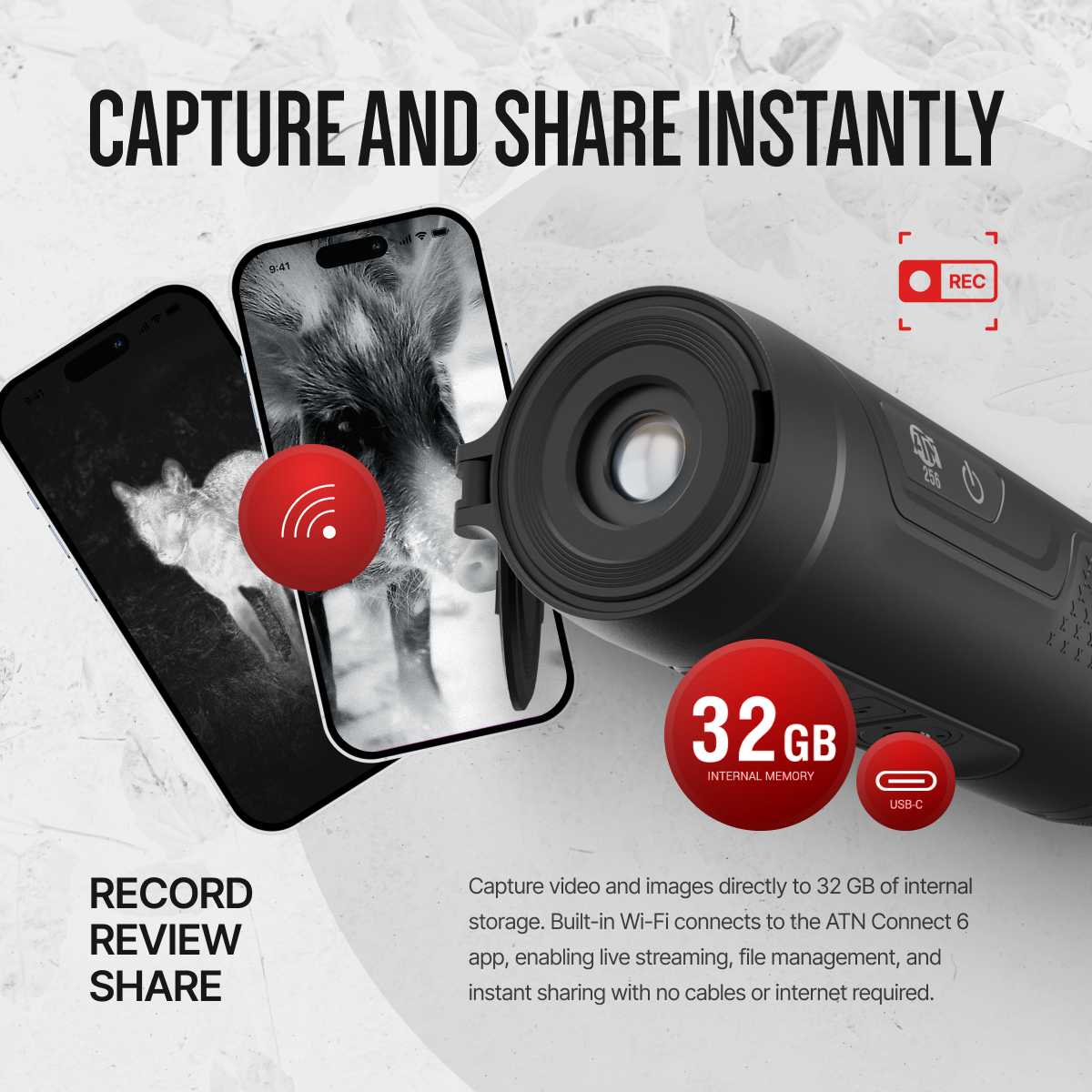

| Video, Audio, and Image Recording |
Record video, audio, and still images directly to 32 GB of internal storage for easy review and documentation |
| Built-In Wi-Fi Connectivity |
Integrated Wi-Fi hotspot pairs with the ATN Connect 6 app for live streaming, content management, and instant sharing from the field |
| USB Type-C Interface |
Supports charging, data transfer, and external power for extended operation |
| FIELD-READY DESIGN |
|

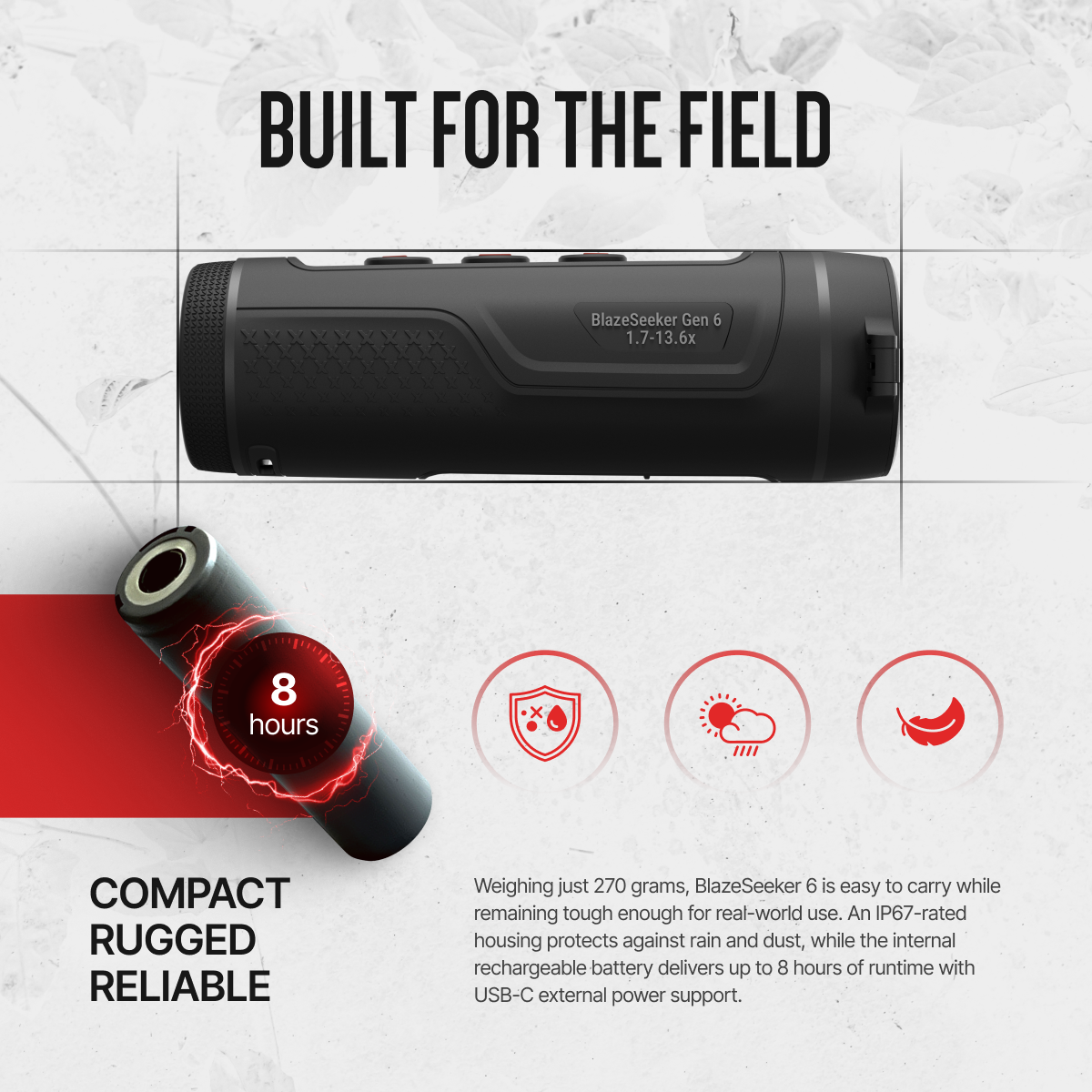

| Compact and Lightweight |
Weighing just 270 grams, BlazeSeeker 207 is easy to carry and comfortable for long scouting sessions |
| IP67-Rated Construction |
Waterproof and dustproof housing protects against rain, dust, and harsh outdoor conditions |
| Long-Lasting Battery |
Internal rechargeable battery delivers up to 8 hours of runtime, with support for external power via USB Type-C |
| OPTICS & SENSOR |
|
| Detector Type |
12 mm VOx Uncooled Focal Plane Array |
| Sensor Resolution |
256 x 192 |
| Refresh Rate |
50 Hz |
| Thermal Sensitivity (NETD) |
≤ 20 mK |
| SharpIR(c) |
Yes |
| Non-Uniformity Correction (NUC) |
Auto / Semi Auto / Manual |
| Lens System |
7 mm (Ge); F/1.0 |
| Field of View (HxV) |
24deg x 18deg |
| Focus Mechanism |
Fixed / Focus-Free |
| Magnification |
1.2 – 9.6x |
| Digital Zoom |
1x, 2x, 4x, 8x |
| Detection Range |
345 m |
| Color Palettes |
White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| DISPLAY & VIEWING |
|
| Display Resolution |
800 x 600 OLED Display |
| Diopter Range |
-5 to +5 D |
| Scene Modes |
Yes |
| Hot Point Tracking |
Yes |
| RECORDING & CONNECTIVITY |
|
| Video / Audio Recording |
Yes |
| Image Capture |
Yes |
| Internal Storage Capacity |
32 GB |
| Built-in Wi-Fi (Hotspot) |
Yes |
| Media Output |
USB Type-C |
| App (Apple Store / Google Play) |
Yes (ATN Connect 6 – iOS & Android) |
| POWER SYSTEM |
|
| Battery Type |
Internal Rechargeable |
| Battery Life |
~8 hrs |
| Supports External Power Supply |
Yes (USB Type-C 5 VDC / 2 A) |
| Standby / Sleep Mode |
Yes |
| DESIGN & DURABILITY |
|
| Weight (with Battery) |
270 g / 0.6 lb |
| Dimensions (LxWxH) |
149 x 57 x 50 mm (5.87 x 2.23 x 1.98 in) |
| Operating Temperature |
-30 degC to 55 degC (-22 degF to 131 degF) |
| Waterproof / IP Rating |
IP67 |
