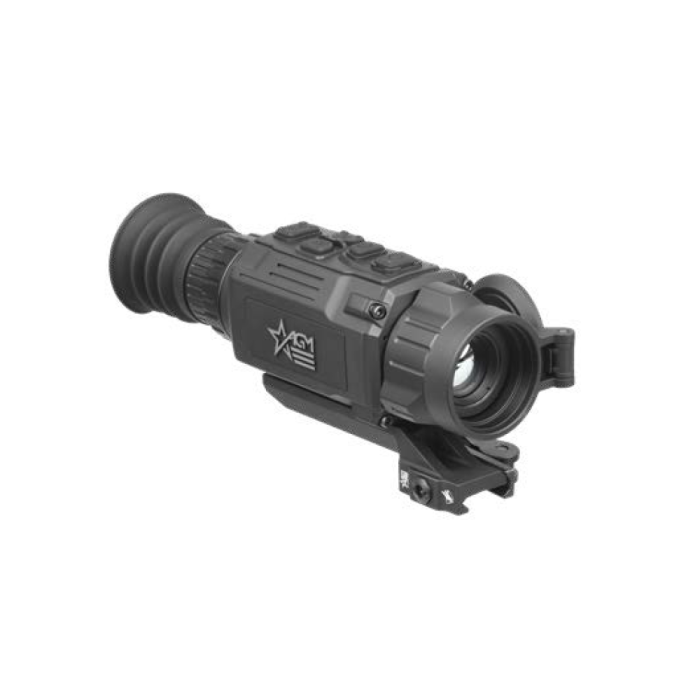

AGM RattlerV2 25-384 Thermal Imaging Rifle Scope 20mK, 384x288 (50 Hz), 25 mm lens

SKU
314204550204R231
$2,095.00
Financing options are available, please contact us to discuss
Add to Compare

Watch the RattlerV2 Launch Video

 How To Zero The Rattler V2

  View Model Comparison

 Watch Menu Walkthrough

The AGM 25-384 rechargeable thermal scope has a twelve-micron detector with 384×288 resolution and the most sensitive temperature ratings in its class, coming in at sub-20 millikelvin, which provides a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The scope is mainly applied to scenarios such as patrolling and hunting. Powered replaceable and rechargeable Li-ion battery the AGM 25-384 rechargeable thermal scope provides up to 11 hours of continuous battery life on a single charge (2 batteries included). An external 5V power bank (battery pack) can be easily connected via a USB-C connector for a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application. See also the AGM Rattler TS25-384.

Detector 12μm VOx Uncooled Focal Plane Array
Resolution 384 × 288
NETD Less than 20 mK (25°C, F# = 1.0)
Refresh Rate 50 Hz
Lens System 25 mm; F/1.0
Magnification 2× - 16×
Field of View 10.5° × 7.9°
Diopter Adjustment -5 to +5 diopters
Focus Range 0.5 m to infinity
Exit Pupil 6 mm
Eye Relief 45 mm
Digital Zoom 1×, 2×, 4×, 8×
Detection Range (6’ object) 1200 m/yd
Display 0.39-inch, OLED, 1024×768
Palettes Black hot, White hot, Red hot, Fusion
Flat Field Correction Auto, Manual, External Correction
Scene Mode Cold, Warm
Boresight Adjustment Digital Controlled
Video/Audio Recording Yes
Image Capture Yes
Standby Mode Yes
Storage Built-in EMMC (16 GB)
PIP Yes
Defective Pixel Correction Yes
WiFi Hotspot Yes
Hot Track Yes
Reticle 10 types, 4 colors, on/off
Distance Measurement Yes (Stadiametric)
Shot Activated Recording (SAR) Yes
Battery Type Replaceable and Rechargeable Li-ion Battery
Battery Life (Operating, 20°C) Up to 11 hours (25°C, with hotspot off)
External Power Supply 5 VDC, 2 A, USB Type-C
Operating Temperature Range -30°C to +55°C (-22°F to 131°F)
Protection Level IP67
Max. Recoil 1000 g/0.4 ms
Weight (w/o mount and battery) 0.49 kg (1.08 lb)
Dimensions (w/o mount) 219 × 68 × 67 mm (8.5 × 2.7 × 2.6 in)


12μm thermal detector

■ High thermal sensitivity, NETD < 20mK
■ 384×288 resolution
■ Fast 50Hz imaging
■ High resolution OLED display
■ Adjustable color palettes
■ Various reticle types and colors
■ 1x, 2x, 4x, 8x digital zoom
■ On-board video/audio recording and image capture
■ Built-in EMMC storage (16 GB)
■ Shot Activated Recording (SAR)
■ Wi-Fi data transmission
■ Stadiametric rangefinder
■ Standby mode
■ Up to 11 hours battery life
■ External power supply compatibility
■ Waterproof & shockproof
■ 5-year warranty
