EXPORT POLICY AND EXPORT RESTRICTIONS INFORMATION
The U.S. Department of State’s Directorate of Defense Trade Controls, the U.S. Department ofCommerce’s Bureau ofIndustry and Security, and the U.S. Department of the Treasury’s Office of Foreign Assets Control administer export control regulations that affect some aspects of our business. We request that you (the “Customer”) read and familiarize yourself with the following regarding certain applicable export regulations.
The sale, transfer, transportation, or shipment outside of the U.S. of any product prohibited or restricted for export without complying with U.S. export control laws and regulations, including proper export licensing, documentation or authorization, is strictly prohibited and may result in civil penalties and/or constitute a federal crime. Night Vision Guys LLC will not engage in any transaction that requires the illegal export of any products and will not assist directly or indirectly with the illegal export or re-export of any products. If you should have any questions or require additional information regarding export regulations please contact our knowledgeable and experienced staff or contact the:
U.S. Department of Commerce
U.S. Bureau of Industry and Security
Office of Exporter Services
Website: http://www.bis.doc.gov
Department of State
Directorate of Defense Trade Controls
Response Team
Website: http://www.pmddtc.state.gov
We thank you for your cooperation in helping us safeguard against illegal exportation of Night Vision Guys LLC products.
EXPORT REGULATIONS
Export of night vision equipment and optical sighting equipment (including user manuals) is controlled either by the U.S. Department of State, Directorate of Defense Trade Controls, in accordance with the International Traffic in Arms Regulations (ITAR), Title 22, and Code of Federal Regulations Part 120-130 or the U.S. Department of Commerce, Bureau of Industry and Security, in accordance with the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations Part 730-774.
Some of this equipment may require a license for export or re-export from the United States. Any export of equipment by Night Vision Guys LLC to a purchaser outside of the United States will be made in strict compliance with U.S. export control laws.
It is the purchaser’s responsibility to request and obtain any required export licenses for the subsequent export or re-export of the subject items, and to ensure that the requirements of all applicable laws, regulations and administrative policies are met. In addition, subsequent transfers of any products sold by Night Vision Guys LLC to individuals or entities on the List of Debarred Parties, Denied Persons List, Specially Designated Nationals List, Entity List, or Nonproliferation Sanctions List (collectively “Restricted Parties Lists”), as well as sales or transfers to Embargoed Countries, are strictly prohibited. It is the purchaser’s responsibility to verify whether any subsequent transferee is on any such Restricted Parties Lists, websites for which are set forth below.
LISTS OF PROHIBITED INDIVIDUALS, ENTITIES AND COUNTRIES
ITAR items and items marked for domestic sale only should only be used by party identified on the Night Vision Guys Sales Order/Invoice for use or resale in the U.S. only. Such items should not be exported, provided to foreign persons in the U.S. (including Foreign Embassies in the U.S.A.), or sold domestically for export by a third party (including U.S. Government agencies). If/when such items are resold, the original purchasing party must advise customers/end users of their duty to comply with U.S. export control regulations or face the possibility of severe criminal and civil fines including imprisonment if convicted. Furthermore if above mentioned items are resold or transferred in any way, the original purchaser must inform customers/end user(s) that if these items are lost, stolen or destroyed, they must report this fact to Night Vision Guys LLC and provide the date of the incident as well as the associated serial number of the item.
“U.S. Person” for this purposes is a U.S. citizen, lawful permanent resident as defined by 8 U.S.C.1101 (a) (20), protected individual as defined by 8 U.S.C. 1324b(a)(3)) and “US Company” as the company entity organized under the laws of the United States.
Diversion contrary to U.S. law is strictly prohibited.
Other Restrictions: Restrictions on the use of night vision with a weapon vary from state to state. You are strongly advised to learn these laws and adhere to them. Night Vision Guys LLC will not be held responsible for unlawful usage.
Discover Incredible Savings Without Compromising On Quality
Bering Optics Rubicon Pro Waterproof Reflex sight with a front control button MKP
Pulsar Thermion 2 LRF XP50 PRO Thermal Imaging Riflescopes MKP
Pulsar Thermion Duo DXP50 Multispectral Thermal Riflescope MKP
Pulsar Thermion Duo DXP55 Multispectral Thermal Riflescopes MKP
Pulsar Merger LRF XL 50 Thermal Imaging Rangefinding Binoculars MKP

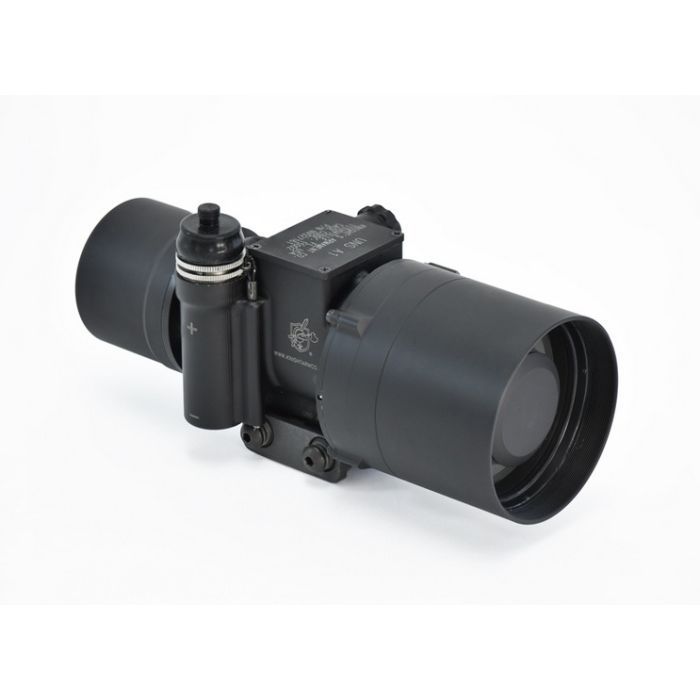

Knight Vision PVS-22 Clip-on Gen 3 Pinnacle Non-gated Tubes
The PVS-22 Clip-on sight utilizes Gen 3 image intensifier tubes and catadioptic lenses for high performance and advanced light correction. Patented Knight Vision technology provides accuracy and boresight stability. PVS-22 can be installed on most popular weapons, such as AR-15 platform, M249, M14 and daysights with magnification up to 10x. When the PVS-22 is added in front, your existing optic, eye relief, and cheek weld are undisturbed.
This Kit includes:
- Soft carry case
- Objective Lens cap
- Operator's Manual
- Picatinny Rail mount
- 2 AA Batteries
| Gen III Non Gated | XLS |
| Power Supply: | Non Gated |
| Signal to Noise Ratio: | 16.2 min. |
| Photocathode Response: | 1350 min. |
| Electronic Background Input: | 2.5 max. |
| Resolution: | 57 lp/mm min. |
| Max Spots Allowed in Each Zone, Spot Size (in.) | ZONE |
| 1___2___3 | |
| ...........>.012 - .015 | 0___0___0 |
| ...........>.009 - .012 | 0___0___1 |
| ...........>.006 - .009 | 0___2___2 |
| ...........>.003 - .006 | 0___2___3 |
|
Magnification |
Unity |
|
Operation Time |
Exceeds 48 hours |
|
Recognition Range |
700 m (human, 1/4 moon) |
|
Boresight |
Within .5 MOA |
|
Waterproof |
3 ft. for 4 hours, 66 ft optional |
|
Finish |
Flat Black Matte or Desert Sand Brown, Corrosion Resistant |
|
Controls |
Pull On/Off gain knob, Focus knob |
|
Focus Range |
20 Meters to Infinity |
|
Power Source |
2 AA-Size Battery |
|
Weight |
1.75 lbs. (.80 kg) |
|
Size |
7.3” (185 mm) long |
|
Mount |
KAC mount or quick attach / detach to MIL-STD-1913 rail or equivalent |
- Clip-on Night Vision Scope
- Magnification Up to 10X
- Uses Single Interchange Battery SIB
- Quick Attach/Detach
Gen 3P Night Vision
Please note that most high end night vision devices are built per order. It may take 3-5 days or more for your order to ship. If timely shipping is important to you, please, contact us to verify availability prior to ordering.
Our Night Vision units with the 3P designation use ITT Pinnacle™ Image Intensifier tubes. The industry leading ITT Pinnacle™ image tubes utilize a gated power supply providing truly outstanding performance in high-light or light-polluted areas, such as urban environments. The Pinnacle™ tube with gated power supply minimizes any “halo” effects. “Halo” is often associated with using night vision devices in an urban area where random street lights are often an issue with early Generation Night Vision devices. Night Vision units with Pinnacle™ tubes have a resolution of 57-64lp/mm and a typical signal to noise ratio between 16.2 and 25 . All Night Vision devices utilizing Pinnacle™ Image Intensifier tubes come with ITT data record sheet. Units with Pinnacle™ tubes are not available for export. A signed export compliance and end use statement is required prior to shipping of these units. As with all night vision tubes, each one coming off the production best has different parameters. We can help you with picking the parameters which will fit your needs and the price of the device will depend on the quality of the tube you select.
3P Gen. ITT Pinnacle™ IIT Features:
• Photo Cathode type: Gallium Arsenide
• Resolution from 57 to 64 lp/mm
• Signal-to-Noise Ratio: 16.2-25
• 10,000-hour tube life
* Pinnacle is a registered trademark of ITT Night Vision
Delivery Time and Manufacturing Process for Knight Vision PVS-22 Clip-on Gen 3 Pinnacle Non-gated Tubes:
Most of our manufacturers do not keep products like Knight Vision PVS-22 Clip-on Gen 3 Pinnacle Non-gated Tubes assembled on the shelf. Night Vision tubes are kept separate from the body of the unit. When the order is placed, the manufacturer starts the order processing and assembly process which includes the following:
- Order processing - we collect all the necessary information including address and phone numbers. We also make sure that our customer ordered the correct product for their needs and that the product can be exported by US law to the country of destination. In some cases a signed export compliance form is required.
- QC - in this step the manufacturer will inspect all individual parts which will be used to assemble the night vision device for any defects.
- Production & Assembly - during production, all the parts are put together. Night Vision tubes in inserted into the body of the unit and all the complex electronics for the device are connected. This process takes place in a special lab called the "clean room" as even a small speckle of dust can cause undesired optical effect.
- QA - one the night vision device is assembled, it goes through a rigorous testing process to make sure it meets all the expected specifications and all parts function as expected. For this most manufacturers have a special "dark room" designed to allow testing of the units without causing incidental damage to the night vision tube by exposure to bright light.
- Packaging - this is a key process as well. In most case your night vision device will be shipped to you directly from the manufacturer but sometimes needs to be sent to us first. In either case items need to be packaged securely to avoid any kind of damage during transportation.
- Shipping - as described above items will most of the time ship from the manufacturer. For most domestic orders (unless shipping to POB or AFB) a premium shipper like FedEx or UPS will be used.
Only by following the above steps can we along with our manufacturers bring you - our customer - night vision products of highest quality, However as you can understand the above process can take several days to complete. For example if your device fails QA, the entire process restarts. Also at QC stage a manufacturer may realize that the tube they have in stock has a defect and a replacement tube needs to be ordered. Due to the complexity of this process, it is prudent to expect 3-4 business days for production and handling of the purchased device. Keep in mind that this process is designed to guarantee your satisfaction with the night vision device of your choice. It occasionally possible to expedite the process for urgent orders but addional fees or other restrictions may apply.
