NVG PVS7-2+ NV Goggle with Photonis Tube - FOM 1300+ w/64+lp/mm Resolution (Photonis Tube Data Sheet Included)

SKU
NVG-PVS7G2
$1,999.99
Add to Compare
0% APR for 6/12 months or interest bearing for 36 months*

NVG PVS7-2+ NV Goggle with Photonis Tube - FOM 1300+ Gen 2+ w/64+lp/mm Resolution (Photonis Tube Data Sheet Included)

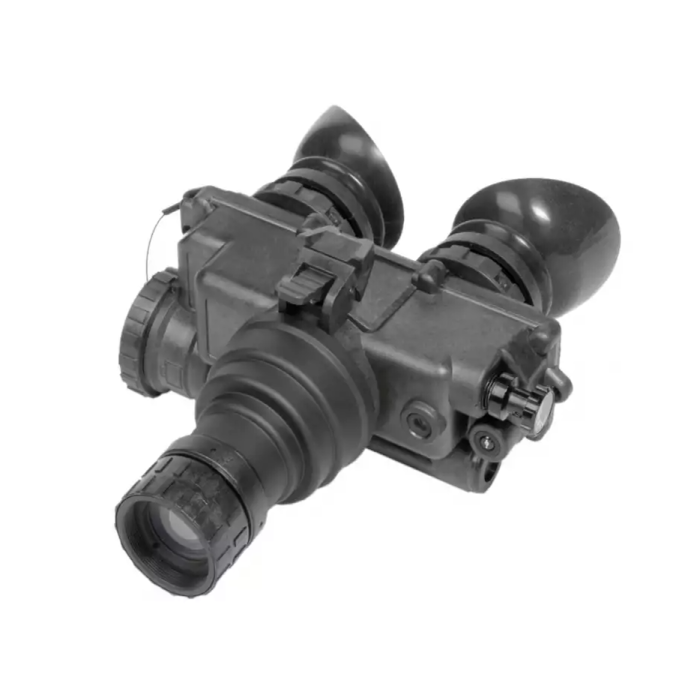

The PVS-7 is widely recognized for its unsurpassed dependability and ergonomic design. This U.S. Military-grade night vision goggle system has repeatedly proven its worth in combat, and is the highest-quality AN/PVS-7 B/D system on the market. The PVS-7 can be outfitted with high-performance Gen 2+ and Gen 3 image intensifier tubes (available in Green phosphor or P45 white phosphor). The built-in infrared illuminator provides a light source beyond the visible spectrum to enable the user to operate in complete darkness without being detected. Additionally, the PVS-7 has a bright light cut-off feature to protect the image tube from sources of intense light, and a flip-up shut-off feature that can be used with the optional helmet mount system. The PVS-7 has two LED indicators in the eyepiece for the IR illuminator on and low battery indicator. Lightweight, tough, and versatile, the PVS-7 can be handheld, or mounted to the user’s head/helmet. It is compatible with afocal magnifier lenses for superior long-range viewing.



Features:

  • Compact, rugged design/ Waterproof
  • Head or helmet-mountable for hands-free operation
  • Ergonomic, simple, easy-to-operate controls
  • Built-in Infrared illuminator and flood lens
  • Limited 2-Year Warranty



PACKAGE INCLUDES

  • Packing Box
  • Demist Shields
  • Sacrificial Window
  • Operators Manual
  • 2 AA Alkaline
  • Lens Tissue
  • Neck Lanyard
  • Head Mount Assembly
  • Soft Carrying Case
Image Intensifier Tube Gen 2+ Photonis Tube w/Tube Data Sheet
Resolution 64+ lp/mm Minimum w/1300+ FOM
Field of view cleanness by zone Gen 2 IIT NL1 is the highest resolution w/Minor Zone 2 & Zone 3 Blems
Magnification 1x
Lens System 27 mm; F/ 1.2
FOV 40°
Focus Range 0.2 m to infinity
Diopter Adjustment -6 to +2 diopters
Led Indicators Low battery; IR On; Excessive light conditions
Automatic Brightness Control Yes
Infrared Illuminator Yes
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes
Battery Type 2 AA Alkaline or 1 Lithium (BA-5567/ U)
Battery Life (Operating) Up to 60 hours at 20°C
Operating Temperature Range -40°C to +50°C (-40°F to +122°F)
Storage Temperature Range -50°C to +70°C (-58°F to +158°F)
Weight 0.68 kg (1.5 lbs)
Overall Dimensions 162 × 152 × 76 mm (6.4 × 6.0 × 3.0 in)

NVG PVS7-2+ NV Goggle with Photonis Tube - FOM 1300+ Gen 2+ w/64+lp/mm Resolution (Photonis Tube Data Sheet Included)

The PVS-7 is widely recognized for its unsurpassed dependability and ergonomic design. This U.S. Military-grade night vision goggle system has repeatedly proven its worth in combat, and is the highest-quality AN/PVS-7 B/D system on the market. The PVS-7 can be outfitted with high-performance Gen 2+ and Gen 3 image intensifier tubes (available in Green phosphor or P45 white phosphor). The builtin infrared illuminator provides a light source beyond the visible spectrum to enable the user to operate in complete darkness without being detected. Additionally, the PVS-7 has a bright light cut-off feature to protect the image tube from sources of intense light, and a flip-up shut-off feature that can be used with the optional helmet mount system. The PVS-7 has two LED indicators in the eyepiece for the IR illuminator on and low battery indicator. Lightweight, tough, and versatile, the PVS-7 can be handheld, or mounted to the user’s head/helmet. It is compatible with afocal magnifier lenses for superior long-range viewing.



Features:

  • Compact, rugged design/ Waterproof
  • Head or helmet-mountable for hands-free operation
  • Ergonomic, simple, easy-to-operate controls
  • Built-in Infrared illuminator and flood lens
  • Limited 2-Year Warranty



PACKAGE INCLUDES

  • Packing Box
  • Demist Shields
  • Sacrificial Window
  • Operators Manual
  • 2 AA Alkaline
  • Lens Tissue
  • Neck Lanyard
  • Head Mount Assembly
  • Soft Carrying Case
