Nocturn Gen 3 Molded Katana with Elbit 1800-2000 FOM tubes - Grade B

SKU
NOCTURN3-ELBIT6-18
$6,900.00
Add to Compare
0% APR for 6/12 months or interest bearing for 36 months*

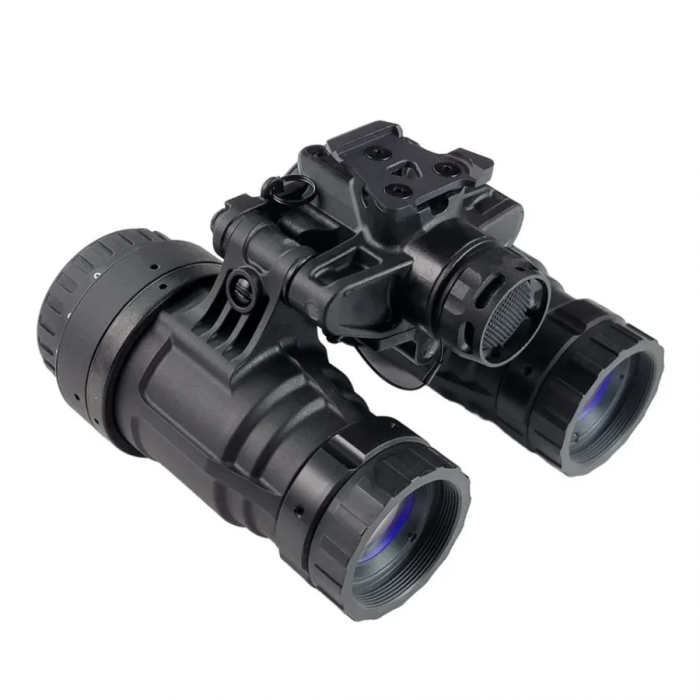

The Ultralight Articulating Night Vision Binocular (UANVB “Katana”) remains the lightest binocular on the market, with on board power, weighing in less than 15 oz fully built.  All Molded Katanas will included a LEMO 00B External Battery Port that works with the Nocturn Industries Batpack.

The articulating design allows for individual pod shut off, enabling the user to use one or both eyes while utilizing rail mounted, non-passive aiming systems. End users will be able to mount and dismount vehicles easier with the low profile of the UANVB when stowed. The UANVB features the original Friction Lock Interpupillary Adjustment feature so you can set it and forget it with no additional tools. This unit may be lightweight but does not compromise strength as it exceeds MIL-STD-810G and had been drop tested beyond NATO or TOP standards (6 feet to concrete in 6 different orientations on a single device).

Grade A- Clean or Zone 3 Spot

Grade B- Zone 1/2 Spots or Peppering

Category Specification Value
Sensor Type Uncooled
  Resolution, pixels 384×288
  Pixel pitch, µm 17
  Sensor NETD, mK < 25
  System NETD, mK < 18
  Frame rate, Hz 50
Optics Objective lens F19 / 1.0
  Magnification, x 1.5 – 6 (x4 digital zoom)
  FOV (HxV), degrees 19.5 × 12.3
  FOV (HxV), m @ 100 m 34.7 × 21.5
  Diopter Adjustment, D +4 / −5
  Eye relief, mm 14
Display Type AMOLED
  Resolution, pixels 640×400
Range Performance Detection range, m 750
Video Recorder Video / photo resolution, pixels 960×600
  Video / photo format .mp4 / .jpg
  Built-in memory, GB 64
Wi-Fi Wireless protocol Wi-Fi
  Wireless standard IEEE 802.11 b/g/n/ac
Environmental Characteristics Degree of protection IPX7 (waterproof)
  Operating temperature range, °C −25 – +40
Connections & Compatibility Mount type 1/4" socket
  Supported application Stream Vision 2
Power Supply Output voltage, V 3.0 – 4.2
  Battery type APS 3 Li-ion Battery Pack
  Capacity, mAh 3200
  Operating time on battery pack, h (at t=22°C) 8
  External power supply, V 5 (USB Type C)
Weight & Size Body material Aluminum alloy
  Dimensions, mm 134.5 × 38 × 71
  Weight, kg 0.25 (without battery)
SKU   77517

The Ultralight Articulating Night Vision Binocular (UANVB “Katana”) remains the lightest binocular on the market, with on board power, weighing in less than 15 oz fully built.  All Molded Katanas will included a LEMO 00B External Battery Port that works with the Nocturn Industries Batpack.

The articulating design allows for individual pod shut off, enabling the user to use one or both eyes while utilizing rail mounted, non-passive aiming systems. End users will be able to mount and dismount vehicles easier with the low profile of the UANVB when stowed. The UANVB features the original Friction Lock Interpupillary Adjustment feature so you can set it and forget it with no additional tools. This unit may be lightweight but does not compromise strength as it exceeds MIL-STD-810G and had been drop tested beyond NATO or TOP standards (6 feet to concrete in 6 different orientations on a single device).

Grade A- Clean or Zone 3 Spot

Grade B- Zone 1/2 Spots or Peppering
