Sightmark Wraith Mini 2-16x35 Thermal Riflescope

SKU
SM17001
$1,999.99
Financing options are available, please contact us to discuss
Add to Compare

The Wraith Mini Thermal offers the same peerless quality of Sightmark’s Wraith Mini digital night vision models on a digital thermal riflescope. The new Wraith Mini Thermal comes equipped with a powerful 384x288 sensor resolution which enhances imaging algorithms to create a crisp picture, a 1024x768 OLED display, a built-in video recorder with sound to capture the best moments of a hunt and a battery life of 3.5 hours on video mode and 4.4 hours on preview mode, the Wraith Mini Thermal proves to be a durable thermal scope with enhanced imaging capabilities and a long battery life for the field. With its 1400 yard detection range, 2x optical magnification and 1-8x digital zoom, the Wraith Mini Thermal is optimized for medium range engagements.



FEATURES:

  • 384X288 THERMAL RESOLUTION - Enhanced algorithms create crisp image quality
  • OLED DISPLAY - Rich color and cold temperature operation
  • 5 COLOR PALETTES (White Hot, Black Hot, Green Hot, Rainbow, Magenta) - Various modes for improved contrast for various scenarios/preferences
  • 10 RETICLES - Multiple reticles for preferences from minimalist design to complex for holdevers
  • 9 RETICLE COLORS - Creates contrast between reticle and object for quicker aiming
  • LIGHTWEIGHT AND COMPACT - Reduces overall firearm weight
  • 5 WEAPON PROFILES - Ability to hold multiple zeroes for different bullet grains or weapons
  • Built-in Recording w/ Sound - Relive or share the experience with sound
Electronic components
Type of sensor Thermal Sensor
Sensor resolution, pixels   384x288
Display type OLED
Display Resolution 1024x768
Built-In Video Recorder Availability Yes
Maximum memory card supported, Gb 256
Pixel Pitch (µm) 17
Spectral Range (μm) 8-14
NEDT (50 Hz, 300 K, F/1) (mK) 40
Optical characteristics
Magnification  2x optical
Aperture F1
Lens diameter, mm  35
Digital zoom  1-8x
Field of View (degrees) 13
Detection Range (yards/meters) 1400
Eye Relief, in/mm  2.4 / 60
Diopter adjustment, dptr. -3 to +3
Power Supply
Power Supply, v 6
Battery type 2x CR123A
Battery life 3.5Hrs Video Mode/ 4.4Hrs Preview Mode
External Power Supply 5V via USB
Physical & operational characteristics
Body Material Aluminum
Accessory rail mount  Accessory rail mount
Length, in/mm (with flip up caps) 6.653/169
Width, in/mm 3.031/77
Height, in/mm 2.913/74
Weight, oz 19.3 oz
Operating Temperature Range -20C - 50C
Electronic components
Type of sensor Thermal Sensor
Sensor resolution, pixels   384x288
Display type OLED
Display Resolution 1024x768
Built-In Video Recorder Availability Yes
Maximum memory card supported, Gb 256
Pixel Pitch (µm) 17
Spectral Range (μm) 8-14
NEDT (50 Hz, 300 K, F/1) (mK) 40
Optical characteristics
Magnification  2x optical
Aperture F1
Lens diameter, mm  35
Digital zoom  1-8x
Field of View (degrees) 13
Detection Range (yards/meters) 1400
Eye Relief, in/mm  2.4 / 60
Diopter adjustment, dptr. -3 to +3
Power Supply
Power Supply, v 6
Battery type 2x CR123A
Battery life 3.5Hrs Video Mode/ 4.4Hrs Preview Mode
External Power Supply 5V via USB
Physical & operational characteristics
Body Material Aluminum
Accessory rail mount  Accessory rail mount
Length, in/mm (with flip up caps) 6.653/169
Width, in/mm 3.031/77
Height, in/mm 2.913/74
Weight, oz 19.3 oz
Operating Temperature Range -20C - 50C

The Wraith Mini Thermal offers the same peerless quality of Sightmark’s Wraith Mini digital night vision models on a digital thermal riflescope. The new Wraith Mini Thermal comes equipped with a powerful 384x288 sensor resolution which enhances imaging algorithms to create a crisp picture, a 1024x768 OLED display, a built-in video recorder with sound to capture the best moments of a hunt and a battery life of 3.5 hours on video mode and 4.4 hours on preview mode, the Wraith Mini Thermal proves to be a durable thermal scope with enhanced imaging capabilities and a long battery life for the field. With its 1400 yard detection range, 2x optical magnification and 1-8x digital zoom, the Wraith Mini Thermal is optimized for medium range engagements.

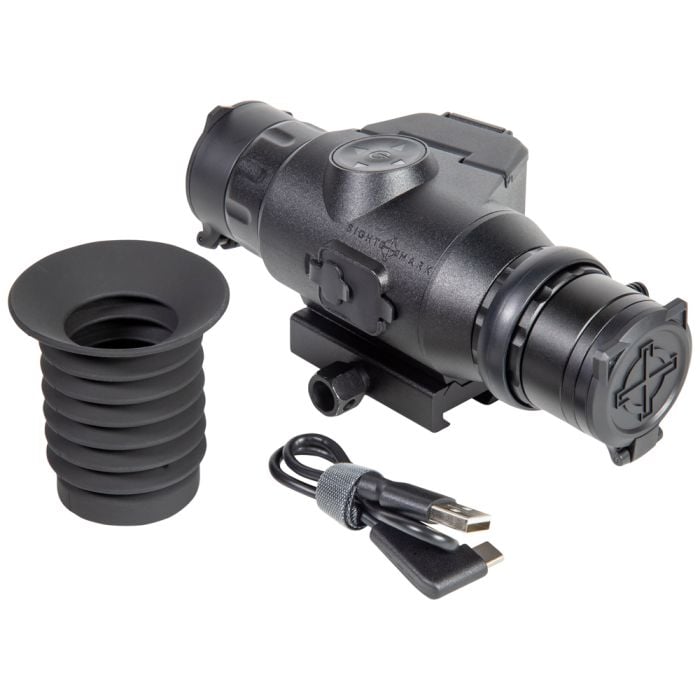

ACCESSORIES:

  • Flip-up Covers (Front and Back)
  • Removable Throw Lever
  • Rubber Eyecup
  • 2x CR123A
  • USB Cable

FEATURES:

  • 384X288 THERMAL RESOLUTION - Enhanced algorithms create crisp image quality
  • OLED DISPLAY - Rich color and cold temperature operation
  • 5 COLOR PALETTES (White Hot, Black Hot, Green Hot, Rainbow, Magenta) - Various modes for improved contrast for various scenarios/preferences
  • 10 RETICLES - Multiple reticles for preferences from minimalist design to complex for holdevers
  • 9 RETICLE COLORS - Creates contrast between reticle and object for quicker aiming
  • LIGHTWEIGHT AND COMPACT - Reduces overall firearm weight
  • 5 WEAPON PROFILES - Ability to hold multiple zeroes for different bullet grains or weapons
  • Built-in Recording w/ Sound - Relive or share the experience with sound
