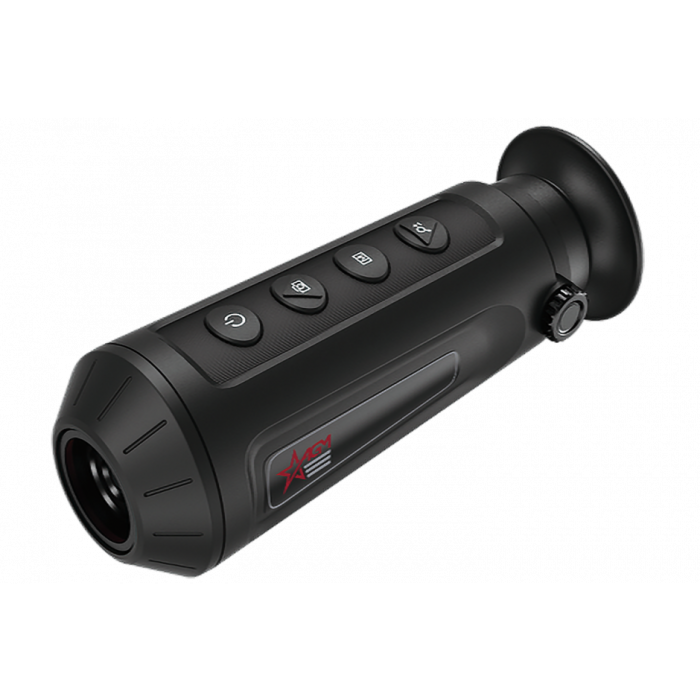

AGM TAIPAN TM10-256 Thermal Imaging Monocular

SKU
3092851013TA01
This product is no longer available

AGM TAIPAN TM10-256 Thermal Imaging Monocular



The Taipan-256 handheld observational thermal imaging monocular is equipped with a 256×192 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.



FEATURES:

  • 256×192 resolution, 12 μm, high sensitivity detector
  • Adaptive AGC, DDE, 3D DNR
  • 720 × 540 LCOS display
  • Built-in rechargeable Lithium battery
  • Up to 8 hours continuous running (with Wi-Fi hotspot function off)
  • “Auto Power Off” and “Sleep” modes
  • Wi-Fi hotspot
  • Type-C interface
  • Limited 3-year warranty



FUNCTIONS

  • Distance Measurement: The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
  • Hot Spot Mark: The device detects and marks the hot spot of highest temperature.
  • Mode Switch: Device supports pallet switch and distance measurement.
  • Storage: Built-in memory module supports video recording/snapshot capturing.
  • Digital Zoom: Device supports 1×, 2×, 4×, and 8× digital zoom.
  • Wi-Fi Hotspot: Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.

AGM TAIPAN TM10-256 Thermal Imaging Monocular



Detector Type Vanadium Oxide Uncooled Focal Plane Arrays
Resolution
256×192
Pixel Interval 12 μm
Refresh Rate
25 Hz
Response Waveband 8μm to 14μm
NETD Less than 35 mk (@25°C), F#=1.0
Detection Range 458 m
Lens (Focal Length) 10 mm
Aperture F1.0
Field of View 18.00° × 13.55° (H × V)
Magnification 1× to 8×
Digital Zoom 1×, 2×, 4×, 8×
Monitor 720×540, 0.2 inch, LCOS
FFC (Flat Field Correction) Auto, Manual, External Correction
Palettes
Black Hot, White Hot, Red Hot, Fusion
Highest Temperature Spot Tracking Yes
Wi-Fi Hotspot Yes
Standby Mode Yes
Storage Built-in memory module (8 GB)
Record Video
On-board video recording
Capture Snapshot Yes
CVBS Output Yes (via USB)
Multi Language menu Yes
Battery Type Built-in rechargeable Lithium battery

Battery Operating Time



Up to 8 hours continuous running

(with Wi-Fi hotspot function off)

Battery Capacity Display Yes
Power 5 VDC/2 A, 1.5 W
Interface USB Type-C
Working Temperature -20°C to 55°C (-4°F to 131°F)
Protection Level IP67
Drop Test Height 1.5 m (4.9 feet)
Dimension 158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)
Weight 260 g (0.57 lb)

AGM TAIPAN TM10-256 Thermal Imaging Monocular



The Taipan-256 handheld observational thermal monocular is equipped with a 256×192 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.



FEATURES:

  • 256×192 resolution, 12 μm, high sensitivity detector
  • Adaptive AGC, DDE, 3D DNR
  • 720 × 540 LCOS display
  • Built-in rechargeable Lithium battery
  • Up to 8 hours continuous running (with Wi-Fi hotspot function off)
  • “Auto Power Off” and “Sleep” modes
  • Wi-Fi hotspot
  • Type-C interface
  • Limited 3-year warranty



FUNCTIONS

  • Distance Measurement: The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
  • Hot Spot Mark: The device detects and marks the hot spot of highest temperature.
  • Mode Switch: Device supports pallet switch and distance measurement.
  • Storage: Built-in memory module supports video recording/snapshot capturing.
  • Digital Zoom: Device supports 1×, 2×, 4×, and 8× digital zoom.
  • Wi-Fi Hotspot: Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.



Detector Type Vanadium Oxide Uncooled Focal Plane Arrays
Resolution
256×192
Pixel Interval 12 μm
Refresh Rate
25 Hz
Response Waveband 8μm to 14μm
NETD Less than 35 mk (@25°C), F#=1.0
Detection Range 458 m
Lens (Focal Length) 10 mm
Aperture F1.0
Field of View 18.00° × 13.55° (H × V)
Magnification 1× to 8×
Digital Zoom 1×, 2×, 4×, 8×
Monitor 720×540, 0.2 inch, LCOS
FFC (Flat Field Correction) Auto, Manual, External Correction
Palettes
Black Hot, White Hot, Red Hot, Fusion
Highest Temperature Spot Tracking Yes
Wi-Fi Hotspot Yes
Standby Mode Yes
Storage Built-in memory module (8 GB)
Record Video
On-board video recording
Capture Snapshot Yes
CVBS Output Yes (via USB)
Multi Language menu Yes
Battery Type Built-in rechargeable Lithium battery

Battery Operating Time



Up to 8 hours continuous running

(with Wi-Fi hotspot function off)

Battery Capacity Display Yes
Power 5 VDC/2 A, 1.5 W
Interface USB Type-C
Working Temperature -20°C to 55°C (-4°F to 131°F)
Protection Level IP67
Drop Test Height 1.5 m (4.9 feet)
Dimension 158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)
Weight 260 g (0.57 lb)
