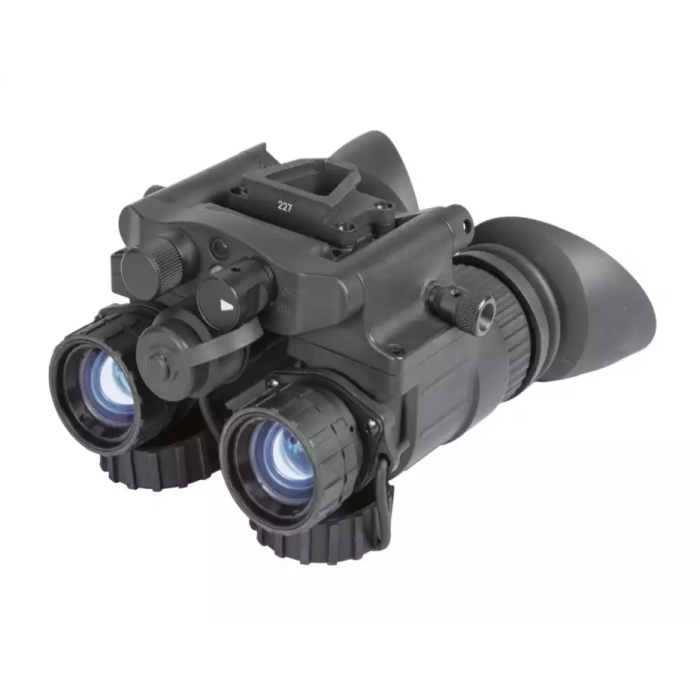

AGM NVG-40 3AW1 Dual Tube Night Vision Goggle/Binocular with FOM 1400-1800 Gen 3+ Auto-Gated P45-White Phosphor "Level 1" IIT. Made in USA

SKU
14NV4123414111
$7,995.00
Add to Compare
0% APR for 6/12 months or interest bearing for 36 months*

AGM NVG-40 3AW1  Dual Tube Night Vision Goggle/Binocular with FOM 1400-1800 Gen 3+ Auto-Gated P45-White Phosphor "Level 1" IIT. Made in USA

The AGM NVG-40 is a dual-channel night vision system. With a 40° field of view, it provides a large visual field without needing to move the binoculars. The NVG-40 uses advanced multi-coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.

Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.

NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.

Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount



Features:

  • Redundant dual-tube design
  • True stereoscopic vision
  • Lightweight & compact
  • Head or helmet mountable for hands-free operation
  • Bright light cut-off
  • Ergonomic, simple, easy to operate controls
  • Built-in Infrared illuminator and flood lens
  • Utilizes single CR123A lithium or AA battery
  • Limited 3-year warranty



PACKAGE INCLUDES

  • NVG Interface Shoe
  • Bayonet/Horn Interface Shoe
  • Demist Shield (2)
  • Sacrificial Window
  • Soft Carrying Case
  • Lens Tissue
  • Packing Box
  • Battery Adapter
  • User Manual
Image Intensifier Tube Gen 3 Auto-Gated "White Phosphor Level 1"
Resolution 64-72 lp/mm
Field of view cleanness by zone Gen 2 IIT NL2 is the second-best quality offered by AGM, very limited number of spots in Zone 1.
Magnification 1x
Lens System 27 mm, F/1.3
FOV 40°
Focus Range 0.25 m to Infinity
Diopter Adjustment -6 to +2 diopters
Led Indicators Low Battery IR On Excessive Light Conditions
Automatic Brightness Control Yes
Infrared Illuminator Yes
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes
Battery Type One CR123A (3V) or AA (1.5 V)
Battery Life (Operating) Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)
Operating Temperature Range -40°C to +50°C (-40°F to +122°F)
Storage Temperature Range -50°C to +70°C (-58°F to +158°F)
Weight 645 g (1.42 lbs)
Overall Dimensions 115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)

AGM NVG-40 3AW1  Dual Tube Night Vision Goggle/Binocular with FOM 1400-1800 Gen 3+ Auto-Gated P45-White Phosphor "Level 1" IIT. Made in USA

The AGM NVG-40 is a dual-channel night vision system. With a 40° field of view, it provides a large visual field without needing to move the binoculars. The NVG-40 uses advanced multi-coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.

Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.

NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.

Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount



Features:

  • Redundant dual-tube design
  • True stereoscopic vision
  • Lightweight & compact
  • Head or helmet mountable for hands-free operation
  • Bright light cut-off
  • Ergonomic, simple, easy to operate controls
  • Built-in Infrared illuminator and flood lens
  • Utilizes single CR123A lithium or AA battery
  • Limited 3-year warranty



PACKAGE INCLUDES

  • NVG Interface Shoe
  • Bayonet/Horn Interface Shoe
  • Demist Shield (2)
  • Sacrificial Window
  • Soft Carrying Case
  • Lens Tissue
  • Packing Box
  • Battery Adapter
  • User Manual
